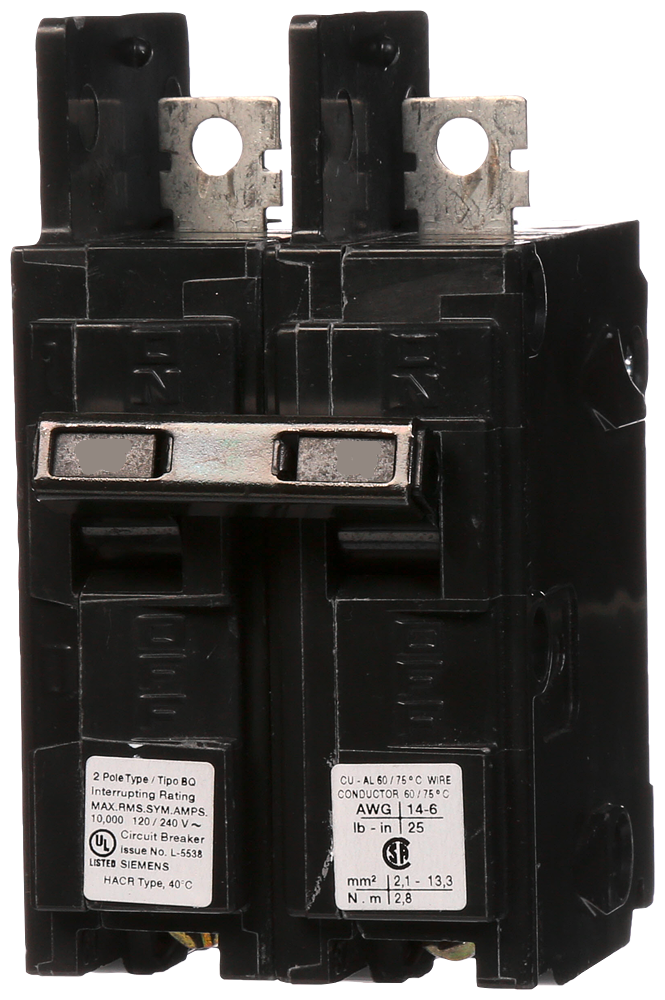

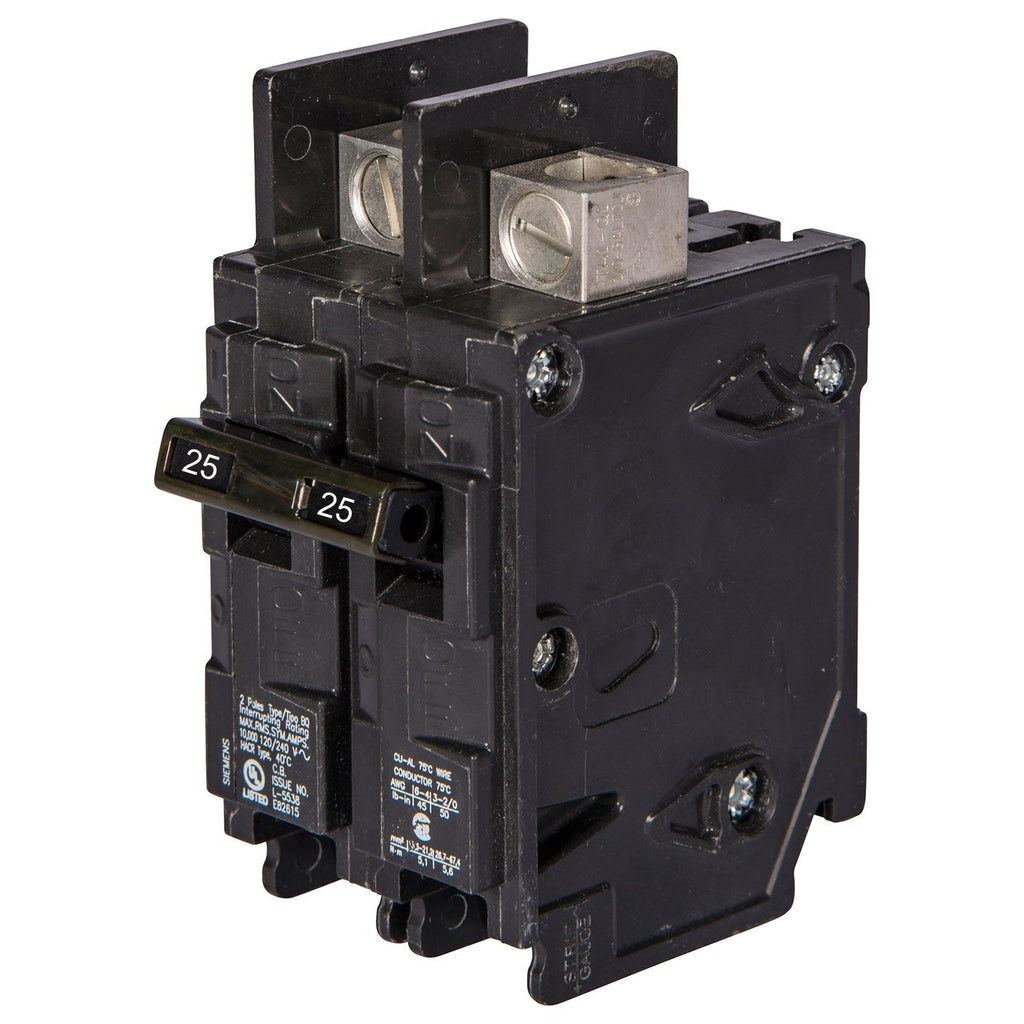

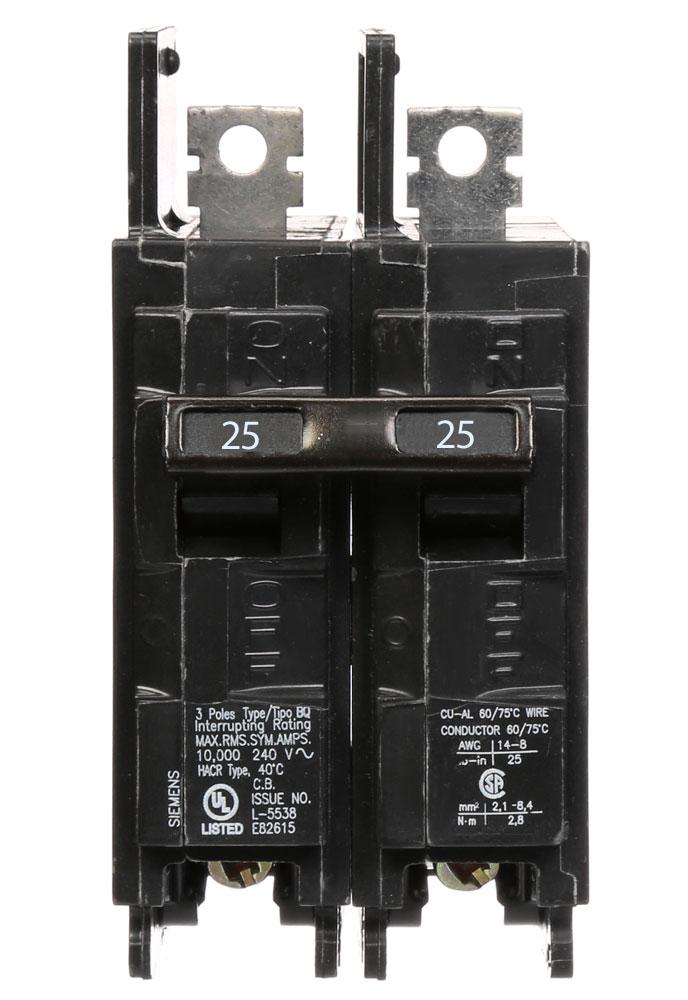

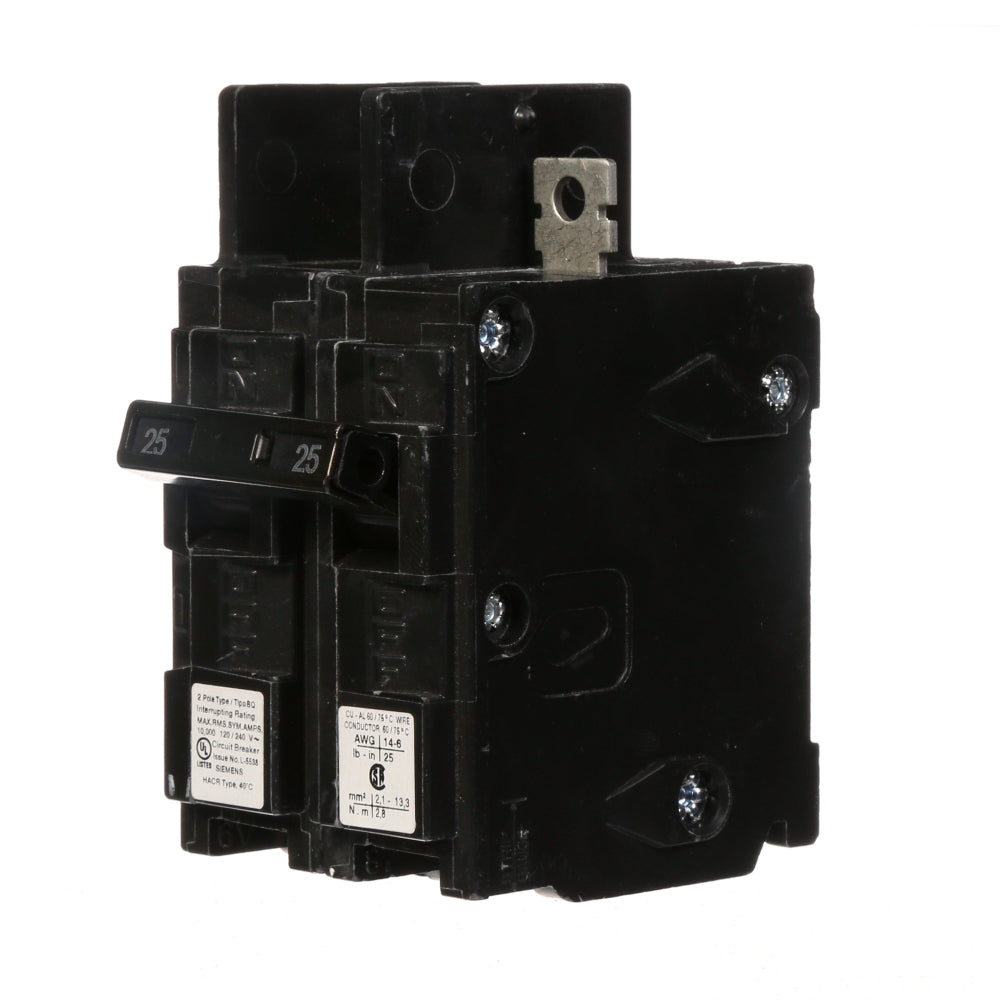

BQ2B025 - Siemens 25 Amp 240 Volt 2 Pole BQ Series Bolt-On Circuit Breaker

BQ2B025

BQ2B025 is a Siemens 25 Amp, 240 Volt, 2 Pole Bolt-On Circuit Breaker from the BQ Series designed for reliable electrical protection.This Siemens BQ2B025 molded case circuit breaker features a thermal magnetic trip unit with a 10,000 Amp interrupt rating at 120/240 VAC. It is a bolt-on type breaker with 2 poles, suitable for residential and light commercial electrical panels. The breaker is UL listed and CSA approved, ensuring compliance with safety standards.

Key Specifications
• Manufacturer: Siemens
• Part Number: BQ2B025
• Amperage: 25 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 Amps
• Trip Unit: Thermal Magnetic
• Series/Frame: BQ Series
• Certifications: UL Listed, CSA Approved
• Dimensions: Approximately 4" H x 2" W x 3" L
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BQ2B025
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120/240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 783643161191
• GTIN : 00783643161191
• Country of Origin : Mexico
• Dimensions : 2.571 x 2.00 x 3.736 inch
• Weight : 0.617
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
