Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ2B015L

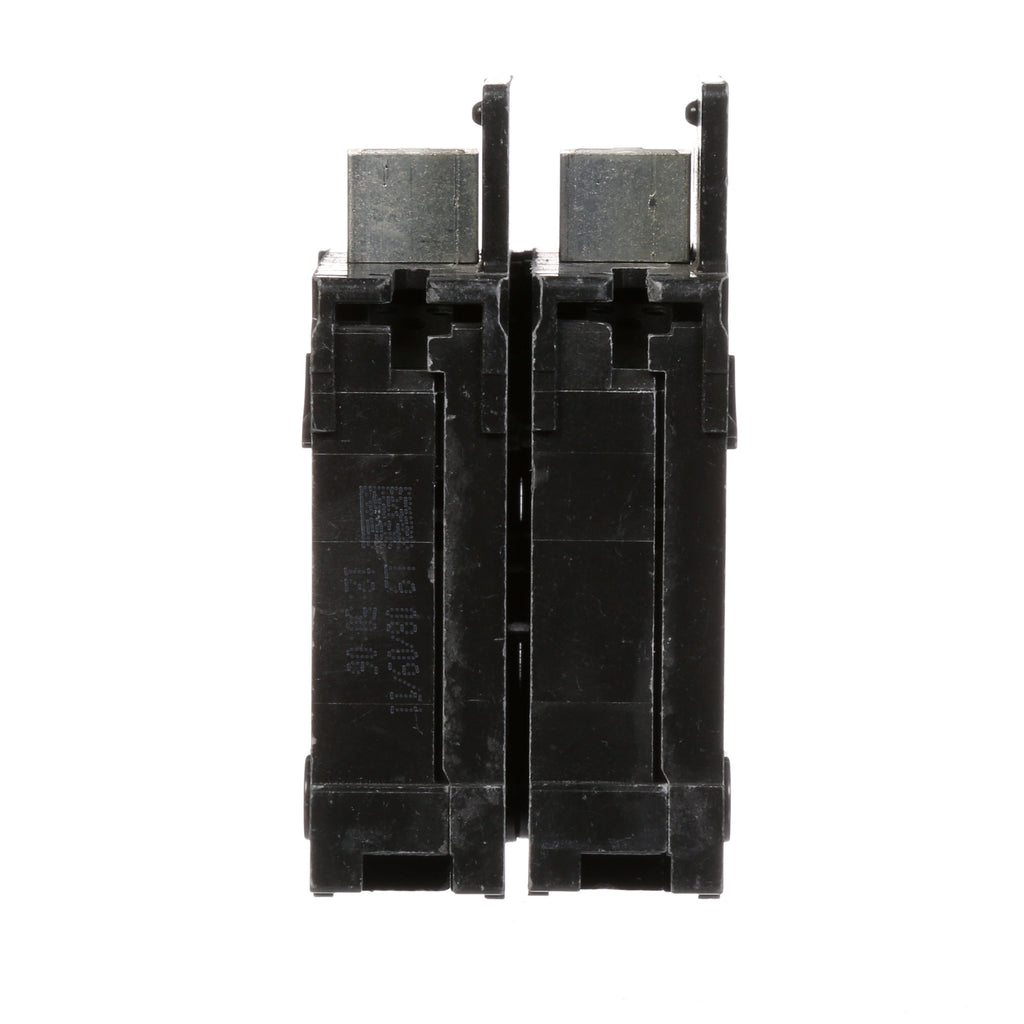

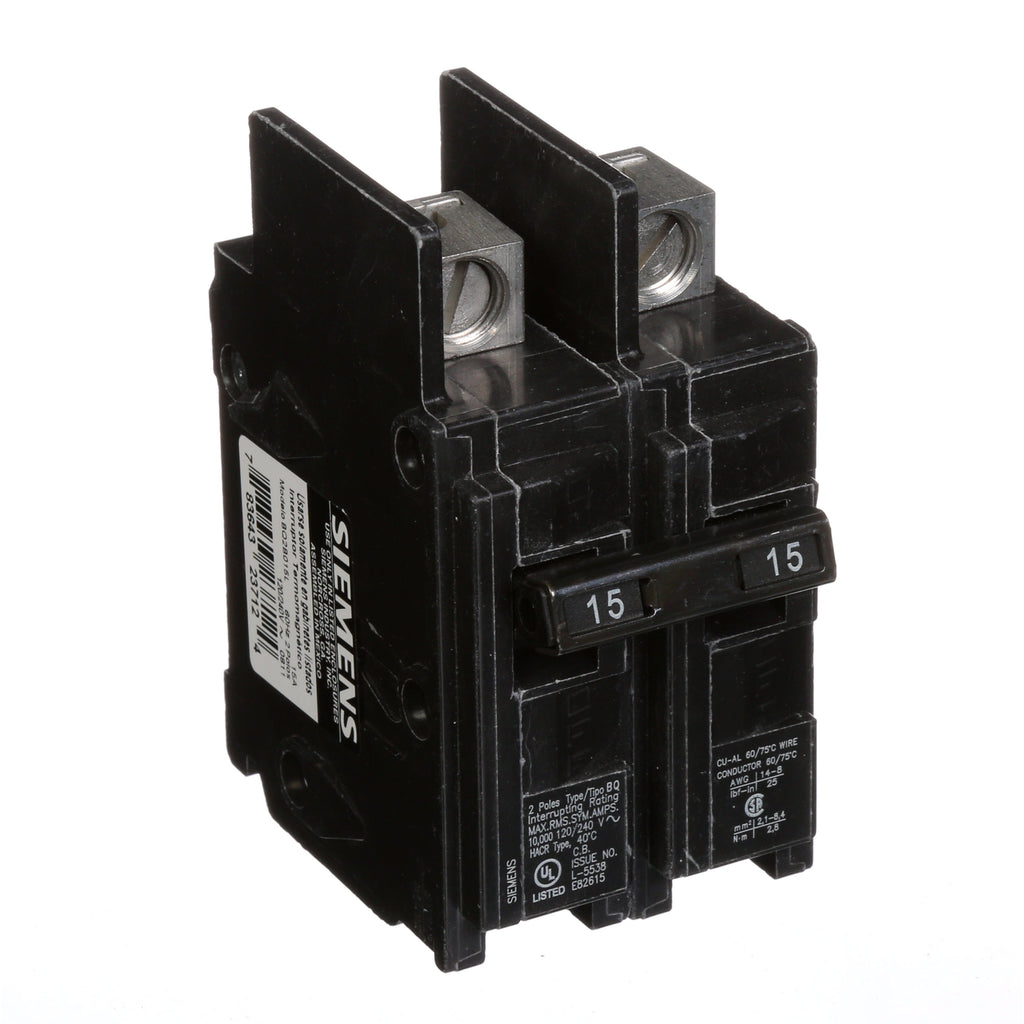

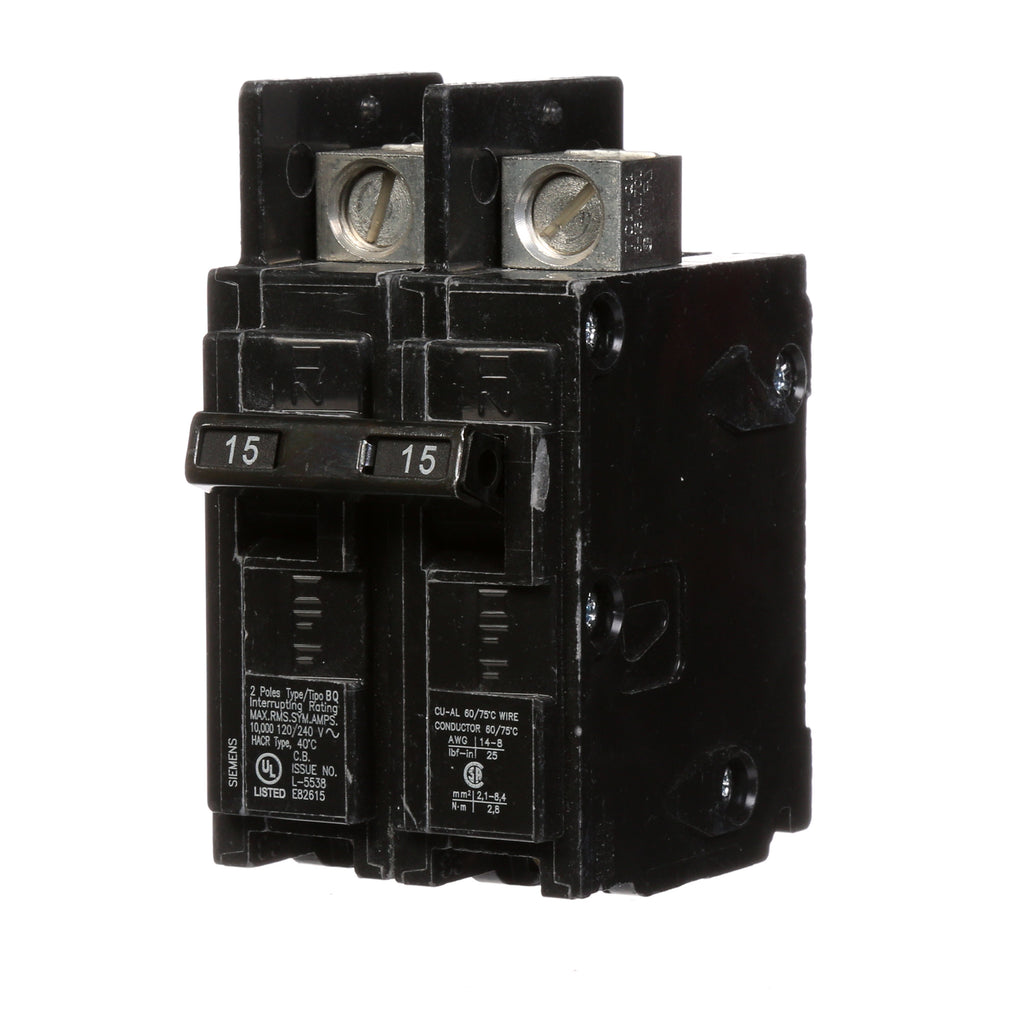

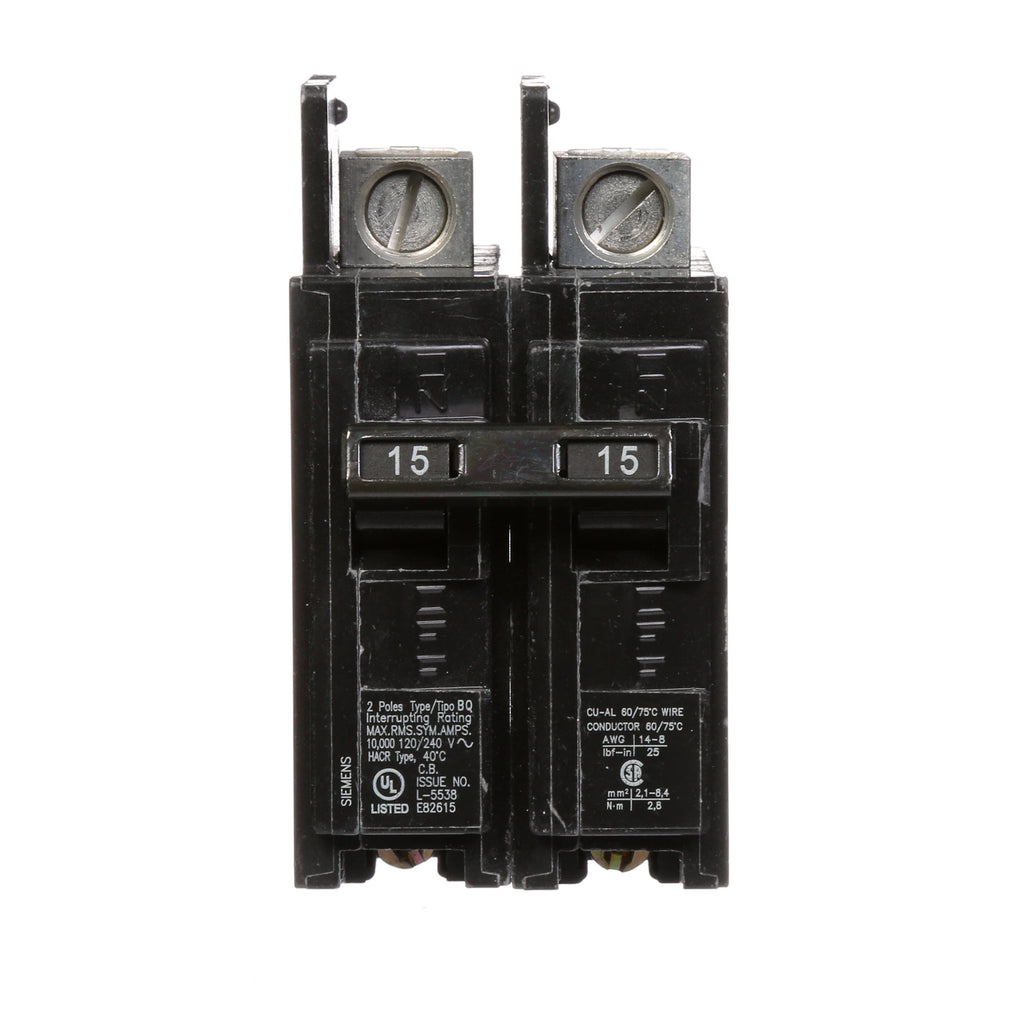

BQ2B015L - Siemens Type BQ 2-pole molded case circuit breaker rated at 15A, 120/240V with 10kA interrupt capacity.This low voltage molded case circuit breaker features thermal-magnetic trip technology, BQ frame, and includes load side lugs for convenient installation in panelboards and load centers. It provides reliable overcurrent protection at 120/240 VAC, 60 Hz, with 15A rating at 40 degrees C.
- Part Number: BQ2B015L
- Manufacturer: Siemens
- Type: Molded Case Circuit Breaker
- Frame/Series: BQ
- Amperage: 15A
- Voltage: 120/240 VAC
- Poles: 2
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 10 kA AIR
- Certifications: UL 489, HACR Rated
Specifications
- Part Number: BQ2B015L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 240
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237124
- GTIN : 00783643237124
- Country of Origin : Mexico
- Dimensions : 2.571 x 2.00 x 3.736 inch
- Weight : 0.617
- Panel Type : Siemens Panelboards
- Standards : HACR Rated, UL Listed
- Certification : CSA, HACR, UL
