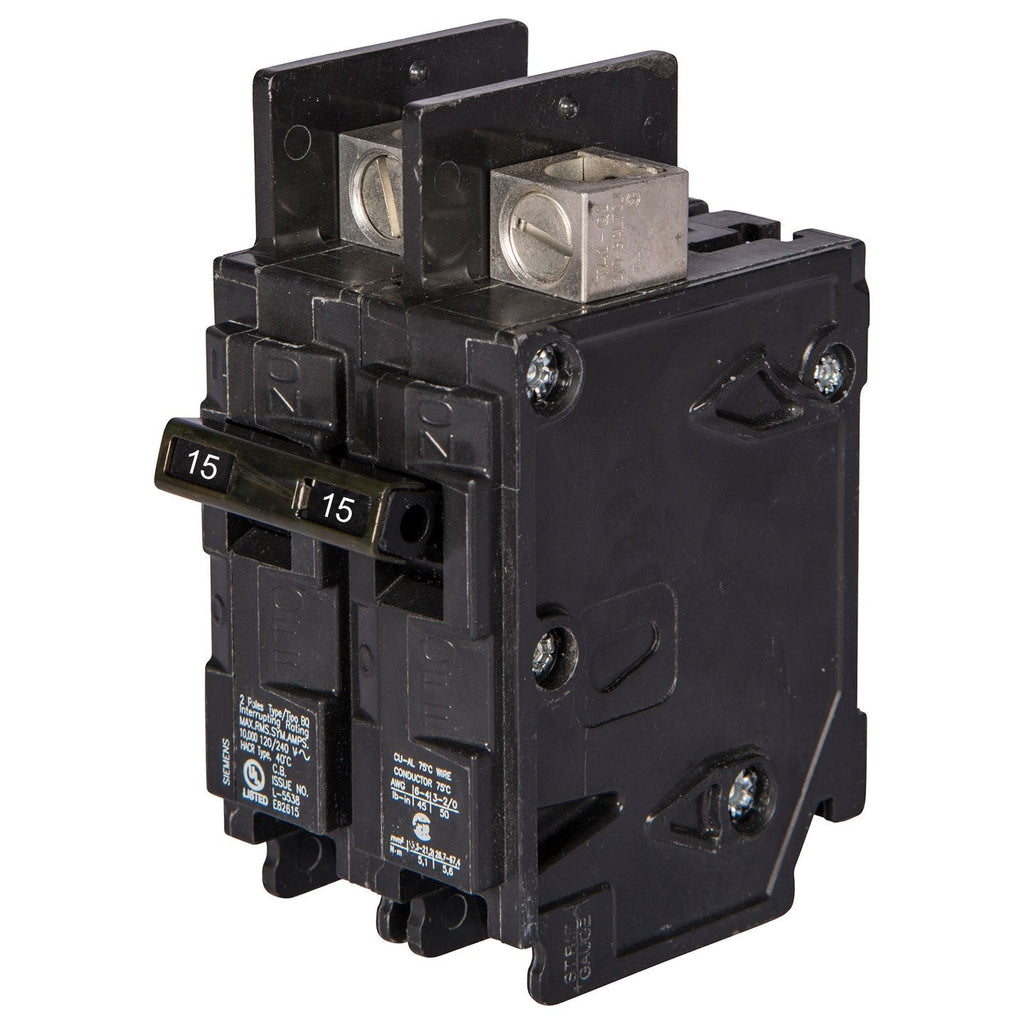

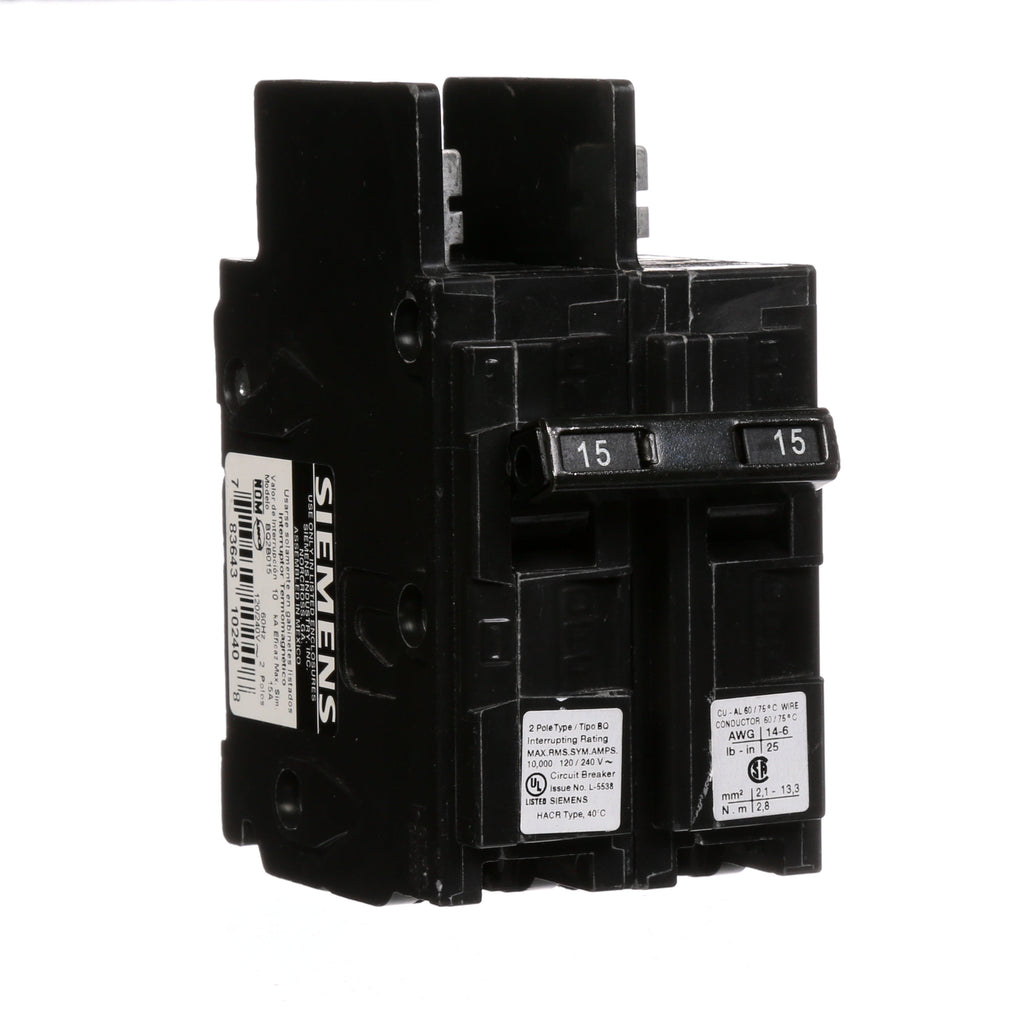

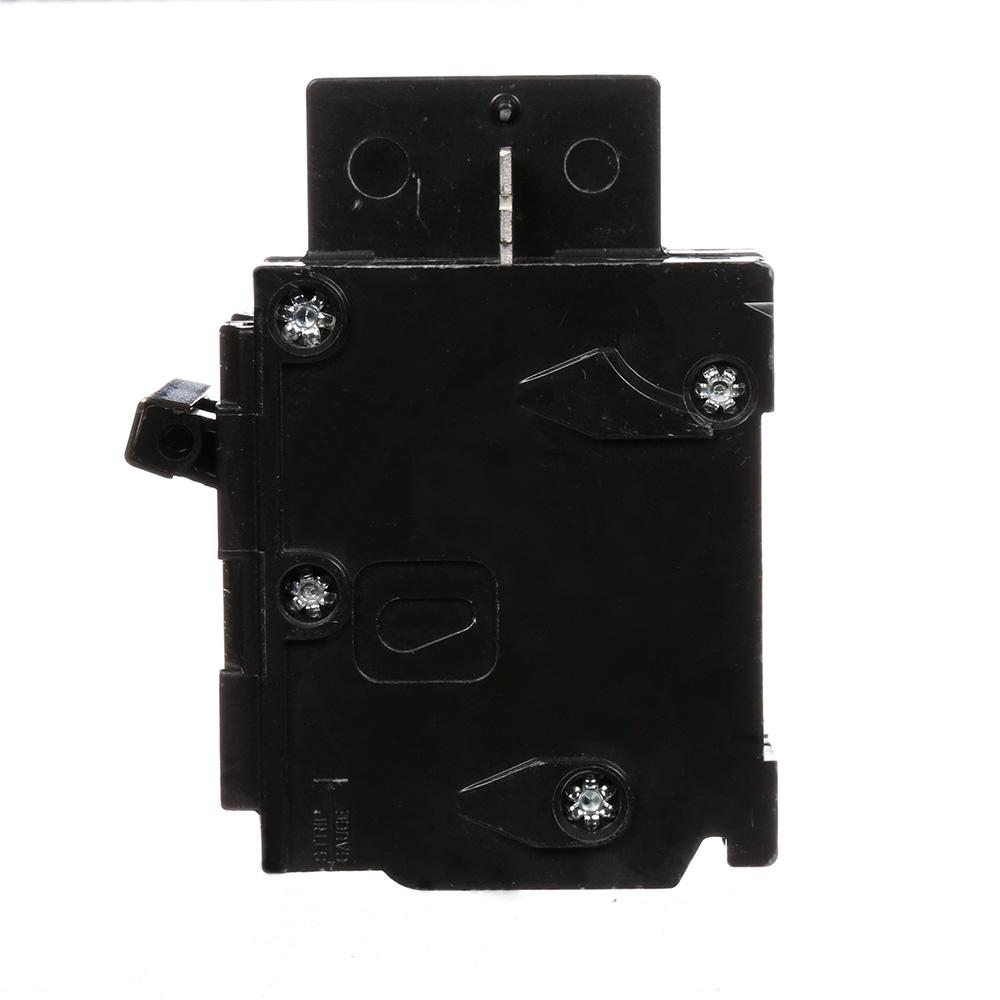

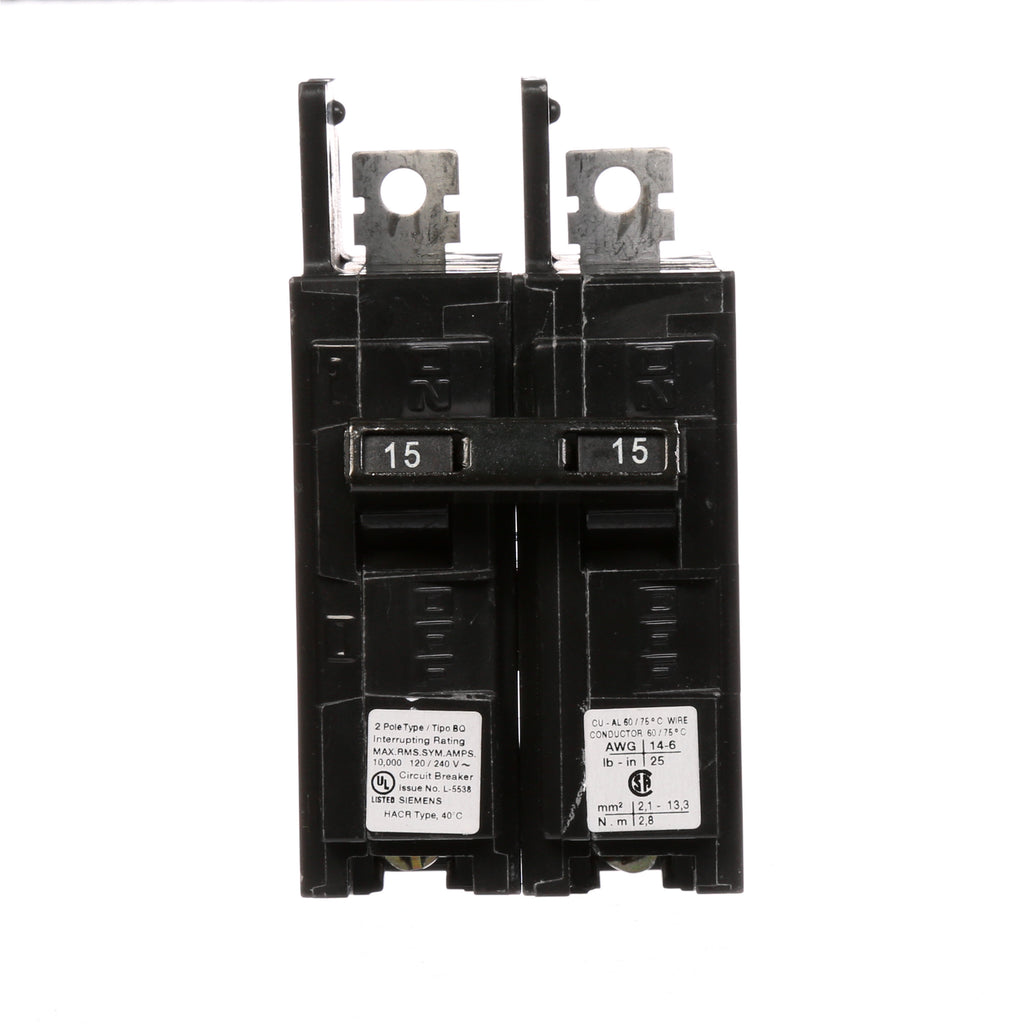

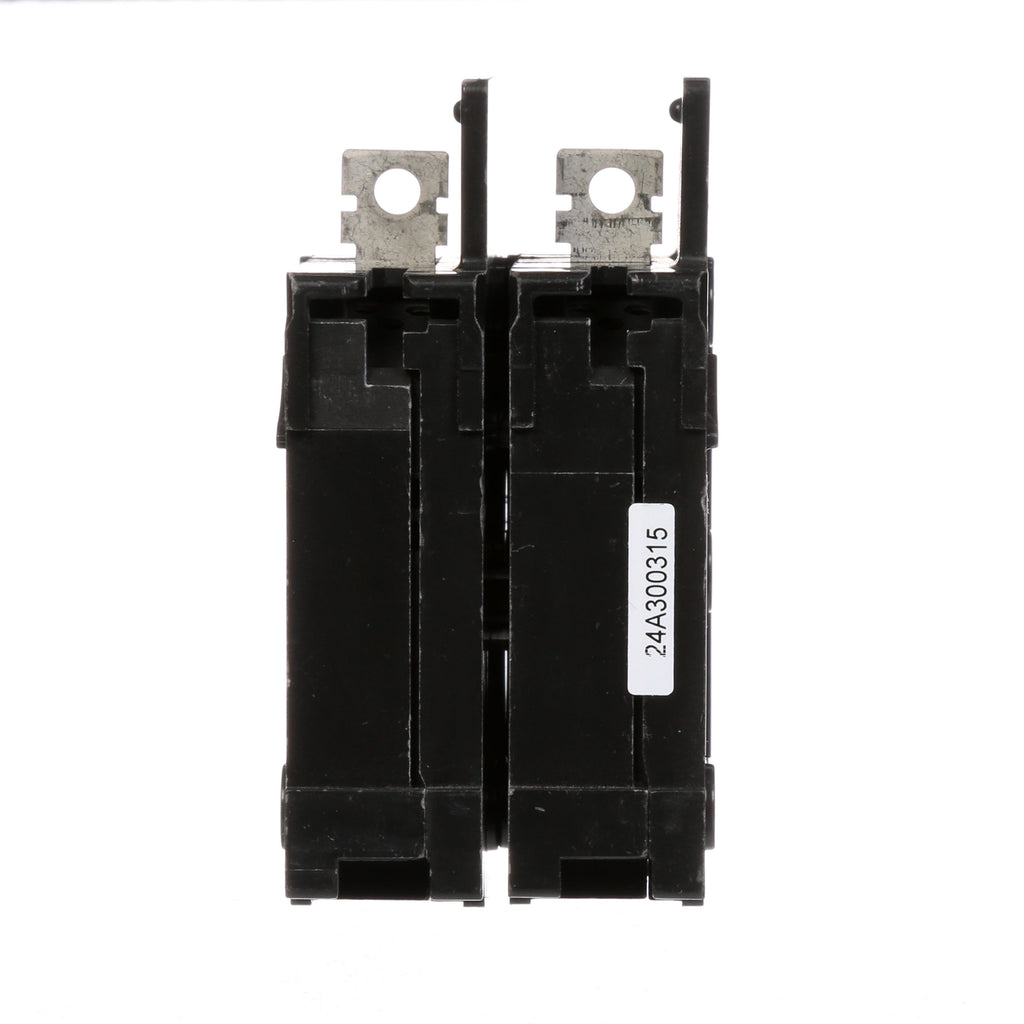

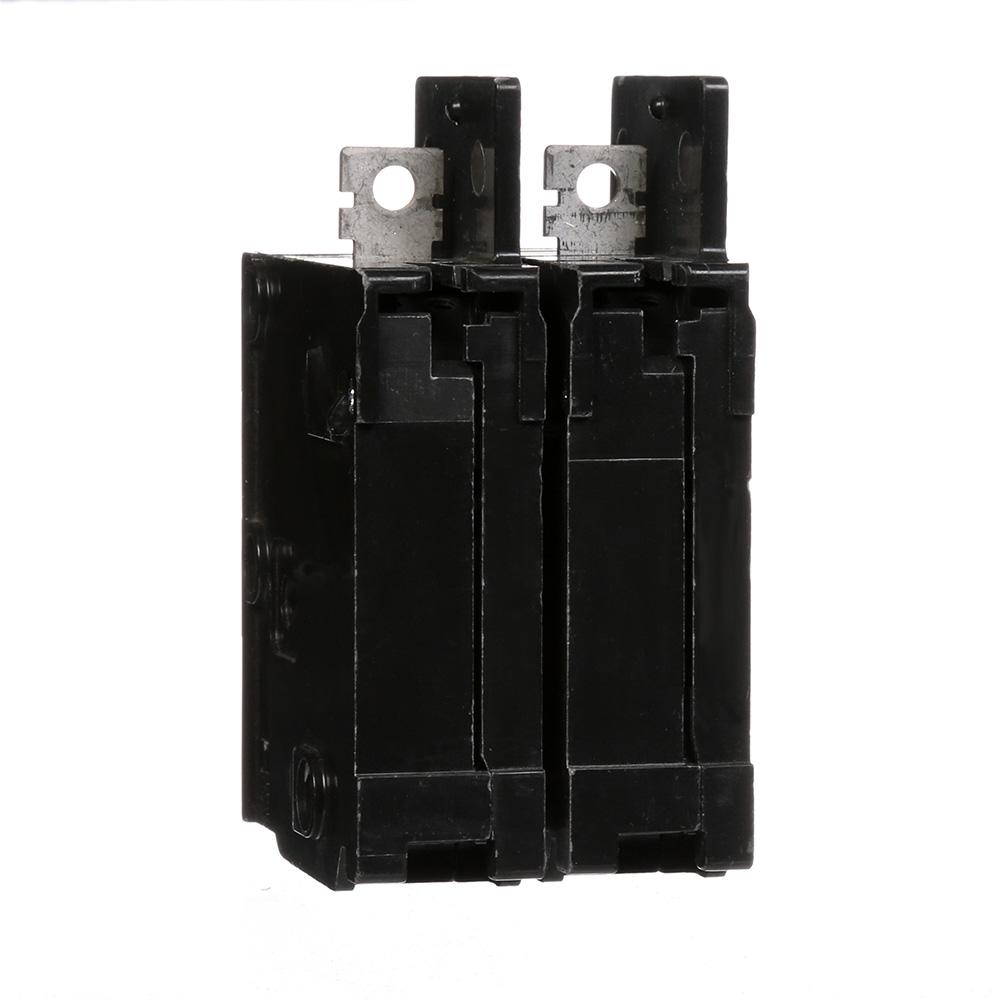

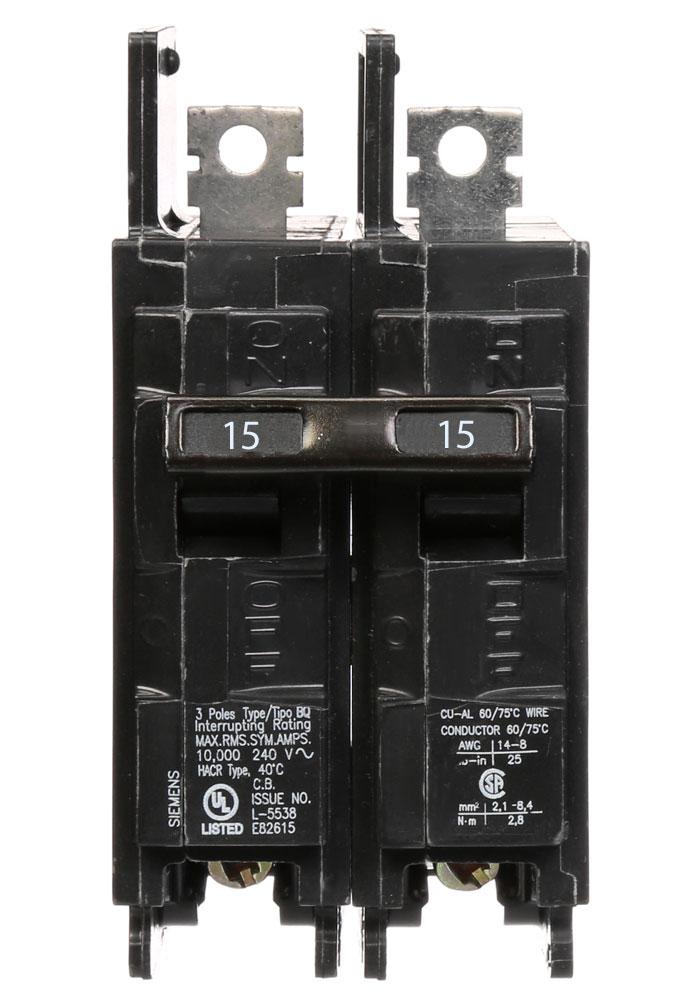

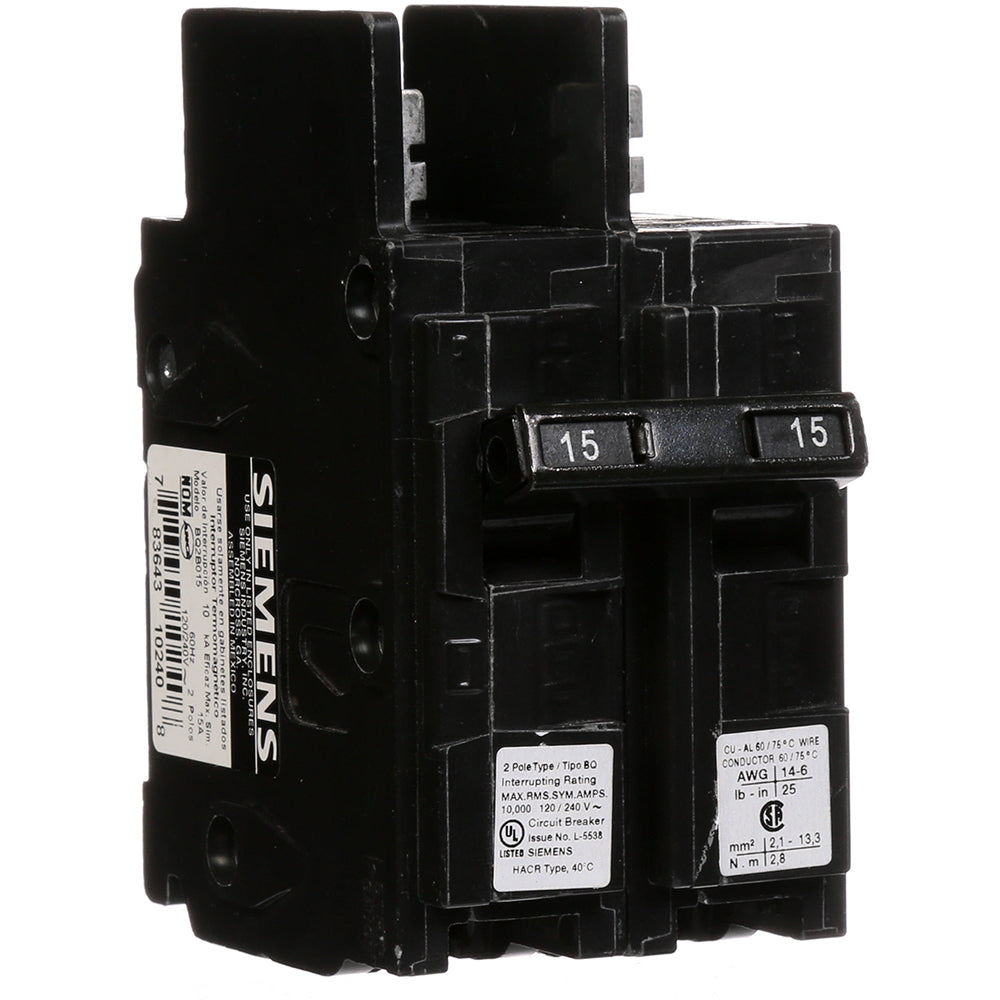

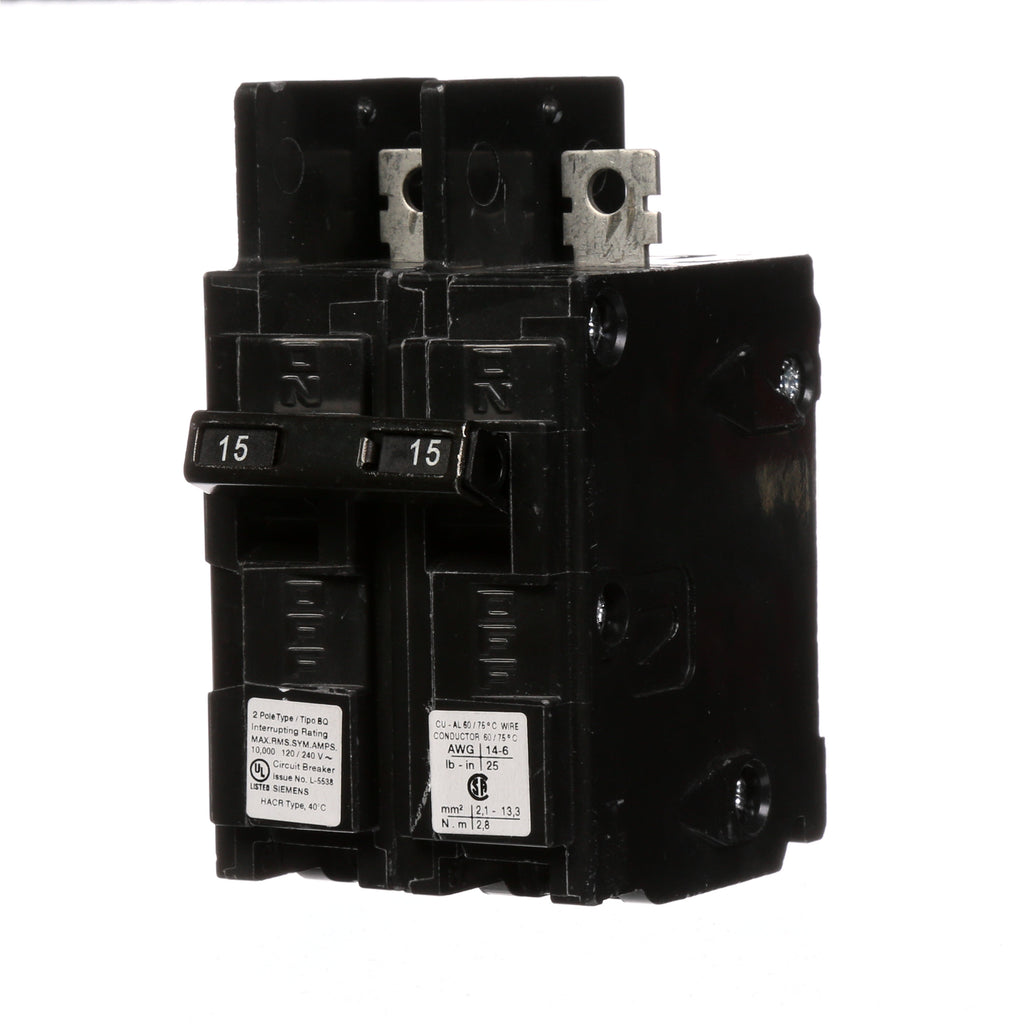

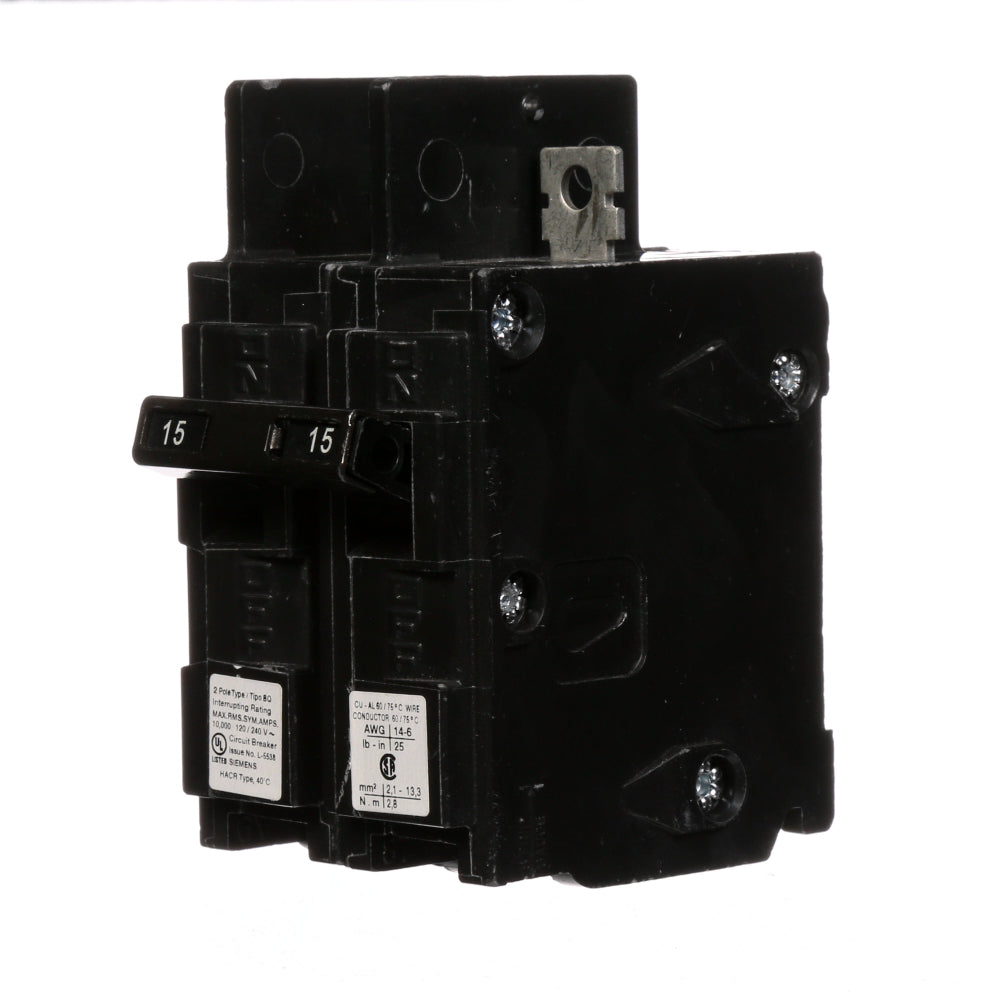

BQ2B015 - Siemens 15 Amp 2-Pole 120/240V 10kAIC Type BQ Bolt-On Molded Case Circuit Breaker, Thermal Magnetic Trip

BQ2B015

BQ2B015 Siemens 15 Amp 2-Pole 120/240V molded case circuit breaker delivers reliable circuit protection for commercial and industrial applications.

This Siemens Type BQ low voltage molded case circuit breaker features a thermal magnetic trip mechanism, non-interchangeable trip unit, and bolt-on mounting for secure installation. It is designed for general purpose use in power distribution panels where dependable overcurrent protection is required.

Key Specifications
• Amperage: 15 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC
• Series/Frame: Type BQ
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Certifications: Not specified
• Frequency: 60 Hz
• Connection: Lug-style (in and out)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ2B015
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643102408
• GTIN : 00783643102408
• Country of Origin : Mexico
• Dimensions : 3.937 x 2.756 x 1.969 inch
• Weight : 0.617
• Panel Type : Siemens Panelboards
• Standards : HACR Rated, UL Listed
• Certification : CSA, HACR, UL
