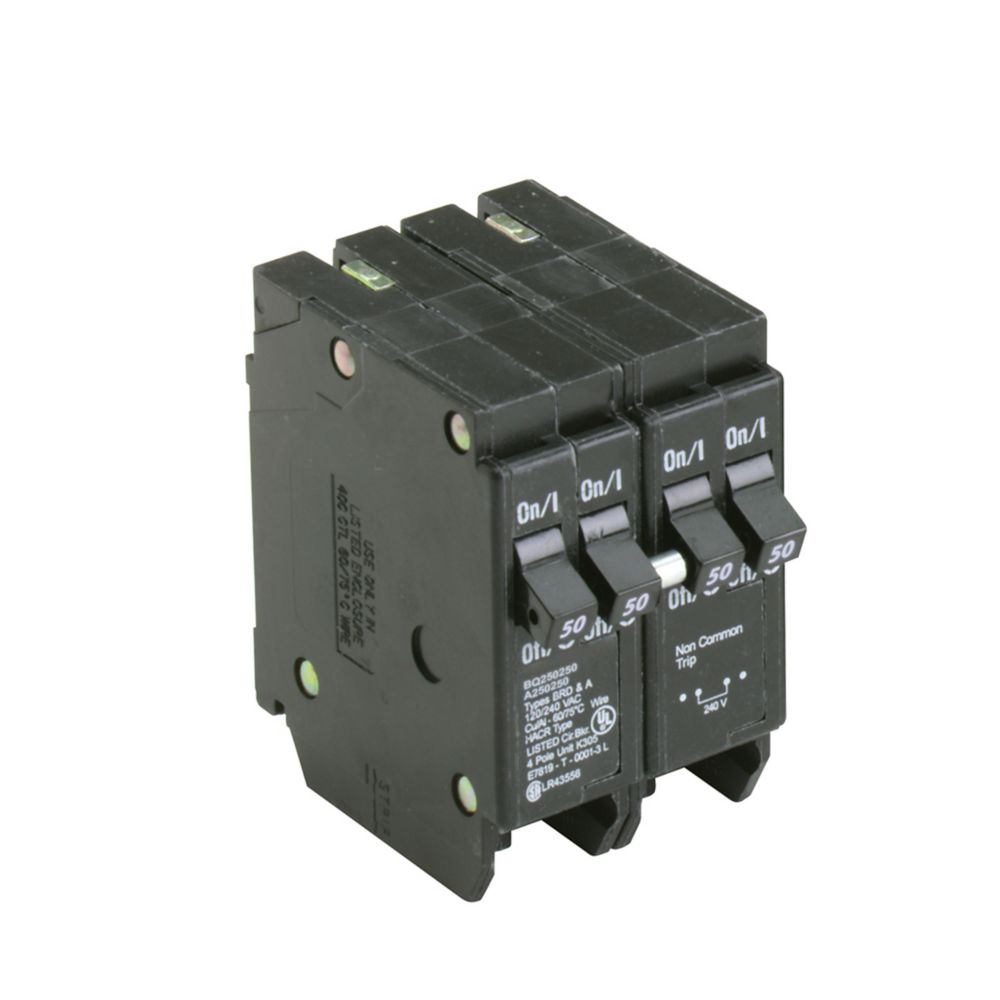

BQ250250 - Cutler Hammer 50/50 Amp 4-Pole 120/240V Plug-On Circuit Breaker 10kAIC HACR Rated

BQ250250

BQ250250 - Eaton Type BQ 1-inch CTL plug-on quadplex circuit breaker with rejection tab feature, (2) two-pole 50A independent trip.This thermal magnetic circuit breaker fits Type BR loadcenters, rated 120/240V with 10 kAIC interrupt capacity, accepts #14-4 AWG Cu/Al wire, UL 489 certified and suitable for HACR applications.

• Part Number: BQ250250
• Manufacturer: Eaton
• Type: BQ 1-Inch CTL plug-on
• Poles: Four-pole
• Amperage: (2) Two-Pole 50A
• Voltage: 120/240V
• Mounting: Plug-on
• Interrupt Rating: 10 kAIC
• Trip Type: Independent
• Wire Size: #14-4 AWG Cu/Al
• Certifications: UL 489
• Special Features: Rejection tab

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ250250
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676371254
• GTIN : 00786676371254
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C375
