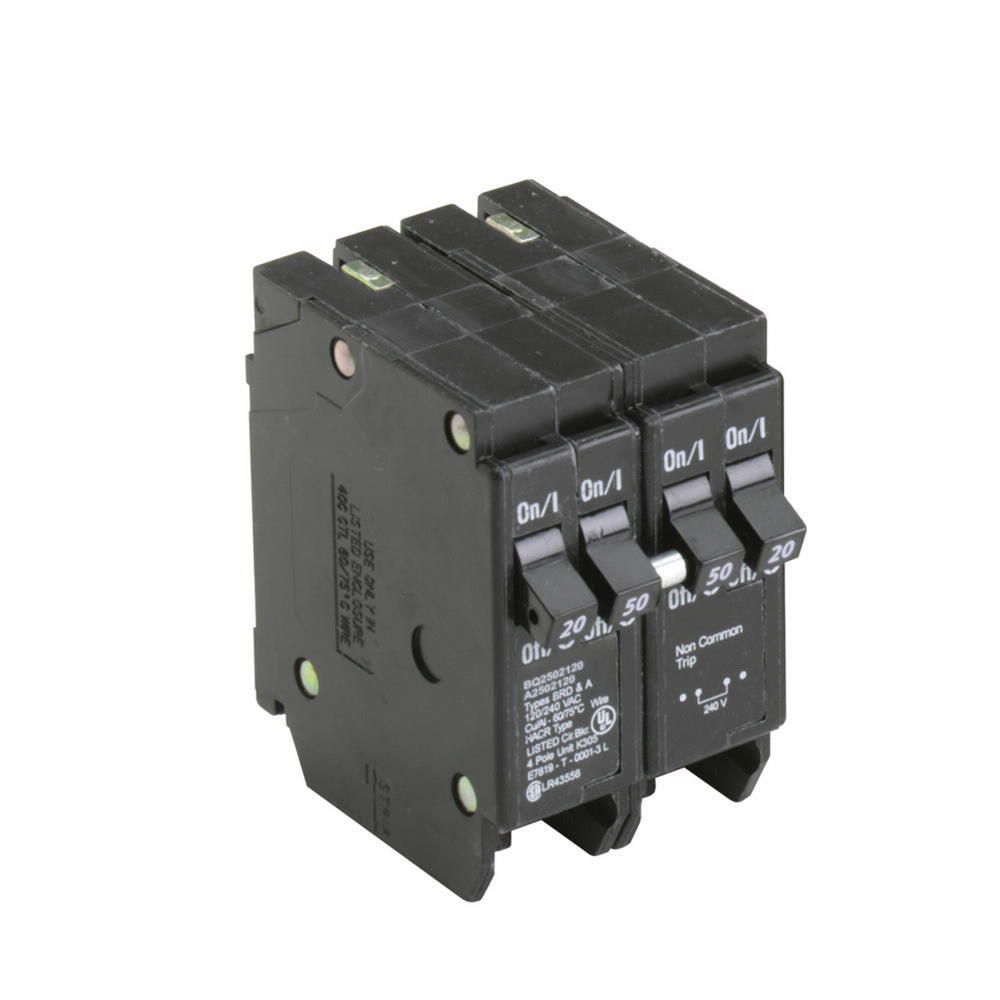

BQ2502120 - Cutler Hammer Quadplex Plug-On Circuit Breaker, 20/50A, 120/240V, 4 Pole, 10kA Interrupt, BQ Series, UL 489 & CSA Certified

BQ2502120

BQ2502120 - Eaton BR thermal magnetic quadplex circuit breaker with (2) single-pole 20A and (1) two-pole 50A configuration.This Type BQ 1-inch CTL plug-on circuit breaker features independent trip, rejection tab, and fits Type BR loadcenters in two 1-inch spaces. Rated for 120/240V at 50A and 120V at 20A, it accepts #14-4 AWG Cu/Al wire.

• Amperage Rating: (2) Single-Pole 20A, (1) Two-Pole 50A
• Voltage Rating: 120/240V at 50A, 120V at 20A
• Poles: Four-pole
• Mounting Type: Plug-on
• Interrupt Rating: 10 kAIC
• Series/Frame: BQ
• Trip Type: Independent (LI)
• Wire Size: #14-4 AWG Cu/Al
• Certifications: UL 489
• Special Features: Rejection tab, HACR listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ2502120
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676371759
• GTIN : 00786676371759
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C375
