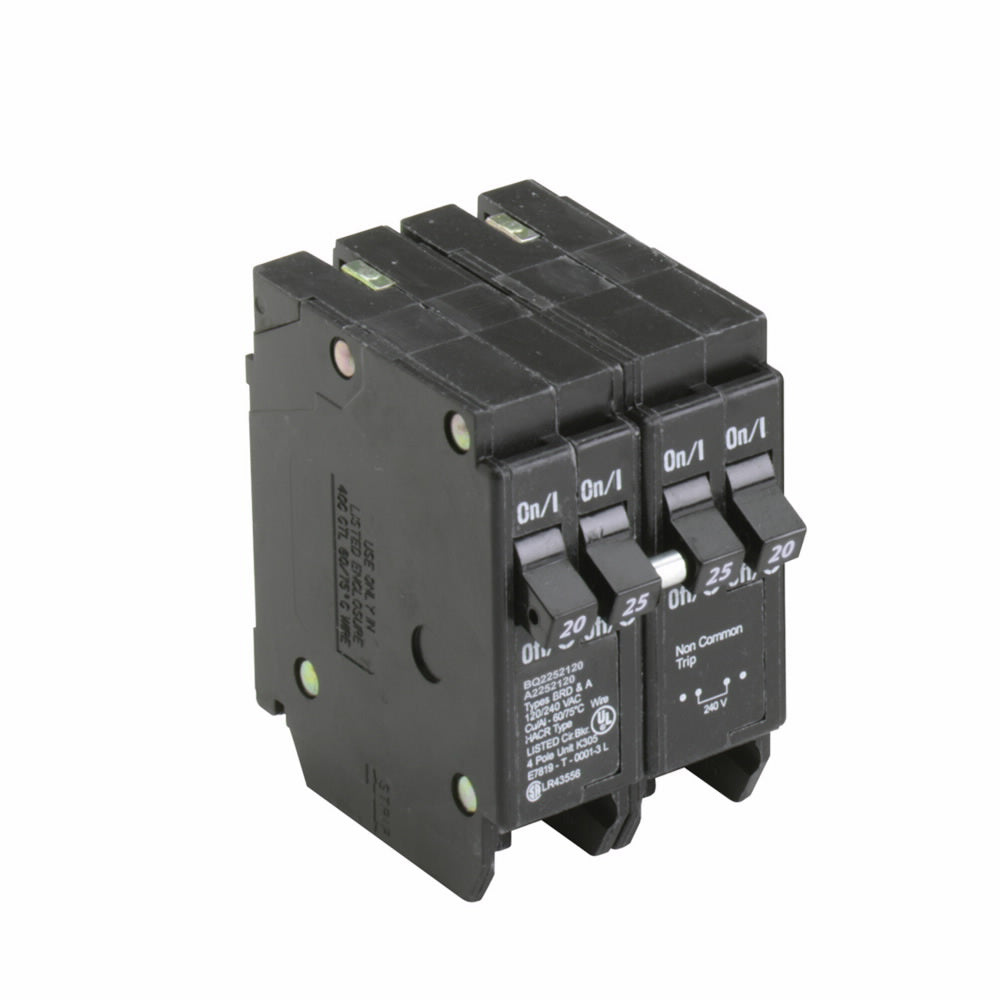

BQ2252120 - Cutler Hammer Quad Circuit Breaker, 2x 20A 1-Pole, 1x 25A 2-Pole, 120/240V, 10kAIC, 1-Inch CTL Plug-On, Thermal Magnetic, BR Series

BQ2252120

BQ2252120 - Eaton BR series thermal magnetic quadplex circuit breaker with (2) 20A single-pole and one 25A two-pole configuration.This 1-inch CTL plug-on breaker features independent trip, rejection tab, and occupies two 1-inch spaces in BR panels. Rated for 120/240V AC with 10 kAIC interrupting capacity.

• Part Number: BQ2252120
• Manufacturer: Eaton
• Series/Frame: BR
• Poles: Four-pole (Quadplex)
• Amperage: (2) 20A 1P, 25A 2P
• Voltage: 120/240V AC
• Mounting Type: Plug-on
• Interrupt Rating: 10 kAIC
• Trip Unit: Thermal Magnetic
• CTL: Yes
• Rejection Tab: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ2252120
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676005036
• GTIN : 00786676005036
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C388
• Wire Size : 14 AWG to 4 AWG, Cu/Al
