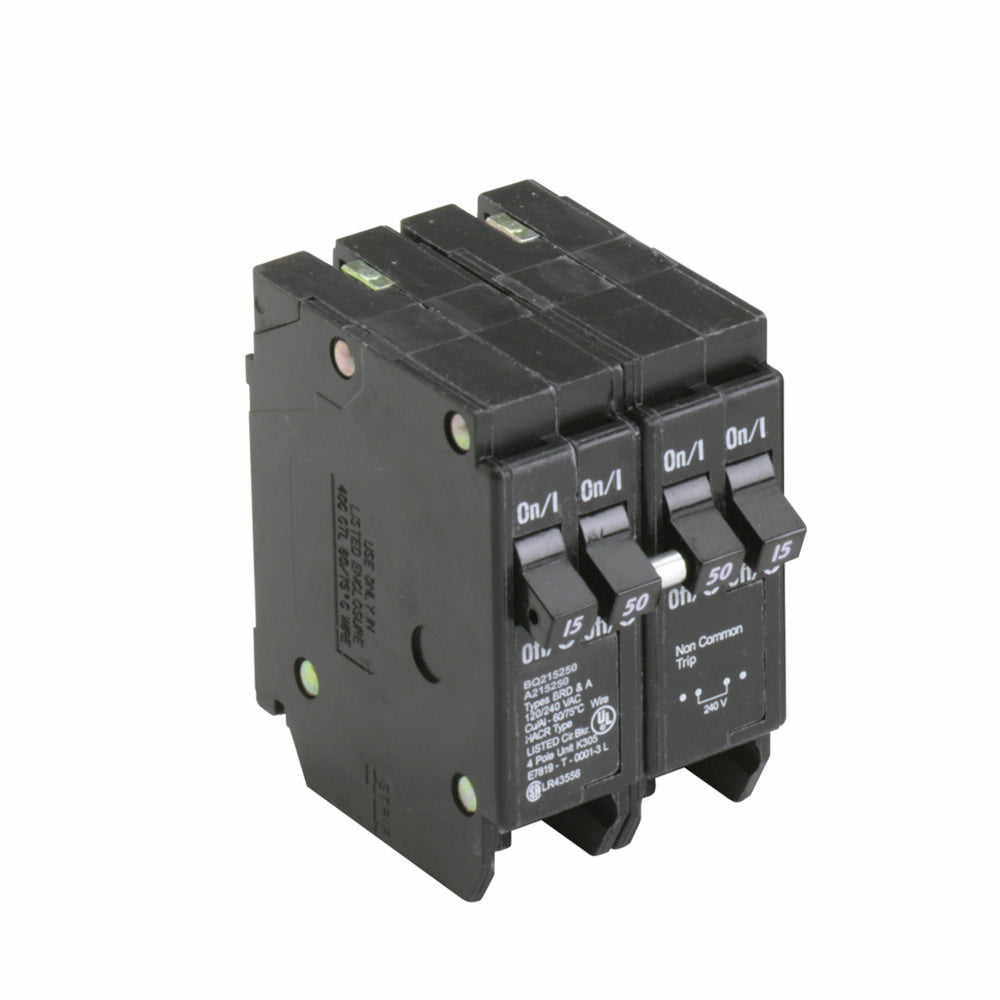

BQ215250 - Cutler Hammer Eaton 15/50A 4-Pole 120/240V BR Frame Thermal Magnetic Circuit Breaker

BQ215250

BQ215250 - Eaton thermal magnetic quad circuit breaker with (2P) 15A and (2P) 50A ratings for BR loadcenters.The Eaton BQ215250 is a 4-pole molded case circuit breaker featuring dual two-pole ratings of 15A and 50A at 120/240VAC. It utilizes thermal magnetic protection with long time and instantaneous trip functions, plug-on mounting, and 10kAIC interrupting capacity at 240V. Designed for use in BR loadcenters with feed-thru line and load lugs accepting 14-4 AWG Cu/Al wire.

• Part Number: BQ215250
• Manufacturer: Eaton
• Series/Frame: BR
• Amperage: (2P) 15A, (2P) 50A
• Voltage: 120/240VAC
• Poles: 4
• Mounting Type: Plug-On
• Interrupt Rating: 10kAIC at 240V
• Trip Unit: Thermal Magnetic
• Functions: Long Time, Instantaneous
• Connection: Feed-Thru Lugs
• Wire Gauge: 14-4 AWG Cu/Al
• Approvals: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ215250
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676004435
• GTIN : 00786676004435
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C379
• Wire Size : 14 AWG to 4 AWG, Cu/Al
