BQ215220 - Cutler Hammer 15/20 Amp 2-Pole 120/240V Quadplex CTL Plug-On Circuit Breaker, BR Series, 10 kAIC, Thermal Magnetic Trip, UL Listed

BQ215220

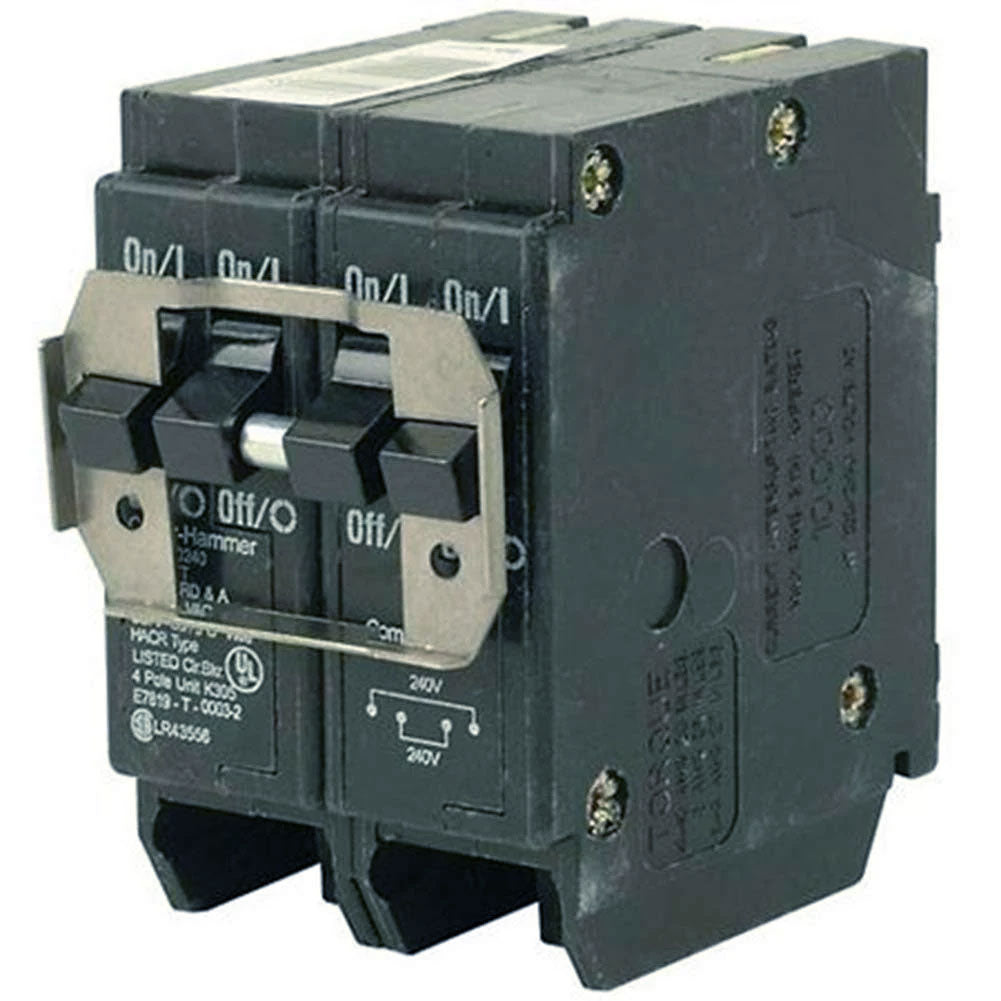

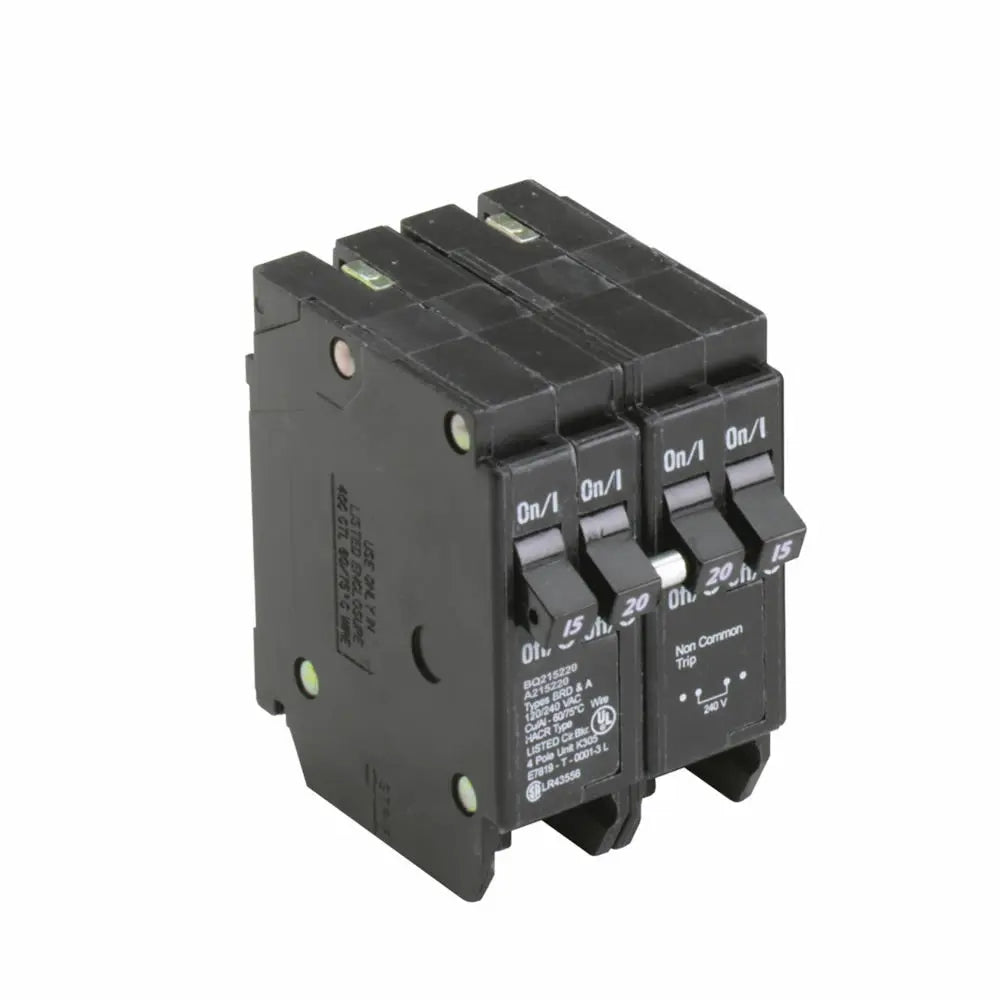

BQ215220 - Eaton Type BQ quadplex thermal magnetic circuit breaker with plug-on mounting for BR loadcenters.This 1-inch CTL plug-on circuit breaker features independent trip, rejection tab, and HACR rating. It combines one two-pole 15A and one two-pole 20A breaker in a four-pole configuration rated for 120/240V AC with 10 kAIC interrupt capacity. Accepts #14-4 AWG Cu/Al wire.

• Part Number: BQ215220
• Manufacturer: Eaton
• Type: BQ Quadplex
• Poles: 4 (2x 15A two-pole, 2x 20A two-pole)
• Amperage: 15/20A
• Voltage: 120/240V AC
• Interrupt Rating: 10 kAIC
• Mounting: Plug-on
• Trip Type: Thermal magnetic, independent
• Wire Size: #14-4 AWG Cu/Al
• Certifications: UL 489, HACR rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ215220
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676004381
• GTIN : 00786676004381
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C376
• Wire Size : AWG 14 to AWG 4, Cu/Al
