BQ215240 - Cutler Hammer 15/40A 120/240V 4-Pole Thermal Magnetic Circuit Breaker Plug-On

BQ215240

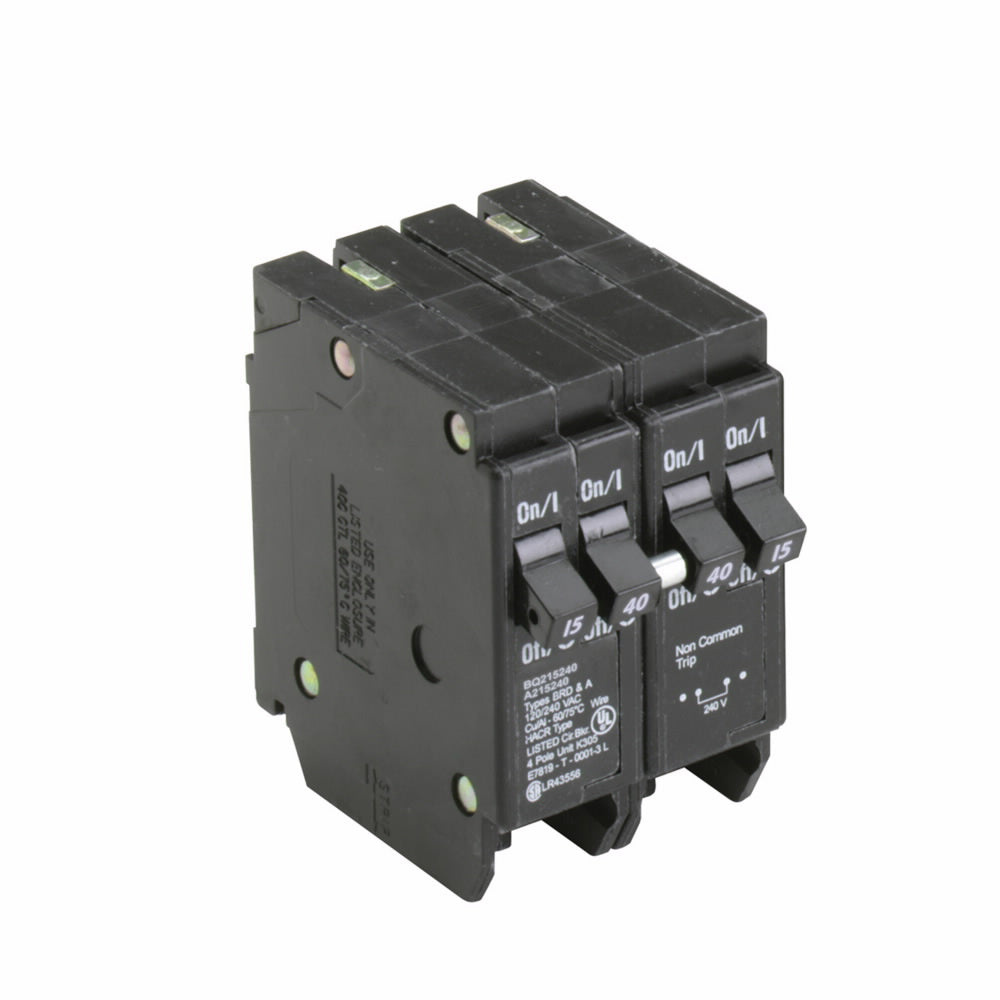

BQ215240 is a Cutler Hammer 4-pole thermal magnetic circuit breaker designed for residential and commercial applications.This Type BQ 1-inch CTL plug-on breaker features independent trip poles with 15A on the outer poles and 40A on the center poles, rated for 120/240 VAC operation. It includes a rejection tab feature and supports wire sizes from 14 to 4 AWG aluminum or copper. The breaker has a 10 kA interrupting rating and mounts via plug-on method, compatible with Type BR loadcenters.

Key Specifications
• Amperage: 15A (outer poles), 40A (center poles)
• Voltage: 120/240 VAC
• Poles: 4
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC
• Trip Type: Thermal Magnetic, Independent Trip
• Wire Size: #14-4 AWG Cu/Al
• Series/Frame: BQ, Type BR Loadcenters
• Certifications: UL 489, HACR Listed
• Includes rejection tab feature

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ215240
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676004411
• GTIN : 00786676004411
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C378
• Wire Size : AWG 14 to AWG 4, Cu/Al
