BQ215230 - Cutler Hammer Quad Circuit Breaker, 15A/30A, 120/240V, 4-Pole, Plug-On Mount, 10kAIC, BR Series, Thermal Magnetic Trip, UL Listed

BQ215230

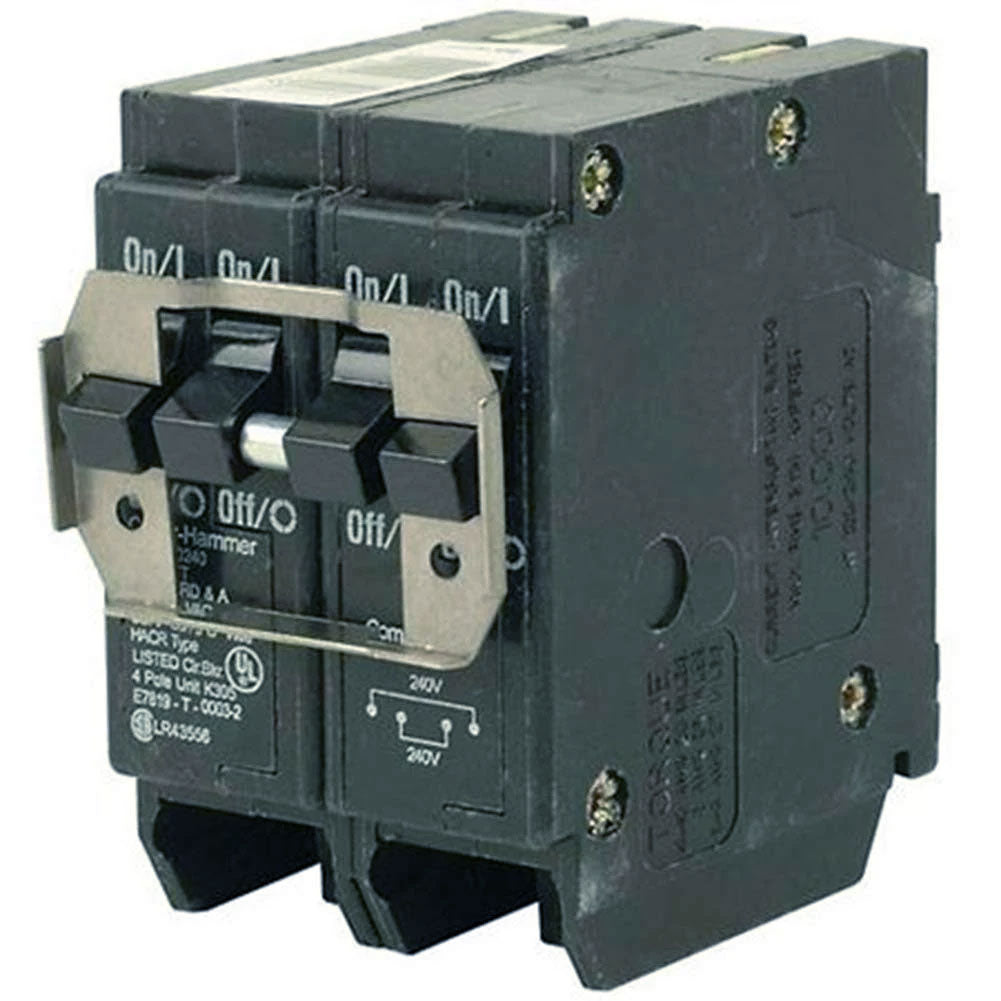

BQ215230 is an Eaton BR thermal magnetic circuit breaker designed as a 1-inch CTL plug-on breaker with quadruplex independent trip configuration.

This two-pole circuit breaker features a rejection tab for secure panel installation and provides dual amperage ratings: 15 amps for the outer independent trip poles and 30 amps for the center independent trip poles. The breaker operates at 120/240 VAC and delivers a 10 kAIC interrupt rating. Its thermal magnetic trip mechanism ensures reliable protection against overloads and short circuits. The compact design requires two 1-inch spaces in compatible BR-series panels.

• Manufacturer: Eaton Cutler-Hammer
• Part Number: BQ215230
• Type: BR Thermal Magnetic
• Configuration: Quadruplex, 2-Pole
• Amperage: 15A (outer) / 30A (center)
• Voltage: 120/240 VAC
• Interrupt Rating: 10 kAIC
• Mounting: 1-Inch CTL Plug-On
• Features: Rejection Tab, Independent Trip
• Panel Spaces Required: 2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ215230
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Protection : Thermal Magnetic

Product Data

• UPC : 786676004404
• GTIN : 00786676004404
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.7
• Panel Type : Type BR Loadcenters
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : UL 489,Federal Specifications Classification W-C377
• Wire Size : AWG 14 to AWG 4, Cu/Al
