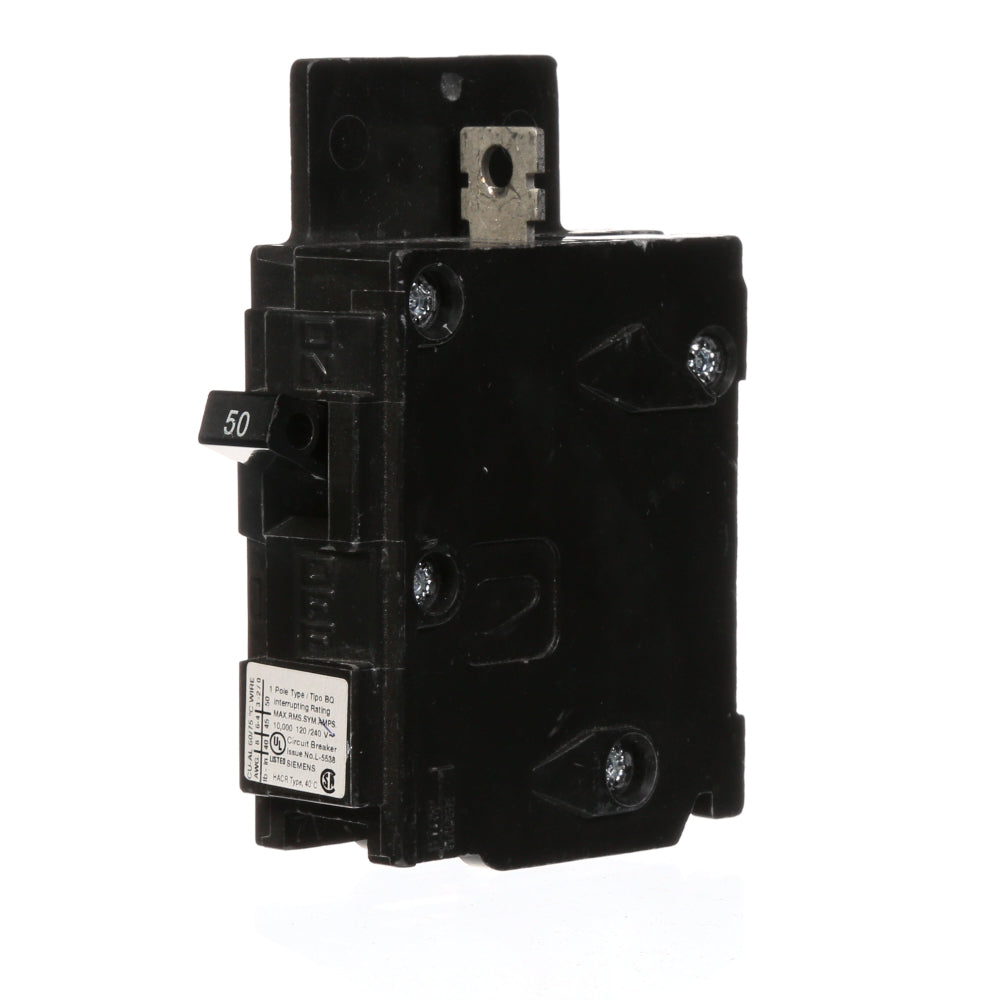

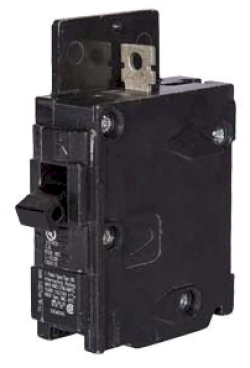

BQ1B050 - Siemens 50A 120VAC 1-Pole Molded Case Circuit Breaker Thermal Magnetic Trip

BQ1B050

BQ1B050 is a Siemens 50 Amp, 120 VAC, 1-pole molded case circuit breaker with thermal magnetic trip protection.This Siemens BQ series circuit breaker provides reliable low voltage protection with a 10 kA interrupt rating. It features a single pole design and thermal/magnetic trip unit for dependable overload and short circuit protection in residential or light commercial applications.

Key Specifications
• Amperage: 50 Amps
• Voltage: 120 VAC
• Poles: 1
• Interrupt Rating: 10 kA
• Trip Unit: Thermal Magnetic
• Series/Frame: BQ
• Mounting Type: Molded Case
• Phase: Single
• Color: Black
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ1B050
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643102385
• GTIN : 00783643102385
• Country of Origin : Mexico
• Dimensions : 2.571 x 1.00 x 3.736 inch
• Weight : 0.309
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : CSA, HACR, UL
