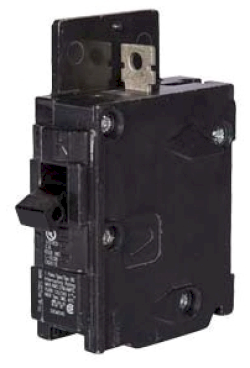

BQ1B01500S01 - Siemens 15 Amp 120V 1 Pole Bolt-On Molded Case Circuit Breaker with Shunt Trip

BQ1B01500S01

BQ1B01500S01 is a Siemens 15 Amp, 120 Volt, 1 Pole bolt-on molded case circuit breaker with a shunt trip feature designed for reliable overload and short circuit protection.This Siemens BQ series circuit breaker offers a 10kA interrupt rating at 120VAC, providing robust protection in electrical distribution systems. It features a bolt-on mounting type and a thermal magnetic trip unit. The breaker is UL listed and designed for use in residential, commercial, and industrial applications requiring dependable circuit interruption.

• Manufacturer: Siemens
• Part Number: BQ1B01500S01
• Amperage: 15 Amps
• Voltage: 120 VAC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA
• Series/Frame: BQ
• Trip Unit: Thermal Magnetic with Shunt Trip
• Certifications: UL Listed
• Voltage Type: AC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with non-interchangeable 120V shunt trip

Specifications

• Part Number: BQ1B01500S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643237698
• GTIN : 00783643237698
• Country of Origin : Mexico
• Dimensions : 2.571 x 2.00 x 3.736 inch
• Weight : 0.617
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : CSA, HACR, UL
