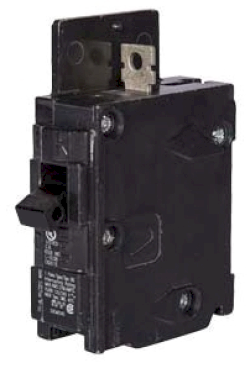

BQ1B010 - Siemens 10A 1 Pole Miniature Circuit Breaker BQ Series 120V AC 10kA

BQ1B010

BQ1B010 is a Siemens 10A, 1 pole miniature circuit breaker from the BQ series, designed for reliable protection in 120V AC electrical distribution systems. This Siemens BQ1B010 circuit breaker features a bolt-on mounting style, thermal magnetic trip unit, and a 10kA interrupt rating at 120V AC. It is suitable for use in Siemens panelboards and general-purpose applications requiring single-phase protection.

• Part Number: BQ1B010
• Manufacturer: Siemens
• Amperage: 10A
• Voltage: 120V AC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120V AC
• Series/Frame: BQ
• Protection Type: Thermal Magnetic
• Trip Unit: Long-Time and Instantaneous
• Certifications: UL Listed, CSA Certified, HACR Rated
• Application: Electrical Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ1B010
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120
• Amperage : 10
• Phase : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643472297
• GTIN : 00783643472297
• Country of Origin : Mexico
• Dimensions : 3 in x 1 in x 1 in
• Weight : 0.331
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : CSA, HACR, UL
