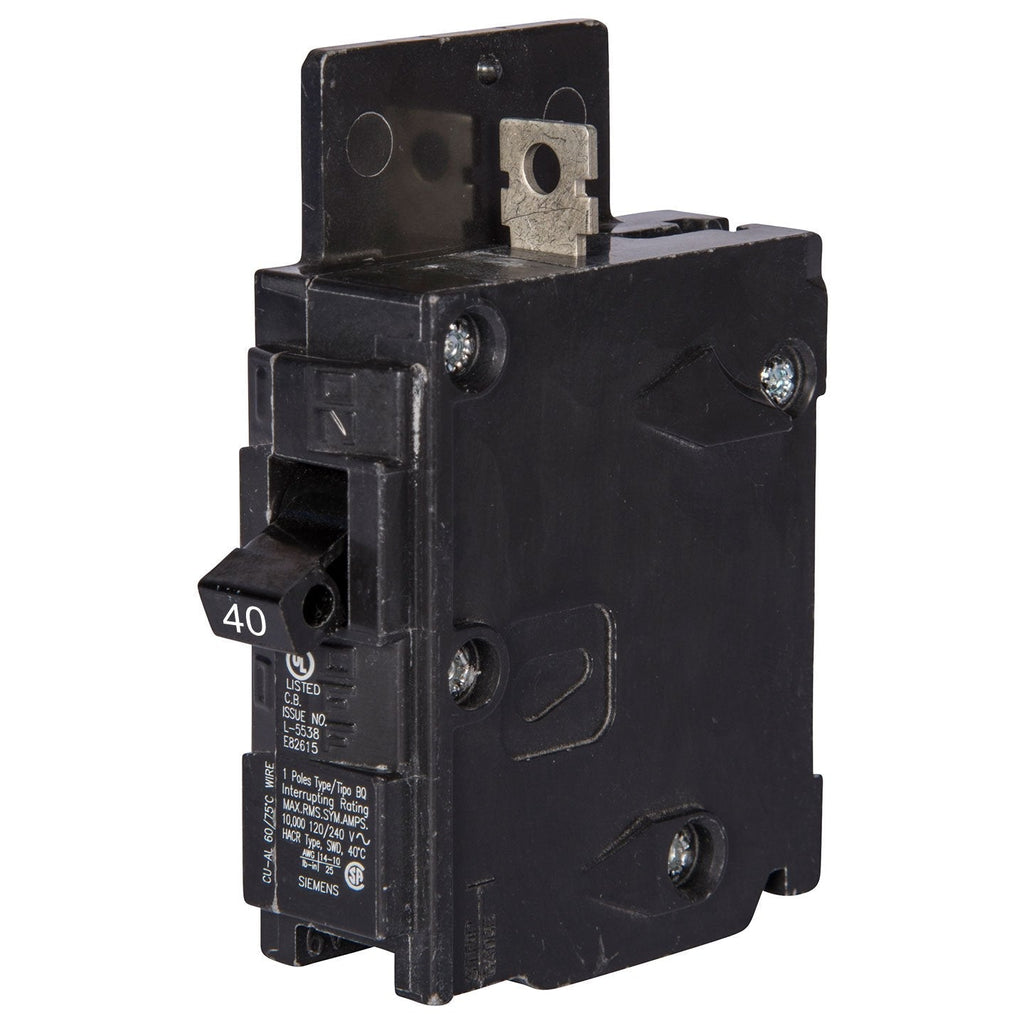

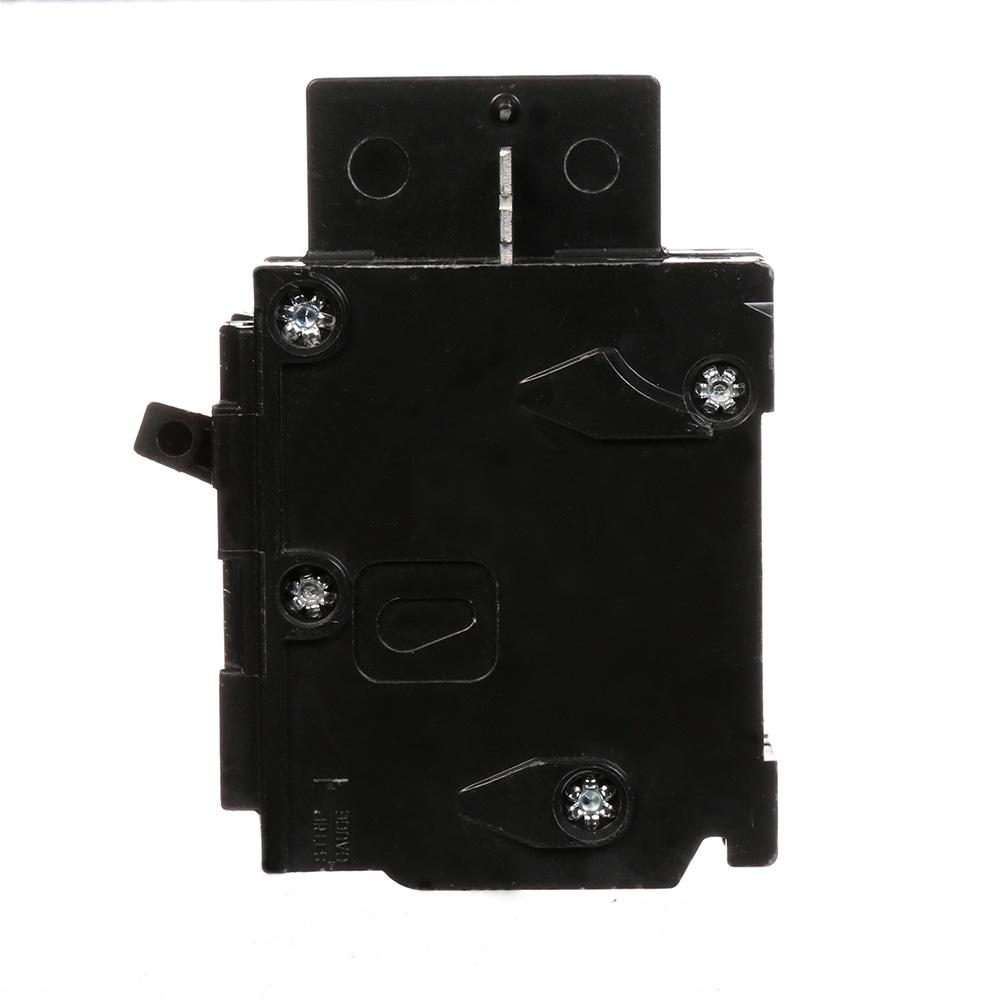

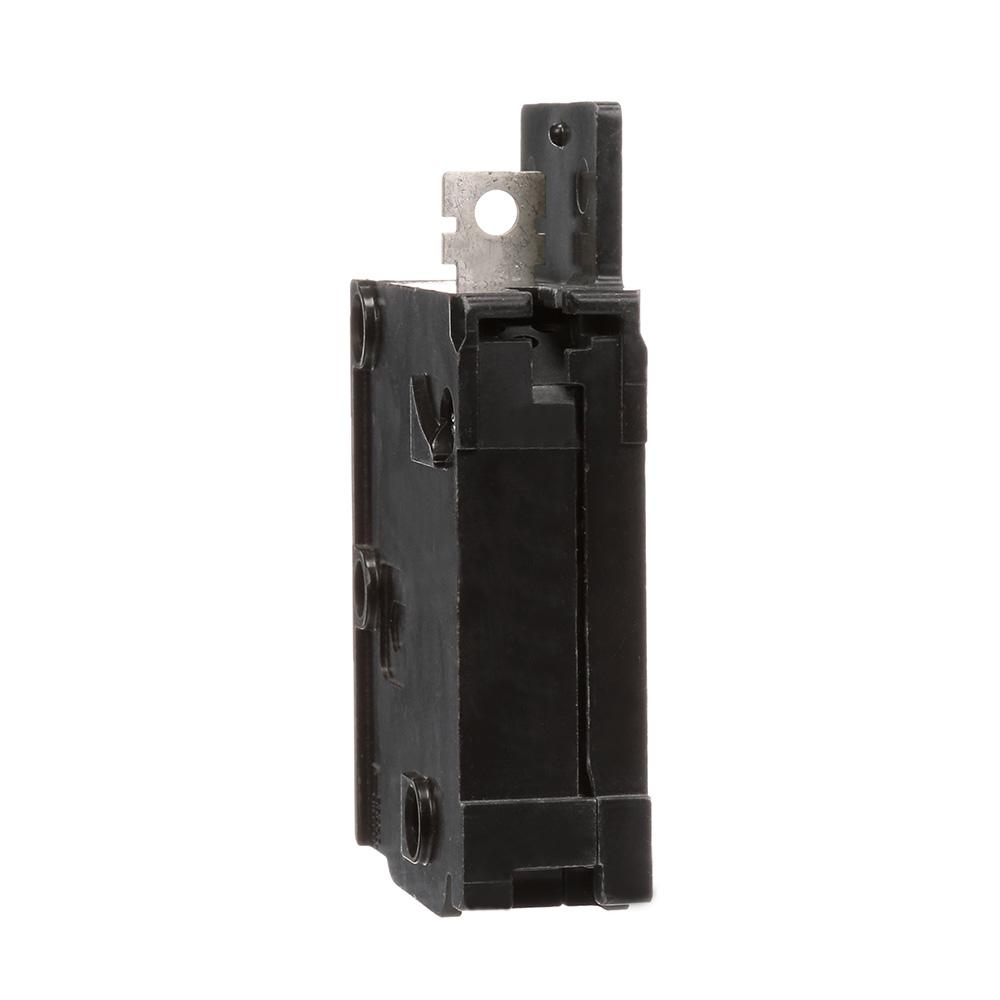

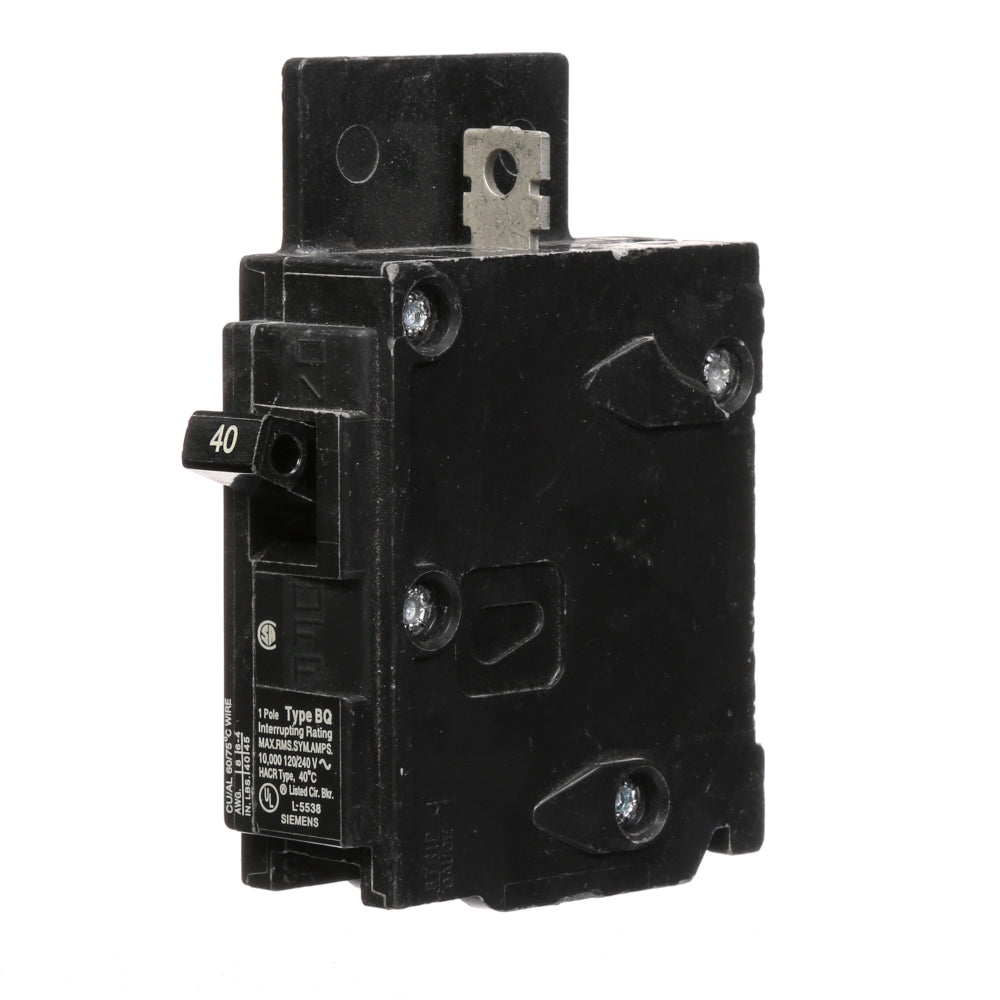

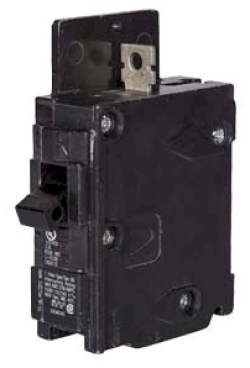

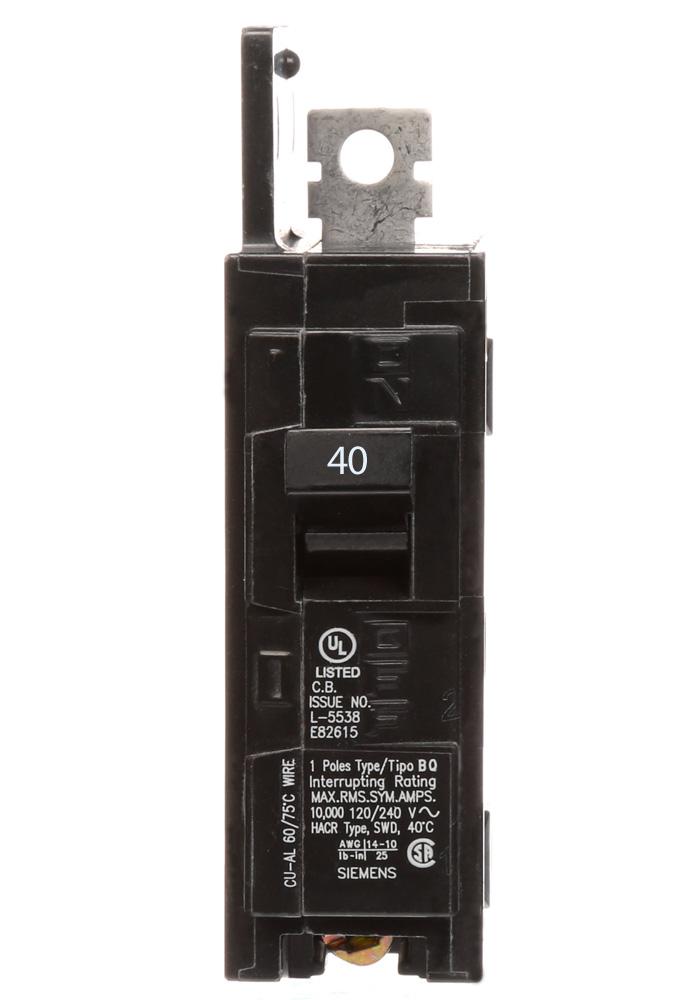

BQ1B040 - Siemens 40 Amp 120 Volt 1-Pole BQ Series Bolt-On Circuit Breaker 10kA Interrupt Rating

BQ1B040

BQ1B040 is a Siemens 40 Amp, 120 Volt, 1-Pole BQ Series Bolt-On Molded Case Circuit Breaker designed for reliable circuit protection.This Siemens BQ1B040 circuit breaker features a thermal magnetic trip unit with a 10,000 Amp interrupt rating at 120 Volts AC. It is a bolt-on type breaker with a single pole configuration, suitable for low voltage applications. The breaker is UL listed and CSA approved, ensuring compliance with industry safety standards.

• Manufacturer: Siemens
• Series: BQ
• Amperage: 40 Amp
• Voltage: 120 Volt AC
• Poles: 1 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 Amps (10 kA)
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Approved
• Phase: Single Phase
• Dimensions: Approximately 4" x 1" x 3"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ1B040
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643102361
• GTIN : 00783643102361
• Country of Origin : Mexico
• Dimensions : 2.571 x 1.00 x 3.736 inch
• Weight : 0.309
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : CSA, HACR, UL
