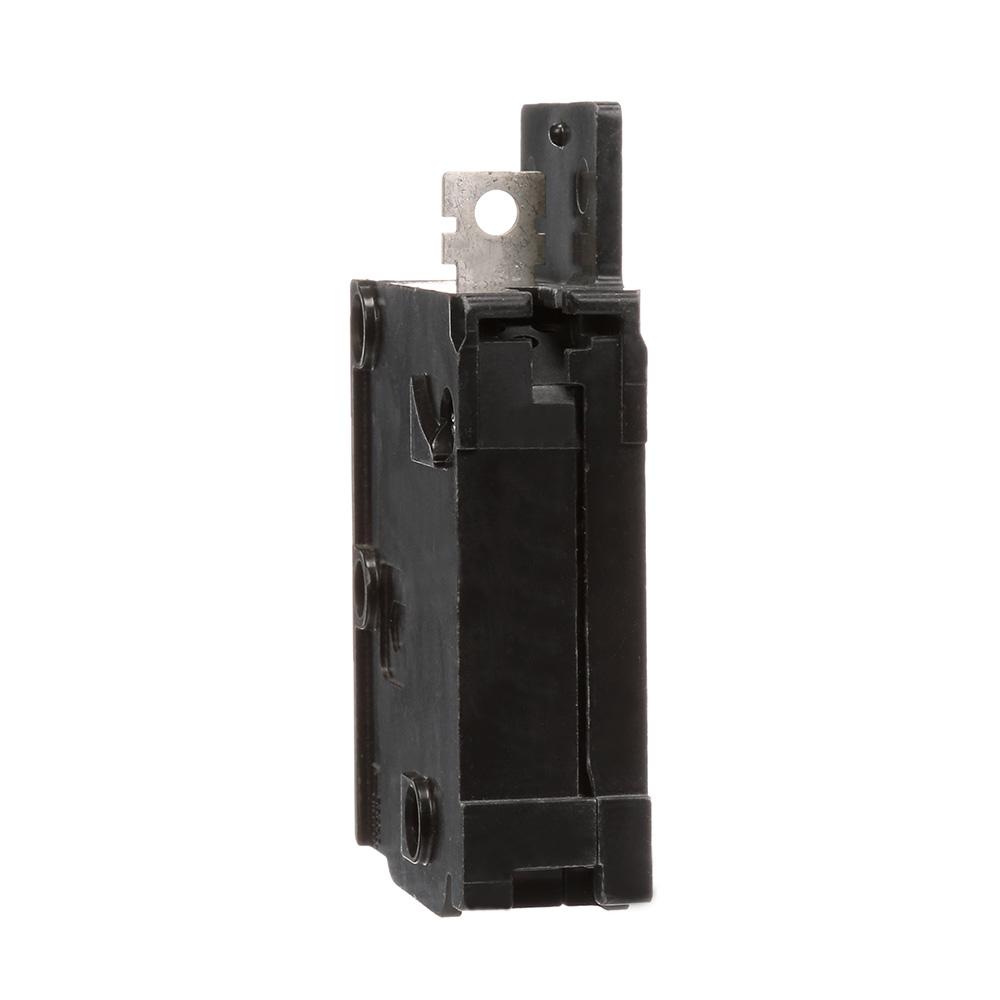

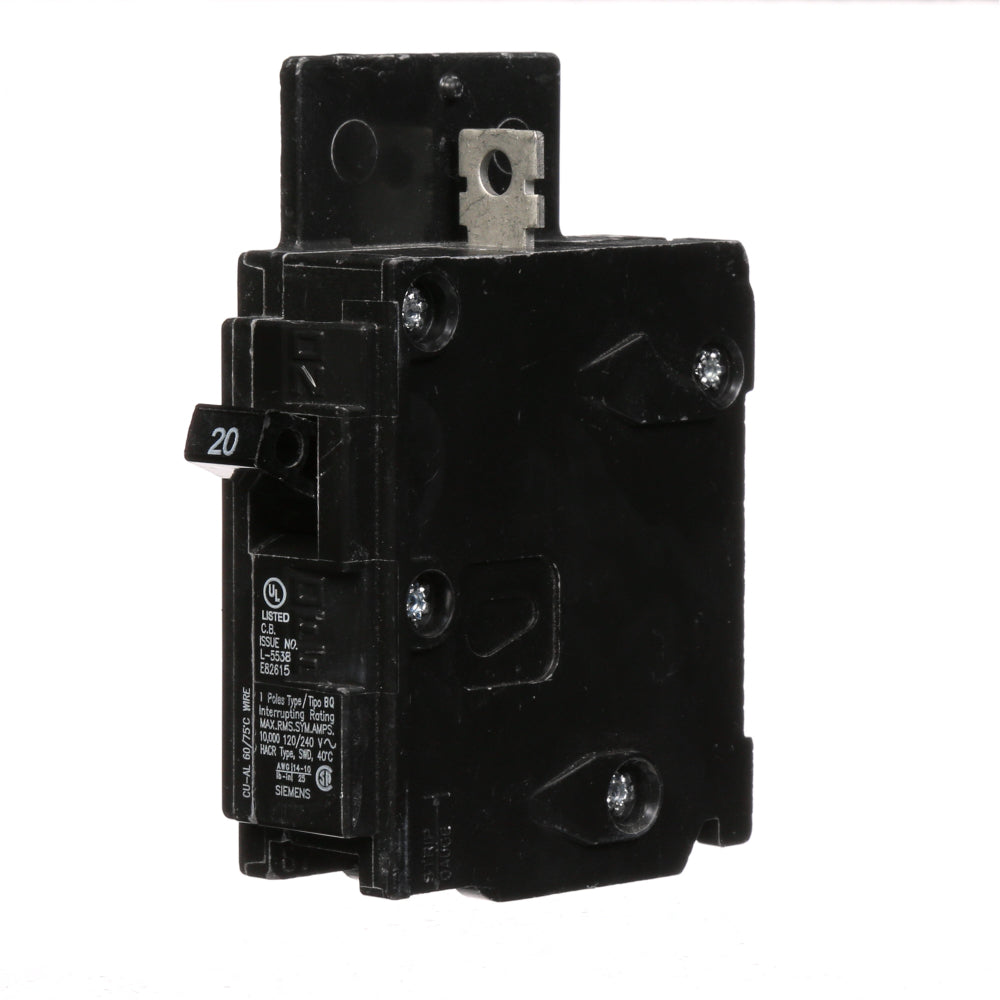

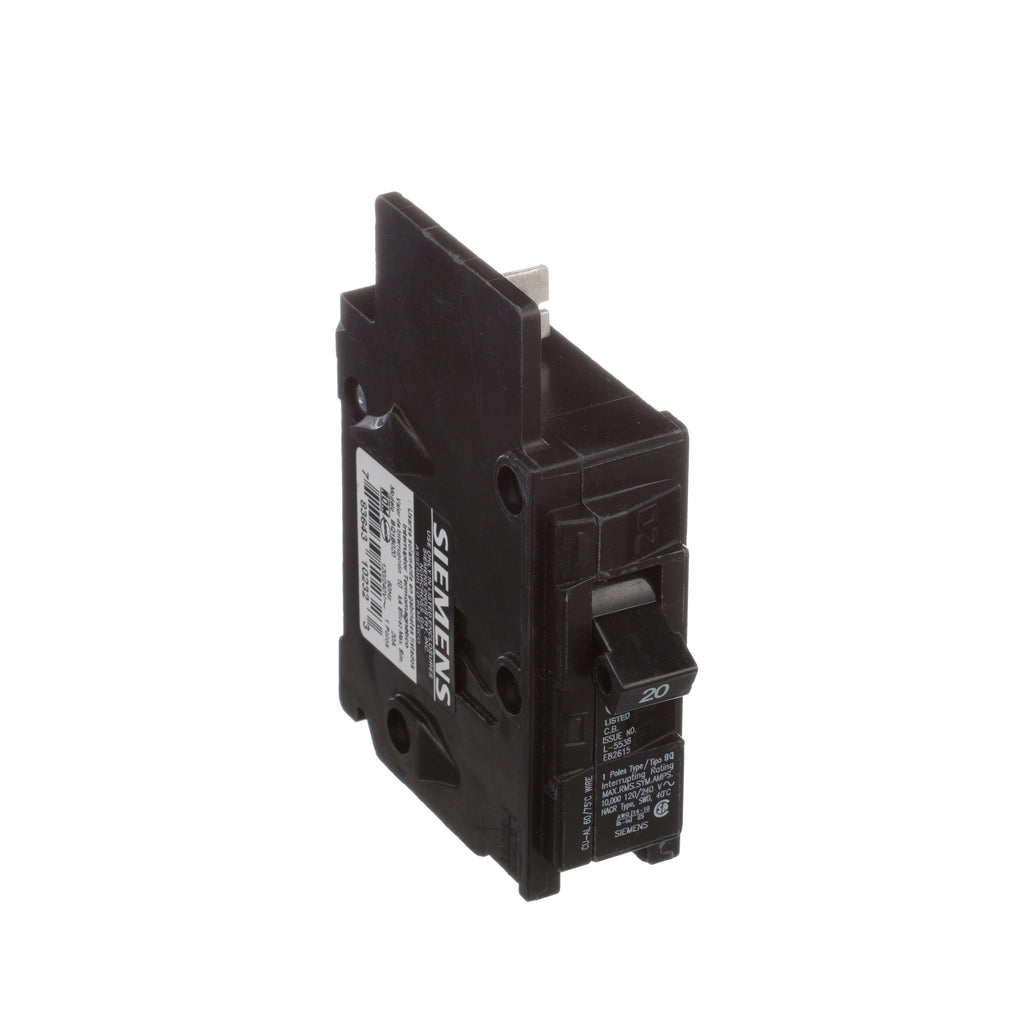

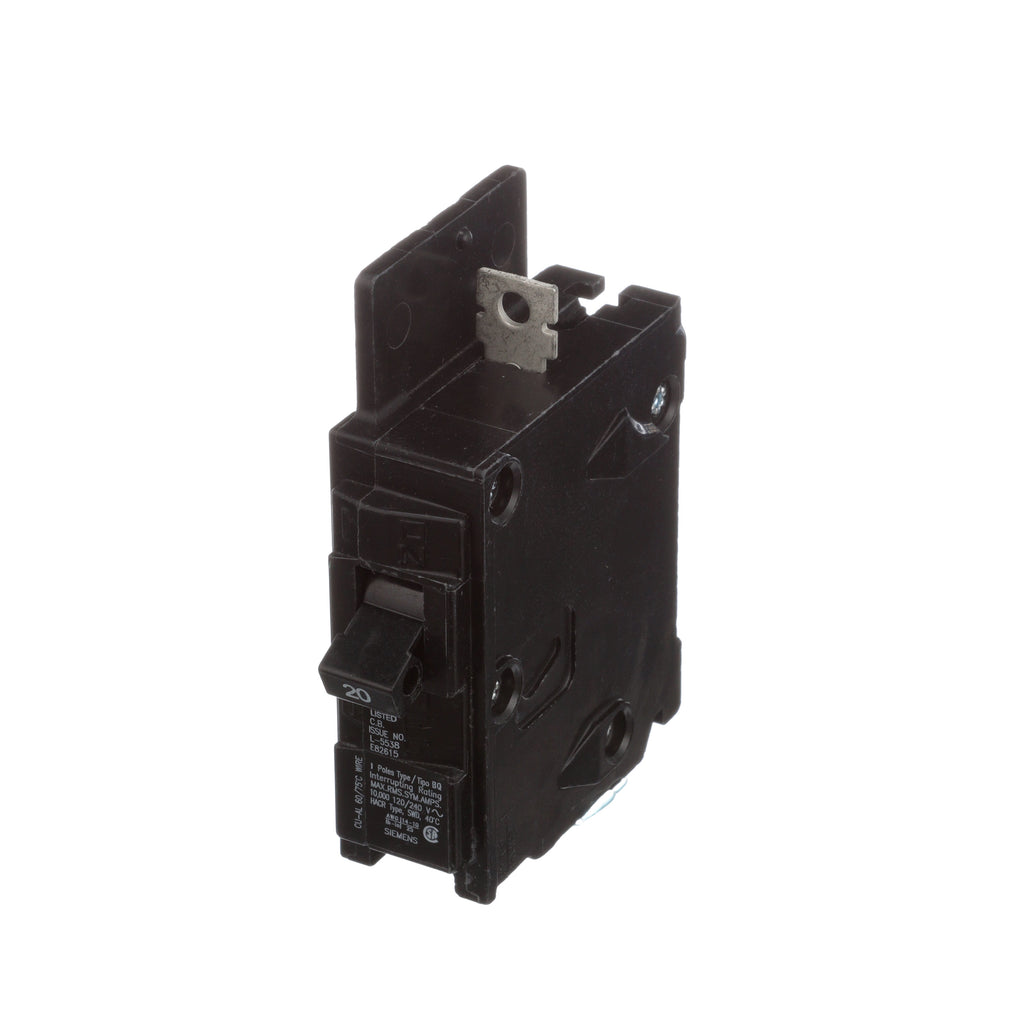

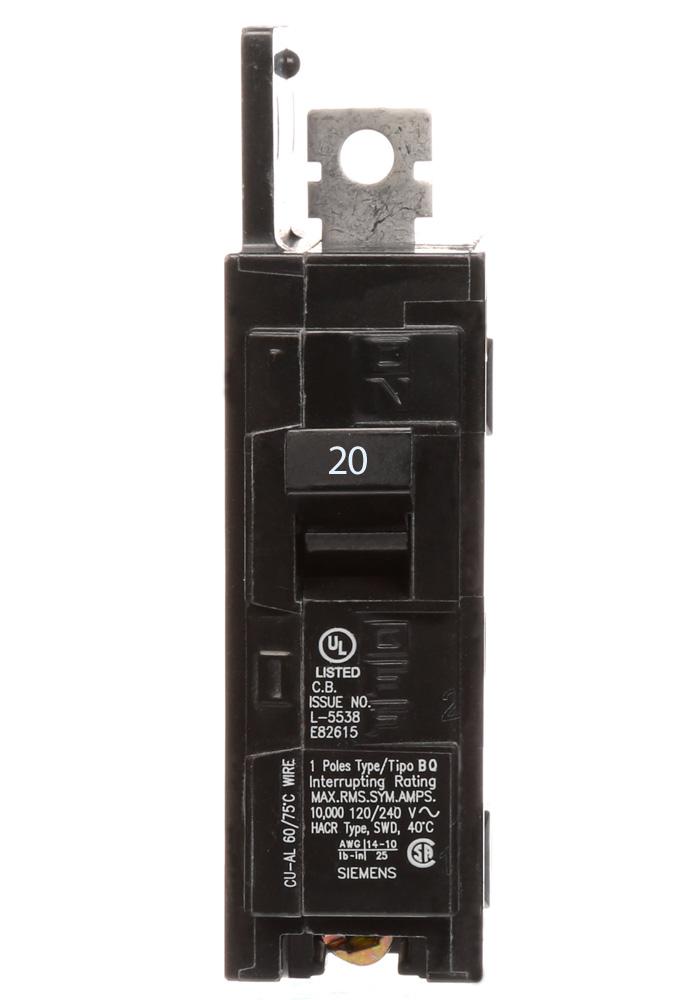

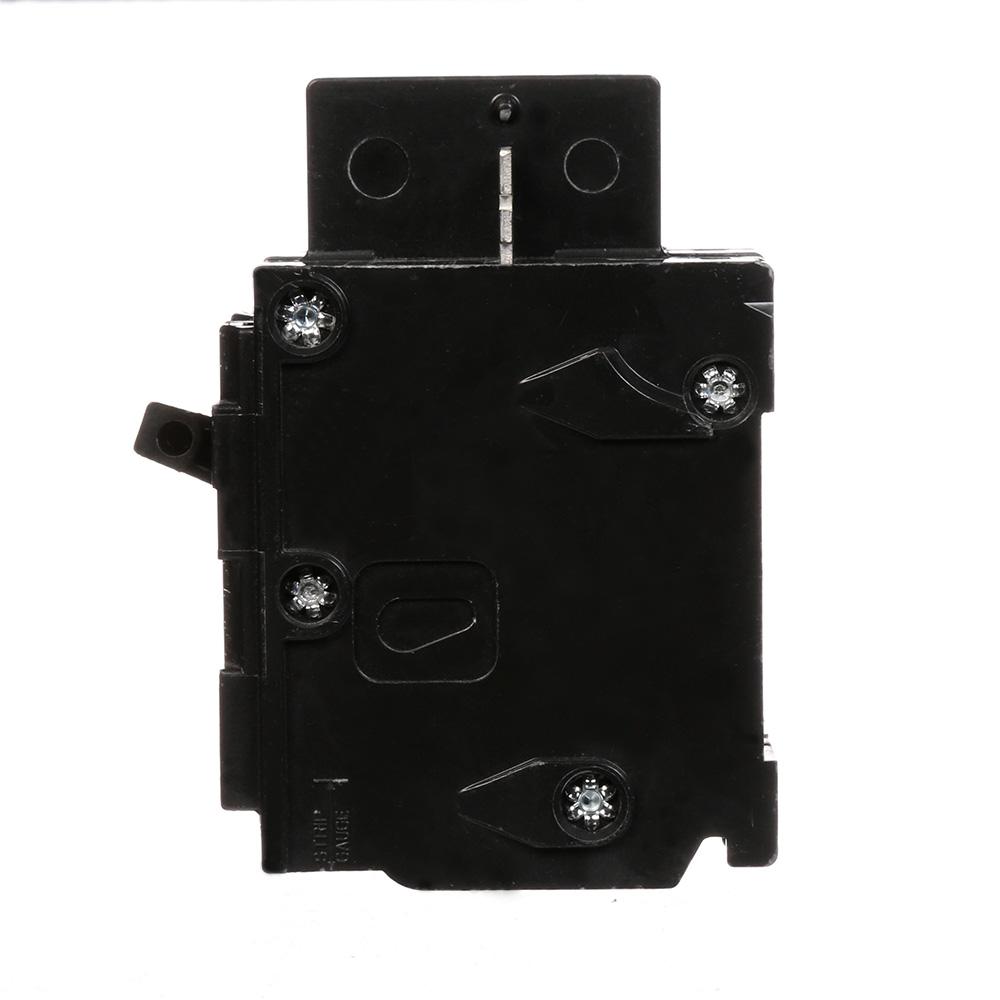

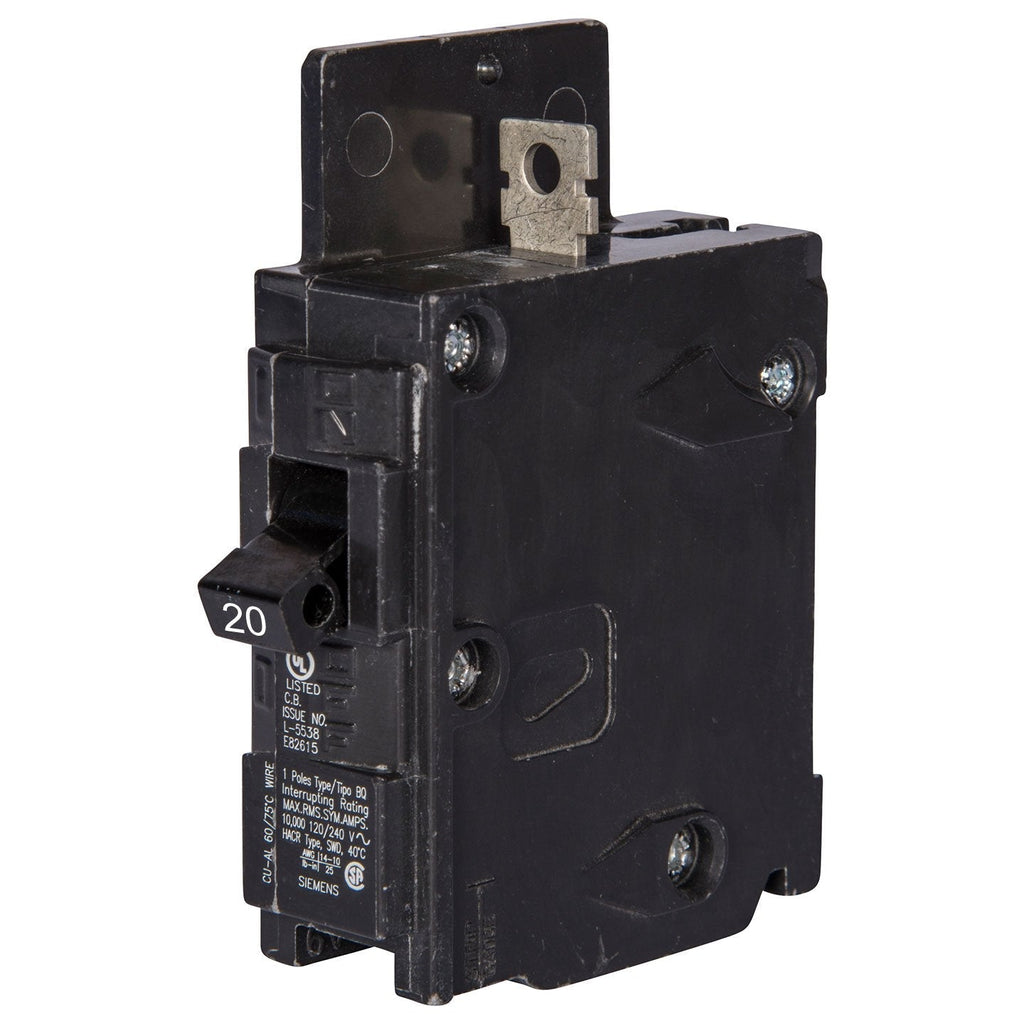

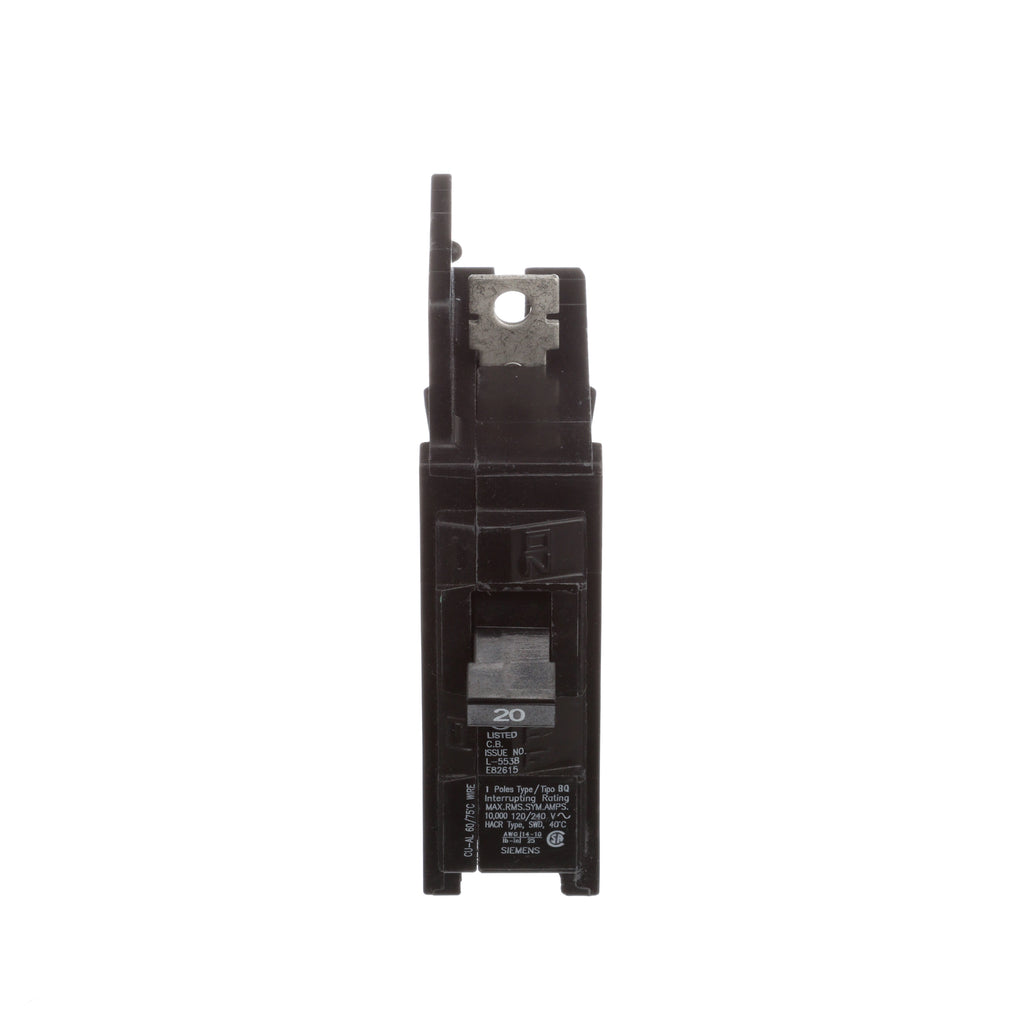

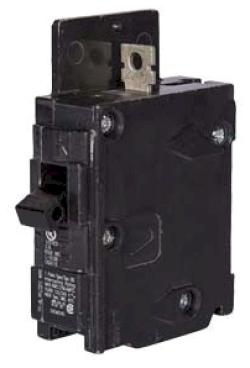

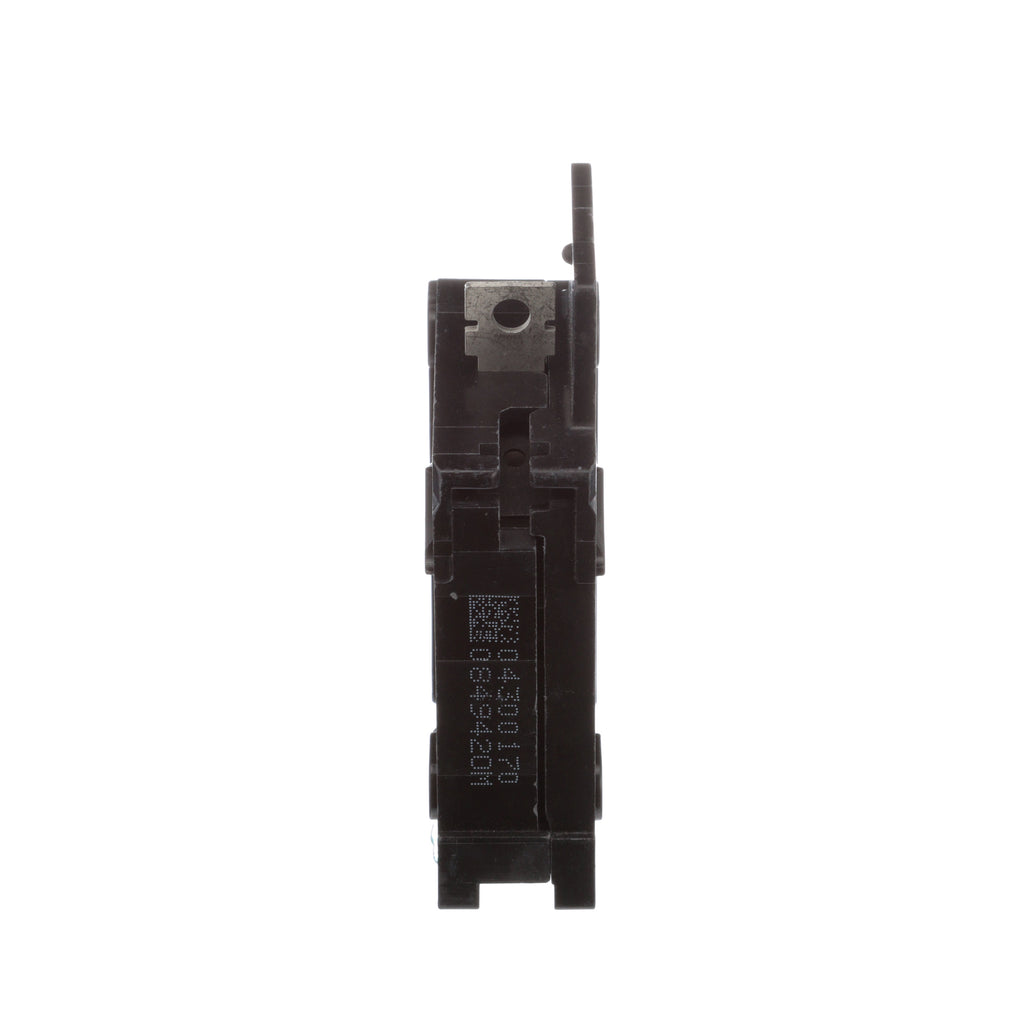

BQ1B020 - Siemens 20 Amp 1 Pole 120V Bolt-On Molded Case Circuit Breaker, Type BQ, 10kAIC, Thermal Magnetic Trip, UL/CSA/NOM

BQ1B020

BQ1B020 is a Siemens 1 pole, 20 amp, 120VAC molded case circuit breaker designed for reliable protection in commercial and industrial panelboards.

This thermal magnetic circuit breaker features a bolt-on mounting type, 10kA interrupting rating at 120V, and is part of the BQ series. It is approved for use under UL, CSA, and NOM standards, ensuring compliance and safety in a variety of applications.

Key Specifications
• Part Number: BQ1B020
• Manufacturer: Siemens
• Amperage: 20A
• Voltage: 120VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kAIC at 120V
• Series/Frame: BQ
• Trip Unit: Thermal Magnetic (Long-Time & Instantaneous)
• Certifications: UL, CSA, NOM
• Max Wire Size: 10 AWG
• Min Wire Size: 12 AWG (Al), 14 AWG (Cu)
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BQ1B020
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BQ Series
• Type : BQ
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BQ
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643102323
• GTIN : 00783643102323
• Country of Origin : Mexico
• Dimensions : 2.571 x 1.00 x 3.736 inch
• Weight : 0.309
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, UL Listed
• Certification : CSA, HACR, UL
