Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BQ1B015L

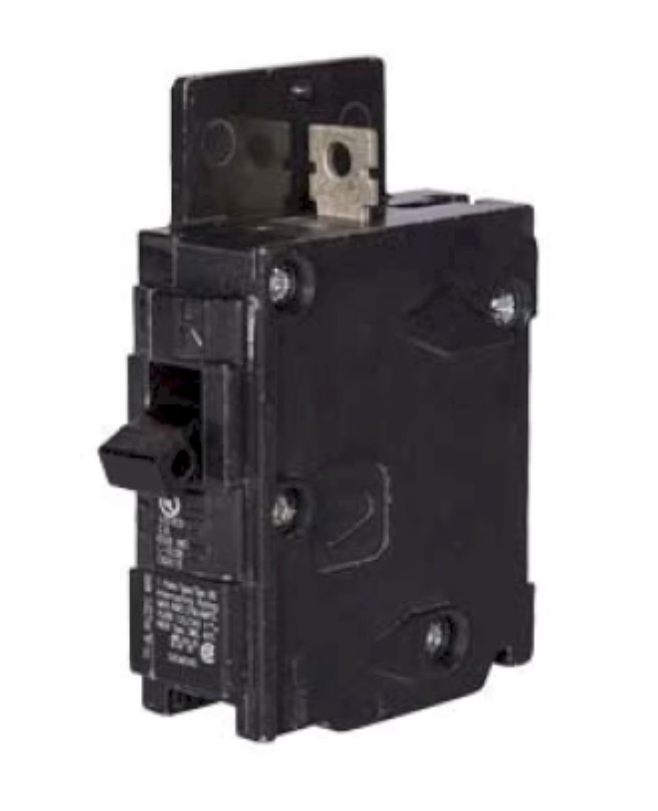

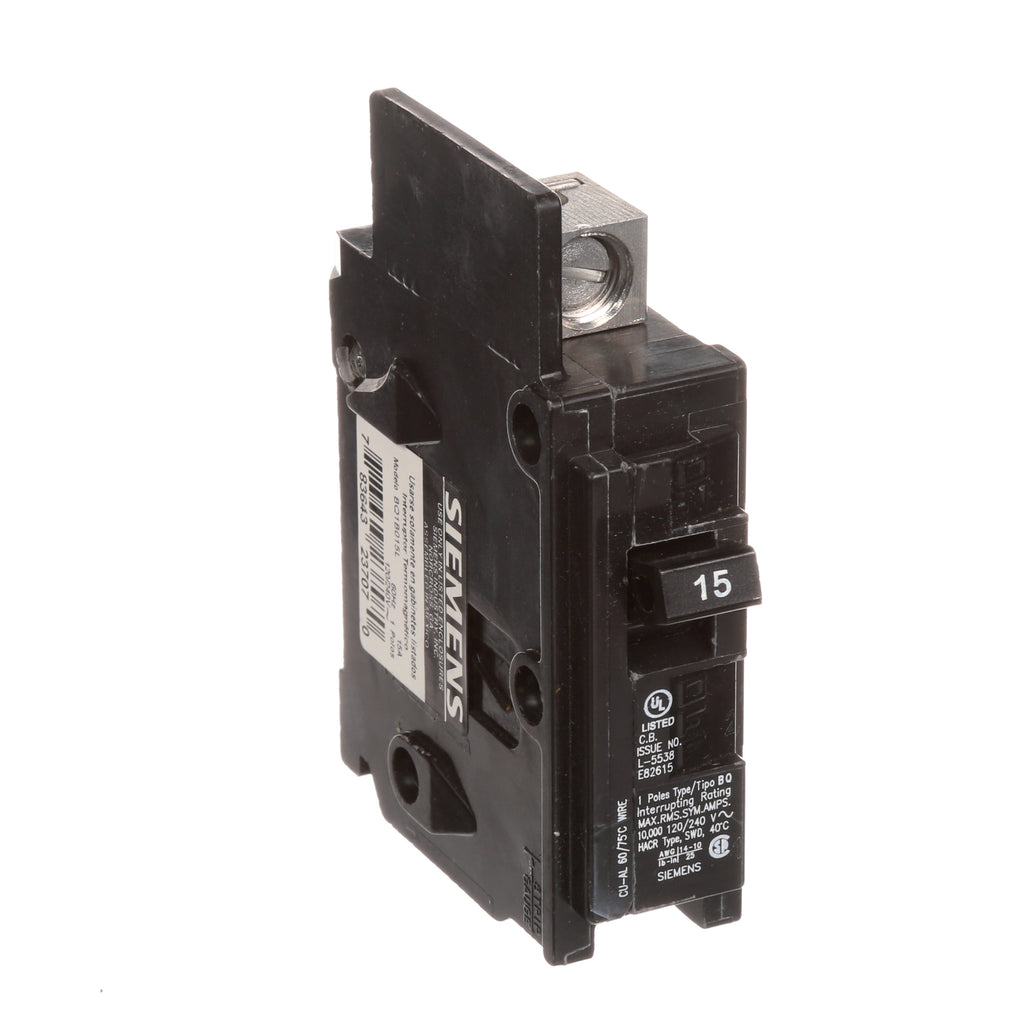

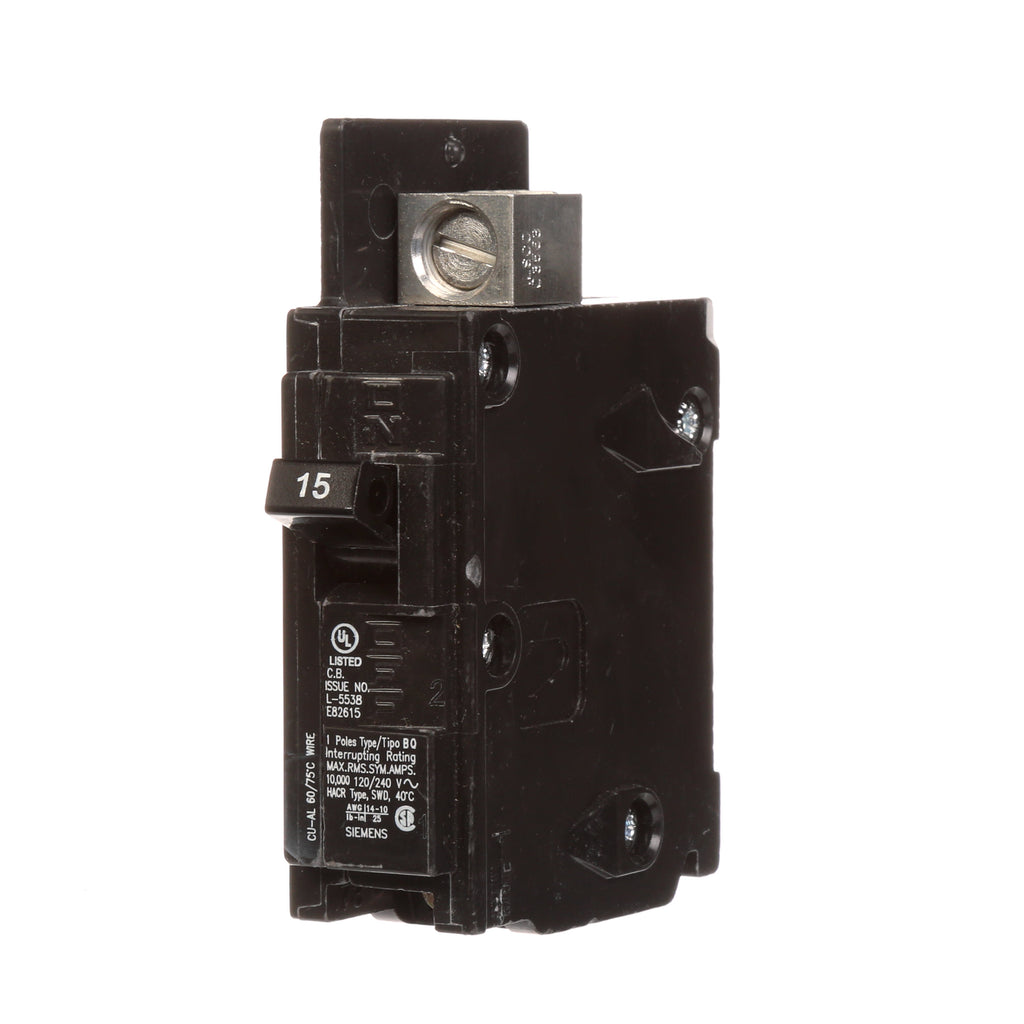

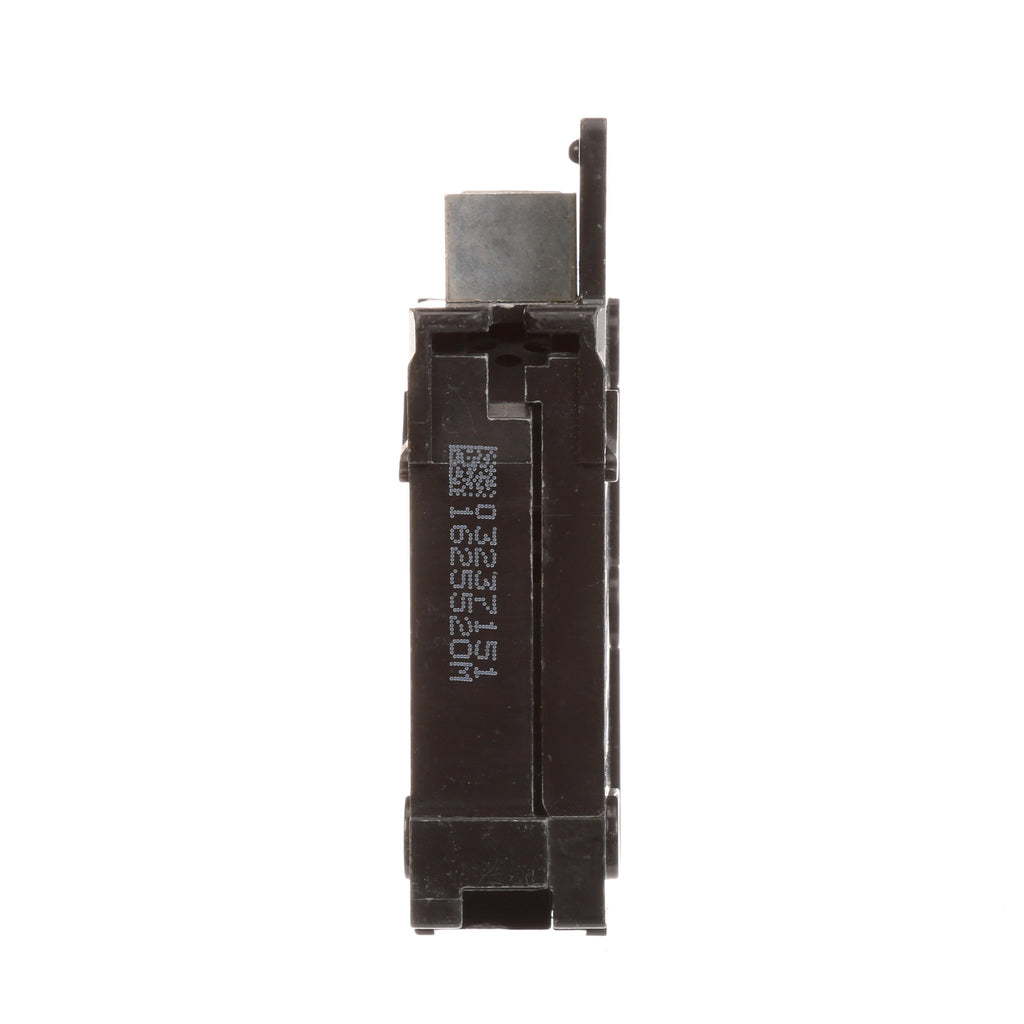

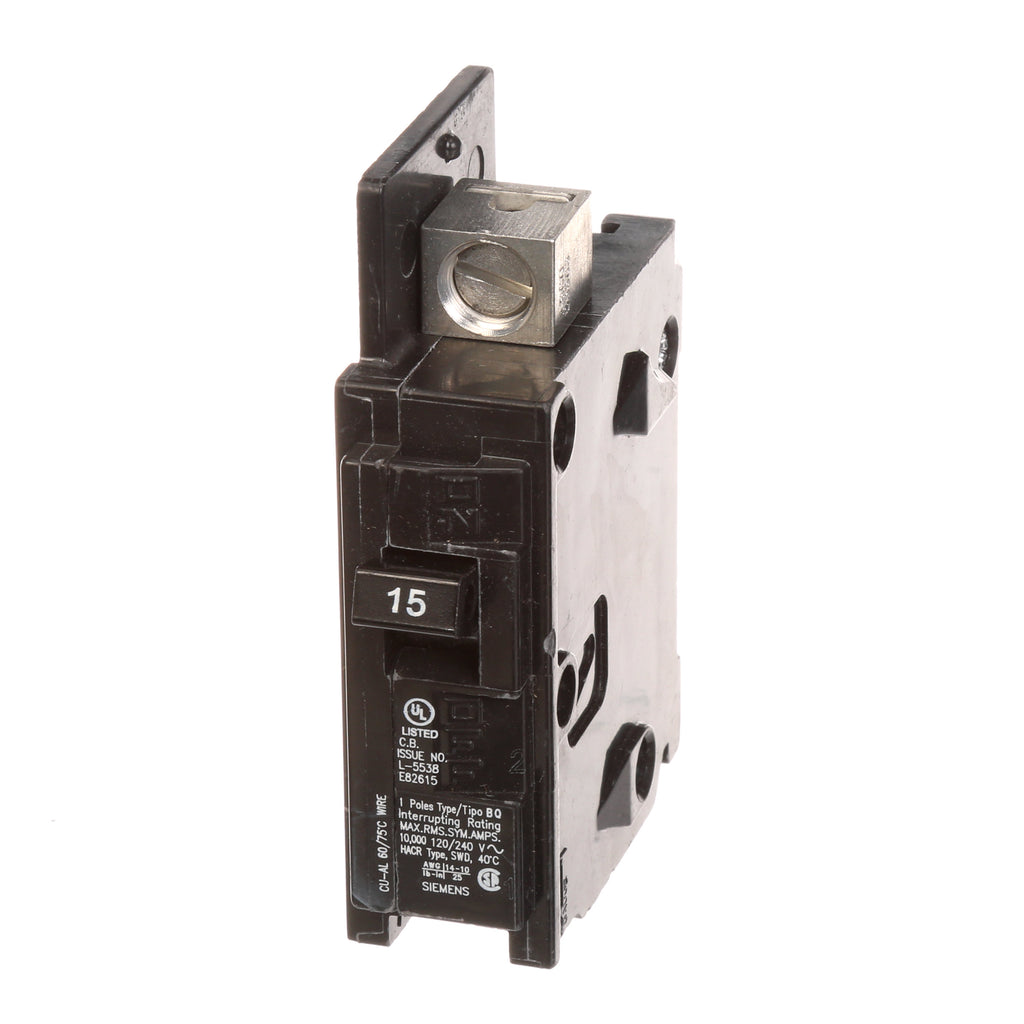

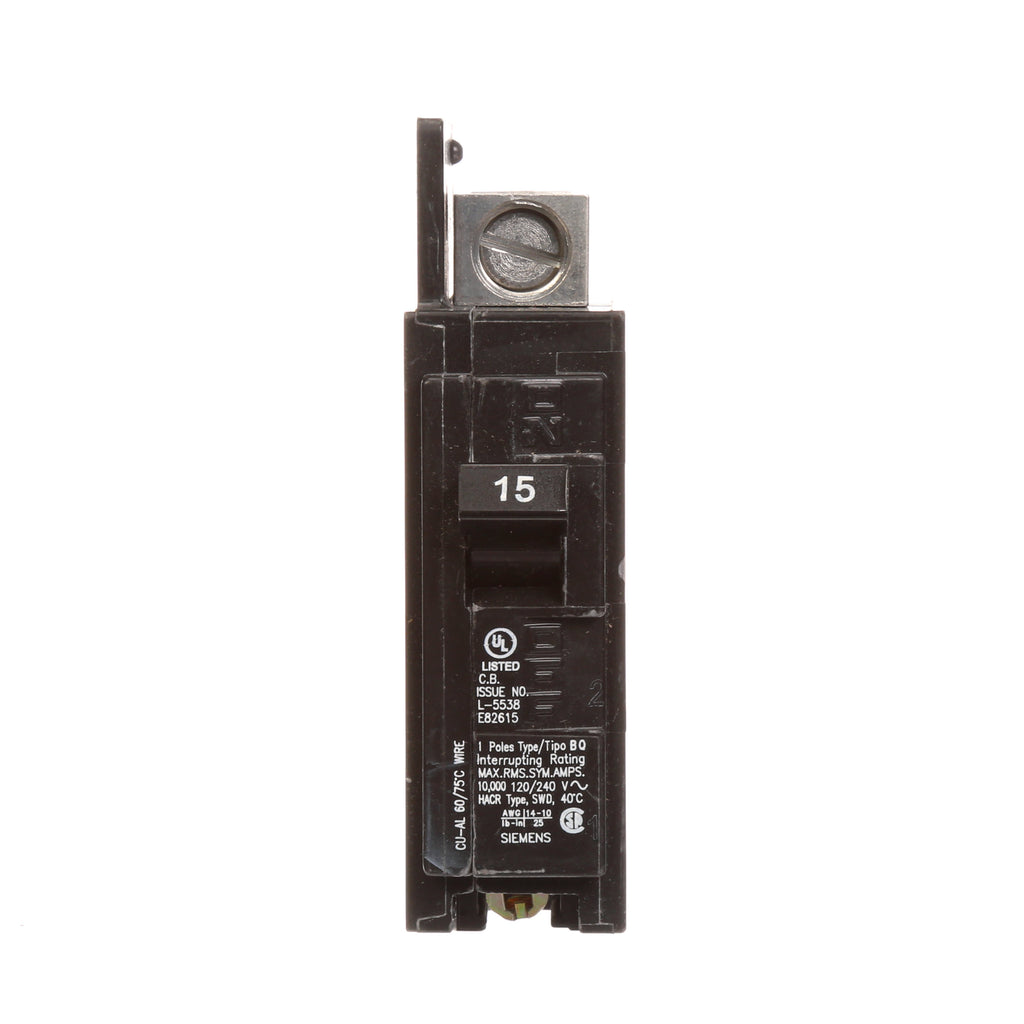

BQ1B015L is a 1-pole thermal magnetic molded case circuit breaker from Siemens designed for low voltage power distribution applications. This Type BQ breaker features lug-in and lug-out connections for flexible installation in electrical panels and enclosures.Key Specifications
- Manufacturer: Siemens
- Part Number: BQ1B015L
- Amperage: 15 Amps
- Voltage: 120 VAC
- Poles: 1
- Interrupt Rating: 10 kA AIR
- Trip Unit: Thermal Magnetic
- Connection Type: Lug In / Lug Out
- Series: Type BQ
- UL Listed
Specifications
- Part Number: BQ1B015L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQ Series
- Type : BQ
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237070
- GTIN : 00783643237070
- Country of Origin : Mexico
- Dimensions : 2.756 x 0.787 x 3.937 inch
- Weight : 0.331
- Panel Type : Siemens Panelboards
- Standards : CSA Certified, HACR Rated, UL Listed
- Certification : CSA, HACR, UL
