Description
BOS14355

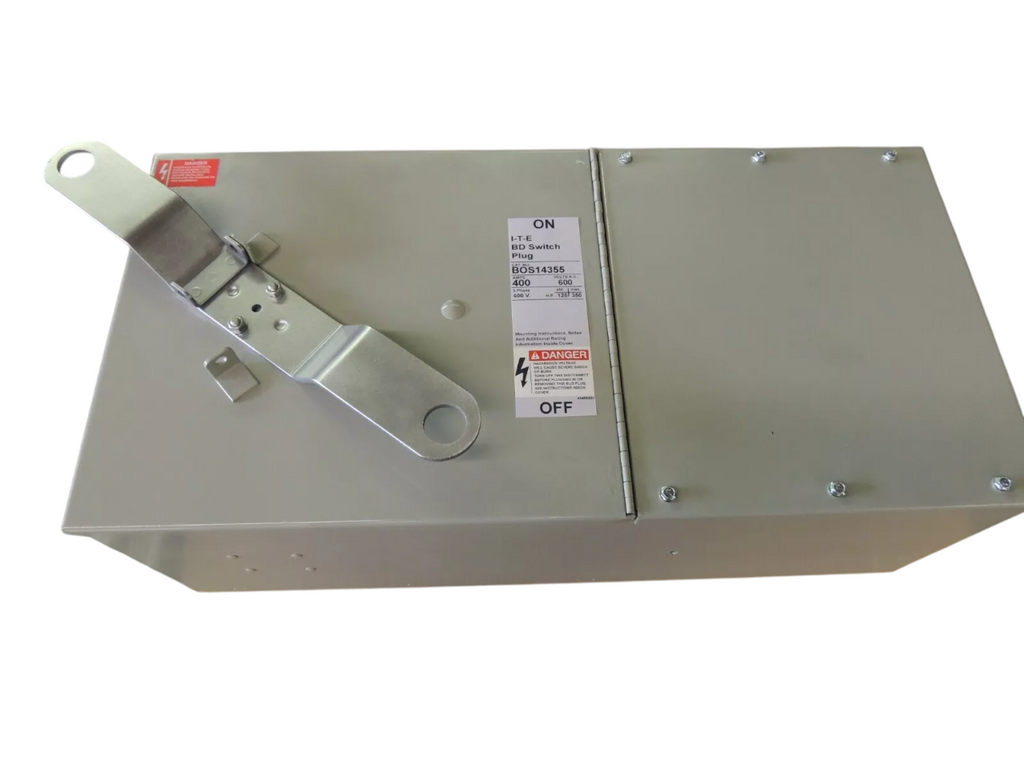

BOS14355 is a Siemens fusible bus plug designed for use with BD series busway systems, rated at 400 amps and 600 volts with a 3-pole, 3-wire configuration.This bus plug features fusible overcurrent protection suitable for 225-400 amps with R-class fuses by default and includes 500 MCM mechanical lugs. It is compatible with Siemens BD series bus duct and is a current style replacement for previous Gould and ITE models.
- Amperage: 400 Amps
- Voltage: 600 Volts
- Poles: 3-Pole, 3-Wire
- Type: Fusible Bus Plug
- Series: Siemens BD (Bulldog) Series
- Overcurrent Protection: Fusible, R-class fuses (225-400A range)
- Mechanical Lugs: 500 MCM standard
- Mounting: Plug-in for busway
- Manufacturer: Siemens
Specifications
- Part Number: BOS14355
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS
- Voltage : 600
- Amperage : 400
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R,H,K
- Wire : 3
Product Data
- UPC : 078364370044
- GTIN : 00783643700444
- Weight : 102.206
