Description
BOS14323G

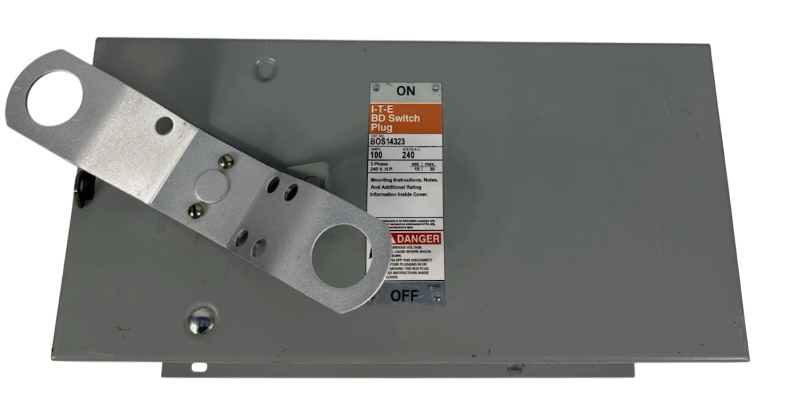

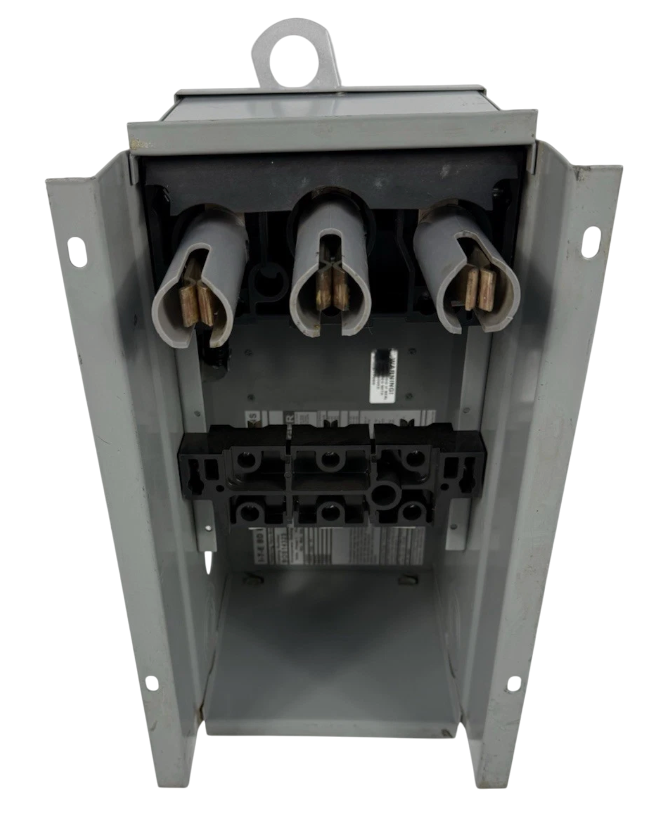

BOS14323G is a 100 amp, 240 volt, 3-phase, 3-wire fusible bus plug designed for use with Siemens BD Series industrial busway systems. This UL Listed assembly features a UL Recognized internal switch and is suitable for plug-in bus duct applications requiring reliable power distribution and switching capabilities. Key Specifications
- Amperage: 100A
- Voltage: 240V AC
- Phase: 3-Phase
- Wire Configuration: 3-Wire with Ground
- Style: Fusible
- Fuse Class: R, H, K
- Interrupt Rating: 65kA at 240VAC
- Series: BD Series
- Type: BOS/BES
- UL Listed Assembly
Specifications
- Part Number: BOS14323G
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS
- Voltage : 240
- Amperage : 100
- Phase : 3
- AIC rating : 65kA@240V
- Fuse Class : R,H,K
- Wire : 3
Product Data
- Weight : 45
