Description
BOS14353G

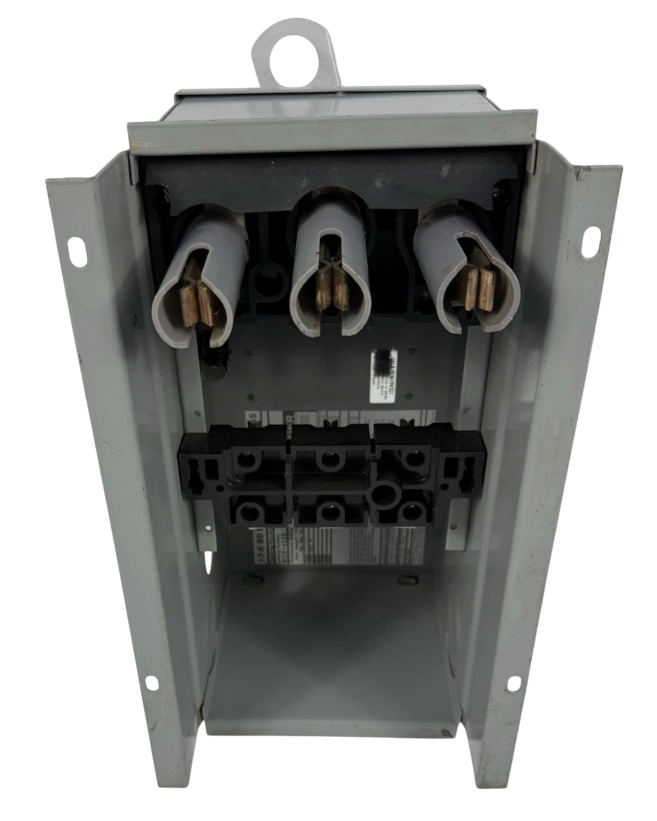

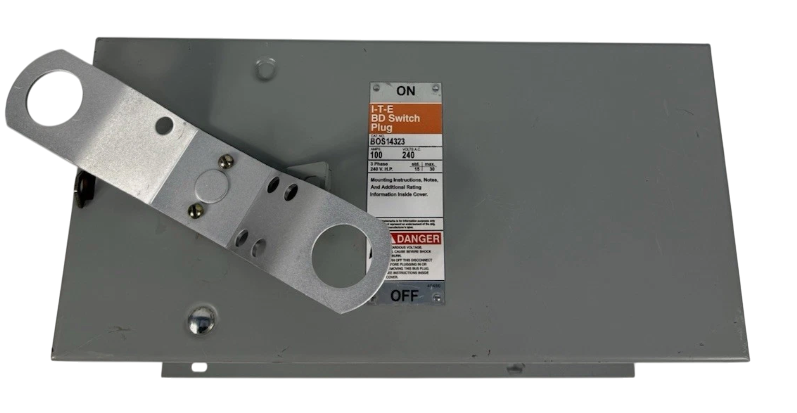

BOS14353G is a 100 ampere, 600 volt, 3 phase, 3 wire fusible bus plug designed for use with Siemens BD Series industrial busway systems. This floor-operable plug features a Vacu-Break switch mechanism with terminal protection and accepts Class R, H, and K fuse types for flexible circuit protection. The unit is UL Listed and includes UL Recognized internal switch components suitable for direct replacement in existing BD Series installations. Key Specifications
- Part Number: BOS14353G
- Manufacturer: Siemens (ITE, Bulldog)
- Amperage: 100A
- Voltage: 600VAC
- Phase: 3 Phase
- Wire Configuration: 3 Wire with Ground
- Series: BD (Bulldog)
- Style: Fusible
- Fuse Class: R, H, K
- Interrupt Rating: 65kA at 480VAC
- Horsepower: 30 HP NEC, 75 HP Max Time Delay
- Certifications: UL Listed
Specifications
- Part Number: BOS14353G
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R,H,K
- Wire : 3
Product Data
- Weight : 45
