Description
BOS14352R

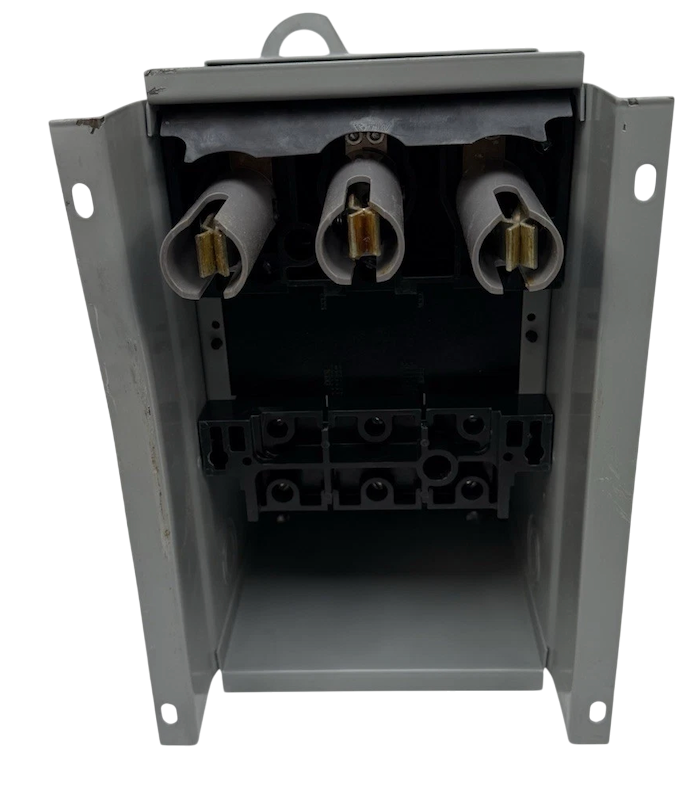

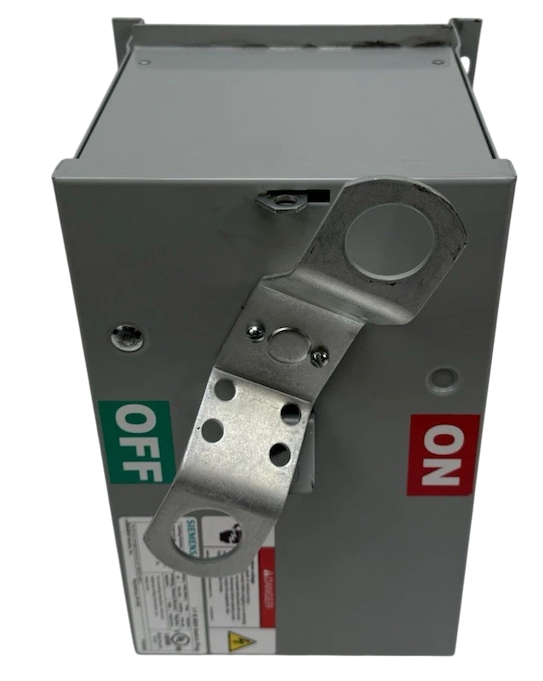

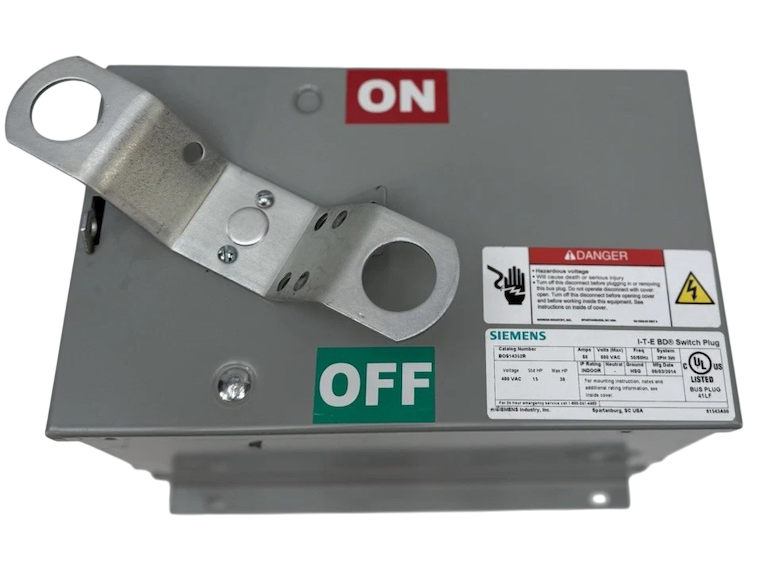

BOS14352R is a fusible bus plug rated for 600VAC, 60-amp, 3-phase, 3-wire operation on Siemens BD series plug-in bus duct systems. This floor-operable unit features mechanical lugs and terminal protection, designed for industrial power distribution applications requiring reliable circuit isolation and fuse protection. The plug measures 12 inches along the duct, 7.125 inches in height, and 10 inches in depth, with a weight of approximately 15 lbs. Key Specifications
- Voltage Rating: 600VAC
- Current Rating: 60 Amps
- Number of Poles: 3
- Phase Configuration: 3-Phase, 3-Wire
- Fuse Classes: H, K, R
- Series: BD (Bulldog) Plug-In
- Interrupting Rating: 65kA at 480V
- Horsepower Standard (NEC): 15
- Horsepower Maximum (Time Delay): 50
- Certification: UL857 Indoor
- Mounting: Floor-Operable with Terminal Protection
- Fuses: Not Included
Specifications
- Part Number: BOS14352R
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS
- Voltage : 480
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H,R
- Wire : 3
Product Data
- UPC : 78364351352
- GTIN : 00783643513525
- Weight : 35
