Description
BOS14352

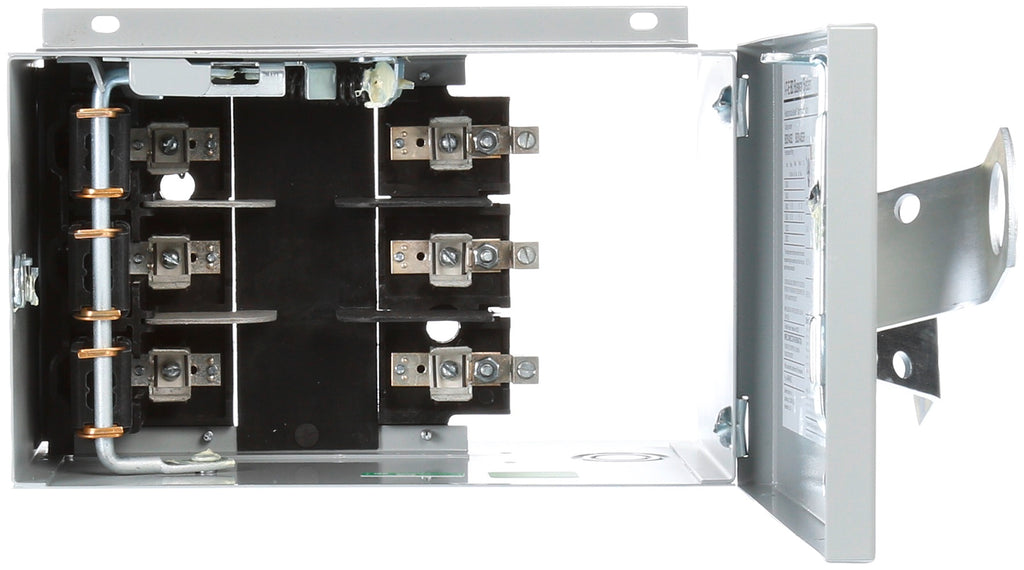

BOS14352 is a fusible bus plug from Siemens designed for 3-phase power distribution systems. This unit is rated for 600V, 60A with a 3-wire configuration and integrates with Siemens BD Series Bulldog busway systems for secure plug-in mounting. The BOS14352 features a short circuit interrupting rating of 65kA at 480V and accepts Class R, H, and K fuses for flexible overcurrent protection. It includes mechanical lugs for terminal connection and is floor-operable with terminal protection.
- Voltage Rating: 600VAC
- Amperage: 60A
- Phase: 3-Phase
- Wire Configuration: 3-Wire
- Series: BD (Bulldog)
- Fuse Class: R, H, K
- Short Circuit Rating: 65kA at 480V
- Horsepower Standard (NEC): 15
- Horsepower Maximum (Time Delay): 50
- Mounting: Plug-in for BD Busway
- Certification: UL857 Indoor
- Terminal Protection: Yes
Specifications
- Part Number: BOS14352
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : BD Series
- Type : BOS
- Voltage : 600 AC
- Amperage : 60
- Phase : 3
- AIC rating : 65kA@480V
- Fuse Class : R,H,K
- Wire : 3
Product Data
- UPC : 783643700383
- GTIN : 00783643700383
- Country of Origin : Mexico
- Dimensions : 15.748 x 9.843 x 12.598 inch
- Weight : 15.675
- Certification : UL Listed
