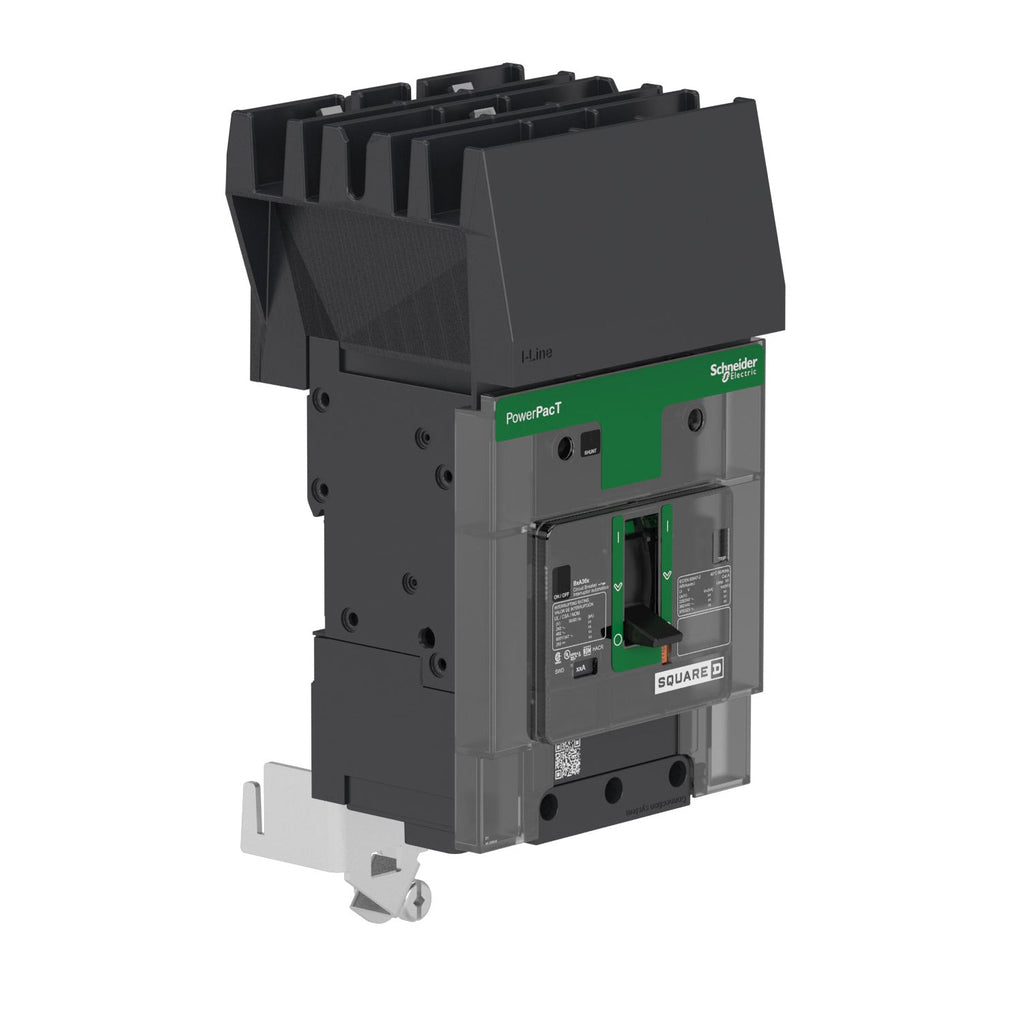

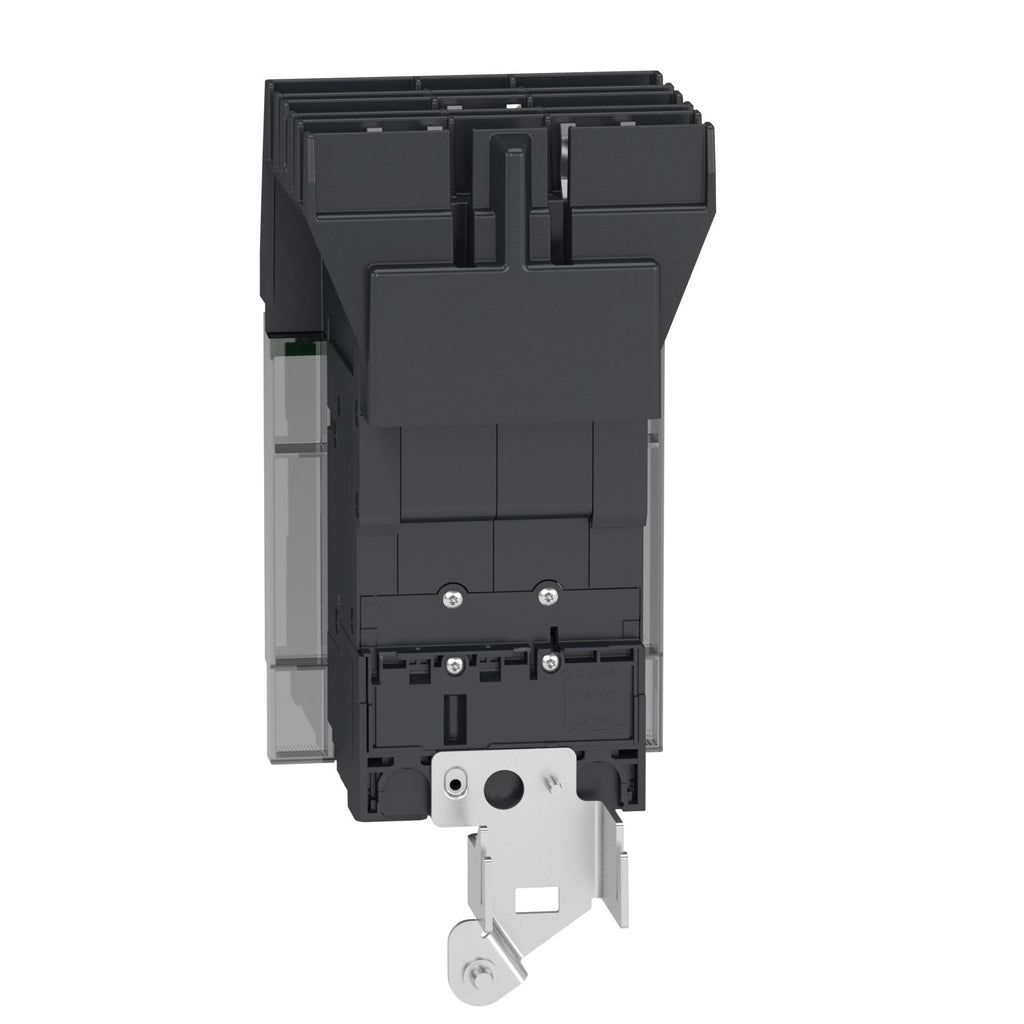

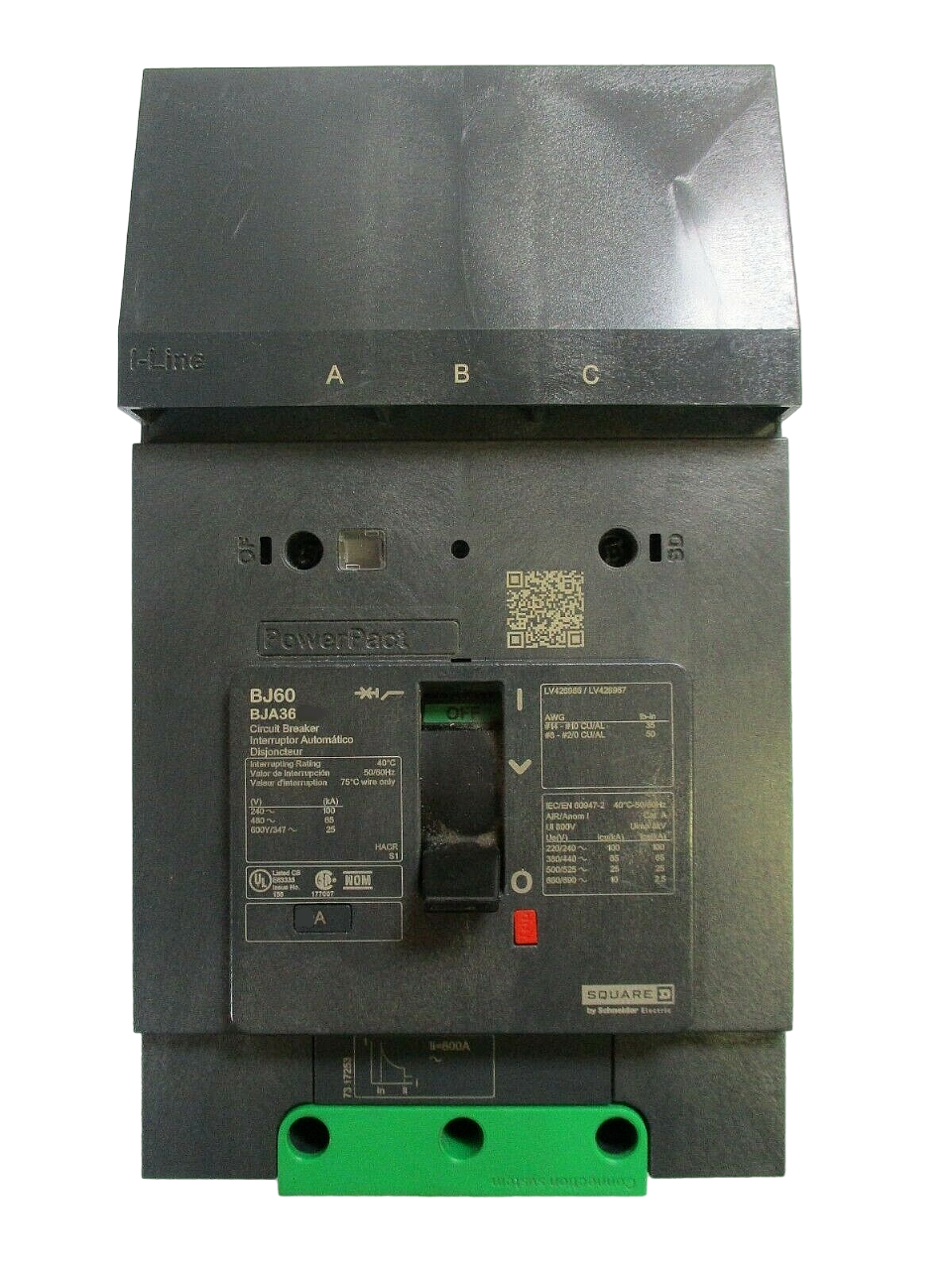

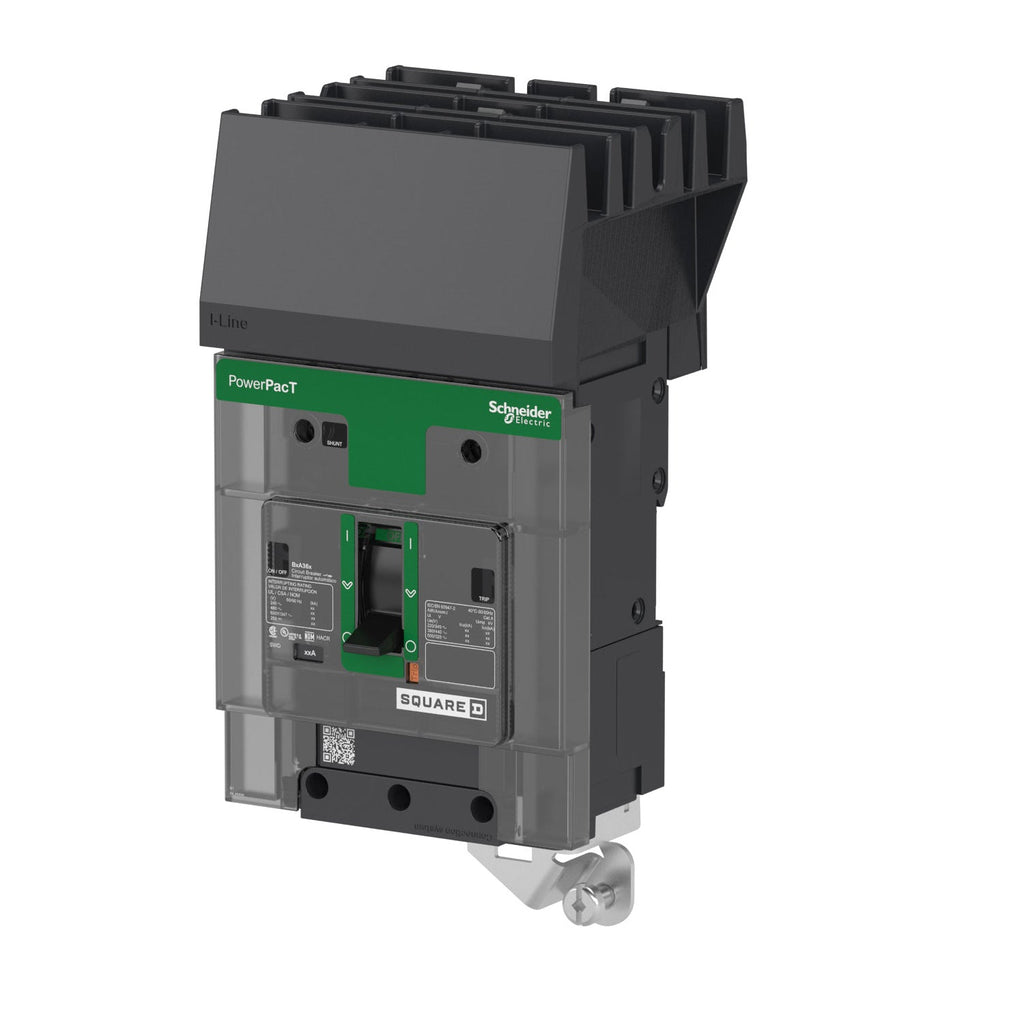

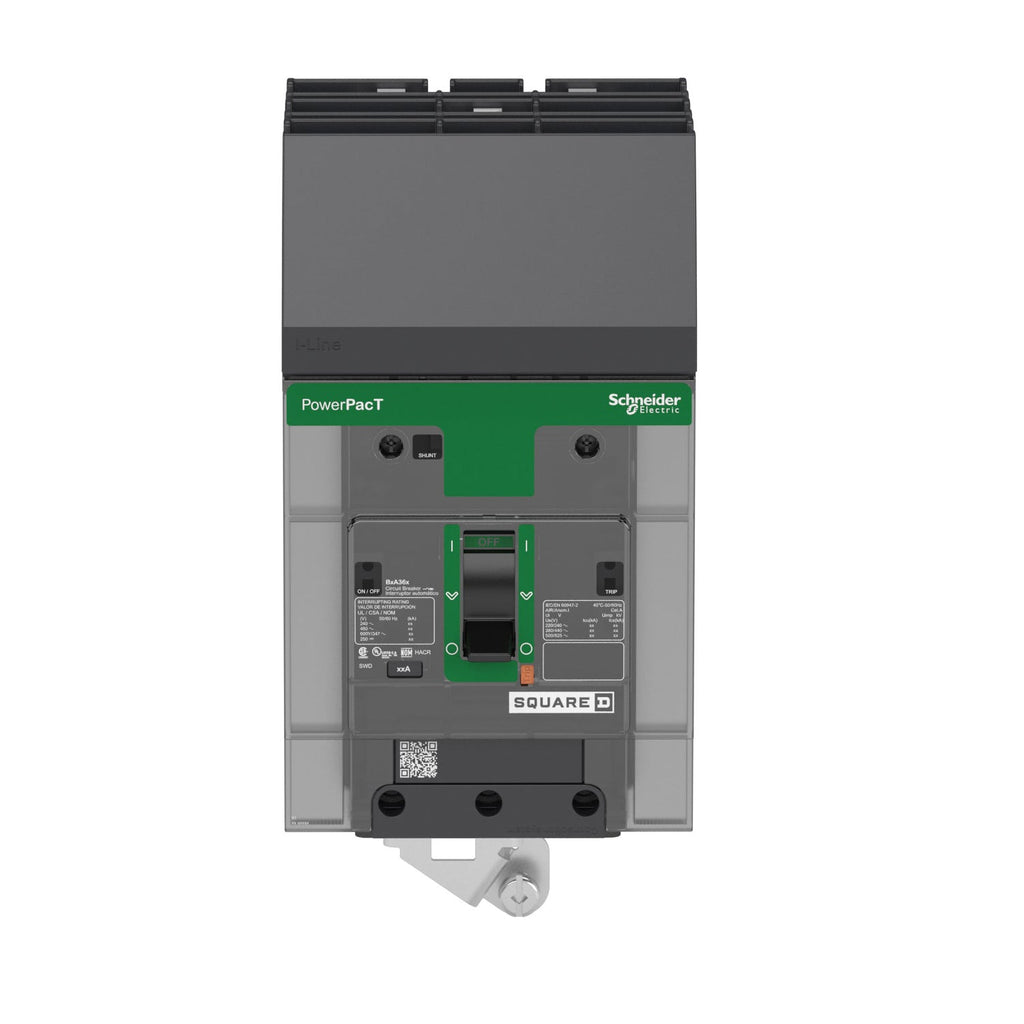

BJA36110 - Square D 110A 600V 3 Pole Molded Case Circuit Breaker, 25kA, B-Frame, I-Line, Thermal Magnetic

BJA36110

BJA36110 is a 3-pole, 110A, 600V molded case circuit breaker from Square D, designed for reliable protection in commercial and industrial power distribution systems. This BJA36110 breaker features a B-frame, I-Line mounting, and a thermal magnetic trip unit for dependable overcurrent protection. It is rated for up to 25kA interrupt capacity at 600V and is suitable for use in systems requiring robust safety and operational efficiency.

• Part Number: BJA36110
• Manufacturer: Square D
• Amperage: 110A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 25kA at 600V
• Series/Frame: B-Frame
• Trip Unit: Thermal Magnetic
• Connection Type: Bolt-on
• Standards: UL 489
• Phase: ABC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJA36110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901014683
• GTIN : 03606481185945
• Country of Origin : Mexico

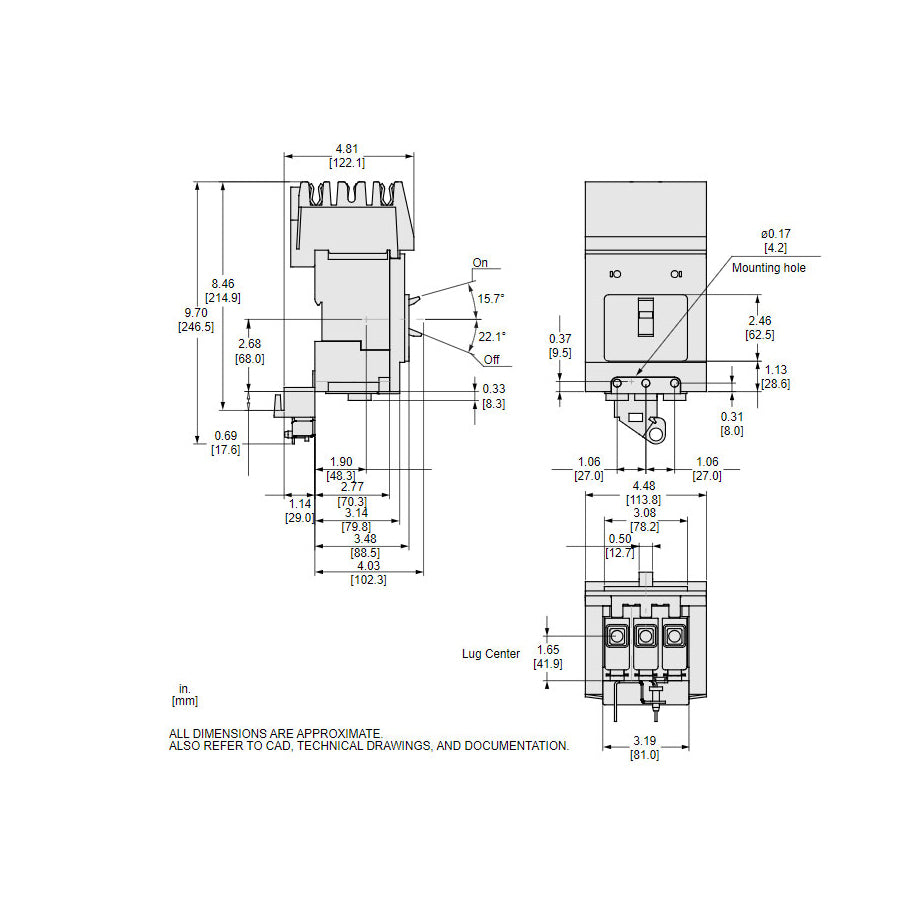

• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.14
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : UL 489, GB 14048.2, NMX J-266, EN/IEC 60947-5-1, EN/IEC 60947-2, NEMA AB1, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
