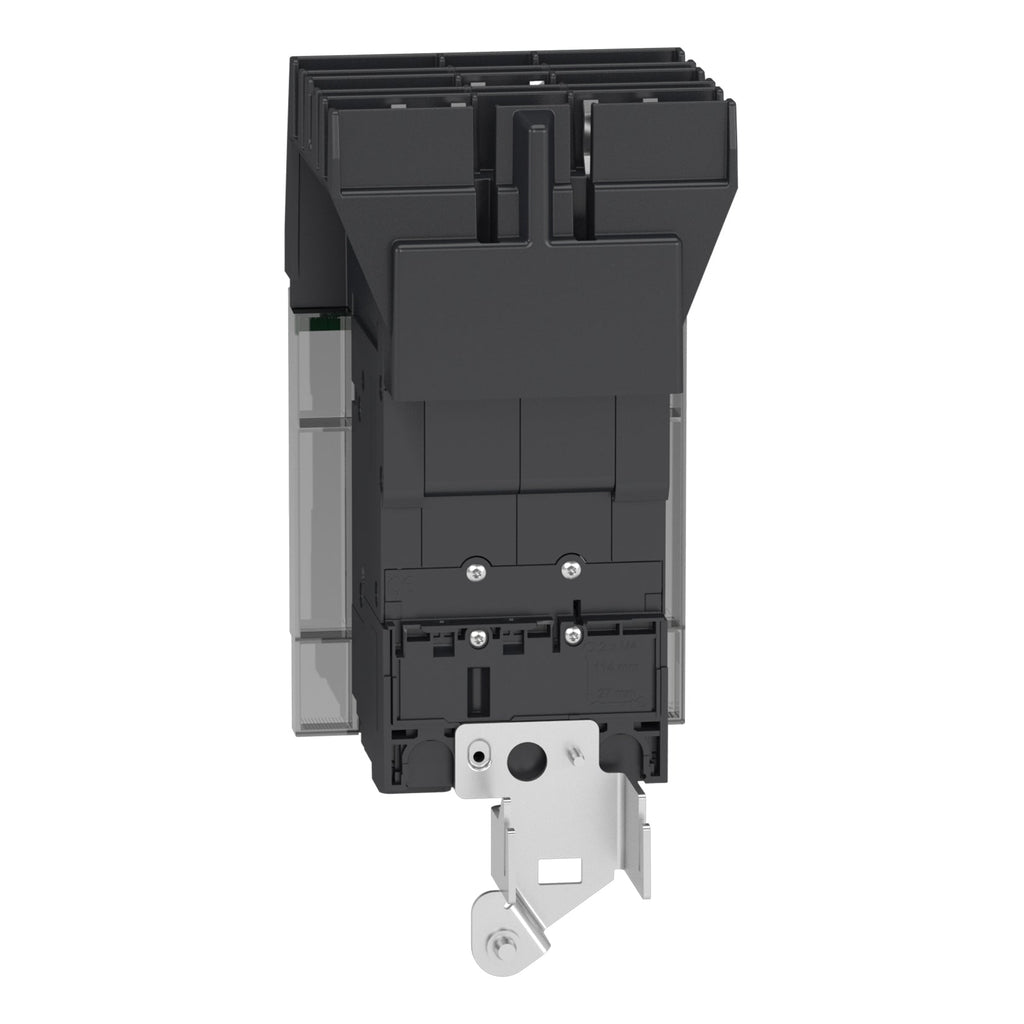

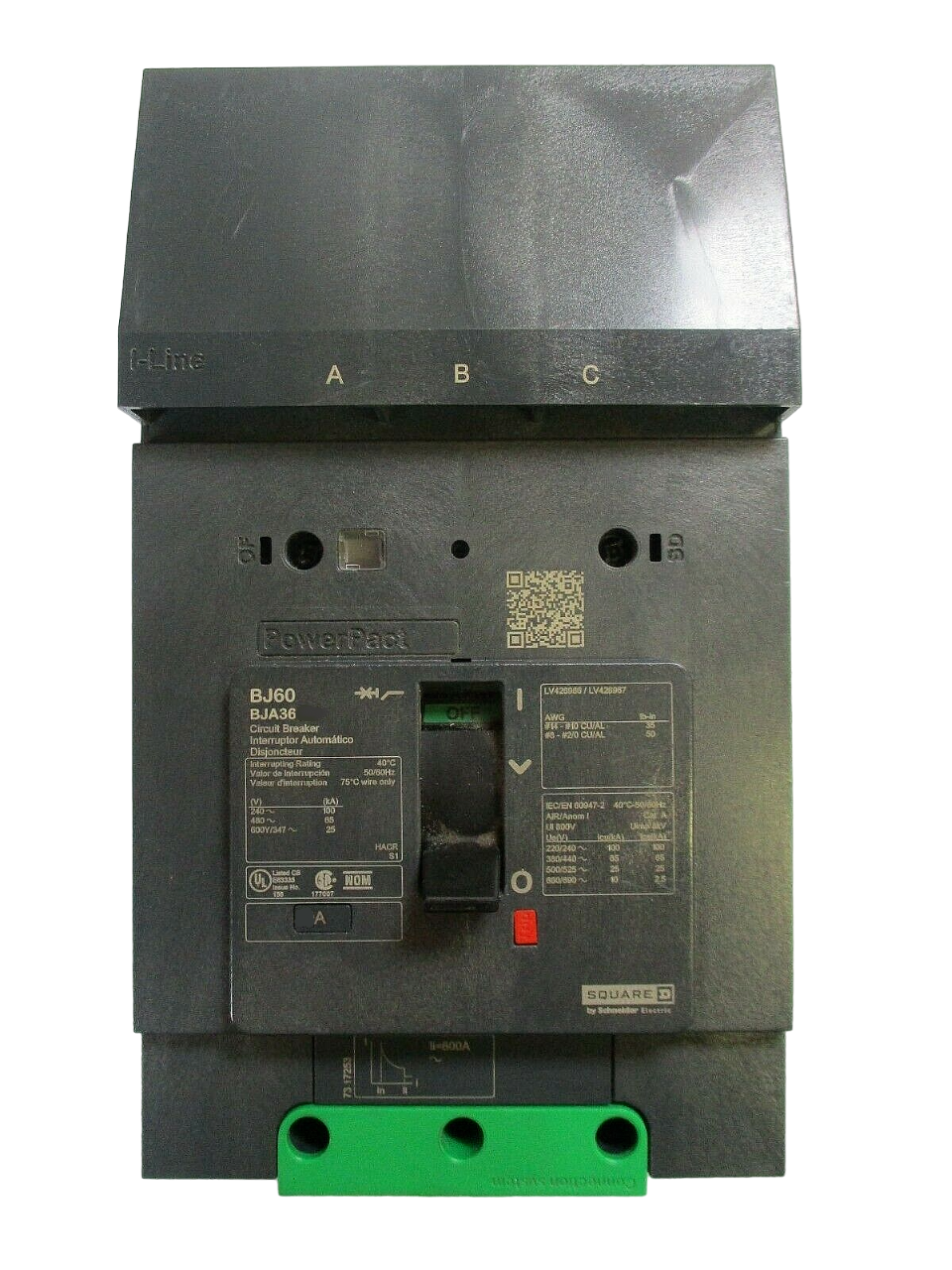

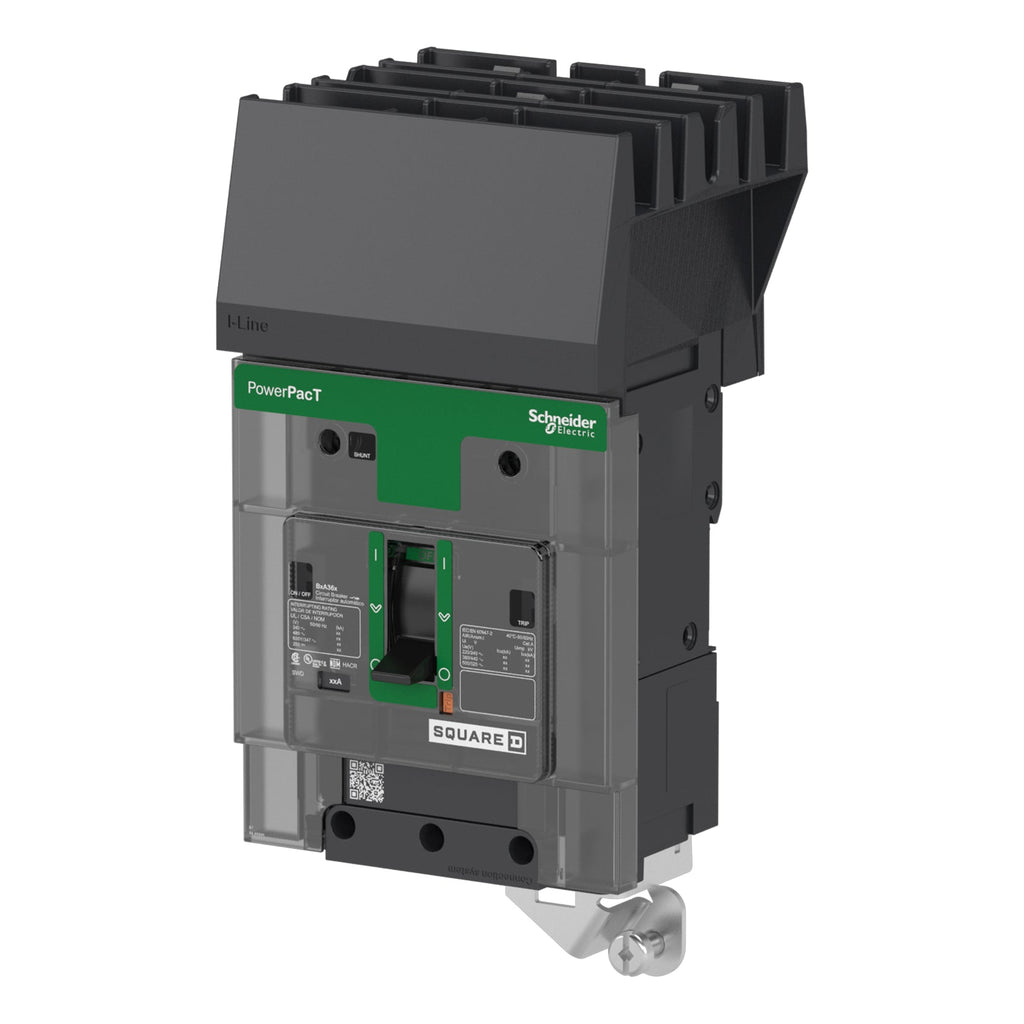

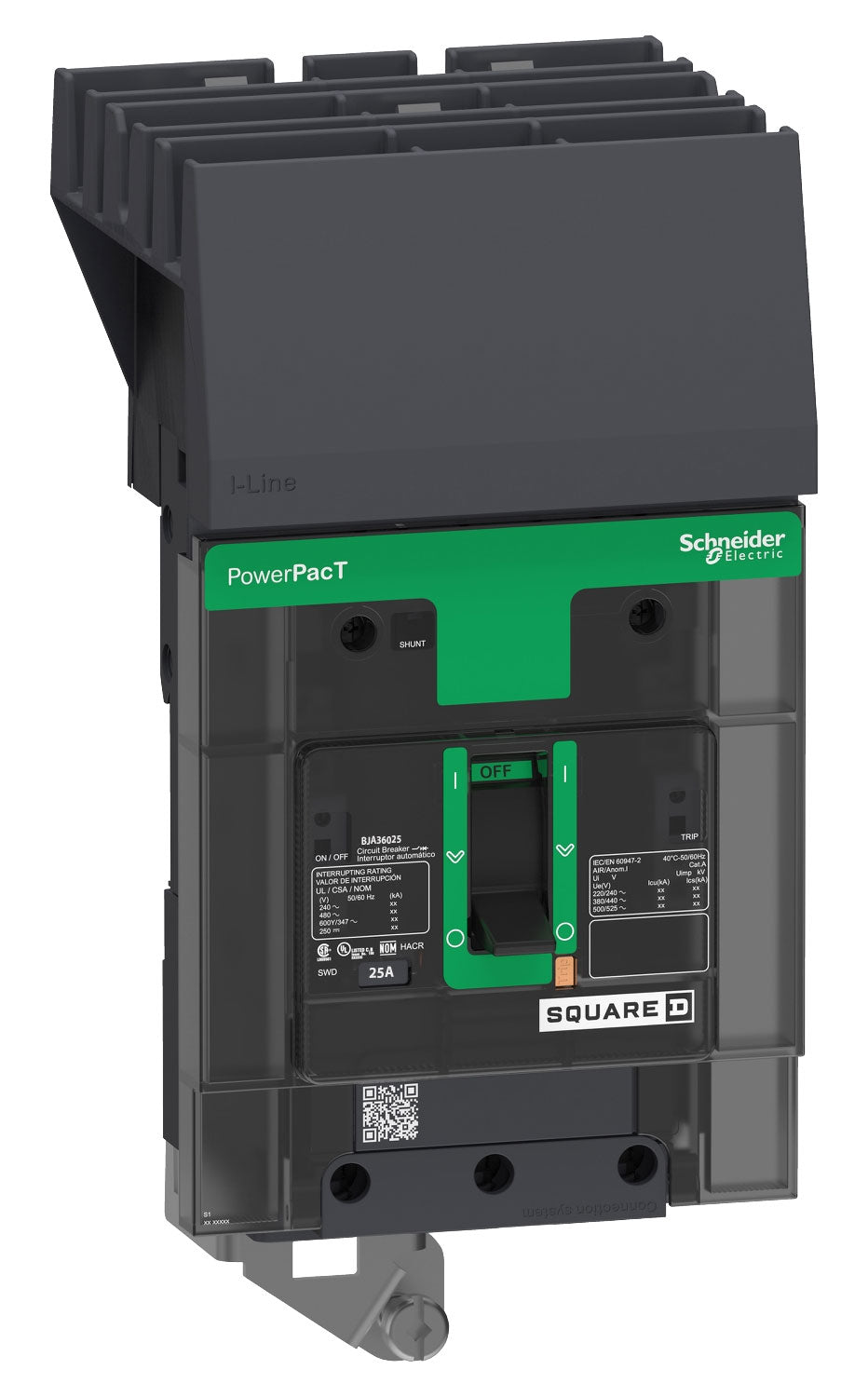

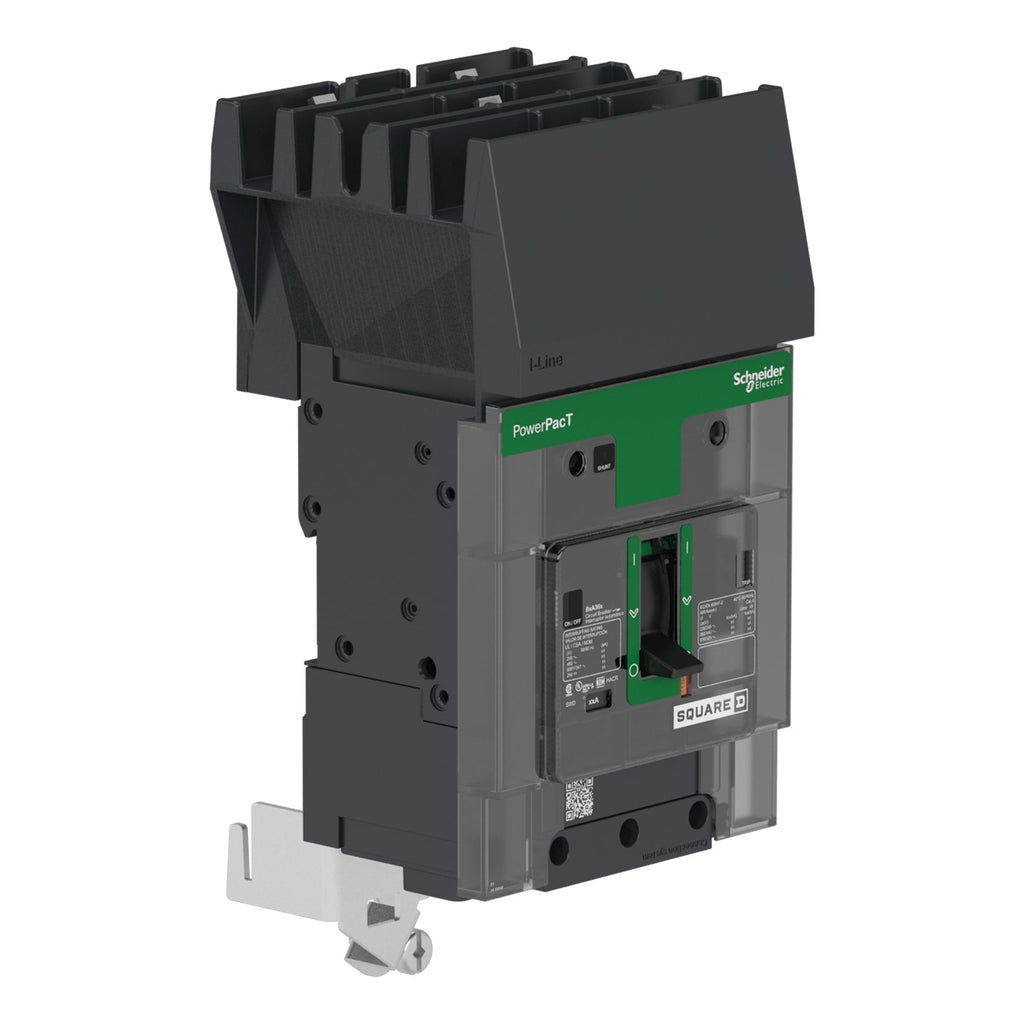

BJA36025 - Schneider Electric 25A 3-Pole PowerPact B Circuit Breaker 600Y/347VAC 25kA I-Line Thermal Magnetic

BJA36025

BJA36025 is a Schneider Electric PowerPact B 3-pole circuit breaker rated at 25 amps with a 25kA interrupt rating at 600Y/347VAC, designed for reliable electrical distribution protection.This circuit breaker features a thermal-magnetic trip unit with dual-break rotating contacts for enhanced short-circuit protection and a manual trip button. It is designed for I-Line mounting and supports ABC 80% rated current for optimized performance. The breaker is UL 489 listed and suitable for commercial and industrial applications requiring compact and robust circuit protection.

• Rated Current: 25 Amps
• Voltage Rating: 600Y/347VAC
• Interrupt Rating: 25kA at 600Y/347VAC
• Number of Poles: 3
• Mounting Type: I-Line
• Trip Unit: Thermal-Magnetic
• Frame/Series: PowerPact B
• Dual-break rotating contacts for enhanced safety
• Manual push-to-trip button
• UL 489 Listed
• 80% rated for ABC conductors

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJA36025
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901014683
• GTIN : 03606481154286
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.23
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NMX J-266, UL 489, CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, NEMA AB1, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
