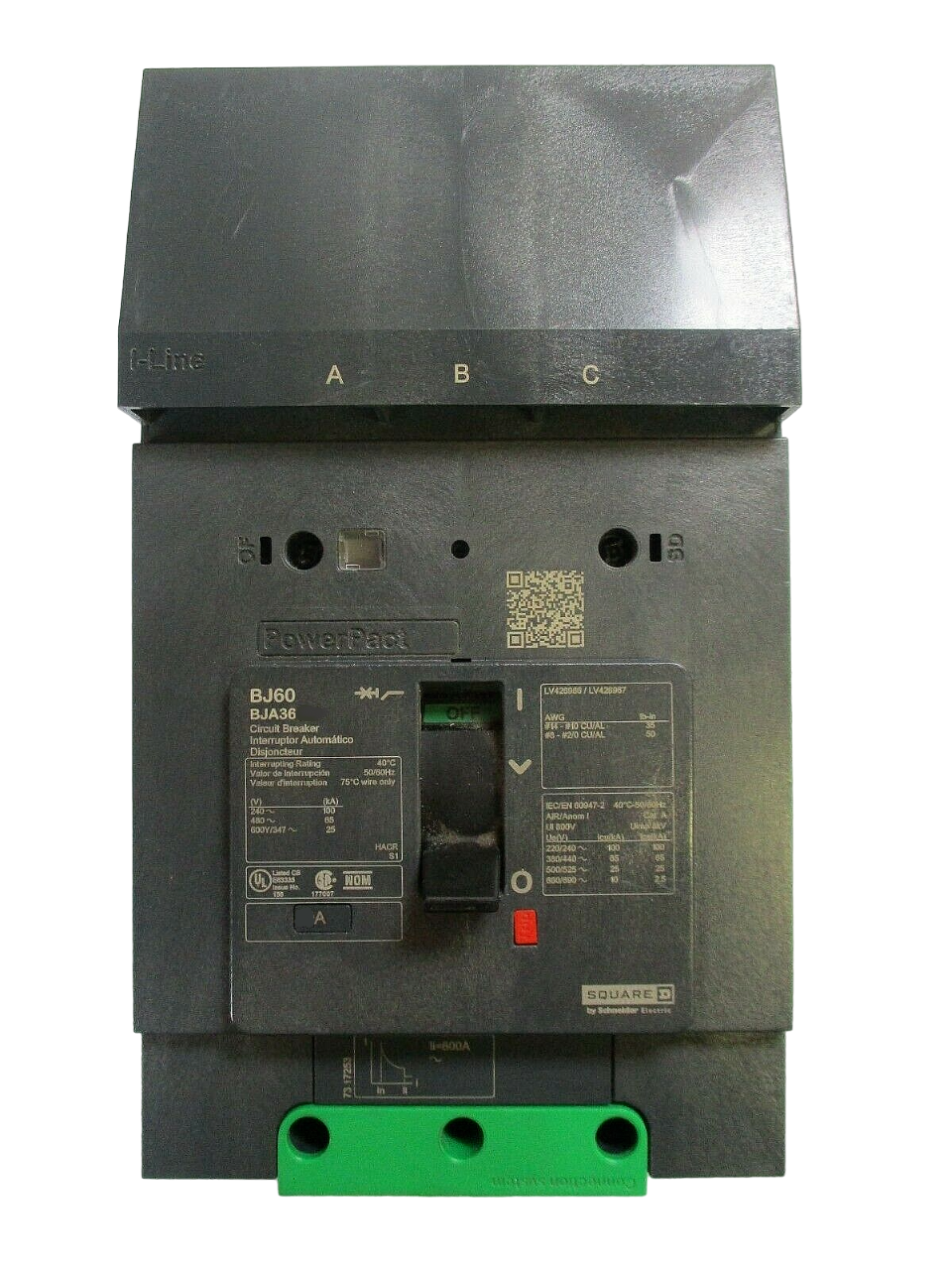

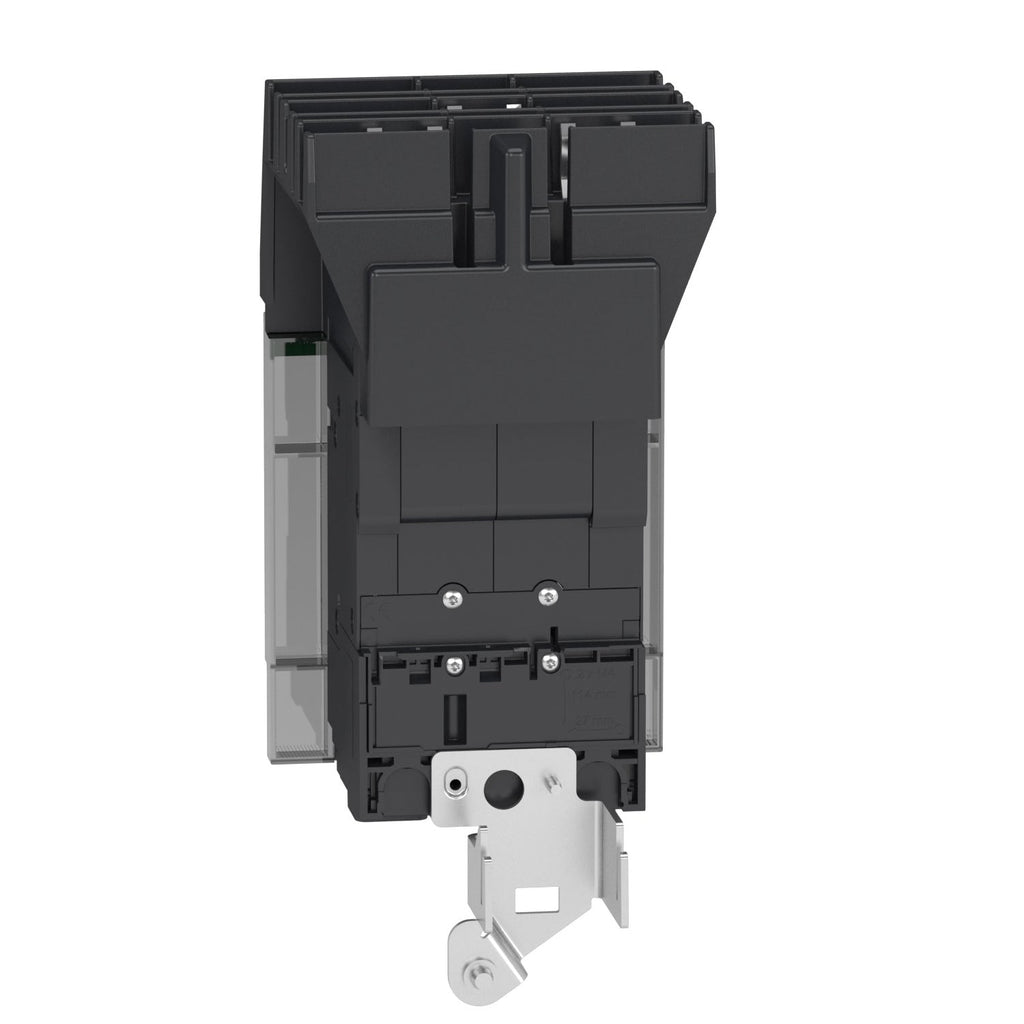

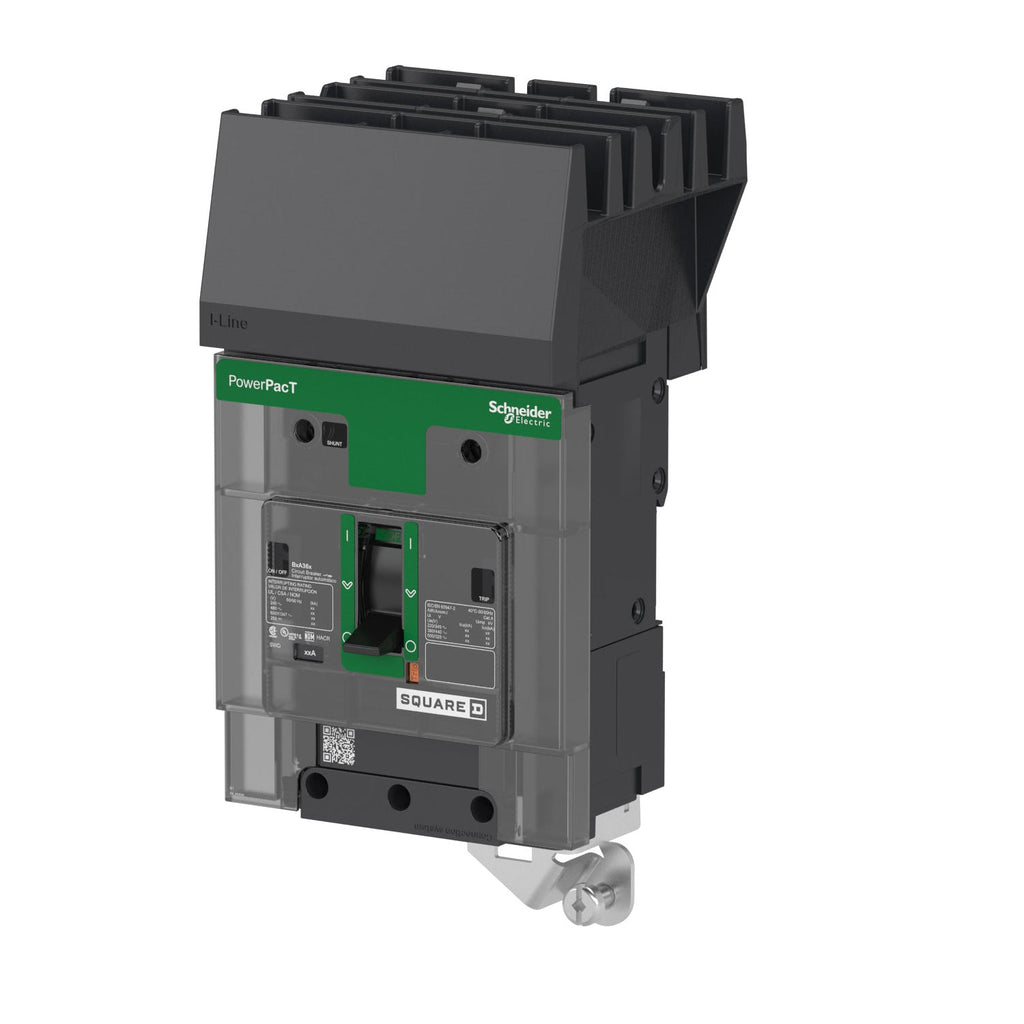

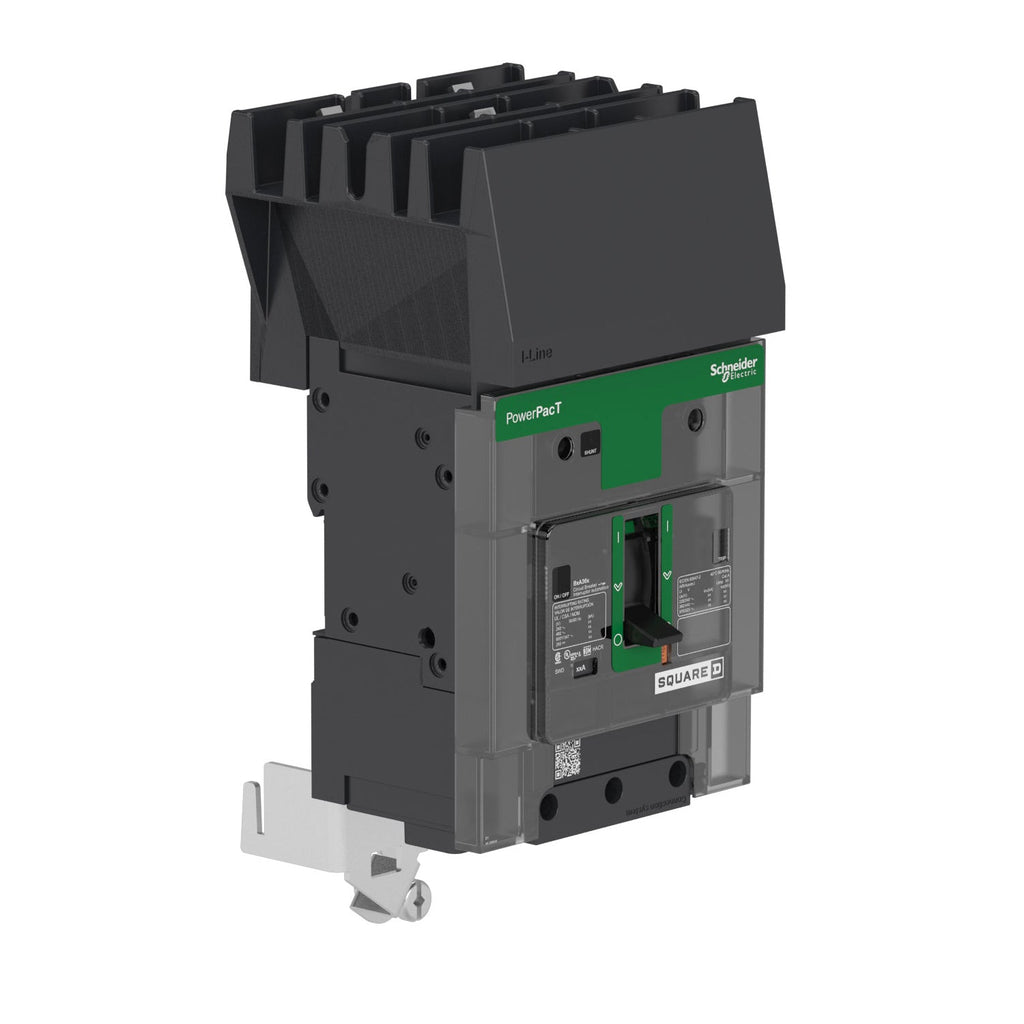

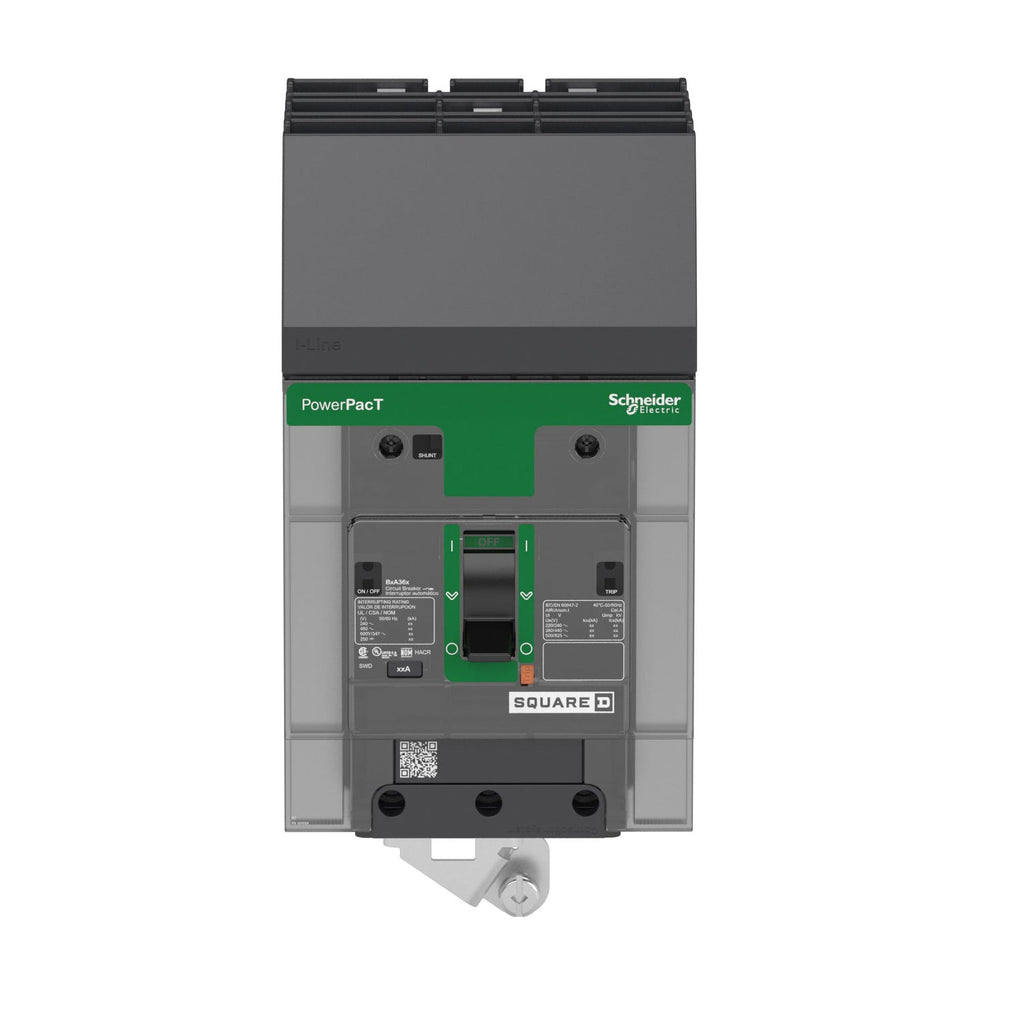

BJA36090 - Schneider Electric 90A 600Y/347VAC 3-Pole PowerPact B Circuit Breaker I-Line Mount

BJA36090

BJA36090 is a Schneider Electric PowerPact B-Frame 3-pole circuit breaker rated for 90 amps and 600Y/347VAC voltage with thermal magnetic trip protection.This circuit breaker features a 3-pole configuration with I-Line style plug-in mounting, 25kA interrupting capacity at 600Y/347VAC, and long-time plus instantaneous trip functions. It supports load side lug connections for AWG 14 to 2/0 aluminum or copper wire and complies with UL 489, CSA, IEC 60947-2, NOM, and other global certifications. The breaker is designed for industrial and commercial power distribution with a mechanical life of 20,000 cycles and electrical life of 10,000 cycles at 440V.

Key Specifications
• Amperage: 90A
• Voltage Rating: 600Y/347VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupting Rating: 25kA at 600Y/347VAC, 65kA at 480VAC
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic with long-time and instantaneous functions
• Certifications: UL 489, CSA C22.2 No 5, IEC 60947-2, NOM, CE
• Wire Gauge: AWG 14 to 2/0 Aluminum/Copper
• Dimensions: Approx. 5.4" H x 3.2" W x 3.5" D
• Environmental: RoHS, REACh, WEEE compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJA36090
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 060648118591
• GTIN : 03606481185914
• Country of Origin : Mexico

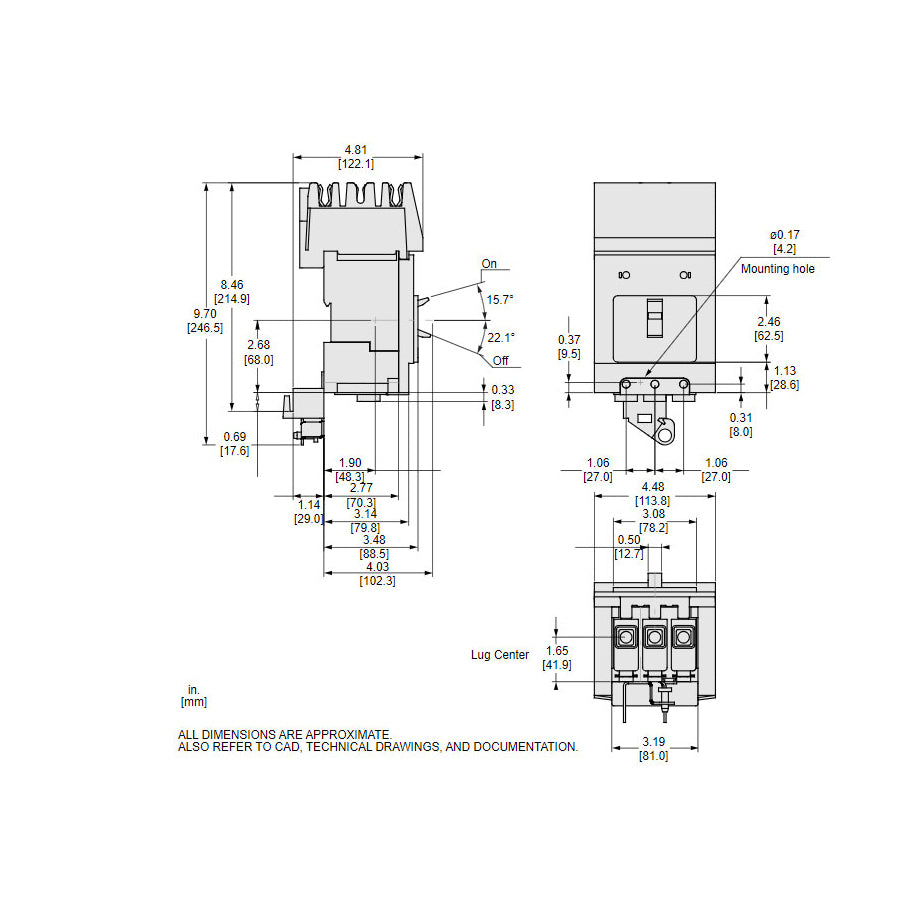

• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.17 lb
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5, UL 489, EN/IEC 60947-5-1, NEMA AB1, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
