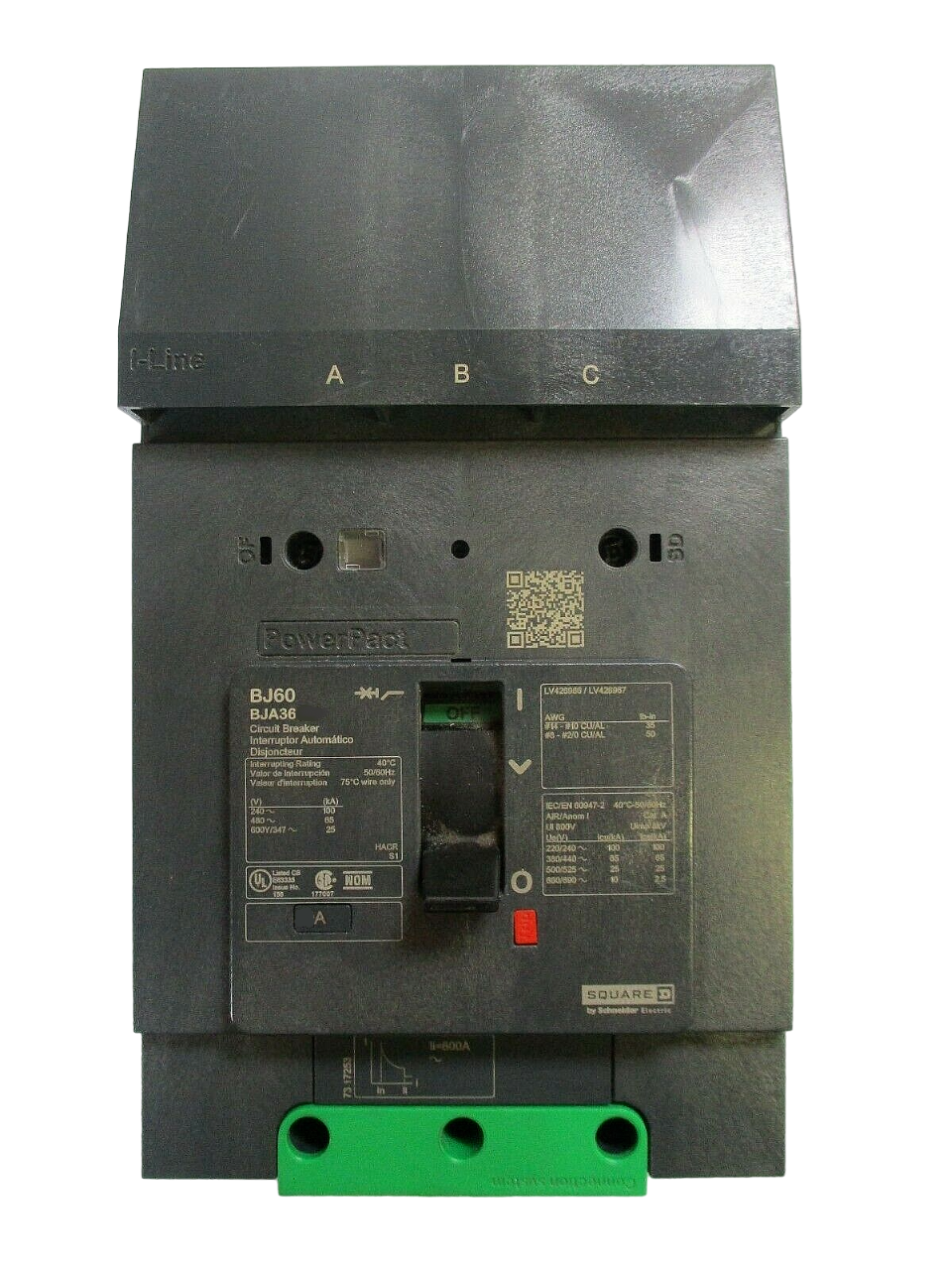

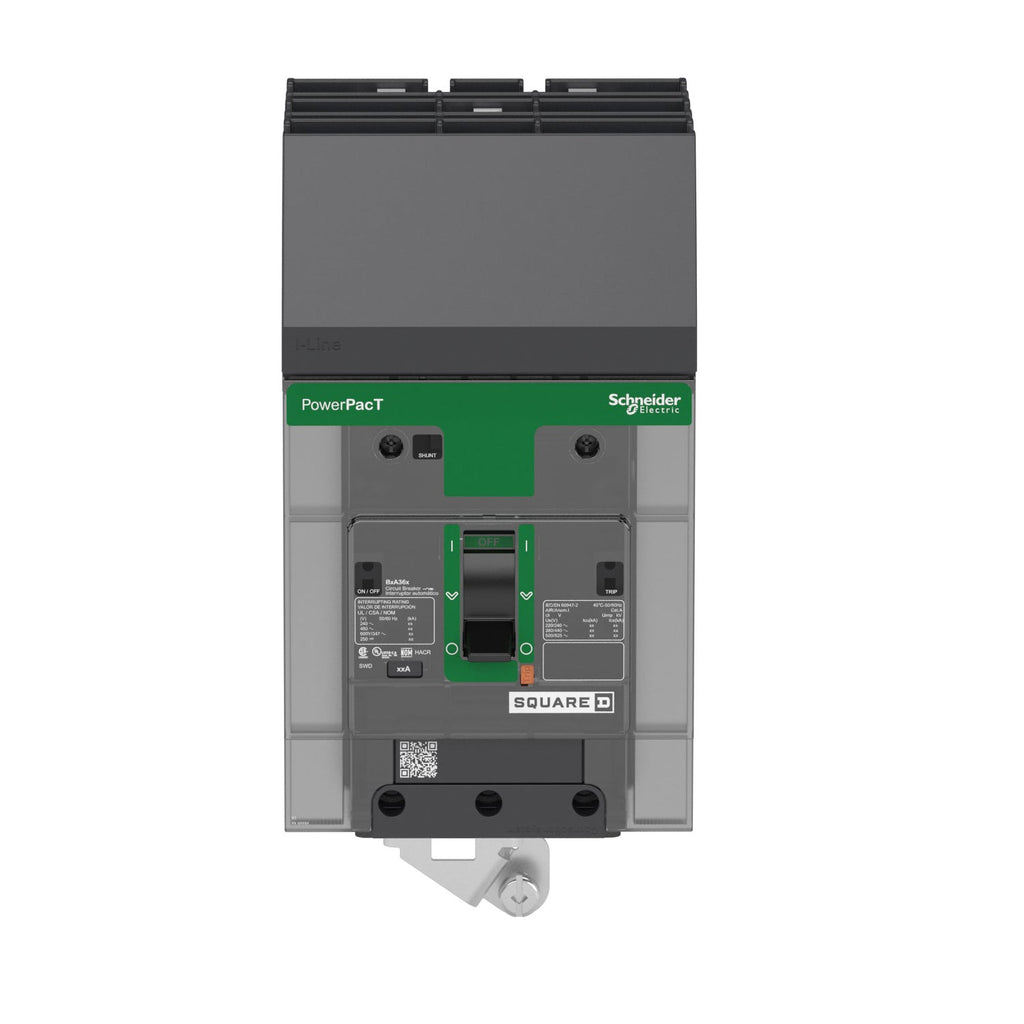

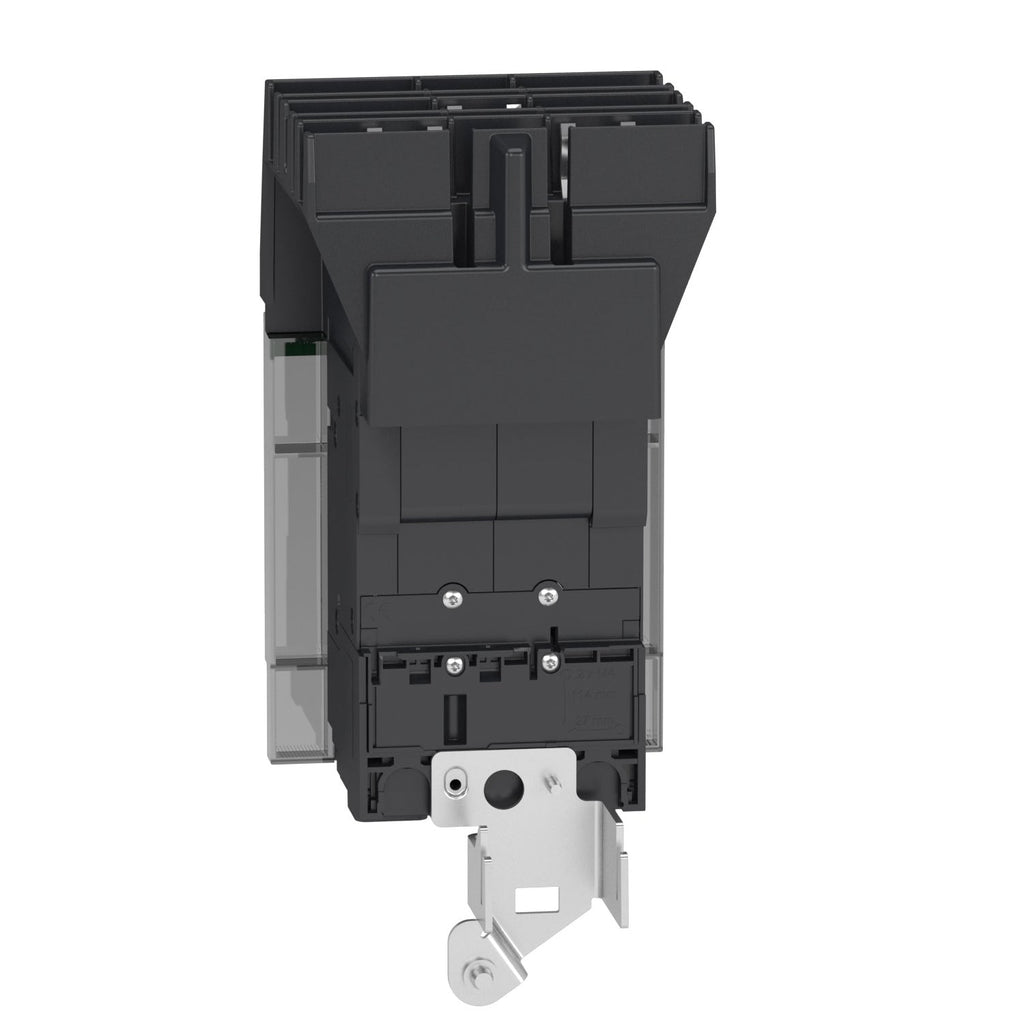

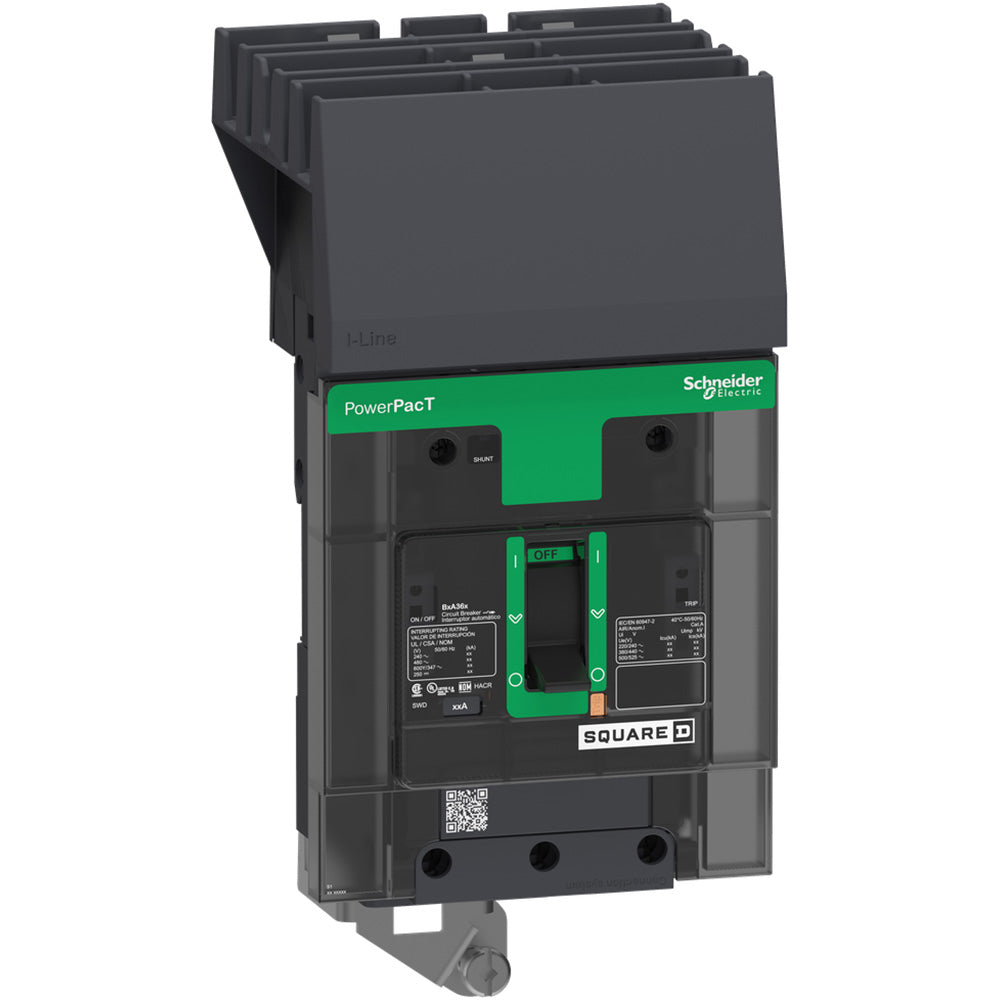

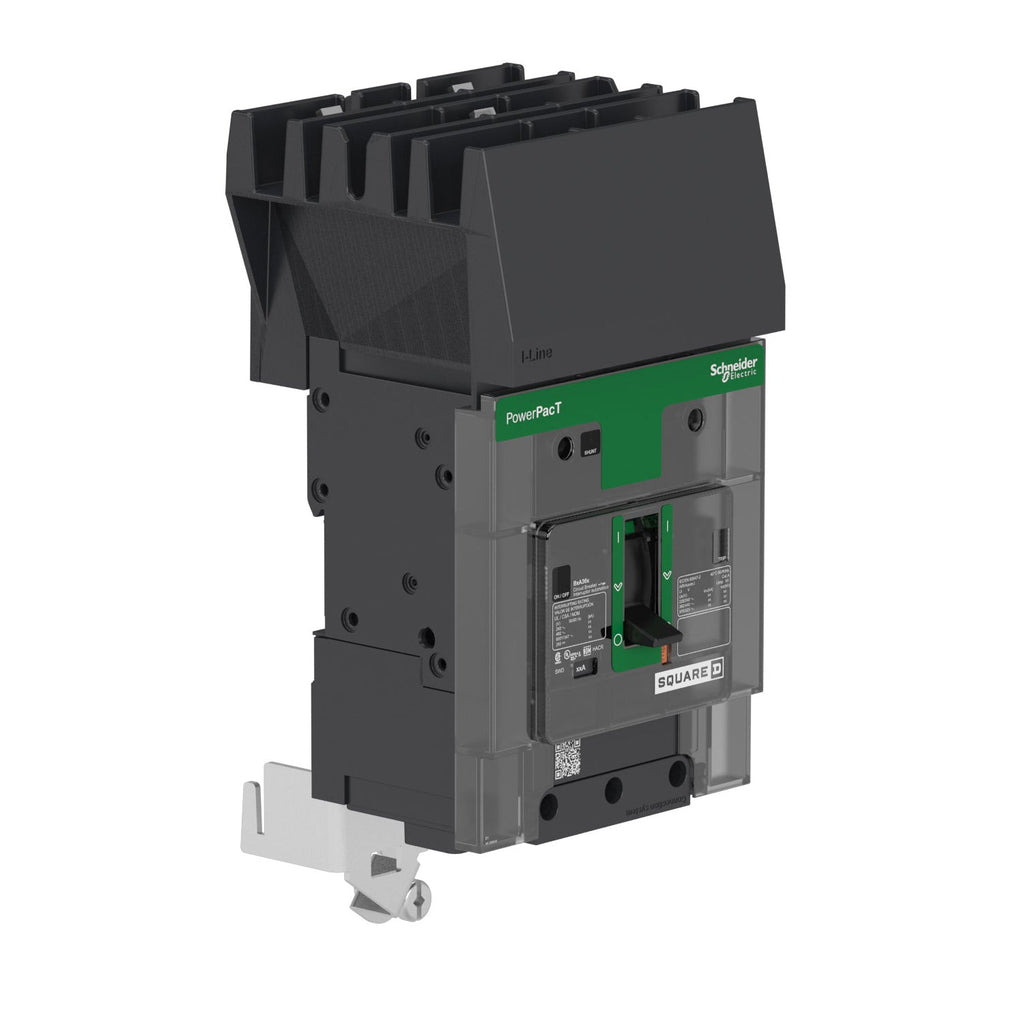

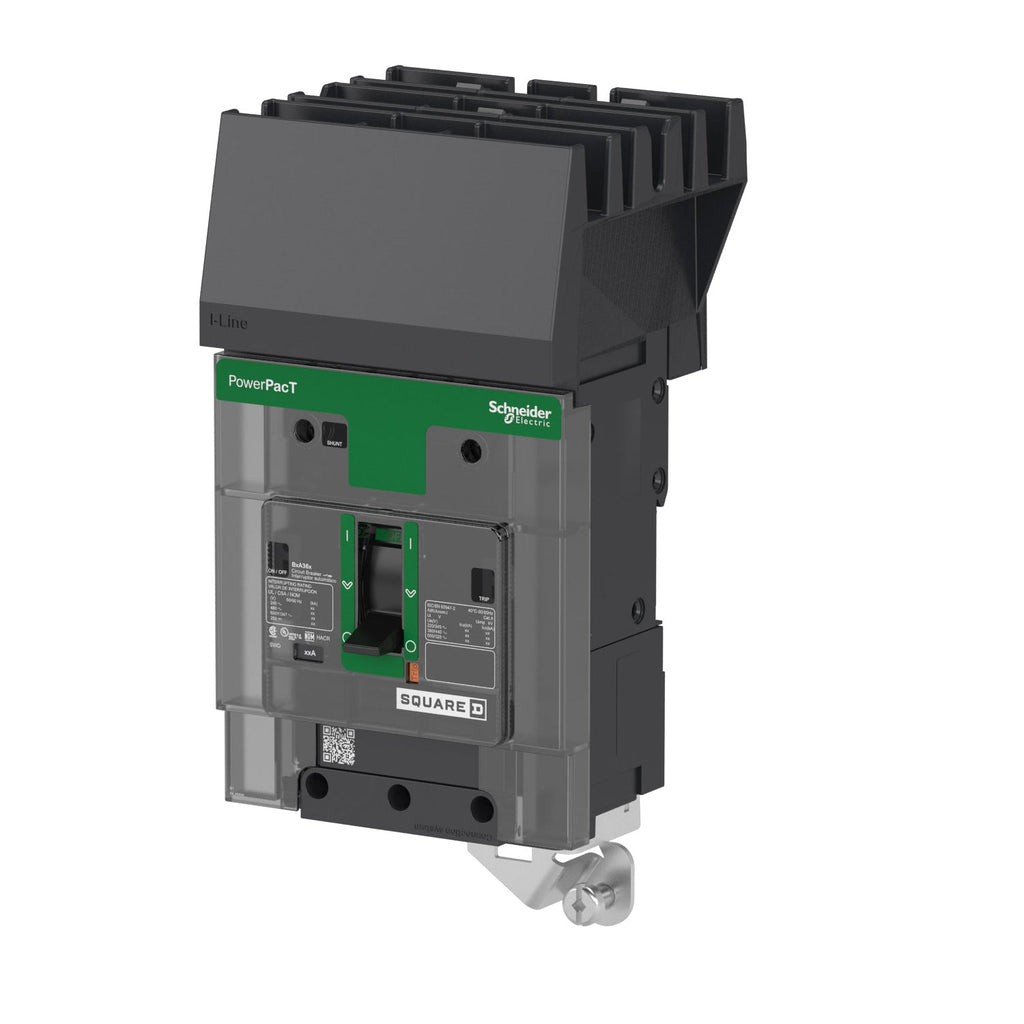

BJA36080 - Schneider Electric 80A 3-Pole PowerPacT B Circuit Breaker 600Y/347VAC I-Line Thermal Magnetic

BJA36080

BJA36080 is an 80 amp, 3-pole PowerPacT B circuit breaker from Schneider Electric designed for reliable protection in commercial and industrial electrical systems.This thermal magnetic circuit breaker features an I-Line plug-in mounting style and operates at 600Y/347 VAC with a breaking capacity of 25 kA. It supports up to 690 V AC voltage rating and provides 80% continuous current rating. The breaker includes dual-break rotating contacts for enhanced safety and a push-to-trip button for manual testing. It is compatible with a wide range of accessories and meets industry certifications for durability and performance.

Key Specifications
• Amperage: 80A
• Voltage Rating: 600Y/347 VAC (operates up to 690 V AC)
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 25 kA at 600Y/347 VAC, 65 kA at 480 VAC, 100 kA at 240 VAC
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Durability: 20,000 operations
• Series/Frame: PowerPacT B
• Certifications: UL 489 and IEC 60947-2 compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJA36080
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901014683
• GTIN : 03606481185907
• Country of Origin : Mexico

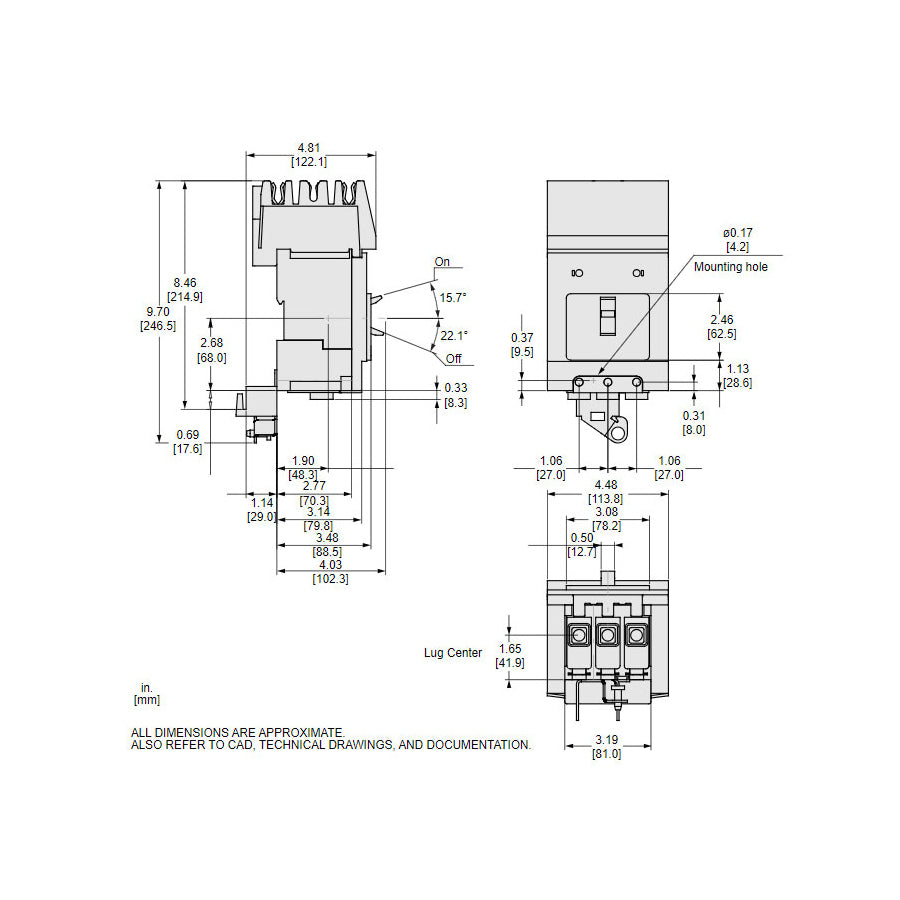

• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.17
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : CSA C22.2 No 5, UL 489, GB 14048.2, NEMA AB1, NMX J-266, EN/IEC 60947-5-1, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
