Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
BJA36070

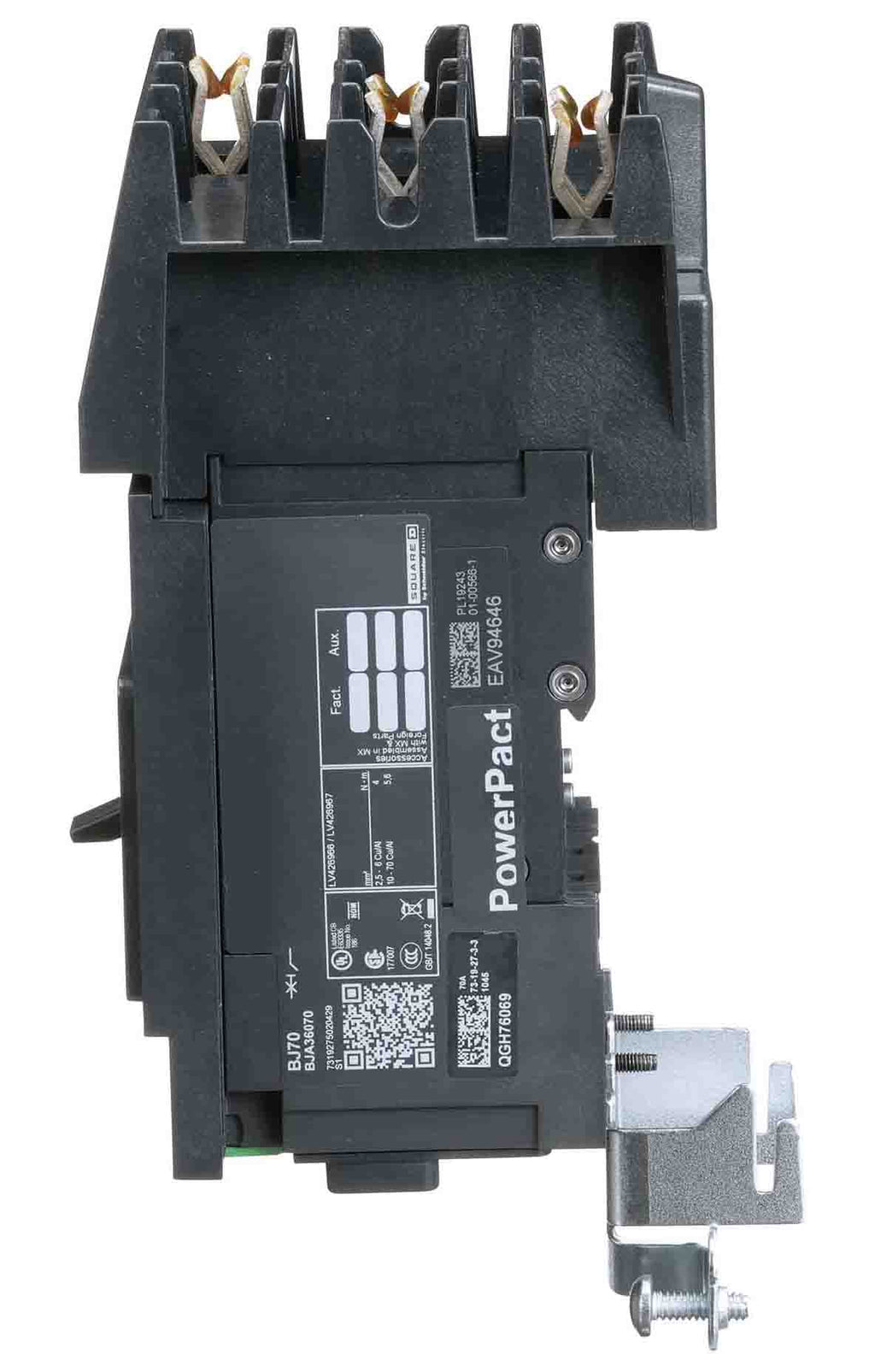

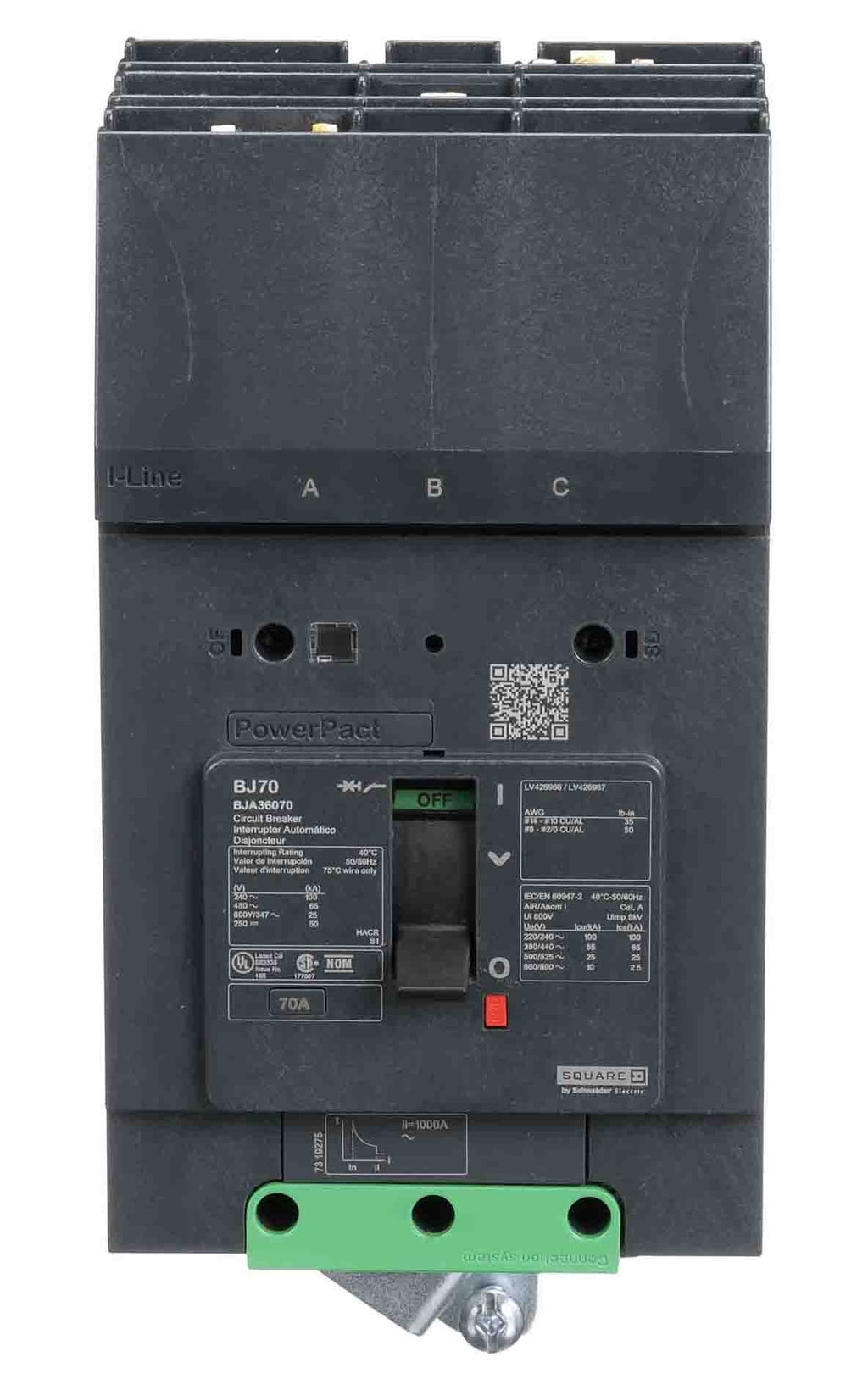

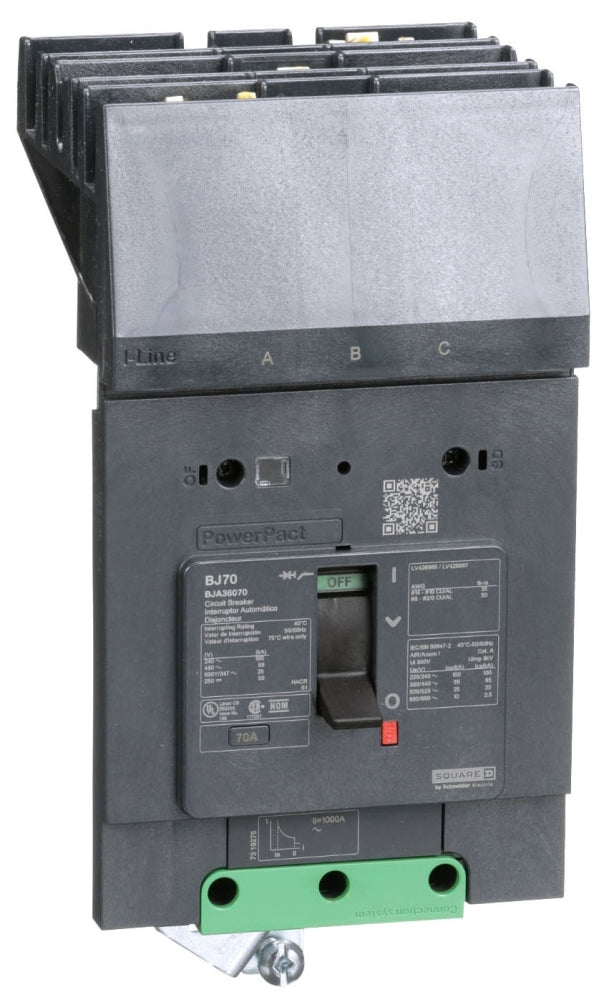

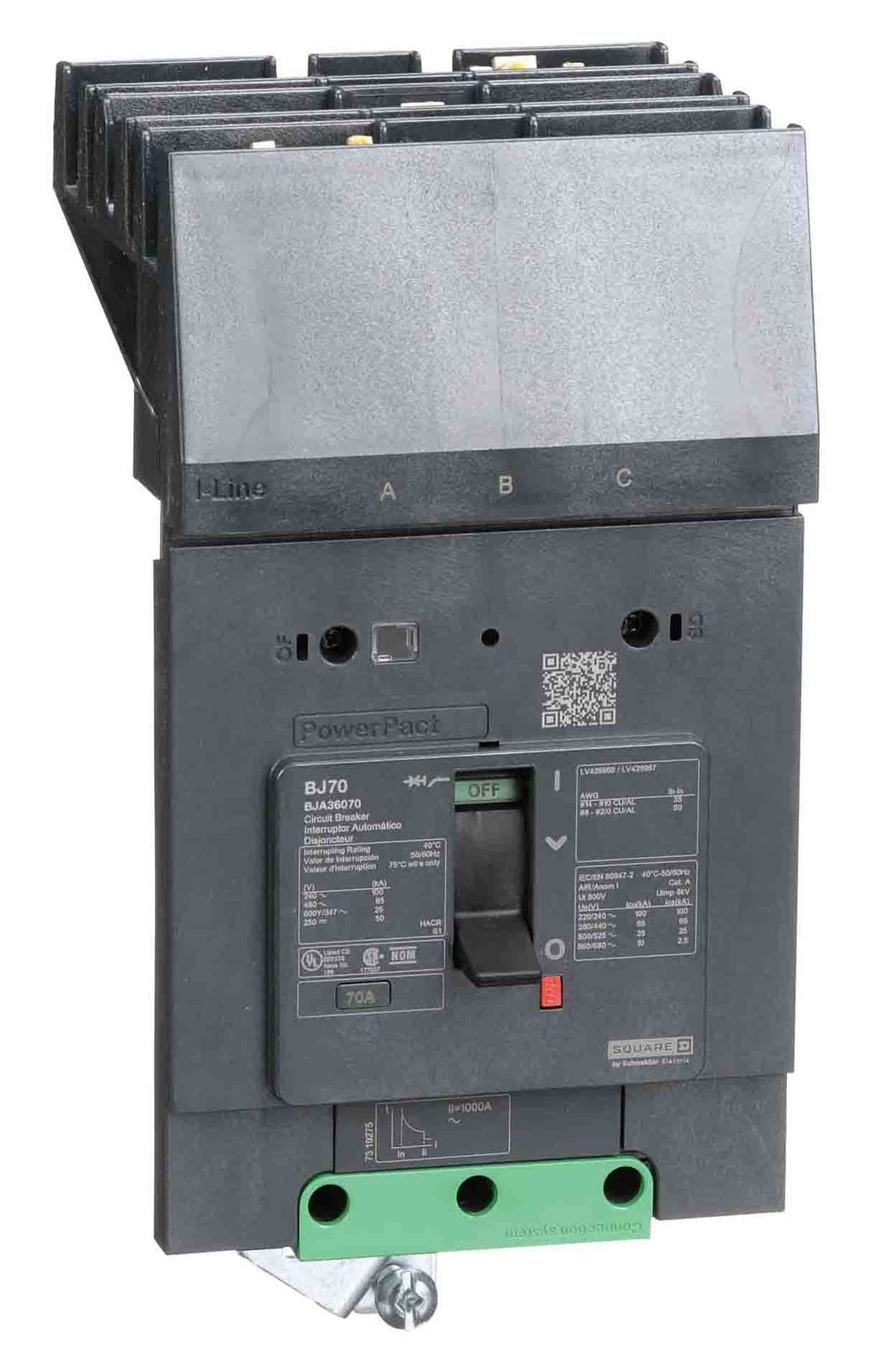

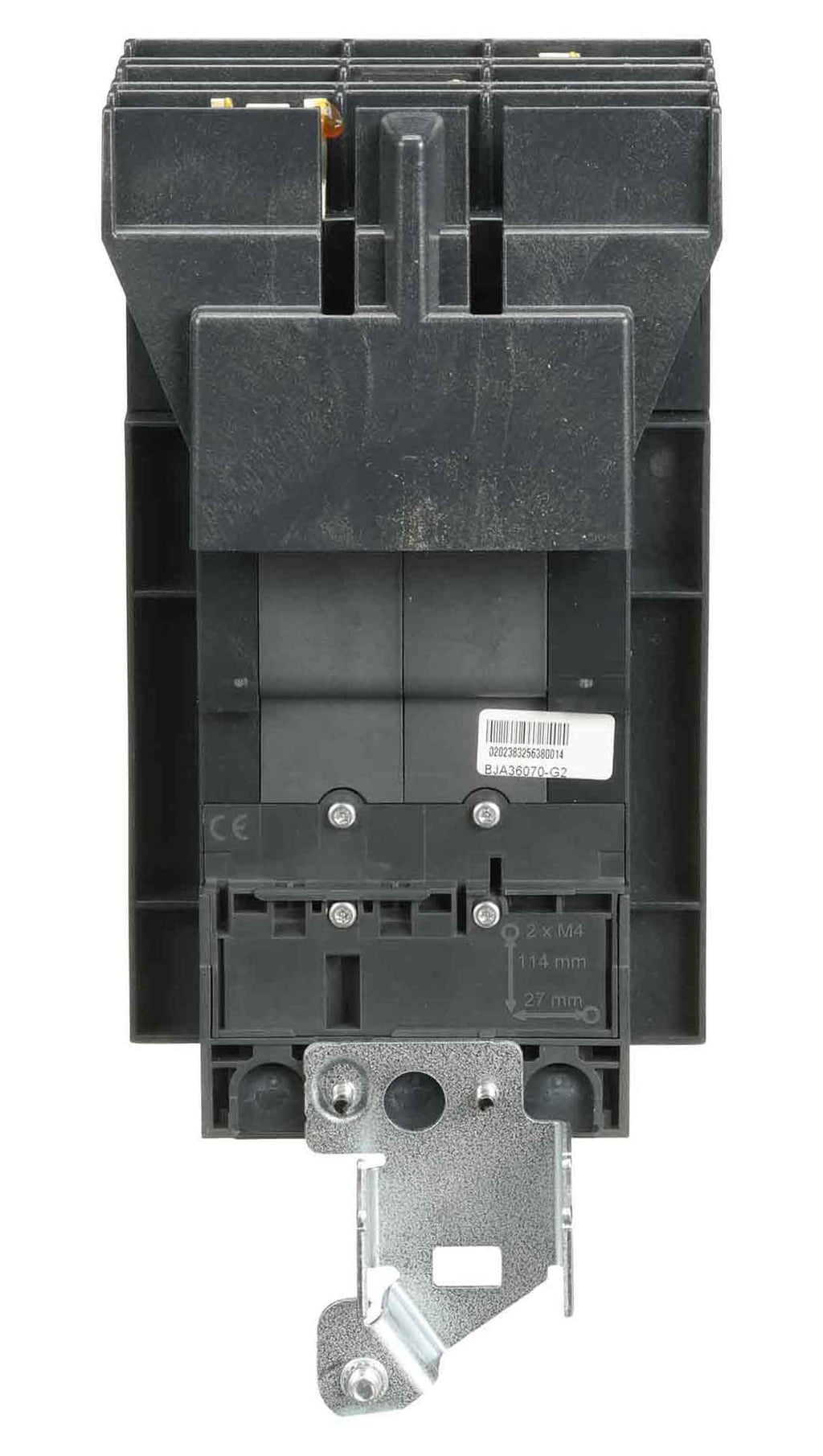

BJA36070 is a Schneider Electric PowerPact B series, 3-pole, 70A, 600V AC, I-Line plug-in circuit breaker designed for robust power distribution applications.
This thermal magnetic trip unit breaker features a 65kA interrupting rating at 480V, is dual rated for AC/DC, and is certified to UL, CSA, NOM, IEC, CCC, and CE standards for global compliance. The I-Line mounting style ensures easy installation and reliable performance in commercial and industrial environments.
-
Key Specifications
- Amperage: 70A
- Voltage: 600V AC (dual rated AC/DC)
- Poles: 3
- Mounting Type: I-Line plug-in
- Interrupt Rating: 65kA at 480V AC
- Series/Frame: PowerPact B, BJA frame
- Trip Unit: Thermal magnetic (LI – Long-time and Instantaneous)
- Certifications: UL, CSA, NOM, IEC, CCC, CE
- Connection: Load side mechanical lug
- Wire Gauge: AWG 14 to 2/0 (aluminum/copper)
- Approvals: UL 489, IEC, CCC, EAC, CSA, NOM
- Environmental: Recyclable packaging, carbon footprint data available
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BJA36070
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BJA
- Voltage : 600
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
- Frame Size : 125A/BJ
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 060648118589
- GTIN : 03606481185891
- Country of Origin : Mexico
- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
- Weight : 4.14 lb
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : GB 14048.2, NMX J-266, EN/IEC 60947-5-1, UL 489, EN/IEC 60947-2, NEMA AB1, CSA C22.2 No 5
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 14...AWG 2/0 aluminium/copper
