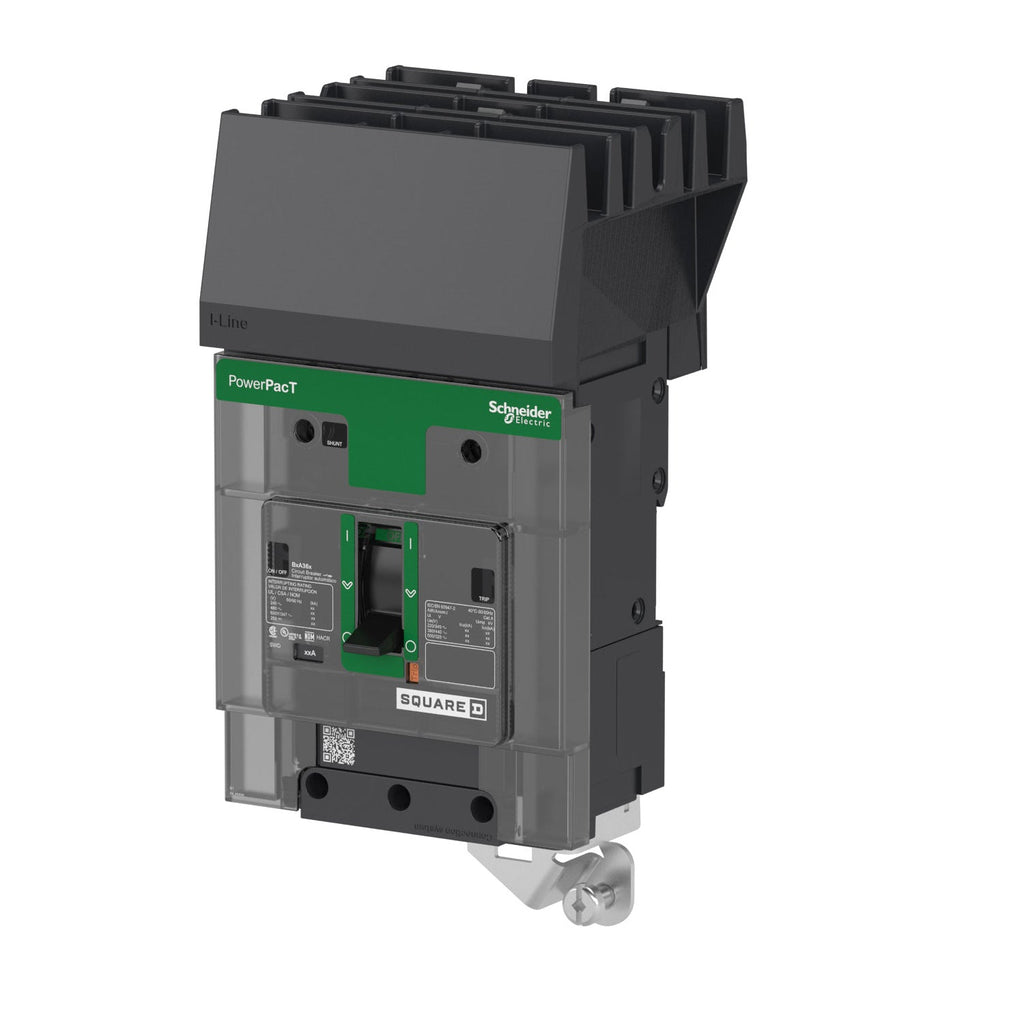

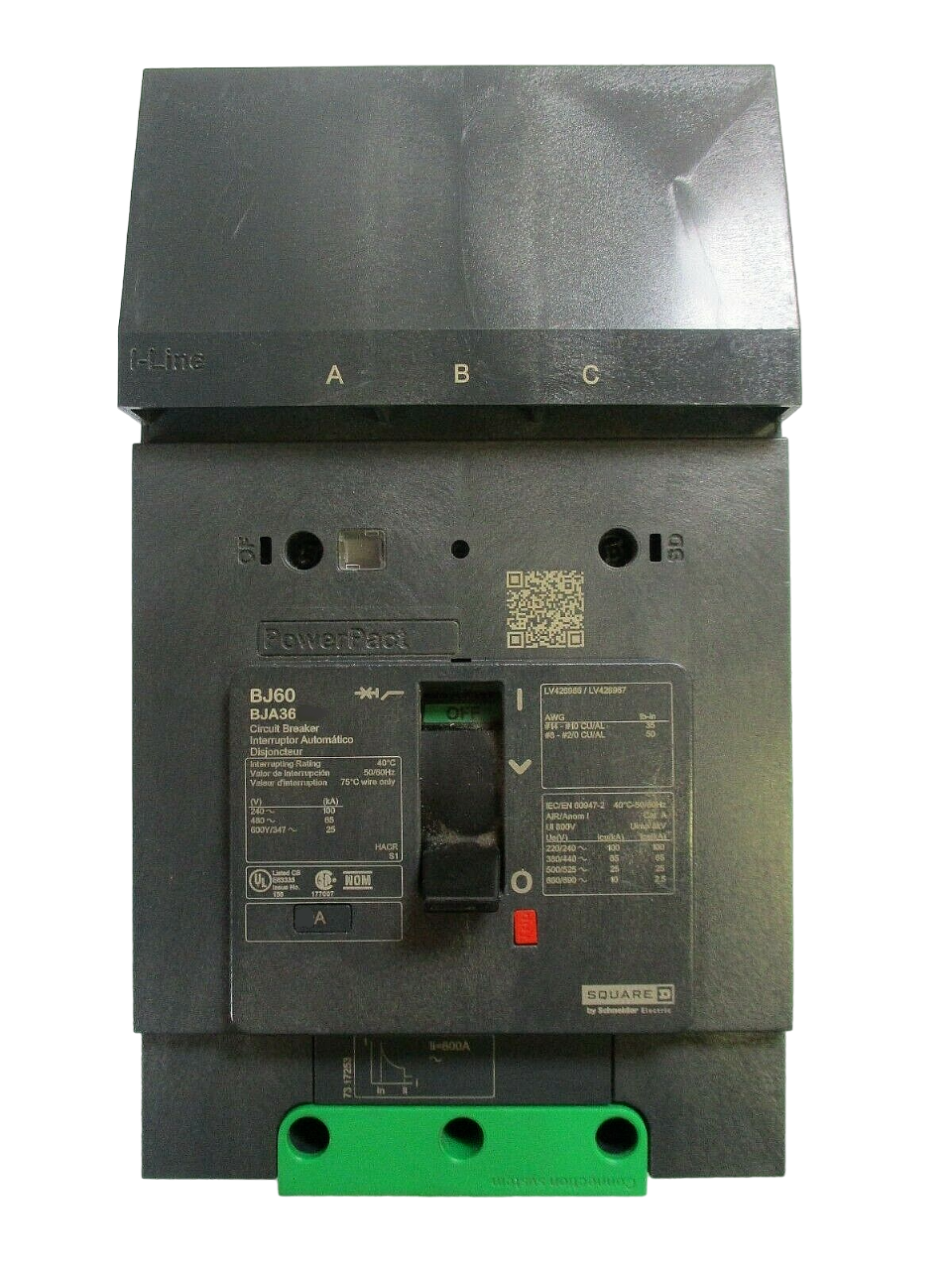

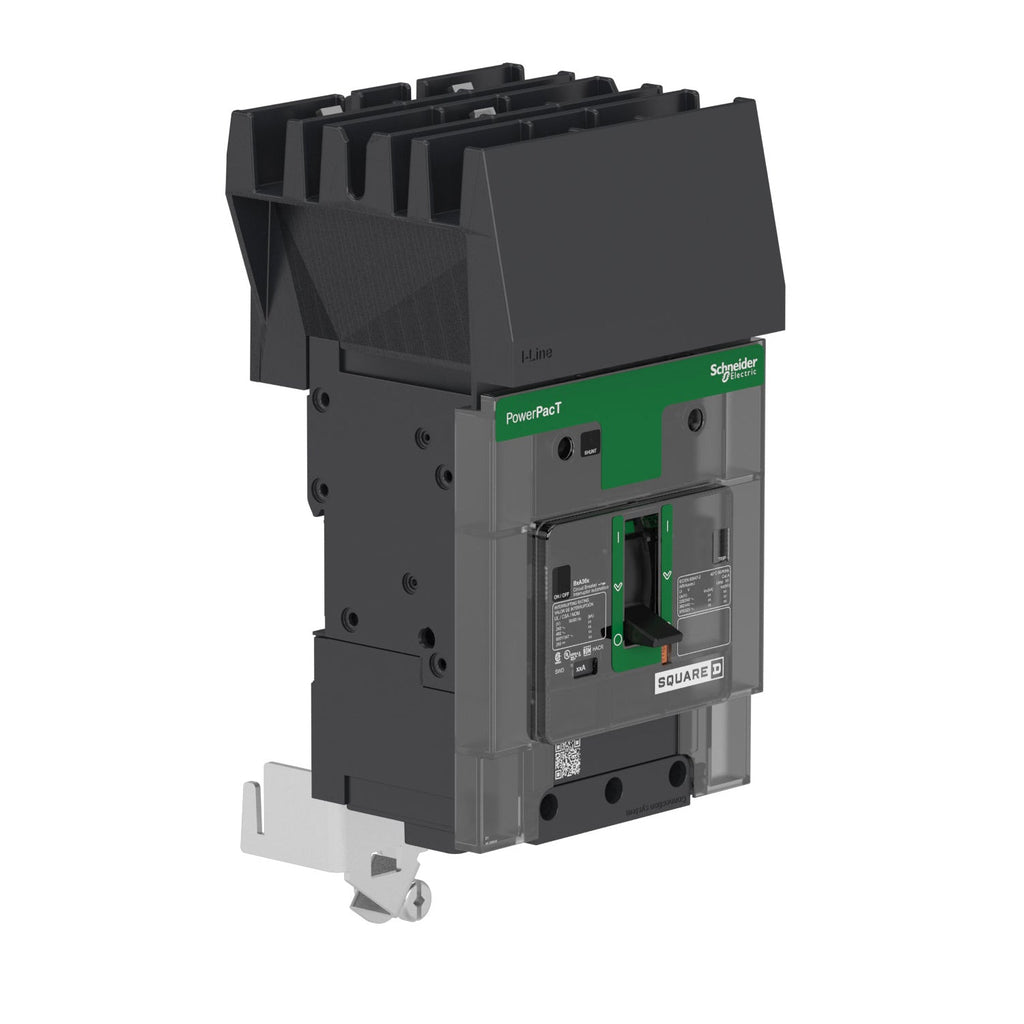

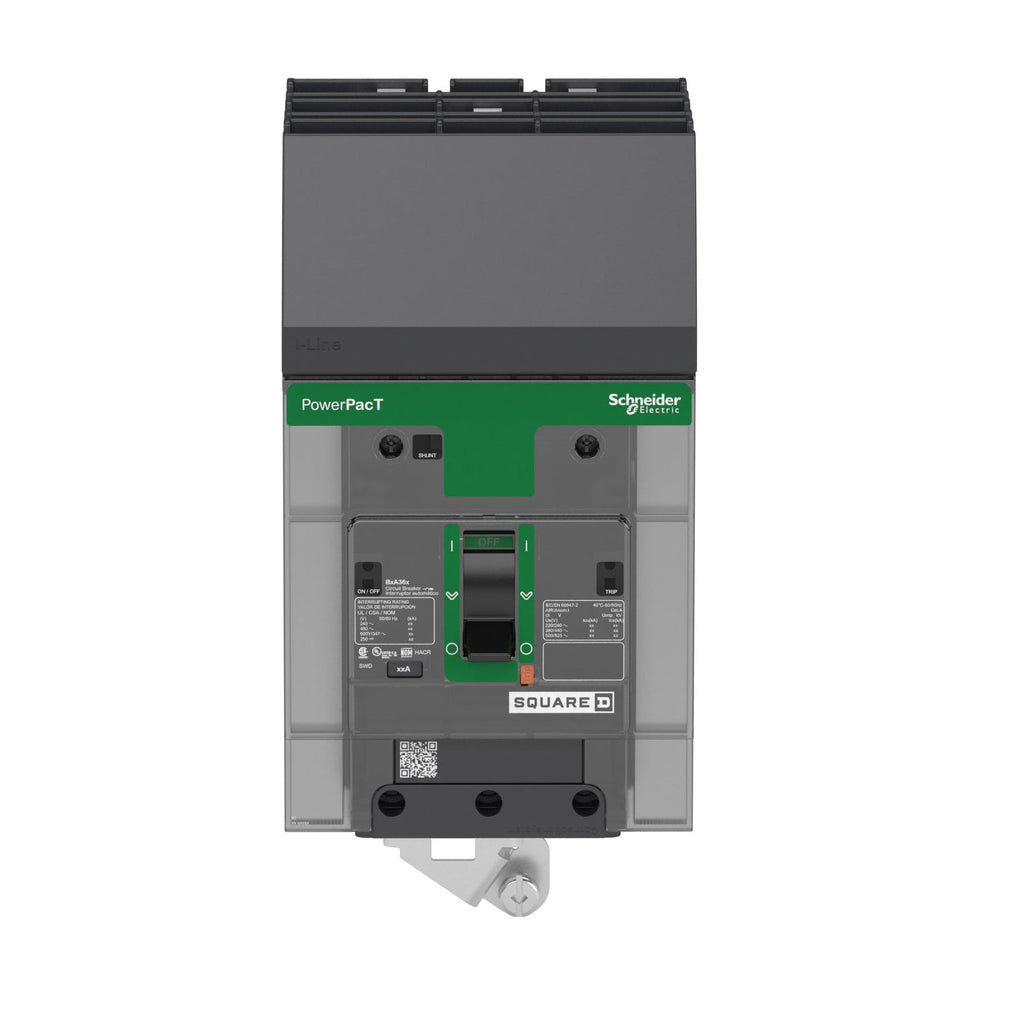

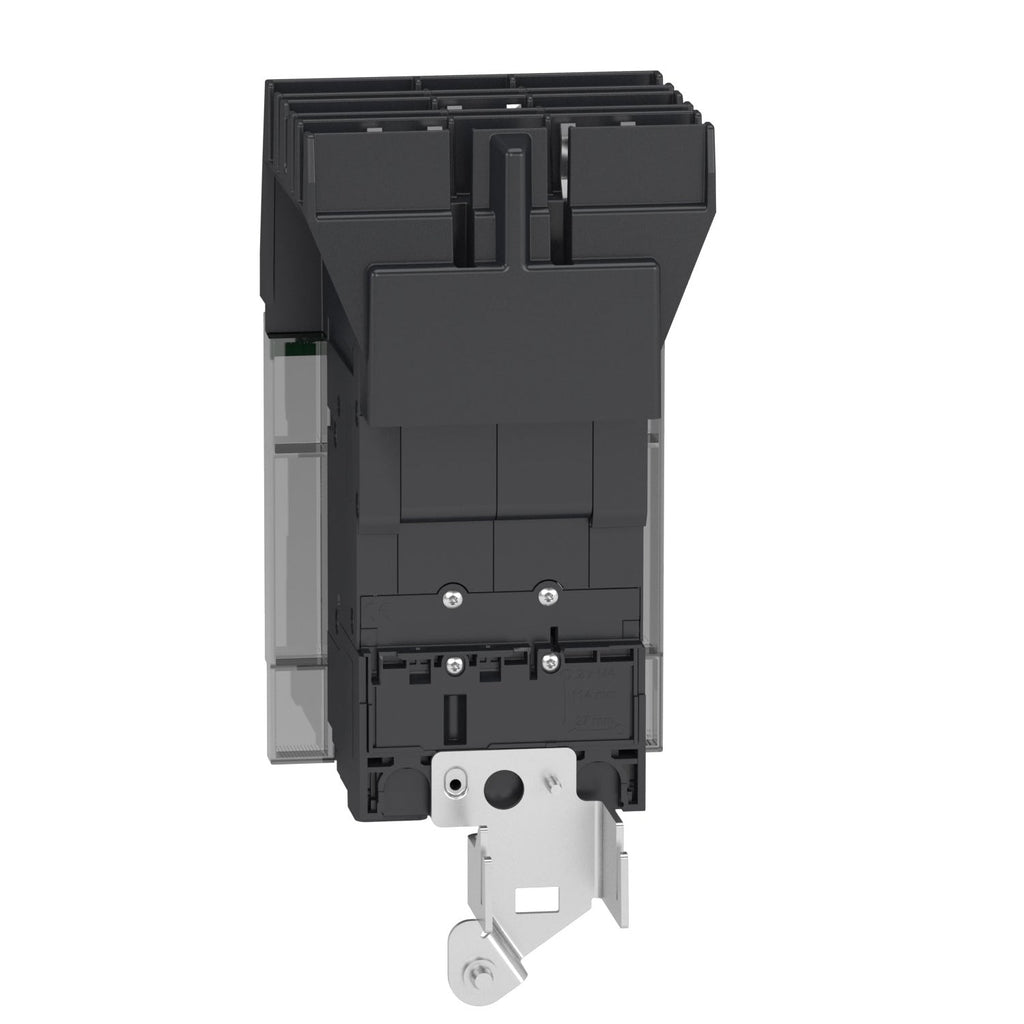

BJA36050 - Schneider Electric 50A 600Y/347VAC 3 Pole I-Line PowerPact B Circuit Breaker

BJA36050

BJA36050 is a 50 Amp, 3 pole thermal magnetic molded case circuit breaker from Schneider Electric's PowerPact B series designed for I-Line mounting.This circuit breaker features a 600Y/347VAC voltage rating, 65kA interrupting rating at 480VAC, and includes long-time and instantaneous trip functions. It has a toggle actuator, load side lug terminal connections, and is certified to UL, CSA, CE, IEC, and other global standards. The breaker supports wire gauges from AWG 14 to AWG 2/0 for aluminum or copper conductors and is suitable for industrial power distribution with a compact B-frame design.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 600Y/347 VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupting Rating: 65 kAIC at 480 VAC
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic with LI functions
• Terminal Connection: Load side lug
• Actuator Type: Toggle
• Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper
• Certifications: UL, CSA, CE, IEC, NOM, NEMA, CCC, EAC
• Dimensions: Approx. 5.4" H x 3.2" W x 3.5" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJA36050
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BJ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901014683
• GTIN : 03606481185860
• Country of Origin : Mexico

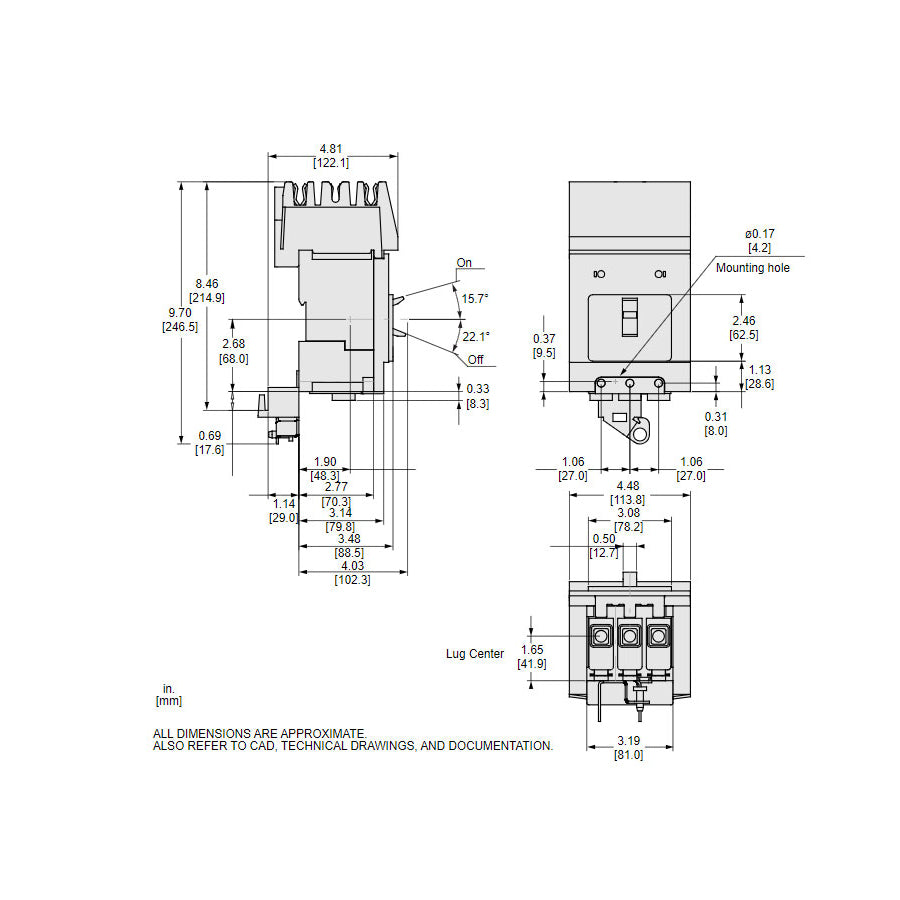

• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.21
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-2, NMX J-266, UL 489, CSA C22.2 No 5, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
