Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
BJA36015

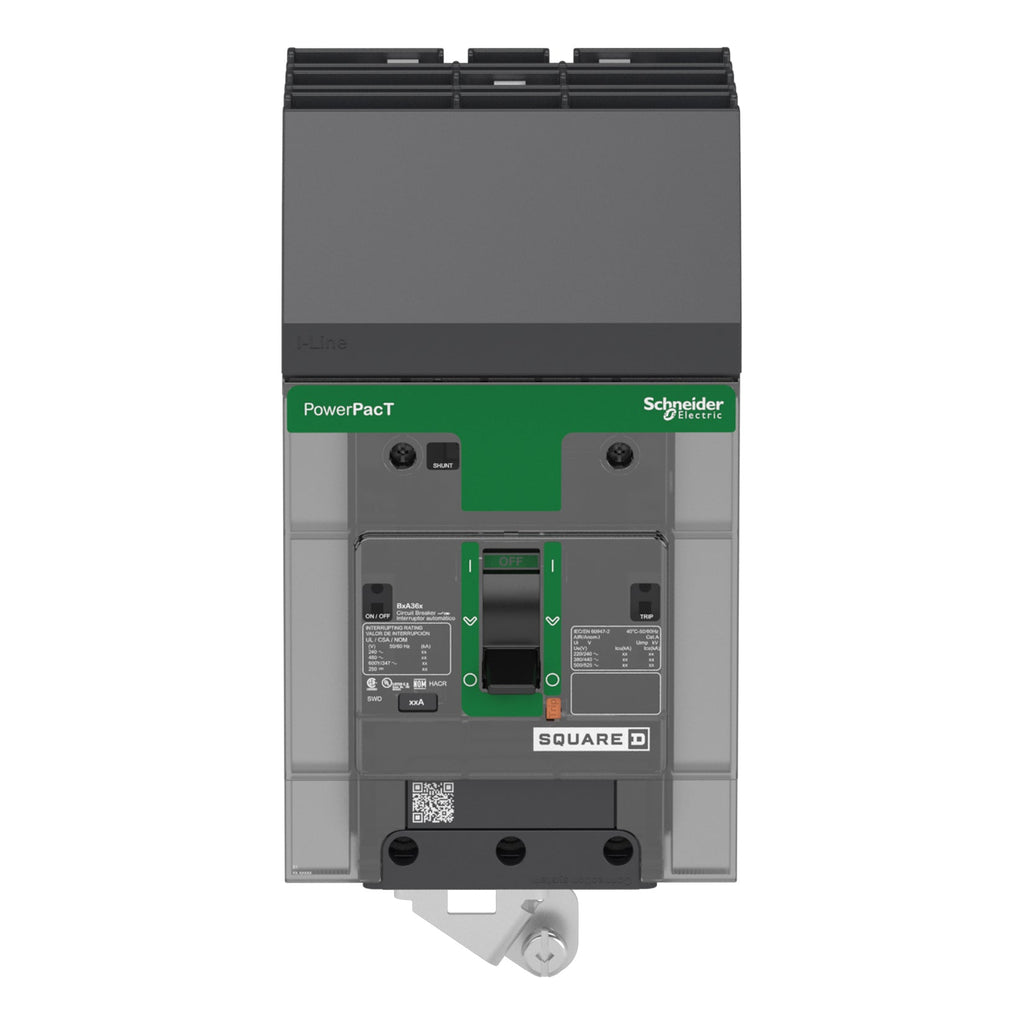

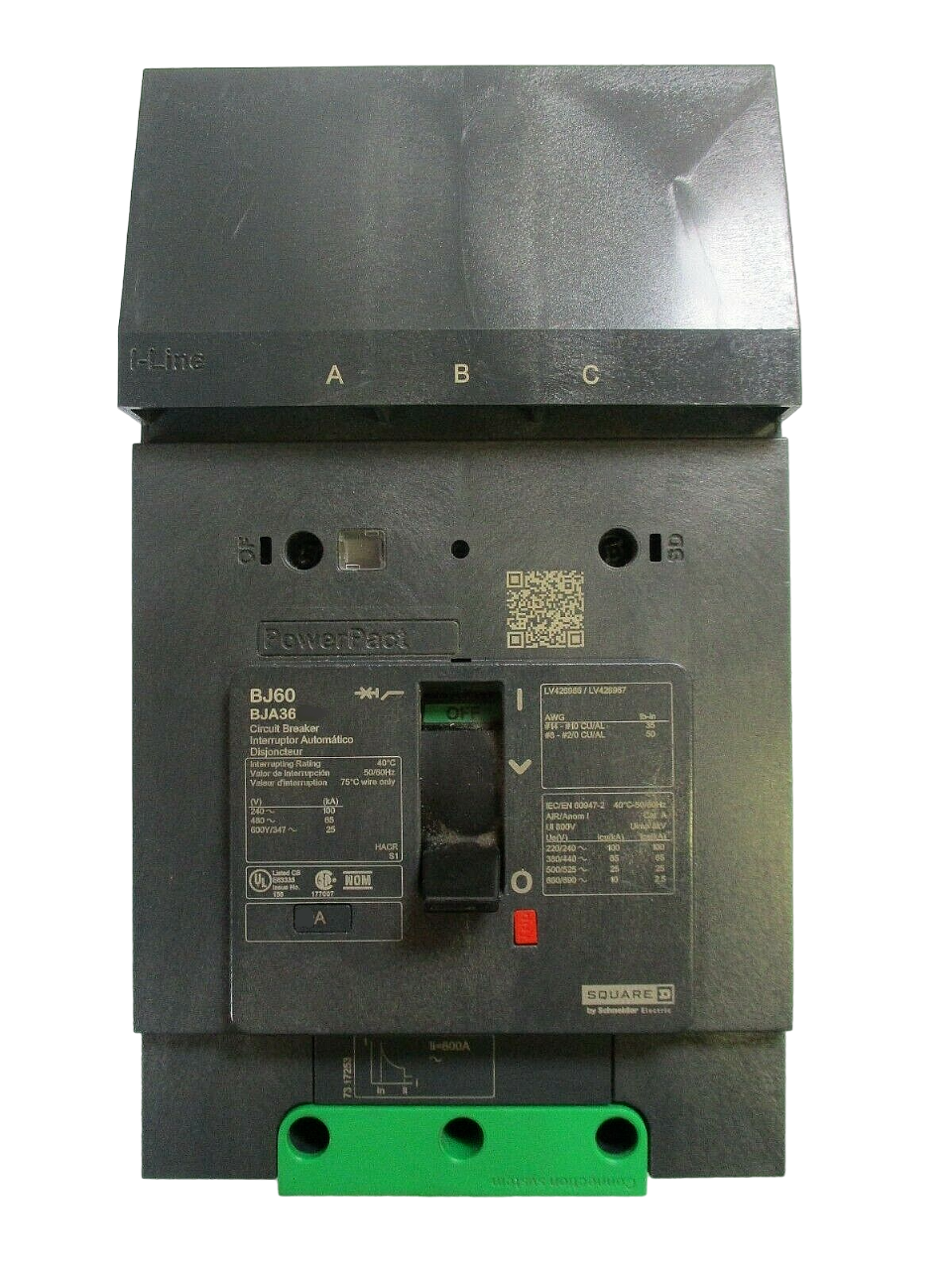

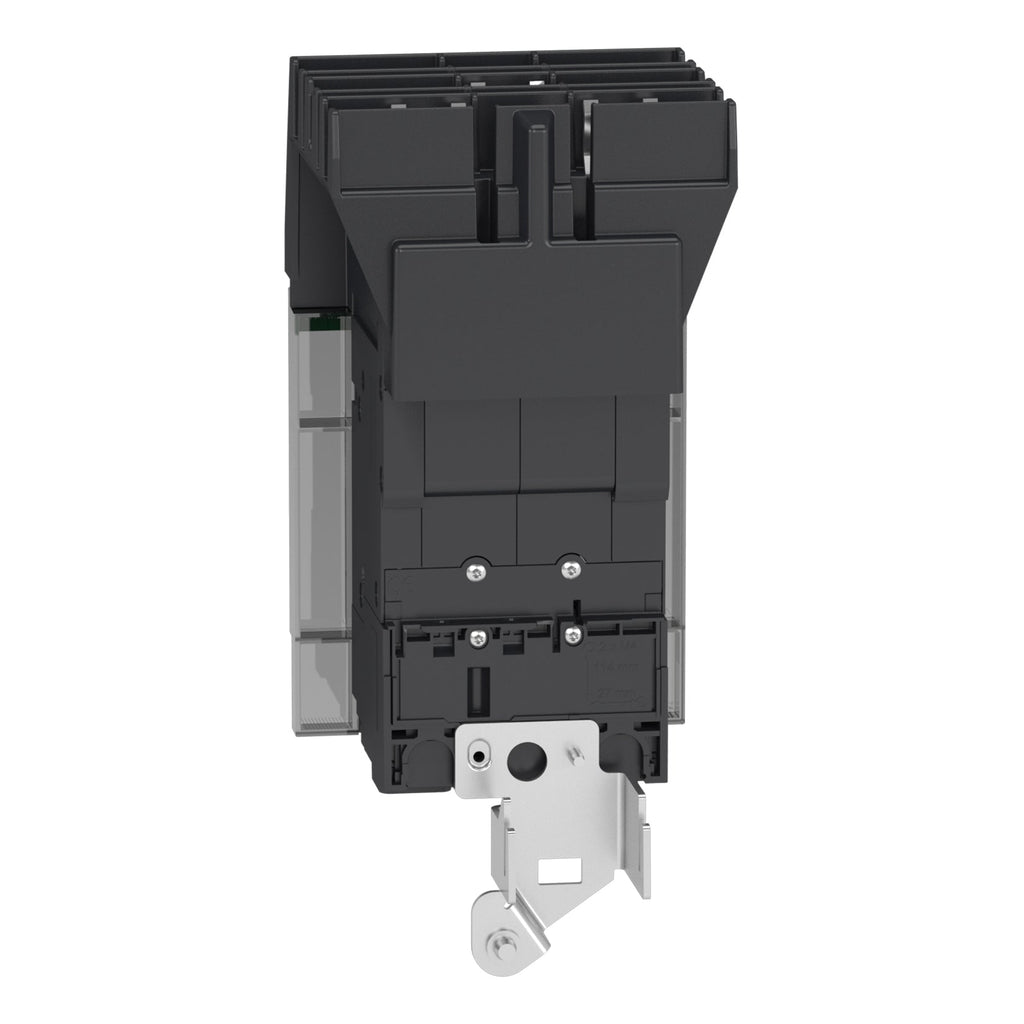

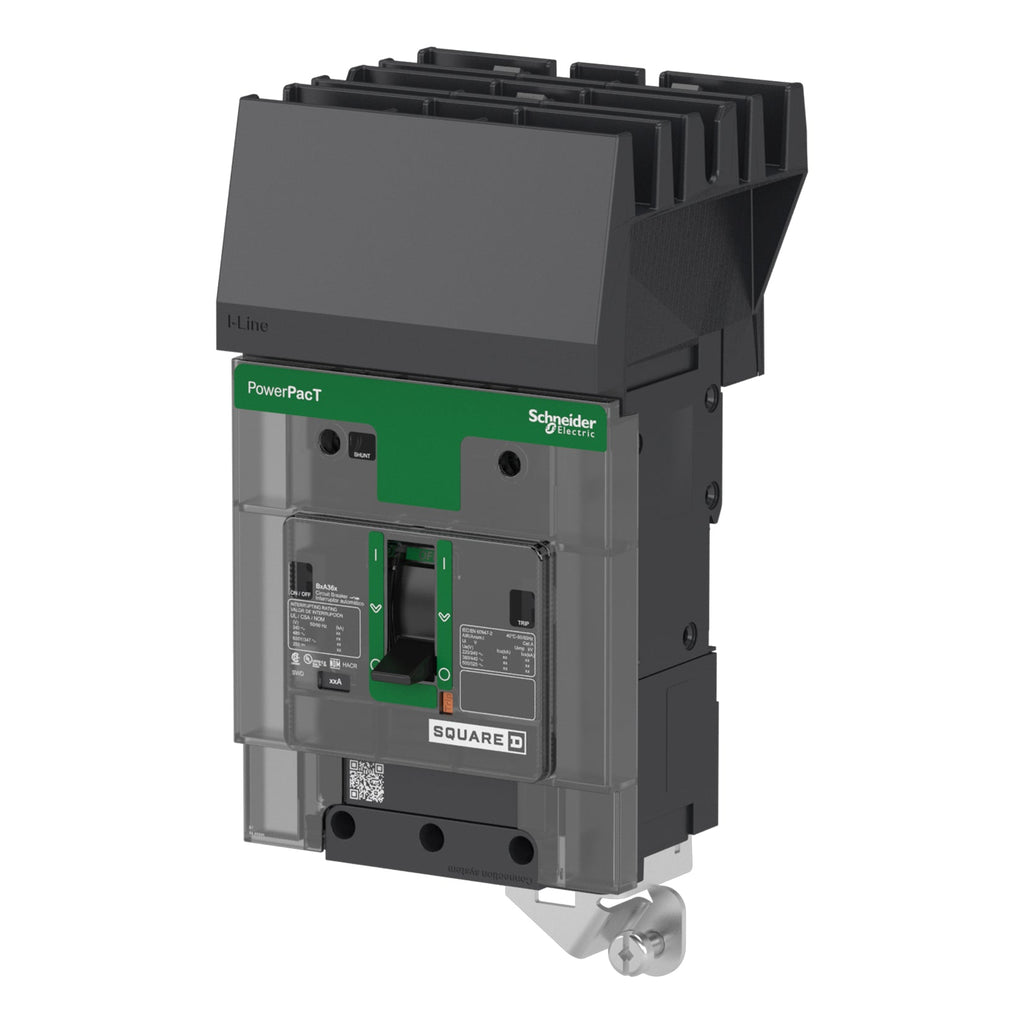

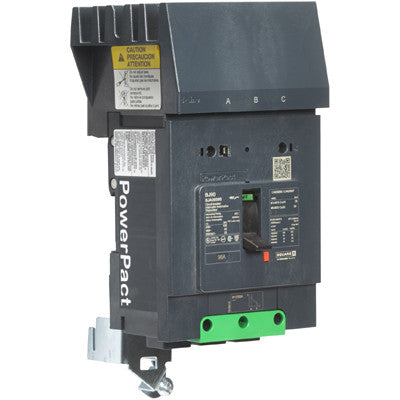

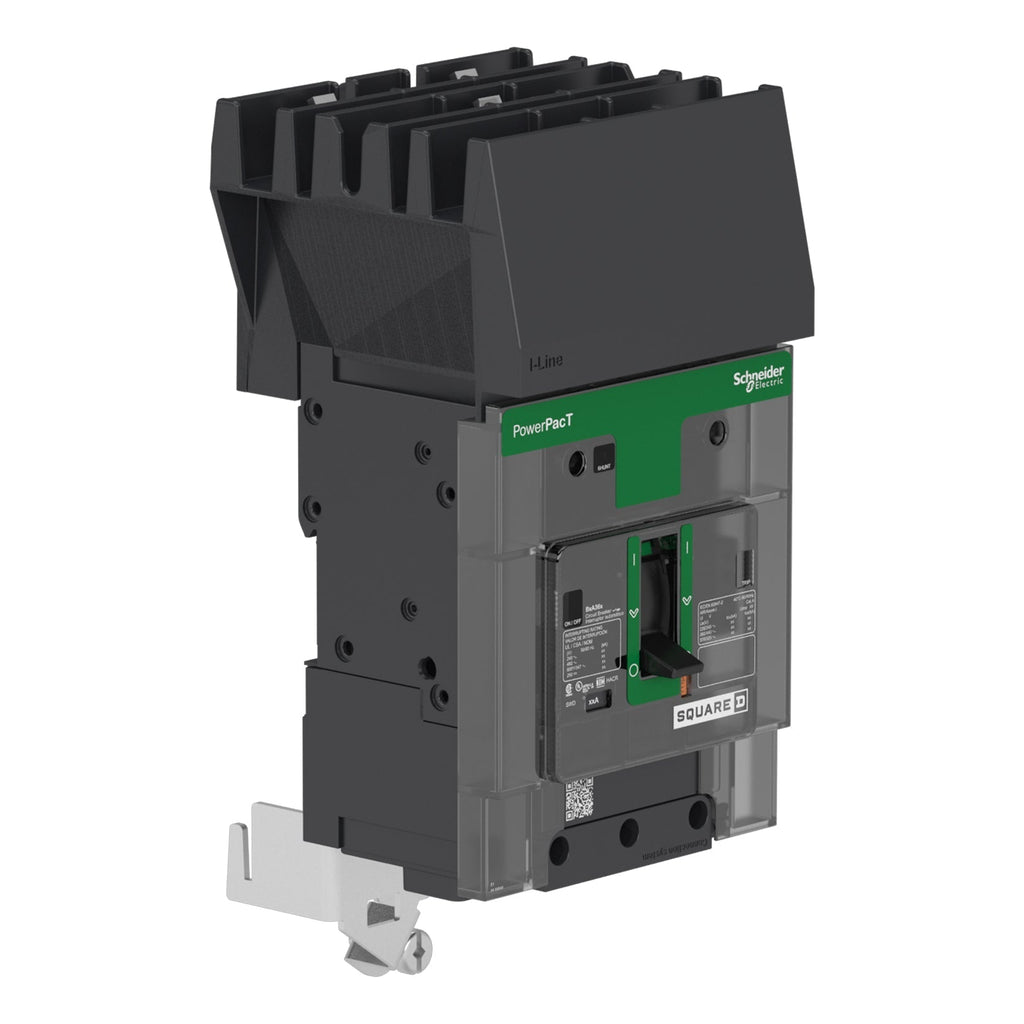

BJA36015 Schneider Electric PowerPact B molded case circuit breaker delivers reliable protection for industrial and commercial applications.
This thermal magnetic circuit breaker features a 15A current rating, 3-pole configuration, and is rated for 600Y/347VAC systems. It offers a 25kA interrupting capacity, I-Line mounting, and is part of the compact B-frame series. The breaker is certified to UL, CSA, NOM, IEC, CCC, and CE standards, ensuring global compliance and safety.
-
Key Specifications
- Part Number: BJA36015
- Manufacturer: Schneider Electric
- Amperage: 15A
- Voltage: 600Y/347VAC
- Poles: 3
- Mounting Type: I-Line
- Interrupt Rating: 25kA at 600Y/347VAC
- Series/Frame: PowerPact B
- Trip Unit: Thermal Magnetic
- Certifications: UL, CSA, NOM, IEC, CCC, CE
- Continuous Current Rating: 80%
- Enclosure: NEMA AB4/IP40
- Actuator Type: Toggle
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BJA36015
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BJA
- Voltage : 600
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : I-Line Style Plug-In
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
- Frame Size : 125A/BJ
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901014683
- GTIN : 03606481154217
- Country of Origin : Mexico
- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
- Weight : 4.23
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : NMX J-266, EN/IEC 60947-5-1, GB 14048.2, EN/IEC 60947-2, UL 489, CSA C22.2 No 5, NEMA AB1
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 14...AWG 2/0 aluminium/copper
