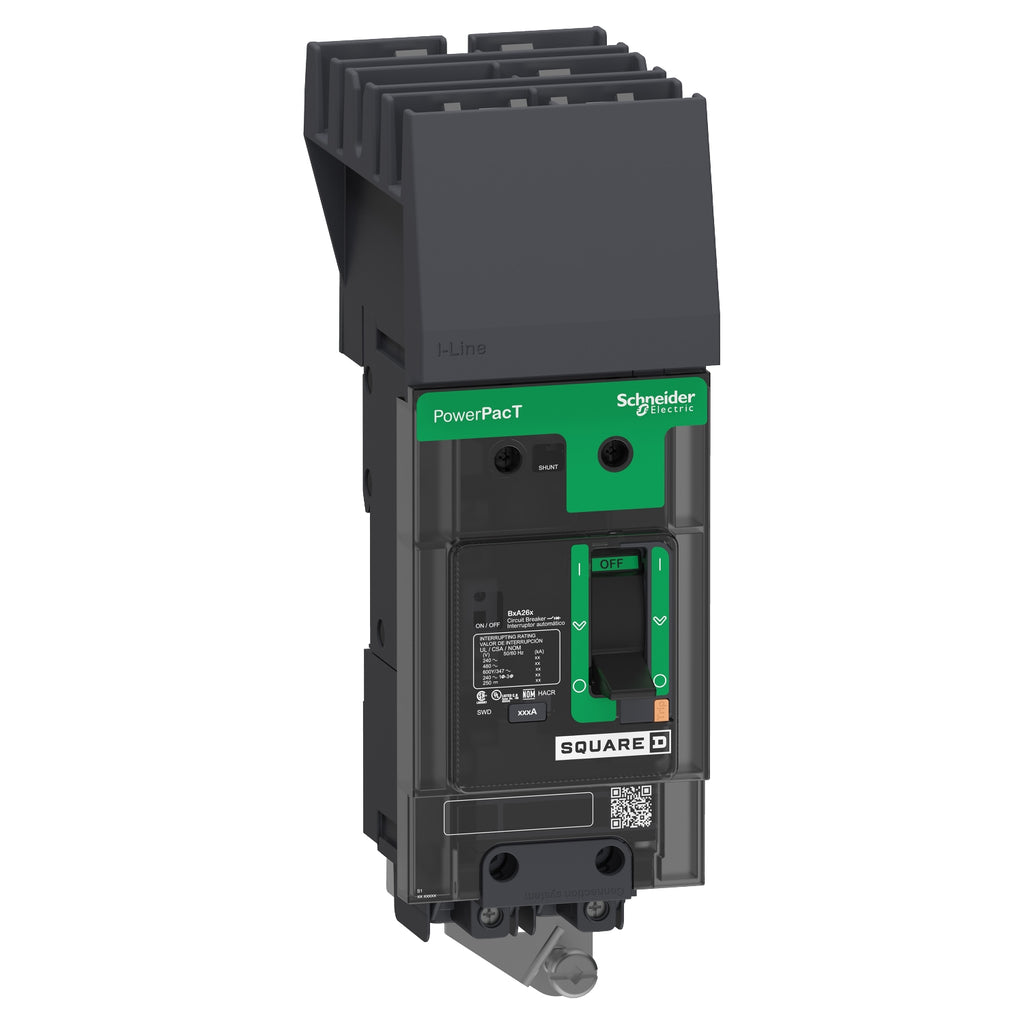

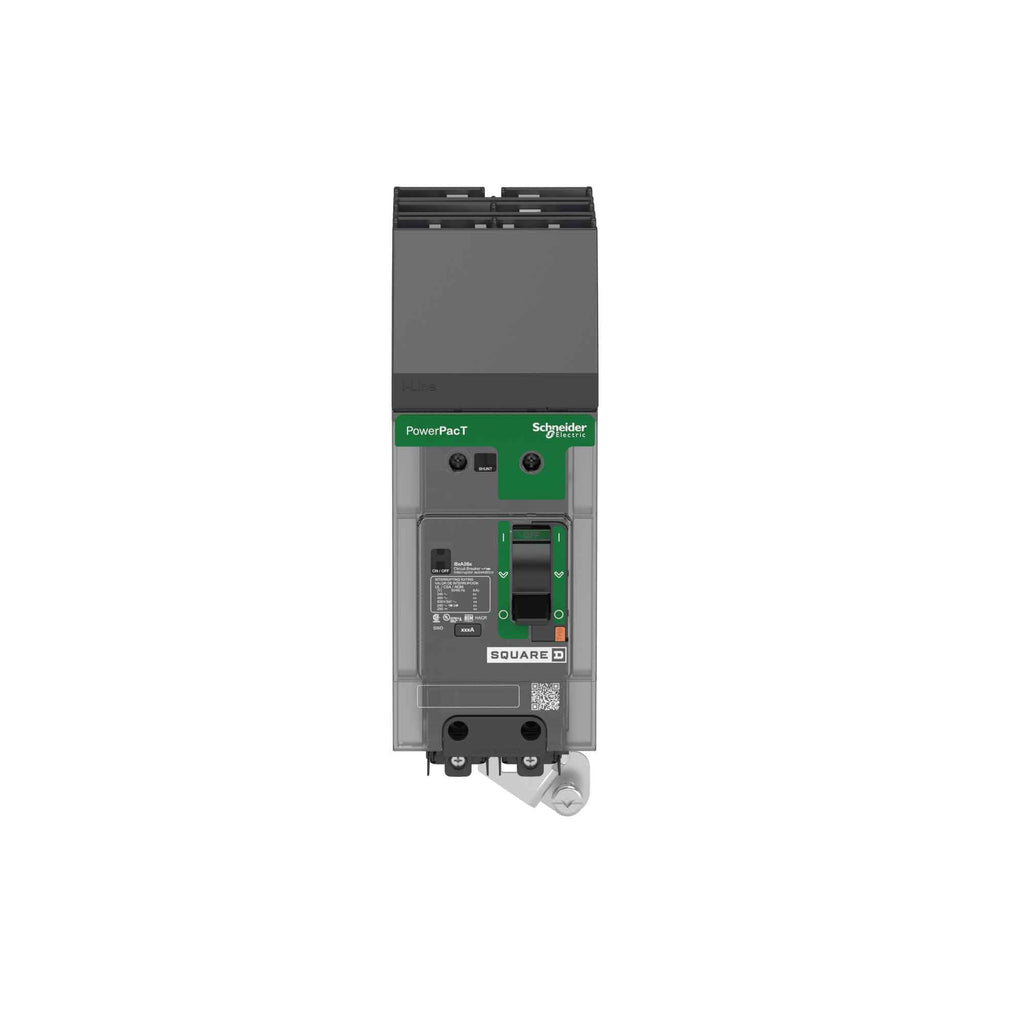

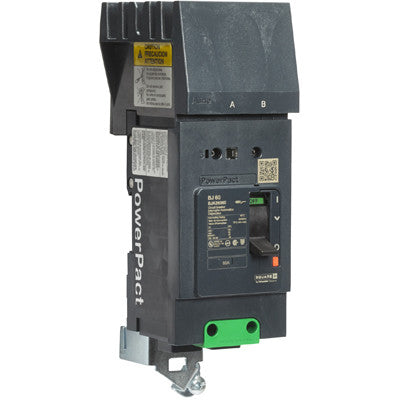

BJA260501 - Schneider Electric PowerPact B-Frame 2-Pole 50A 600V Molded Case Circuit Breaker

BJA260501

BJA260501 is a PowerPact B-Frame 2-pole molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This thermal magnetic breaker features a 50A current rating and 600V AC voltage rating, suitable for a wide range of applications. The BJA260501 breaker is built with a plug-in I-Line style mounting for quick and secure installation. It offers a high interrupt rating and is certified to UL 489 standards, ensuring safety and compliance in demanding environments.

• Part Number: BJA260501
• Manufacturer: Schneider Electric
• Series/Frame: PowerPact B-Frame
• Number of Poles: 2
• Ampere Rating: 50A
• Voltage Rating: 600V AC
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 100kA at 240V, 65kA at 480/277V
• Trip Unit: Thermal Magnetic
• Certifications: UL 489
• Application: Commercial and Industrial Power Distribution
• Connection Type: Plug-In

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJA260501
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BJA
• Voltage : 600
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901058397
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 2.899
• Standards : NEMA AB1, GB 14048.2, EN/IEC 60947-5-1, CSA C22.2 No 5, UL 489, EN/IEC 60947-2, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
