BJA260201 - Square D 20A 600V 2 Pole Thermal Magnetic Circuit Breaker I-Line Mount

SKU: BJA260201-New
Condition: New
Price:
$1,139.73
Stock:
5 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

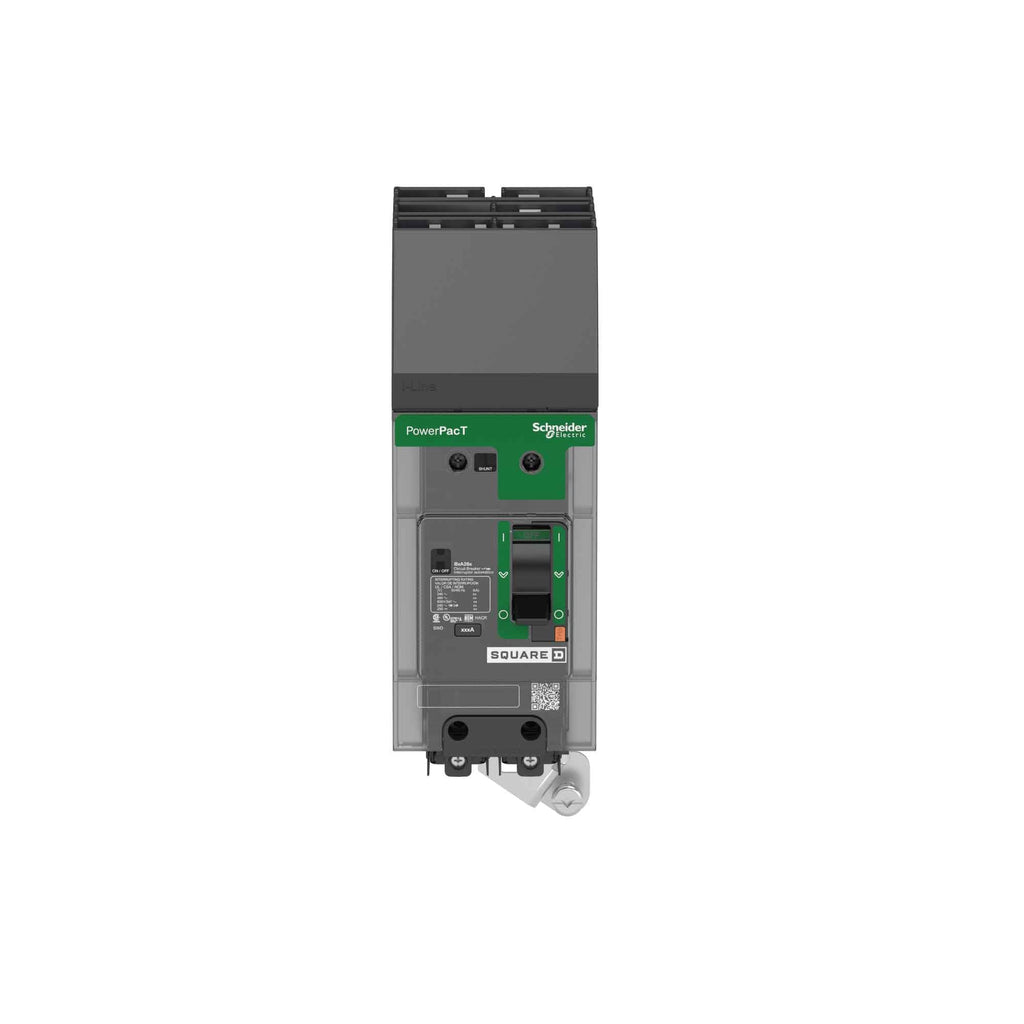

BJA260201 - Square D/ Schneider Electric I-Line Style Plug-In 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BJA260201 - Square D I-Line Style Plug-In 600V 20A 2 pole circuit breaker 65kA@480V - Essential Electric Supply
BJA260201 - Square D 20A 600V 2 Pole Thermal Magnetic Circuit Breaker I-Line Mount - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BJA260201 - Square D/ Schneider Electric I-Line Style Plug-In 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BJA260201 - Square D I-Line Style Plug-In 600V 20A 2 pole circuit breaker 65kA@480V - Essential Electric Supply
BJA260201 - Square D 20A 600V 2 Pole Thermal Magnetic Circuit Breaker I-Line Mount - Essential Electric Supply

Description

BJA260201


BJA260201 is a Square D 2 pole thermal magnetic circuit breaker rated for 20 amps and 600 volts with I-Line style mounting.This molded case circuit breaker features a B frame, 65kA interrupting rating at 480V, and LI long-time and instantaneous trip functions. It is designed for use in electrical distribution equipment and industrial control panels with line side I-Line plug-in connection and load side mechanical lug terminals. Certified to UL, IEC, CCC, CSA, NOM standards, it supports wire sizes up to 2 AWG and operates in temperatures from -13 to 158 °F.
    Key Specifications
    • Manufacturer: Square D
    • Part Number: BJA260201
    • Amperage: 20A
    • Voltage: 600V
    • Poles: 2
    • Mounting Type: I-Line Plug-In
    • Interrupting Rating: 65kA @ 480V
    • Frame Type: B Frame
    • Trip Unit: Thermal Magnetic with LI functions
    • Connection Type: Line - I-Line, Load - Mechanical Lug
    • Certifications: UL, IEC, CCC, CSA, NOM
    • Operating Temperature: -13 to 158 °F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BJA260201
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BJA
  • Voltage : 600
  • Amperage : 20
  • Phase : 1
  • Poles : 2
  • AIC rating : 65kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BJ
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AB

Product Data

  • UPC : 785901013464
  • GTIN : 03606481154200
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.091
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : UL 489, EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1, NMX J-266, GB 14048.2, EN/IEC 60947-2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
