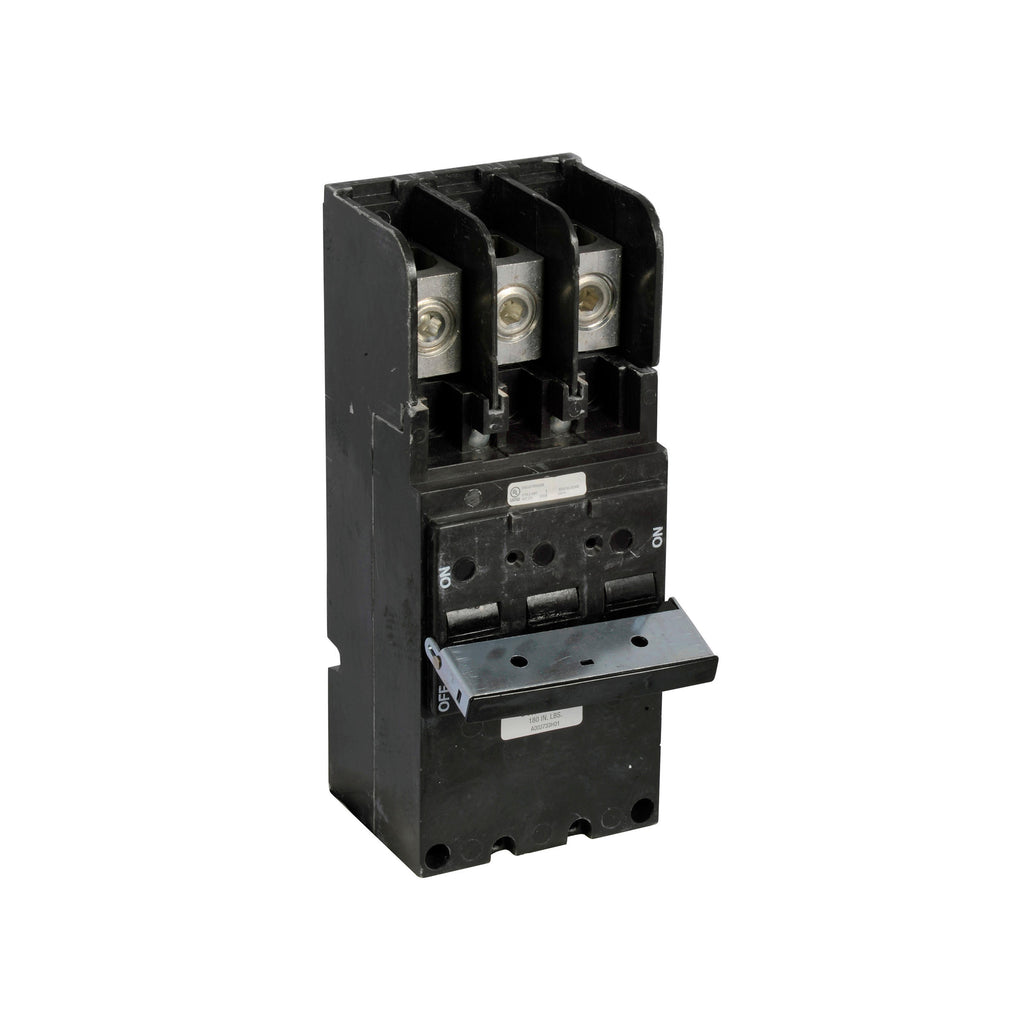

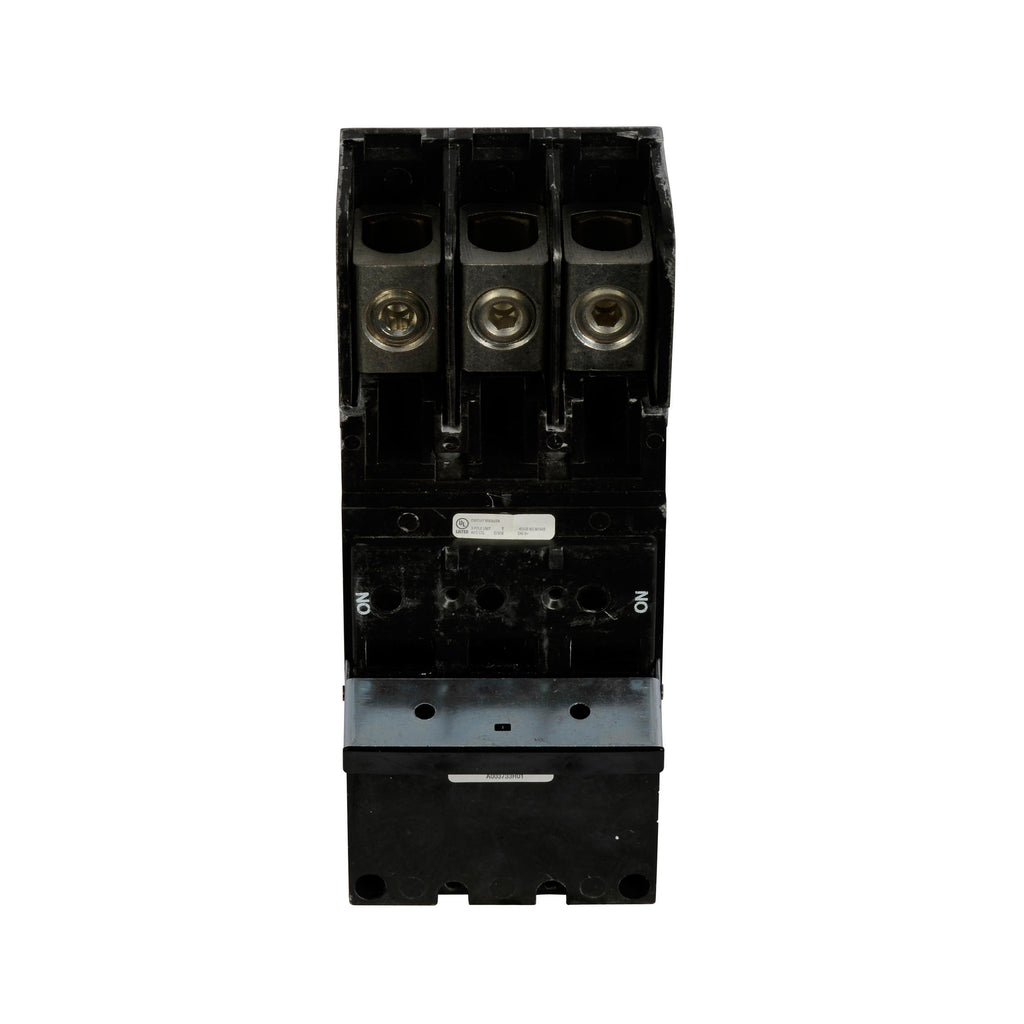

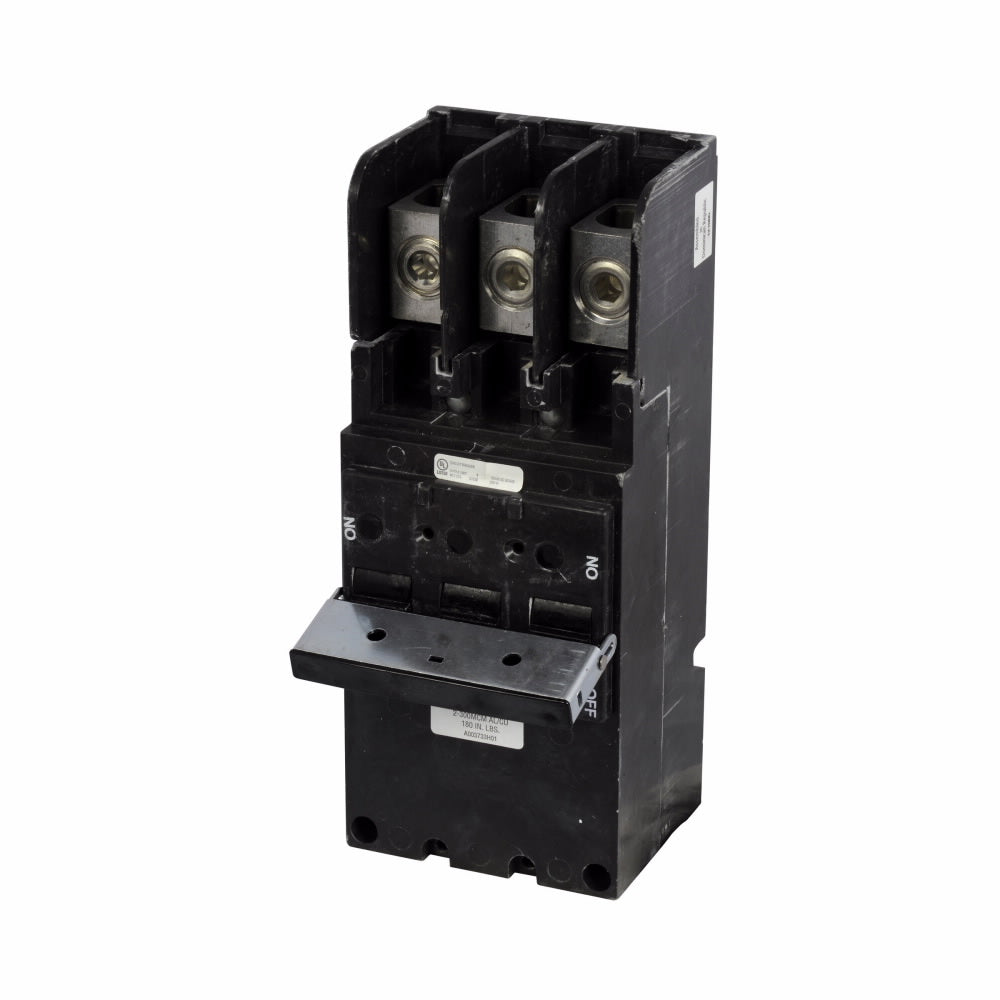

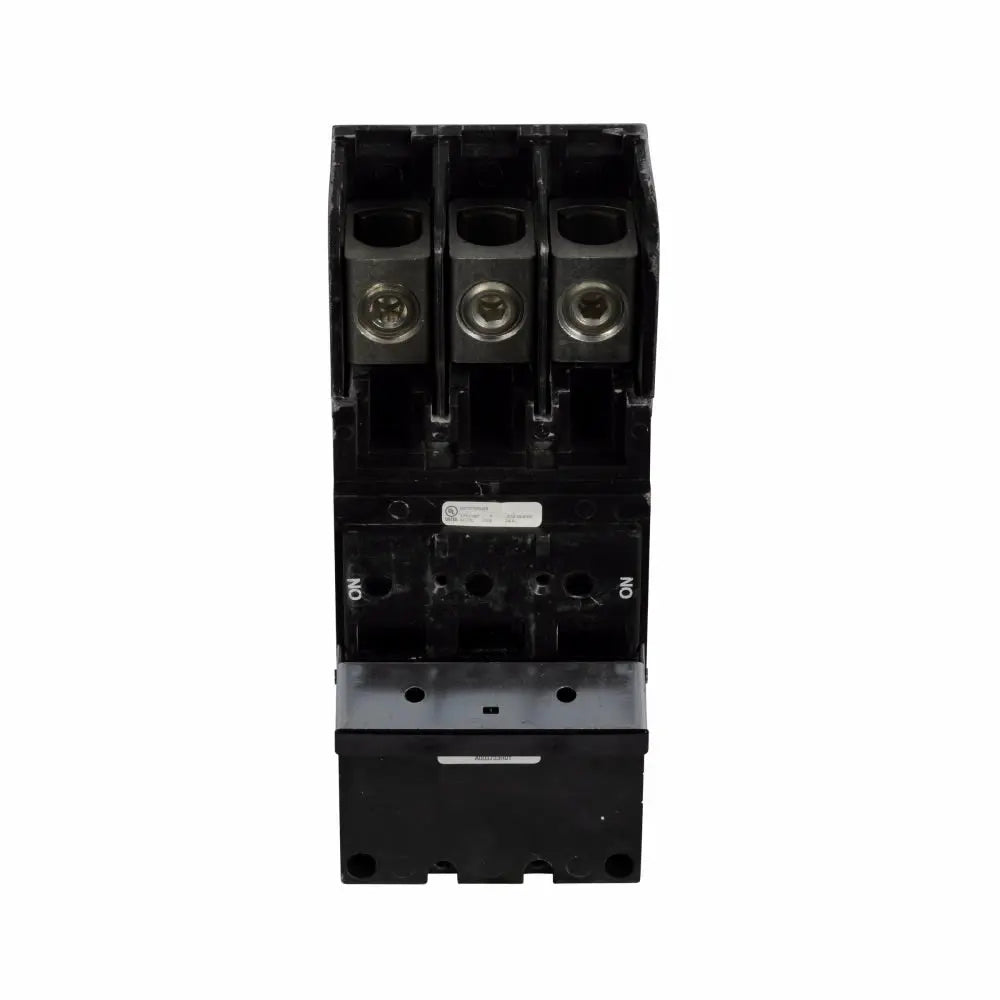

BJ3150 - Bulldog, Gould, ITE, Siemens 150A 240V 3 Pole Plug-On Circuit Breaker 10kA AIC

BJ3150

BJ3150 is a 3 pole, 150 amp, 240 Volt plug-on circuit breaker with a 10kA interrupting rating, manufactured by Bulldog, Gould, ITE, Siemens.This Eaton Cutler-Hammer type BJ breaker features thermal magnetic protection with common breaker trip, designed for residential load centers requiring a 150A main breaker. It supports wire sizes from #2 AWG to 300 kcmil Cu/Al and complies with UL 489 and CSA certifications.

• Amperage: 150 A
• Voltage: 240 V AC
• Number of Poles: 3
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC @ 240V
• Trip Unit: Thermal Magnetic, Common Breaker Trip
• Series/Frame: BJ
• Wire Size Range: #2 AWG - 300 kcmil Cu/Al
• Certifications: UL 489, CSA
• Dimensions: 3.5" x 3.5" x 8"
• Weight: 2.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJ3150
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BJ Series
• Type : BJ
• Voltage : 240
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676368353
• GTIN : 00786676368353
• Country of Origin : United States
• Dimensions : 8 in x 3.5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 2.5
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : AWG 2 to 300KCmil, Cu/Al
