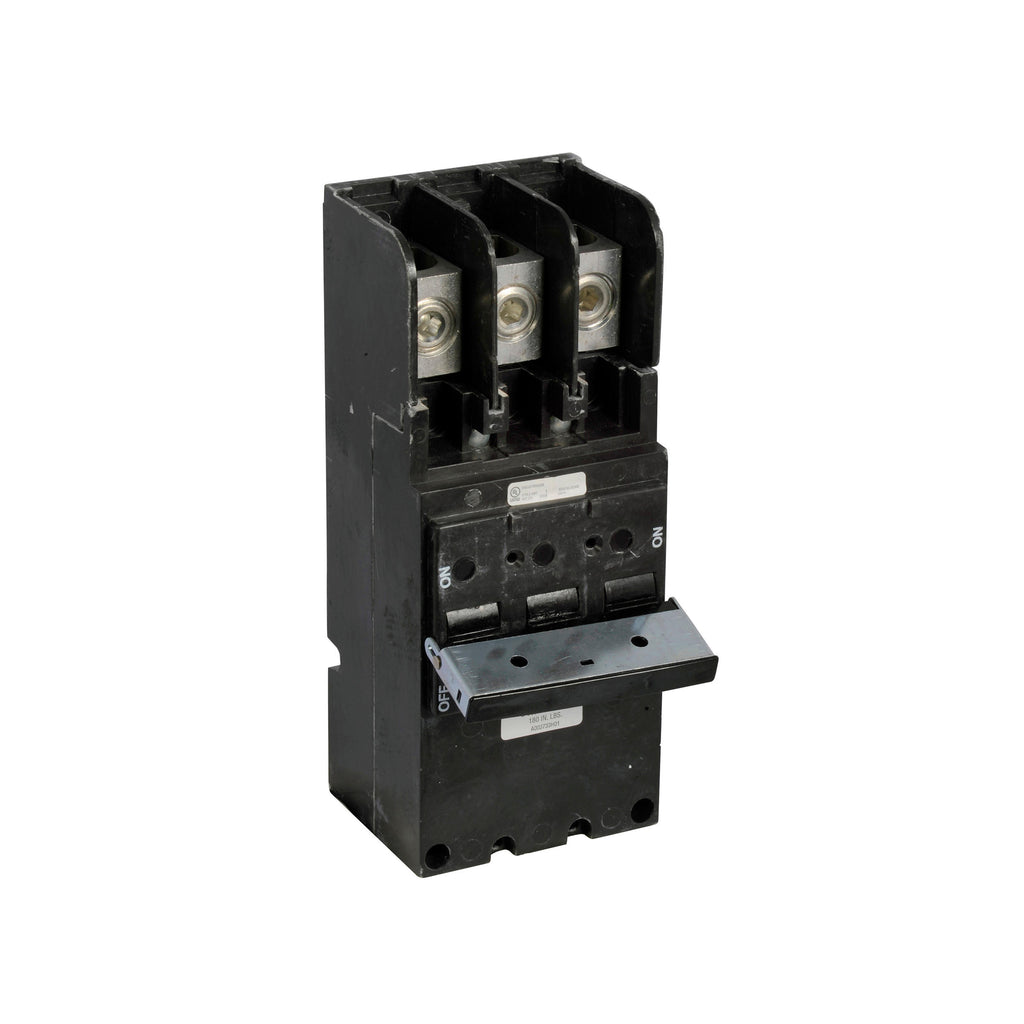

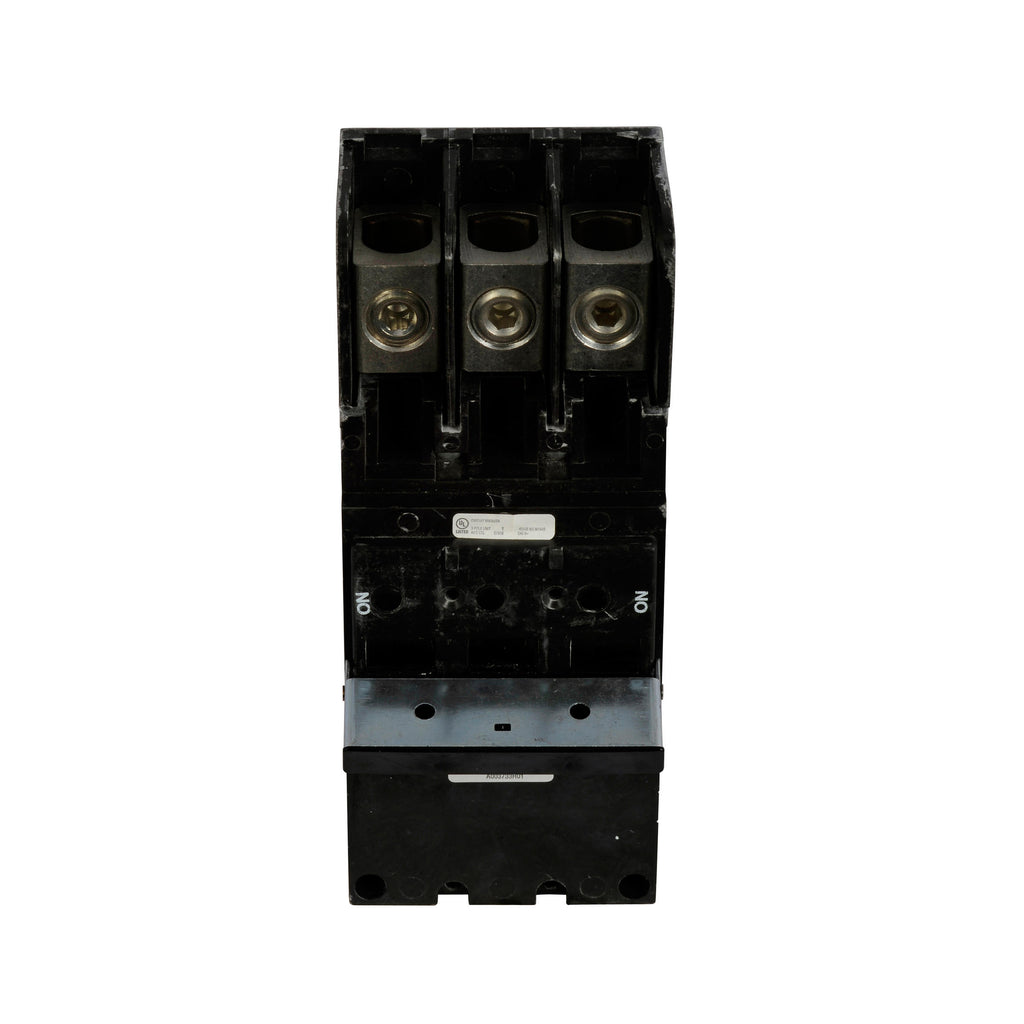

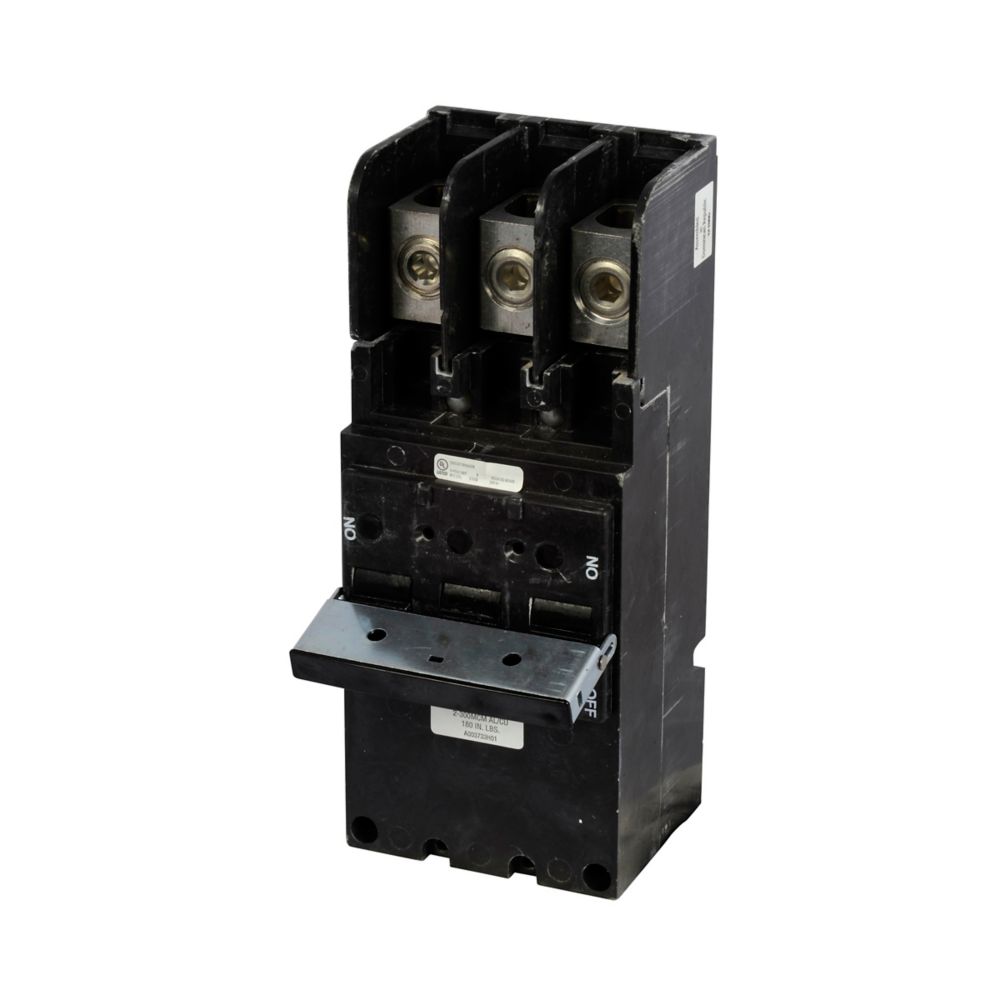

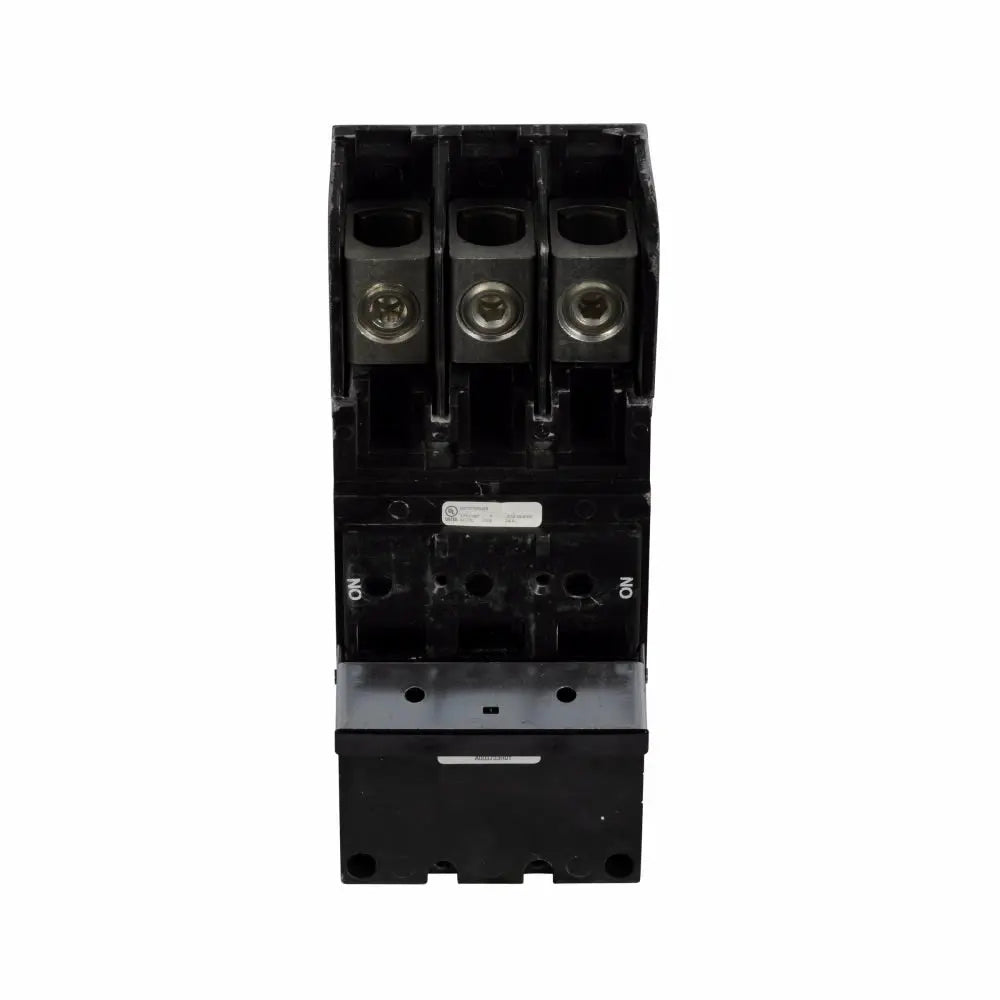

BJ3125 - Cutler Hammer 125A 240V 3-Pole Plug-On Circuit Breaker Type BJ Frame

BJ3125

This Type BJ breaker features a common breaker trip, 10 kA interrupt rating, and supports #2 AWG to 300 kcmil copper or aluminum wire. It is UL 489 listed and CSA certified, suitable for both NEMA 1 indoor and NEMA 3R outdoor rainproof applications. The breaker requires at least a 150 A loadcenter and occupies three 1-inch pole spaces on each side.

Key Specifications
• Amperage: 125A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC
• Frame/Series: BJ
• Trip Unit: Common breaker trip
• Wire Size Range: #2 AWG to 300 kcmil Cu/Al
• Certifications: UL 489 Listed, CSA Certified
• NEMA Rating: NEMA 1 Indoor, NEMA 3R Outdoor Rainproof

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BJ3125
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BJ Series
• Type : BJ
• Voltage : 240
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 786676368308
• GTIN : 00786676368308
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 3.5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 2.5
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : 2 AWG To 300 Kcmil (Aluminum/Copper)
