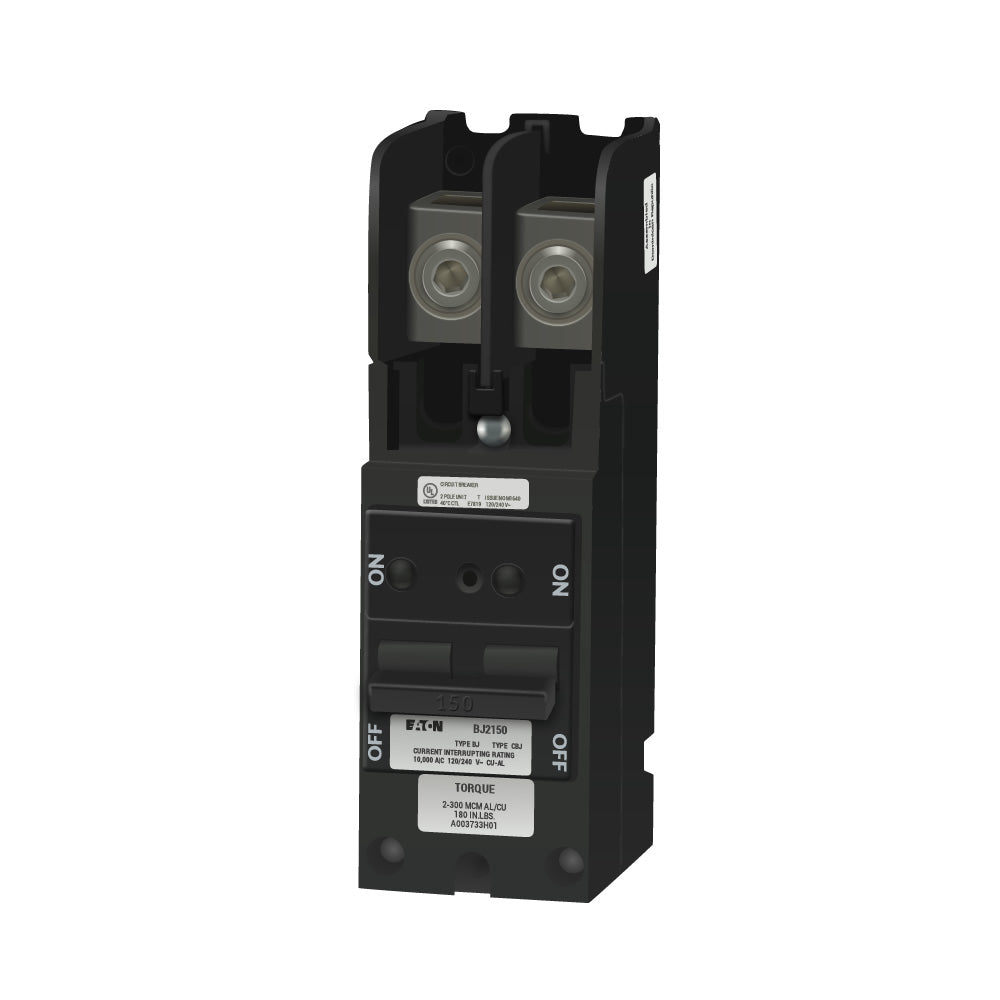

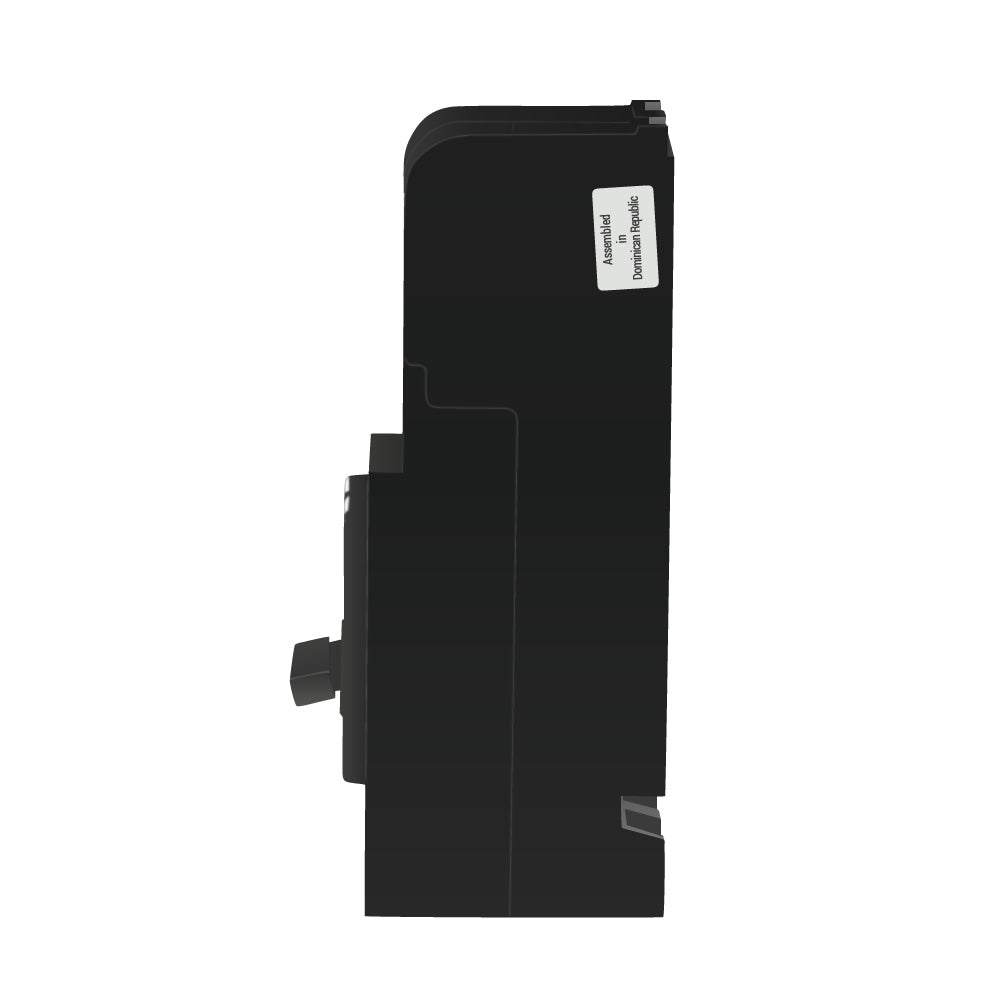

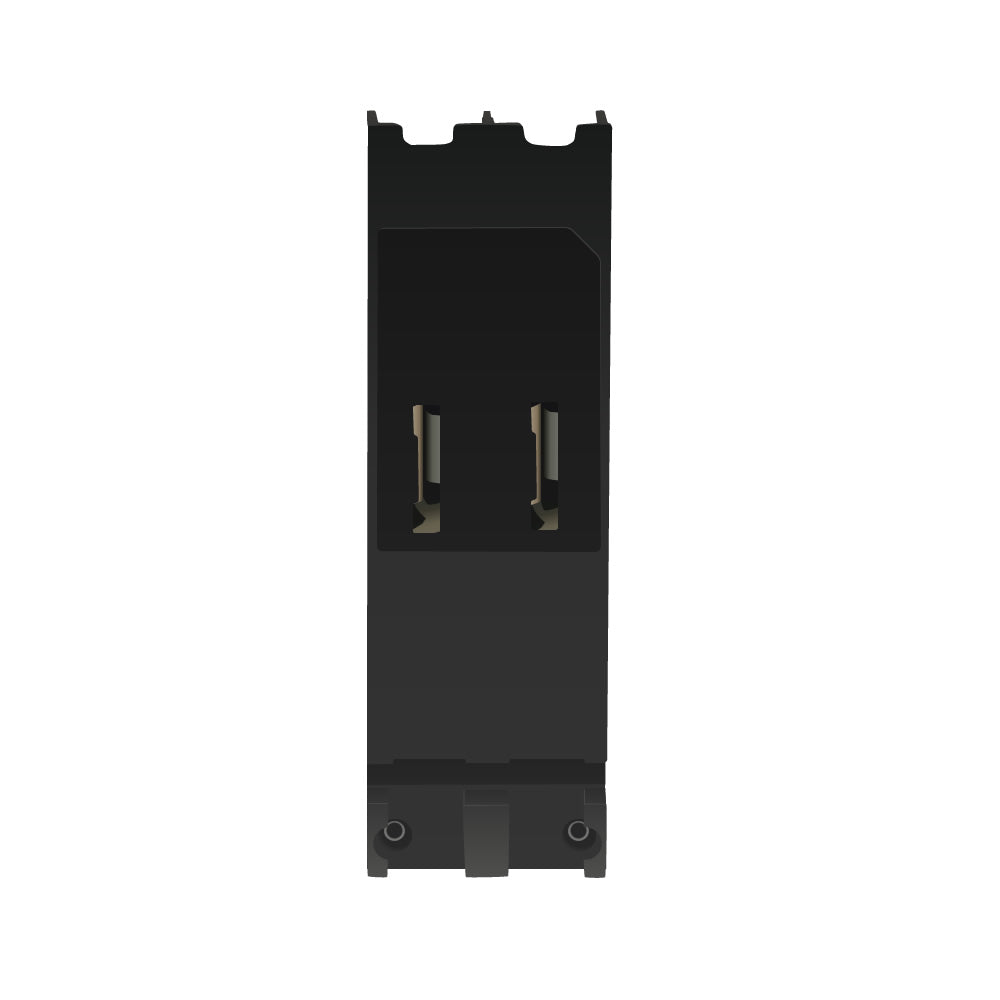

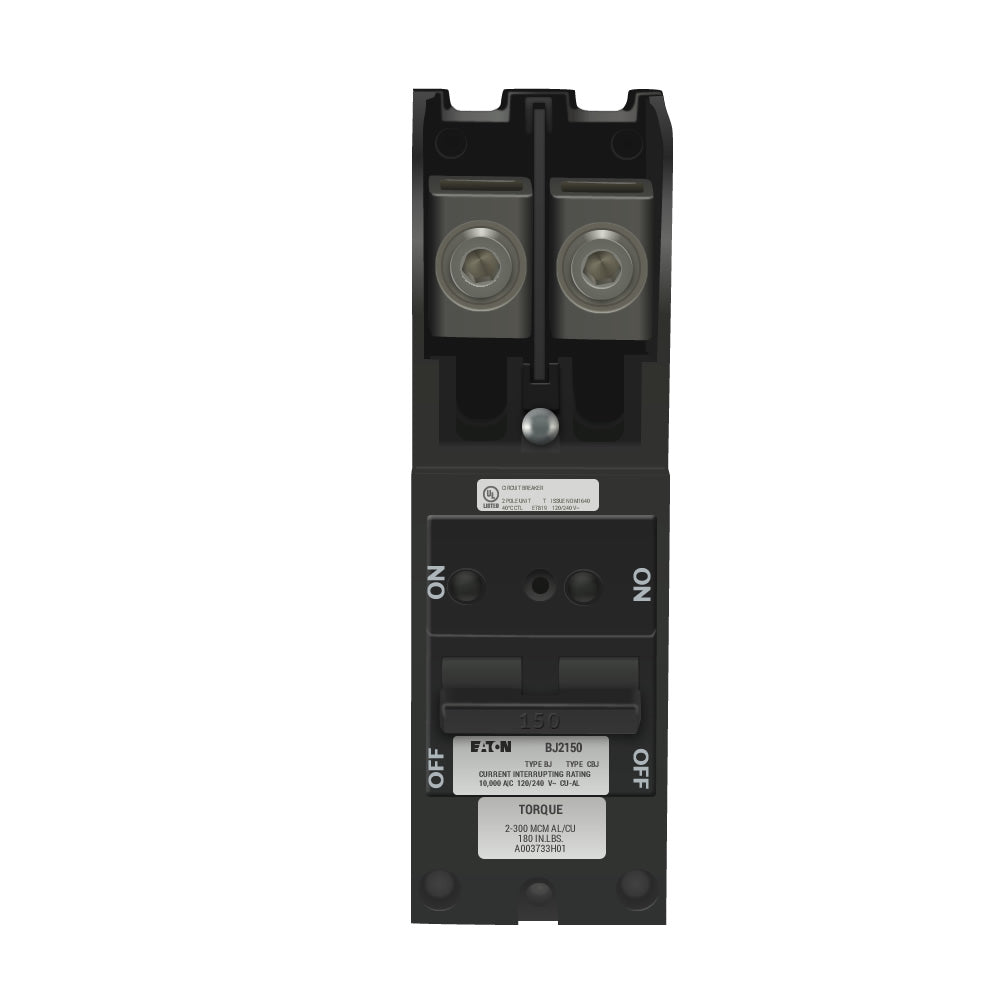

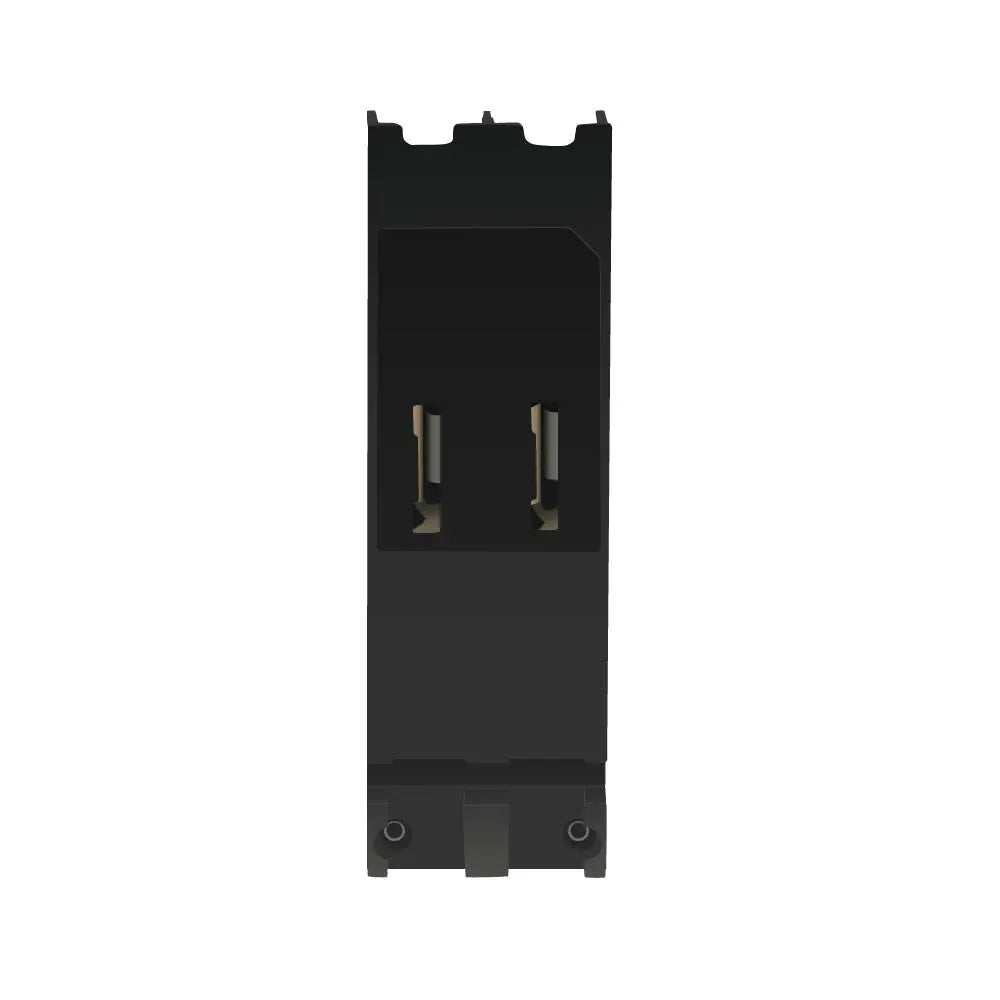

BJ2150 - Cutler Hammer 150 Amp 120/240V 2 Pole Plug-On Circuit Breaker BJ Series

BJ2150

BJ2150 is a Cutler Hammer 2 pole circuit breaker rated for 150 Amps and 120/240 Volts AC, designed for plug-on mounting in BJ series loadcenters.This thermal magnetic molded case circuit breaker features a 10kA interrupting rating at 240V, common trip unit with long-time and instantaneous trip functions, and supports #2 AWG to 300 kcmil copper or aluminum wire. It is UL 489 and CSA certified for reliable protection.

• Amperage: 150 A
• Voltage: 120/240 V AC
• Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC at 240 V
• Series/Frame: BJ
• Trip Unit: Common (Long-Time and Instantaneous)
• Connection Type: Plug-In
• Wire Size: #2 AWG to 300 kcmil Cu/Al
• Certifications: UL 489, CSA
• Dimensions (HxWxD): 2.5 x 3.5 x 6.5 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BJ2150
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BJ Series
• Type : BJ
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676367103
• GTIN : 00786676367103
• Country of Origin : Dominican Republic
• Dimensions : 6.5 in x 2.5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 1.8
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : AWG 2 to 300KCmil, Cu/Al
