Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
BJ2100

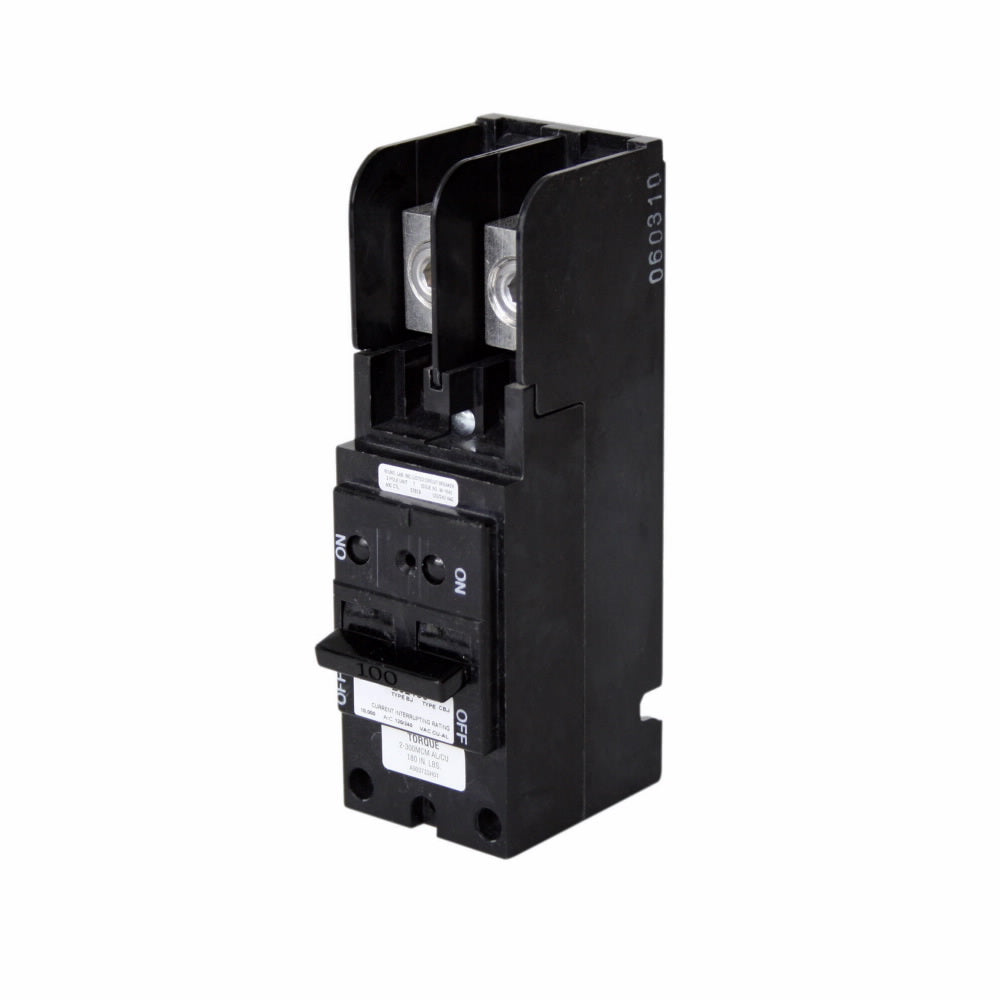

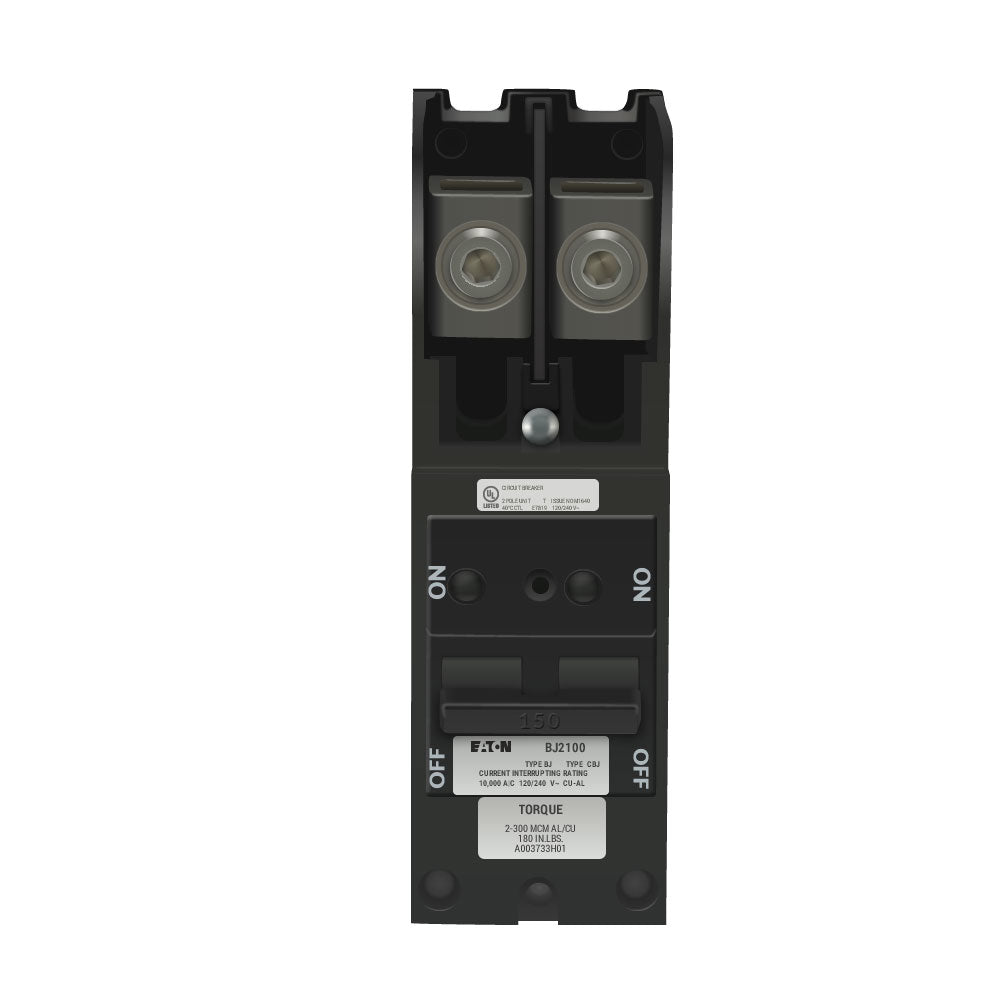

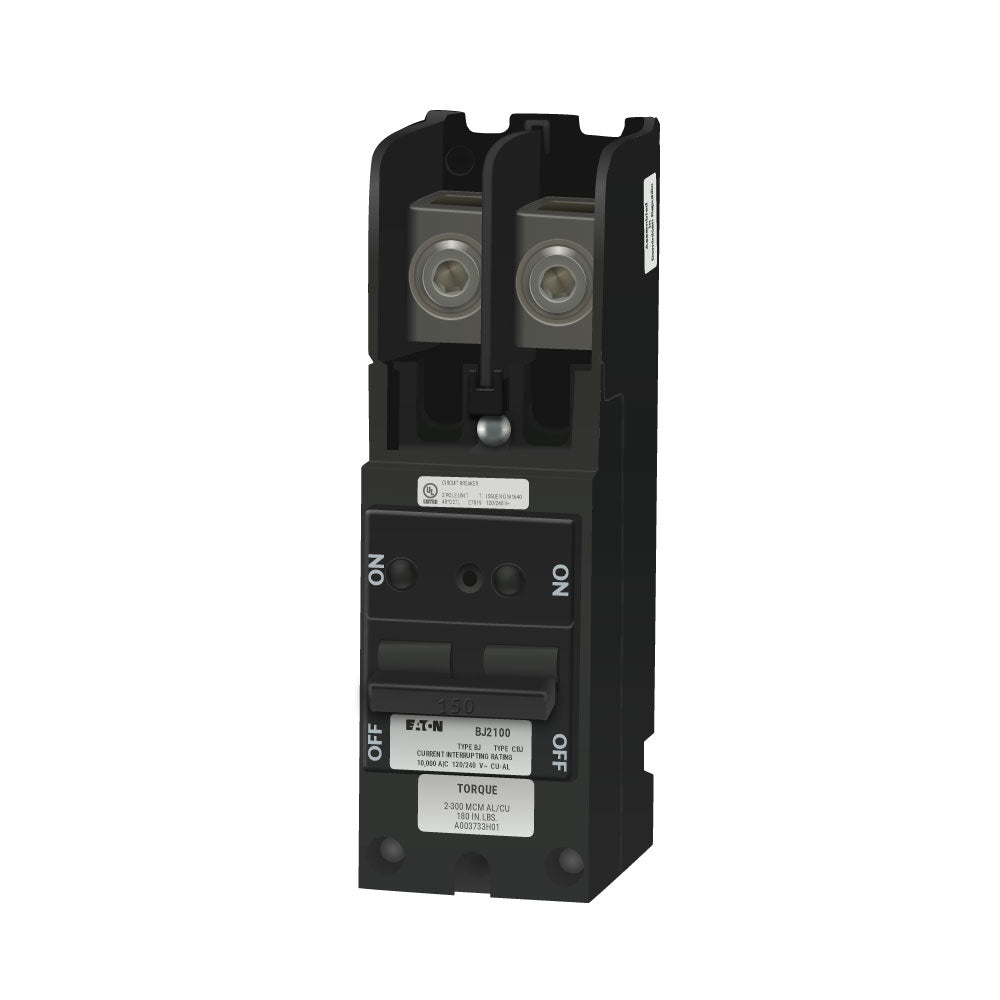

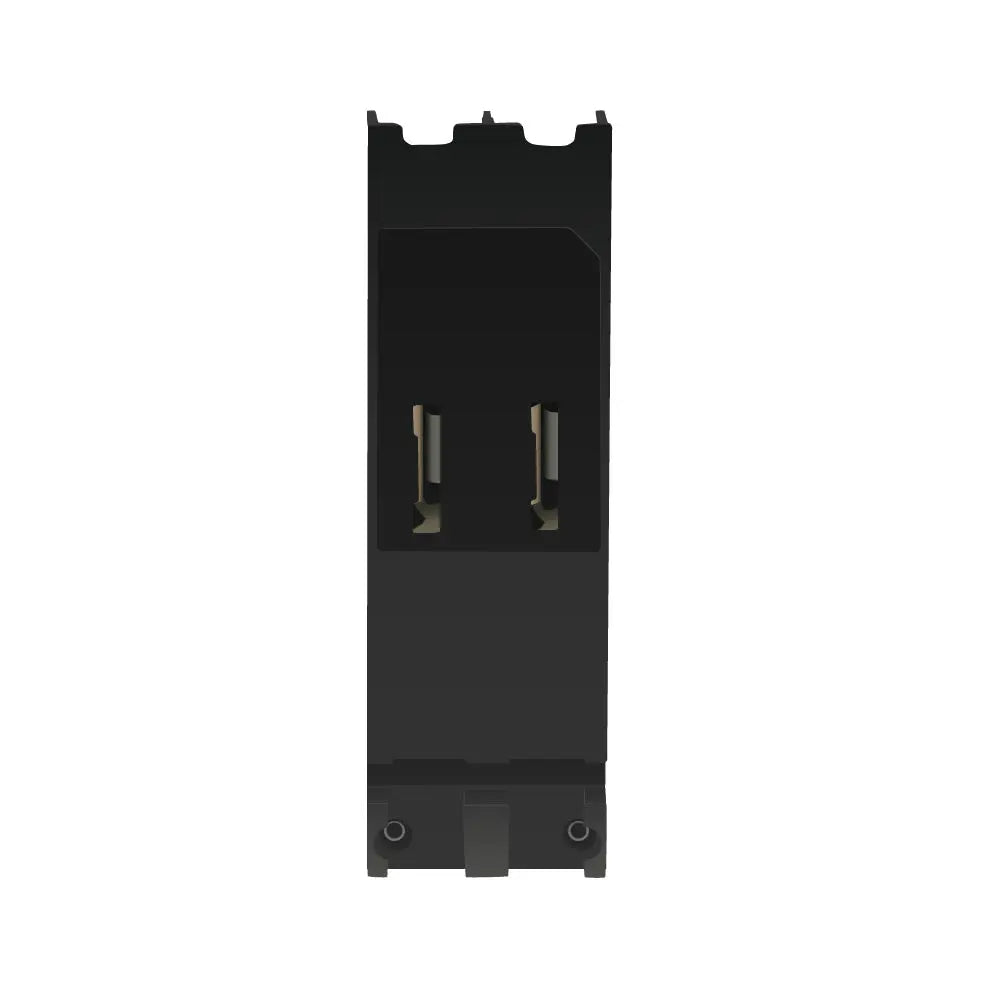

BJ2100 is a Cutler Hammer 2-pole, 100 Amp, 120/240V molded case circuit breaker designed for residential and light commercial applications.
This plug-in circuit breaker features a thermal magnetic trip unit for reliable overload and short-circuit protection, and is part of the BJ series with a robust molded case frame. It is suitable for use as a main or sub-feed breaker in load centers and panelboards.
-
Key Specifications
- Amperage: 100 Amp
- Voltage: 120/240V
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10kA @ 120VAC
- Series/Frame: BJ
- Trip Unit: Thermal Magnetic
- Load Side Termination: Lugs
- Height: 2.5 inches
- Length: 6.5 inches
- Width: 3.5 inches
- Certifications: Not specified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BJ2100
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BJ Series
- Type : BJ
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 782116484294
- GTIN : 00782116484294
- Country of Origin : Dominican Republic
- Dimensions : 6.5 in x 2.5 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 1.8
- Certification : UL 489,Federal Specifications Classification W-C375
- Wire Size : 2 AWG to 300KCmil, Cu/Al
