BG230 - Siemens 30 Amp 120/240V 2 Pole Bolt-On Circuit Breaker BG Series

BG230

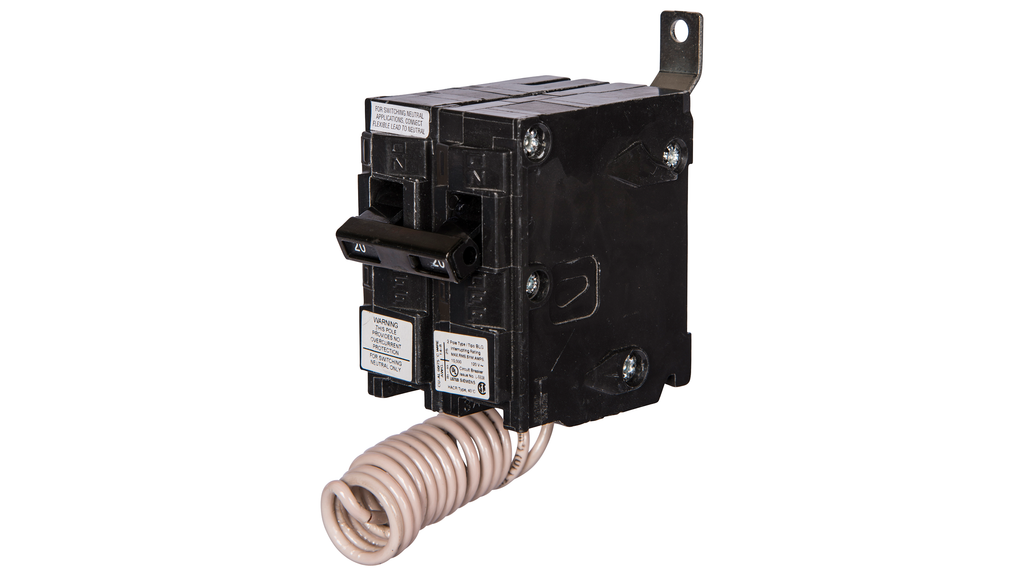

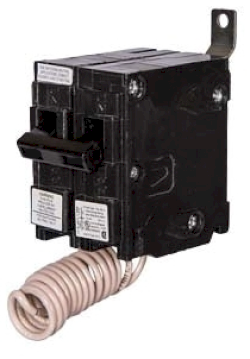

BG230 is a Siemens 30 Amp, 2 Pole, 120/240 Volt bolt-on circuit breaker from the BG Series designed for reliable circuit protection.This Siemens BG230 circuit breaker features a thermal magnetic trip unit with a 10,000 A interrupting rating at 120 Volts AC. It includes a switched neutral and is suitable for use in residential and commercial applications requiring a common trip breaker. The breaker mounts via bolt-on installation and complies with HACR application standards.

• Amperage: 30 Amps
• Voltage: 120/240 Volts AC
• Poles: 2 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 Amps
• Series/Frame: BG Series
• Trip Unit: Thermal Magnetic
• Switched Neutral Included
• Application: HACR Rated
• Common Trip Feature
• UL Listed and CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BG230
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BG
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643271203
• GTIN : 00783643271203
• Country of Origin : Mexico
• Dimensions : 3.937 x 2.756 x 2.756 inch
• Weight : 0.992
