Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
BG215

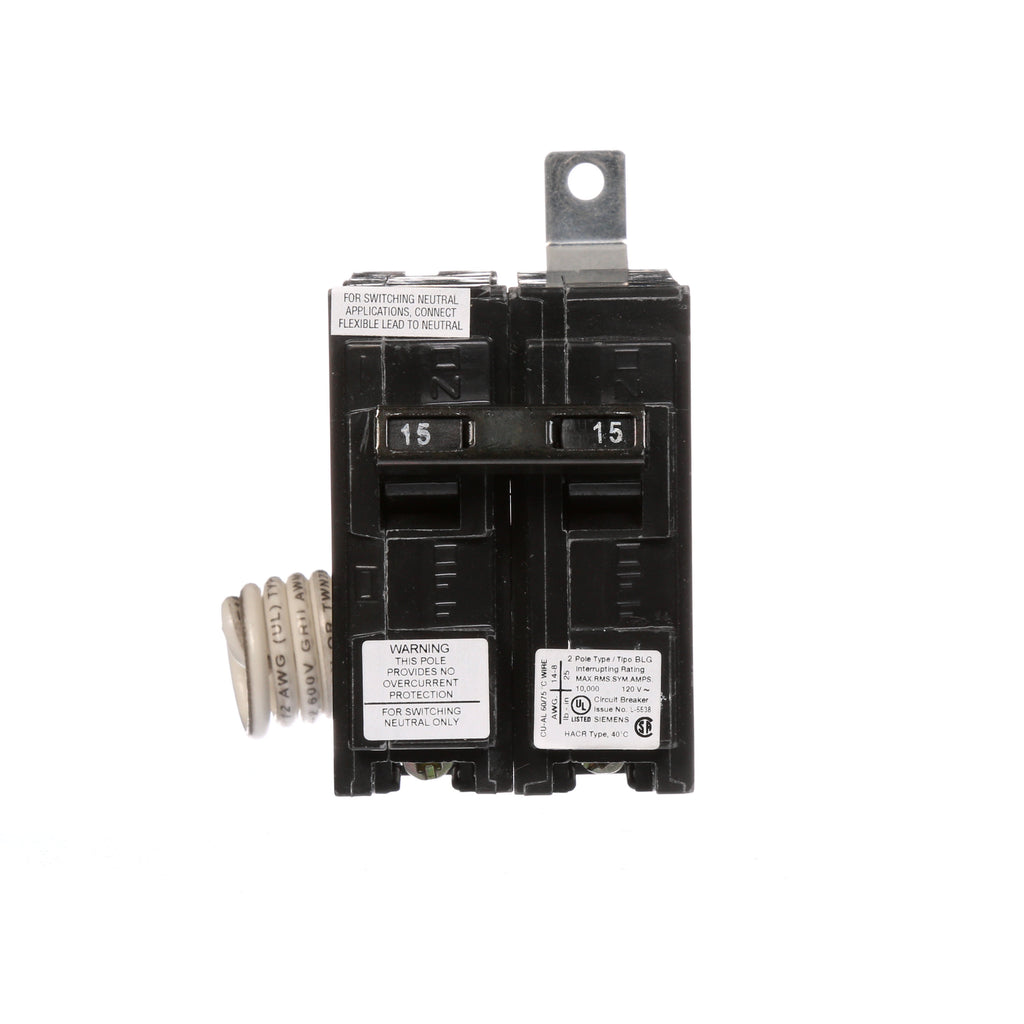

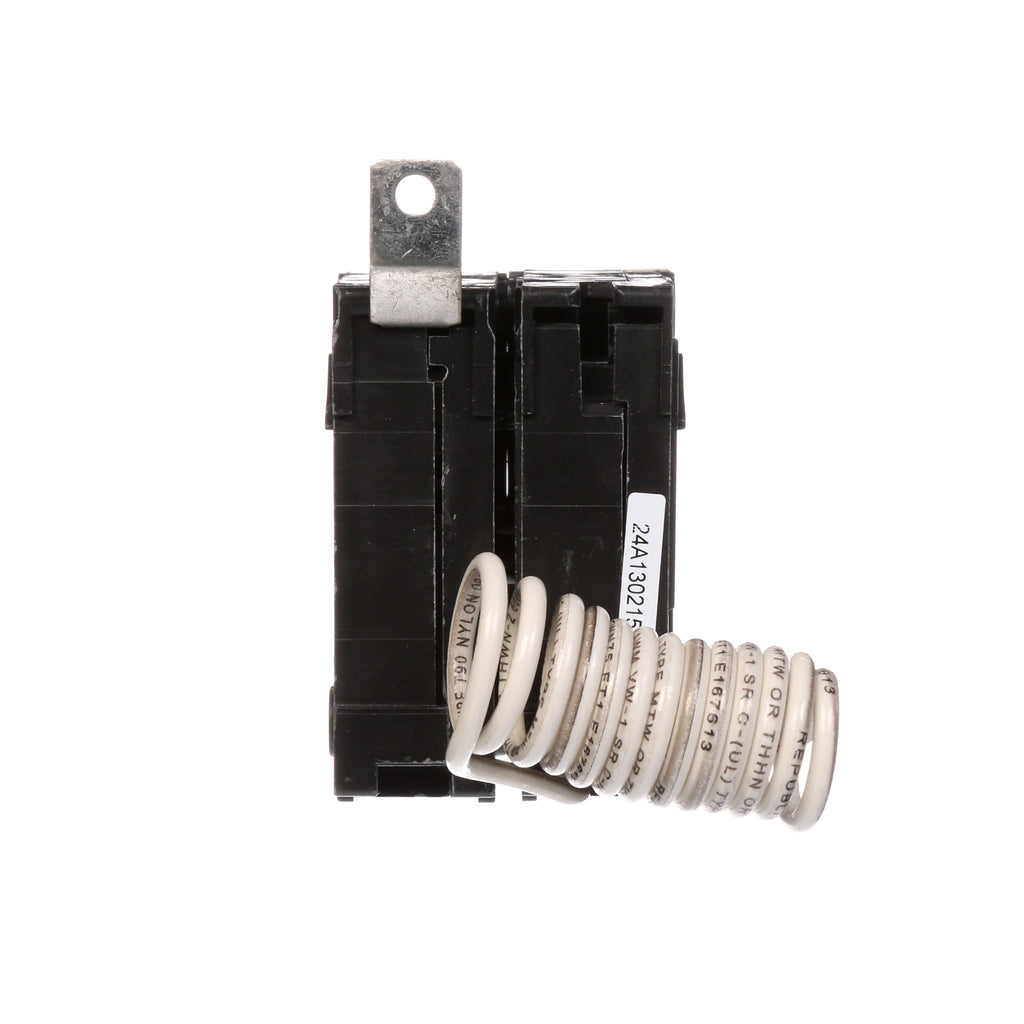

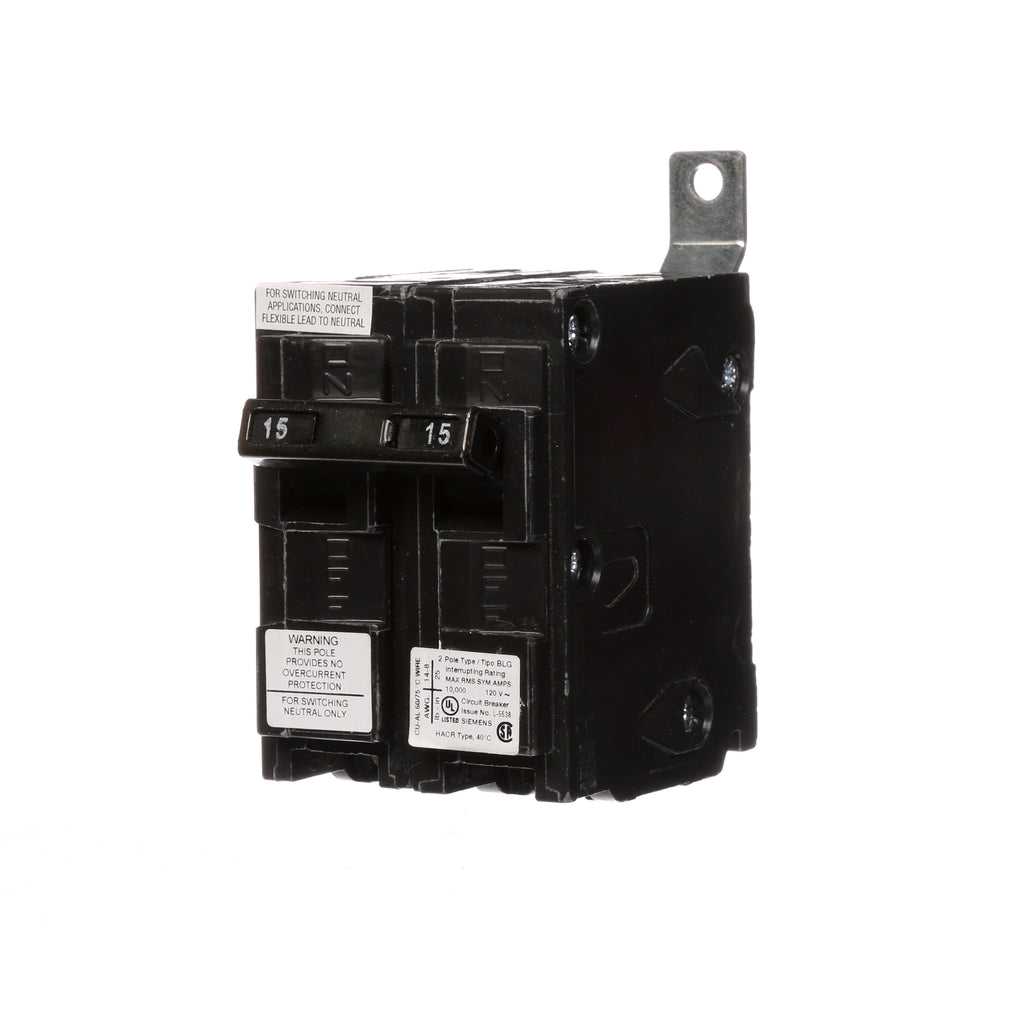

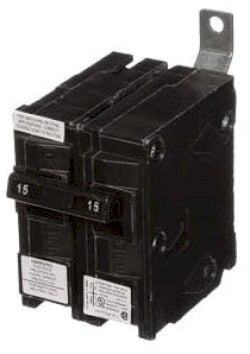

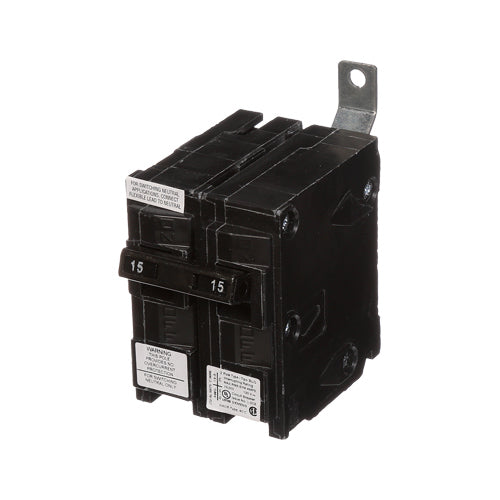

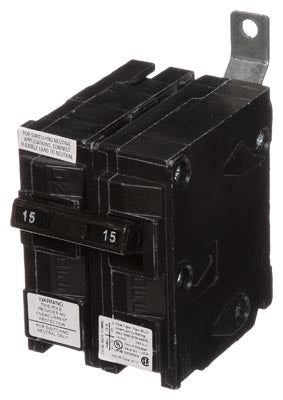

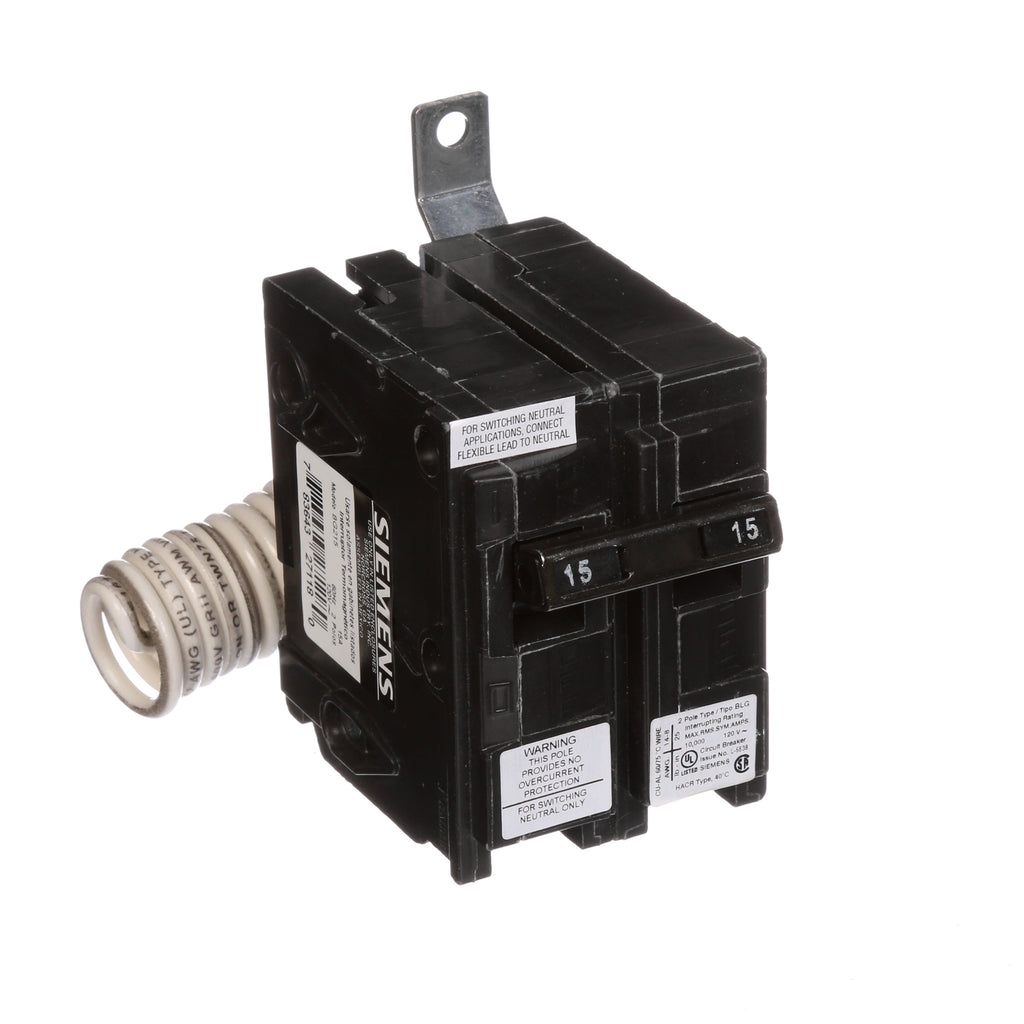

BG215 is a Siemens 2-pole thermal magnetic molded case circuit breaker rated for 15 amps and 120/240 volts AC. It features bolt-on mounting and a 10 kA interrupting rating.This Siemens BG215 breaker provides reliable overcurrent protection with a thermal magnetic trip unit. It is designed for panel mounting with switched neutral and bolt-on connection type. The breaker complies with HACR application standards and offers a 10,000 amp interrupting capacity at 120 volts AC, ensuring safe operation in residential or commercial electrical systems.
- Amperage: 15 Amps
- Voltage Rating: 120/240 VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupting Rating: 10 kA at 120 VAC
- Trip Unit: Thermal Magnetic
- Series/Frame: BG Series
- Switched Neutral: Yes
- Application: HACR
- Certifications: UL Listed
Specifications
- Part Number: BG215
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BG
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643271180
- GTIN : 00783643271180
- Country of Origin : Mexico
- Dimensions : 5.906 x 3.937 x 3.937 inch
- Weight : 0.794
