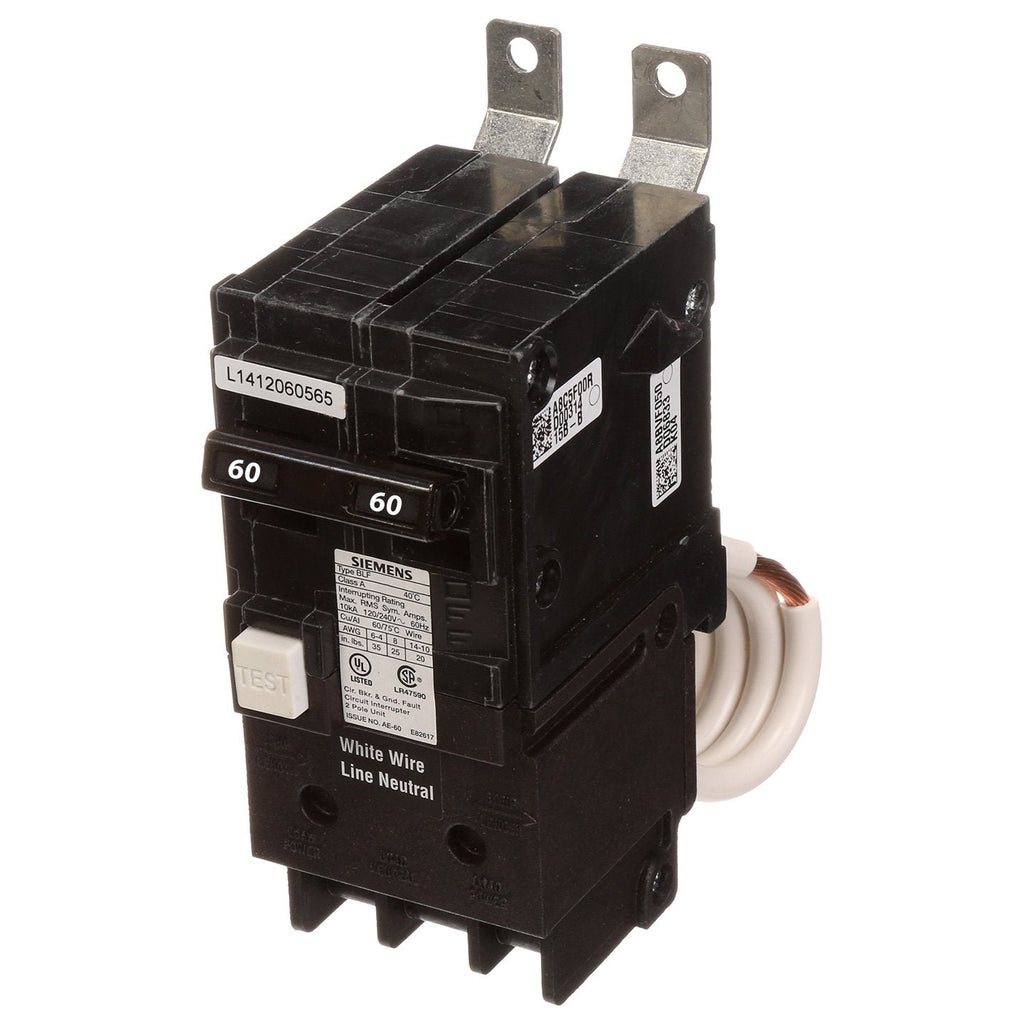

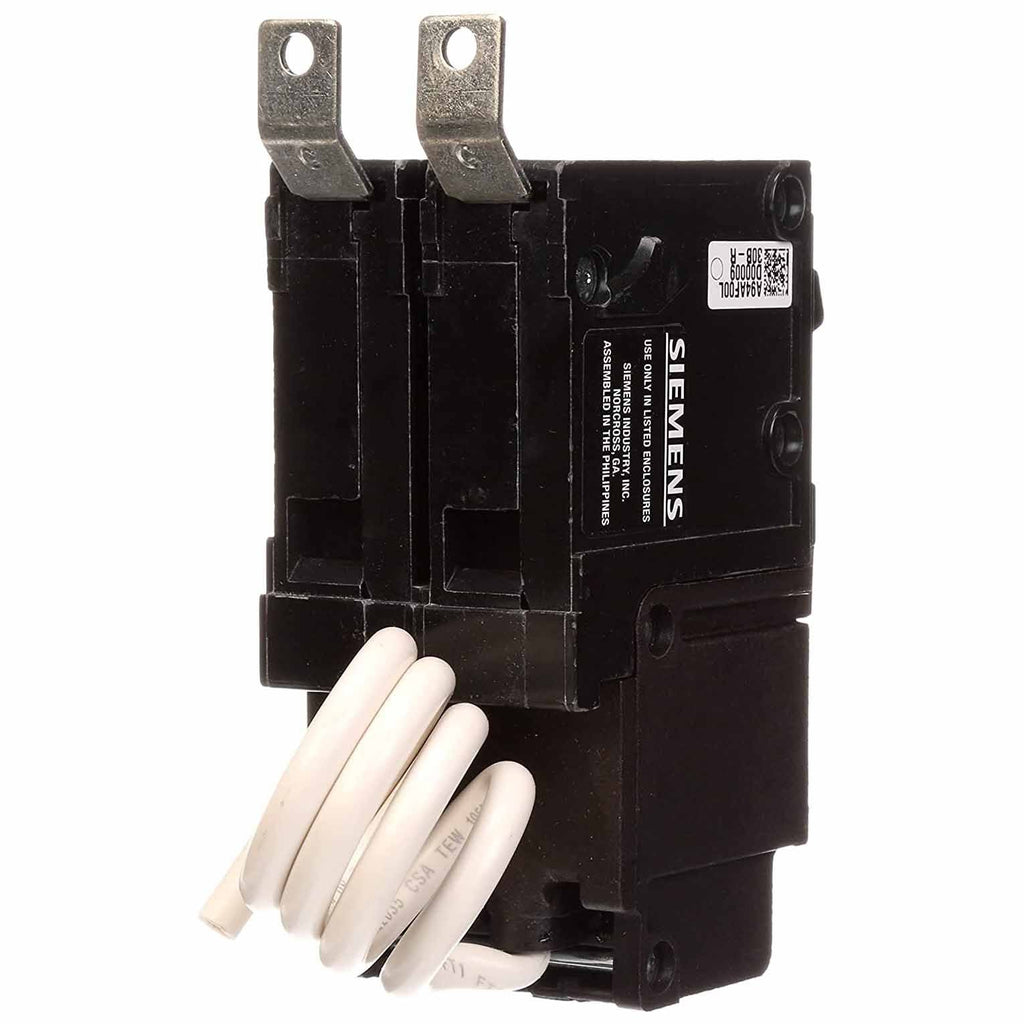

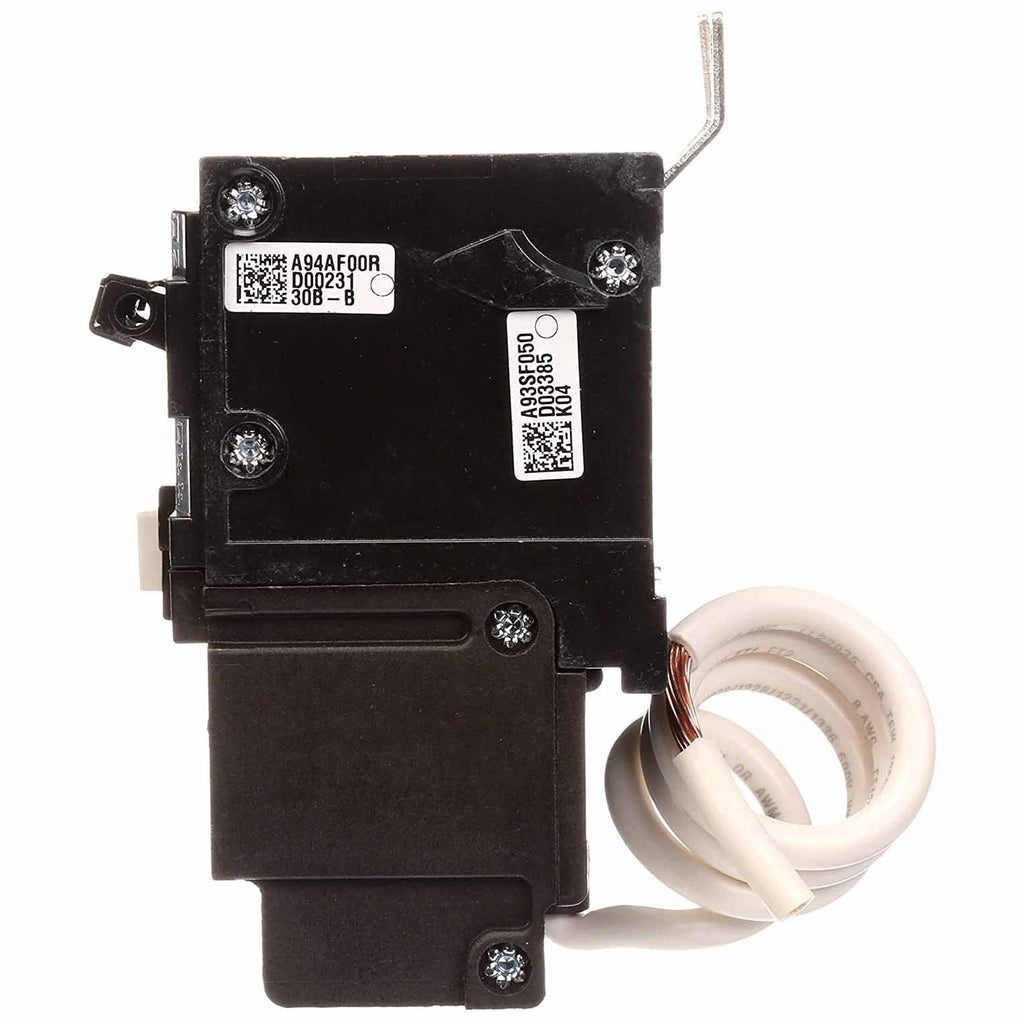

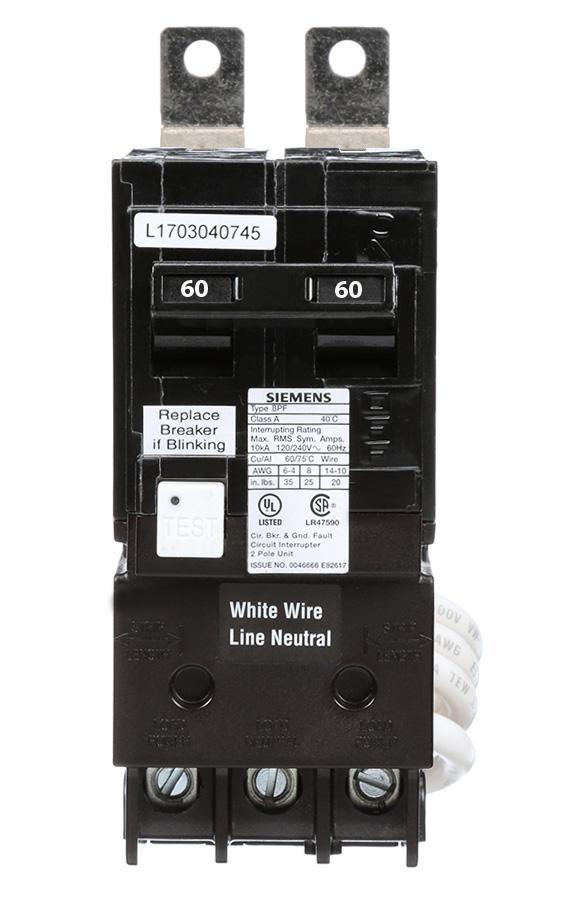

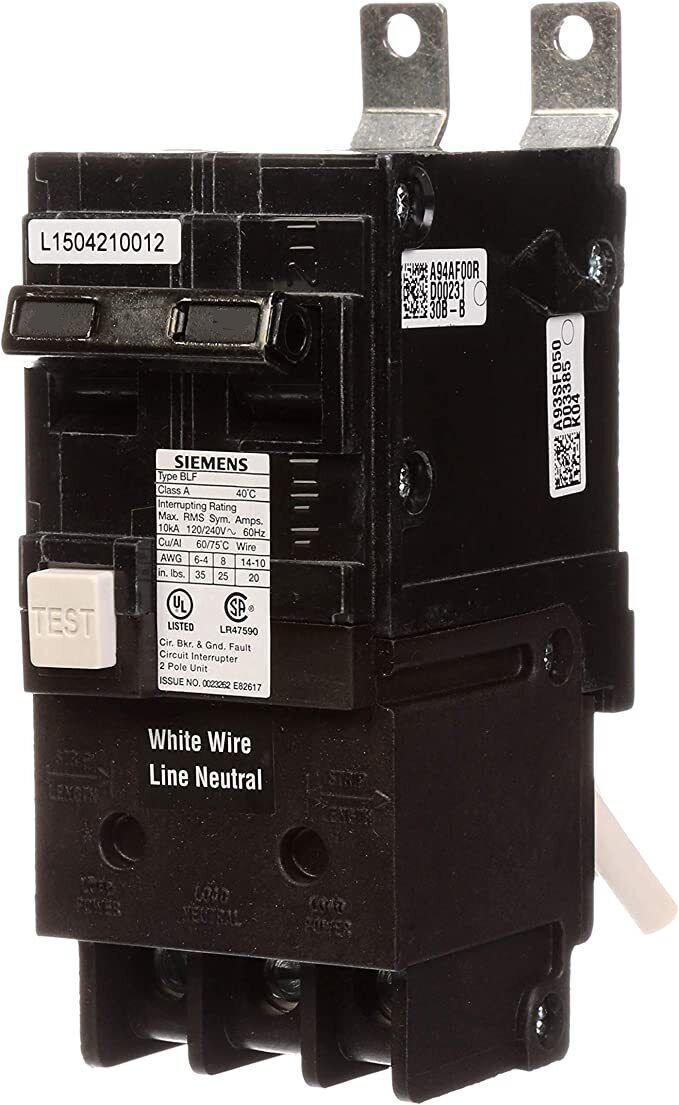

BF260A - Siemens 60A 120/240VAC 2-Pole Circuit Breaker BLF Frame Thermal Magnetic Trip

BF260A

BF260A is a Siemens 2-pole circuit breaker rated for 60 amps and 120/240 VAC with a BLF frame and thermal magnetic trip.This Siemens BF260A circuit breaker features a 10 kA interrupt rating, bolt-on mounting, and provides ground fault circuit interrupter (GFCI) protection with a 5 mA trip range. It is UL listed and CSA certified, designed for single-phase applications, and resists false tripping. The breaker measures approximately 3 in L x 2 in W x 2.78 in H and supports a temperature rating of 40°C.

Key Specifications
• Manufacturer: Siemens
• Part Number: BF260A
• Amperage: 60 A
• Voltage: 120/240 VAC
• Poles: 2
• Frame Type: BLF
• Interrupt Rating: 10 kA
• Trip Type: Thermal Magnetic with 5 mA GFCI trip
• Mounting Type: Bolt-On
• Phase: Single-phase
• Certifications: UL Listed, CSA Certified
• Dimensions: 3 in L x 2 in W x 2.78 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BF260A
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLF
• Voltage : 120/240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 60A/BLHF
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 887621215477
• GTIN : 00887621215477
• Country of Origin : Philippines
• Dimensions : 7.874 x 1.969 x 2.756 inch
• Weight : 0.992
• Panel Type : Siemens Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
