BDA141101 - Schneider Electric I-Line Style Plug-In 480V 110A 1 pole circuit breaker 25kA@240V

BDA141101

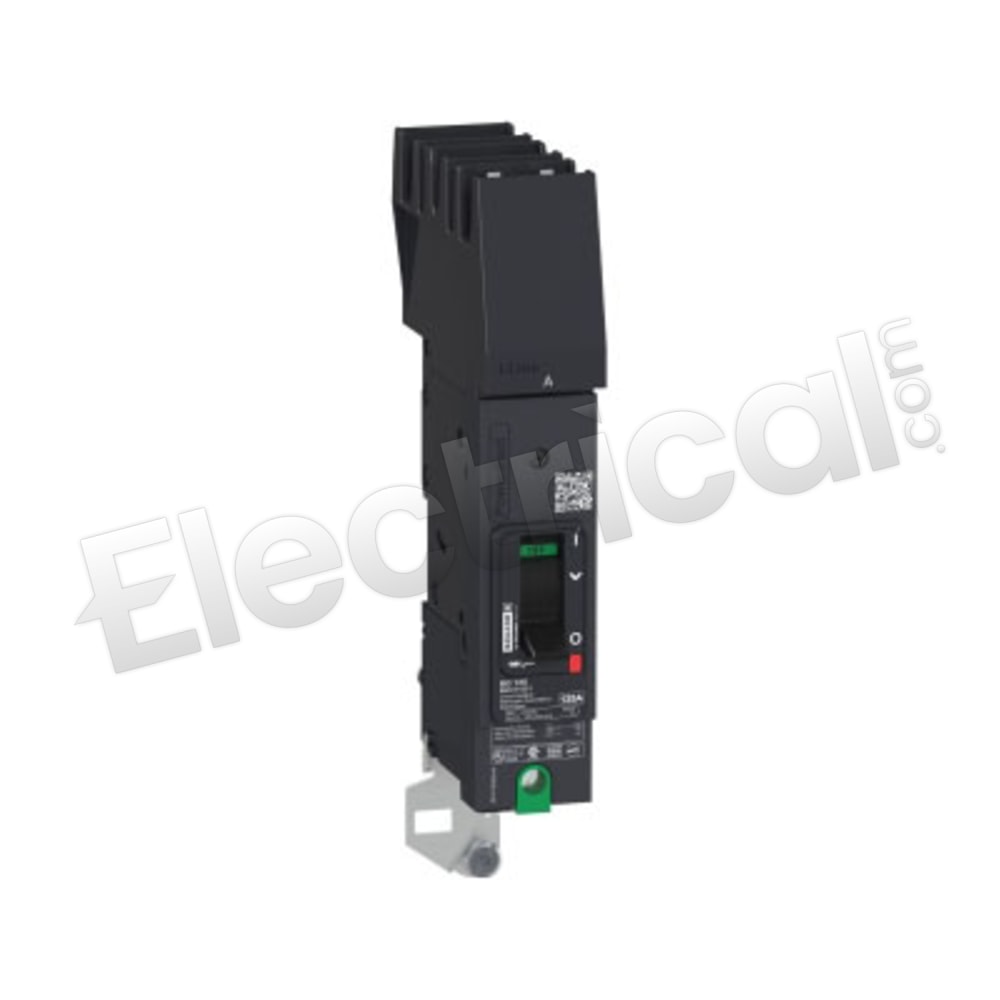

The Schneider Electric BDA141101 is a Molded Case Circuit Breaker. This type BDA circuit breaker is a member of The Powerpact family. The BDA141101 is a 1 pole, 480 Volt, 110 amp rated circuit breaker, with an AIC rating of 25kA@240V. The BDA141101 is manufactured by Schneider Electric. The BDA141101 uses a I-Line Style Plug-In connection. Includes Thermal Magnetic protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.

Specifications

• Part Number: BDA141101
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 480
• Amperage : 110
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 785901059370
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.61
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-2, CSA C22.2 No 5, NMX J-266, GB 14048.2, EN/IEC 60947-5-1, NEMA AB1, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
