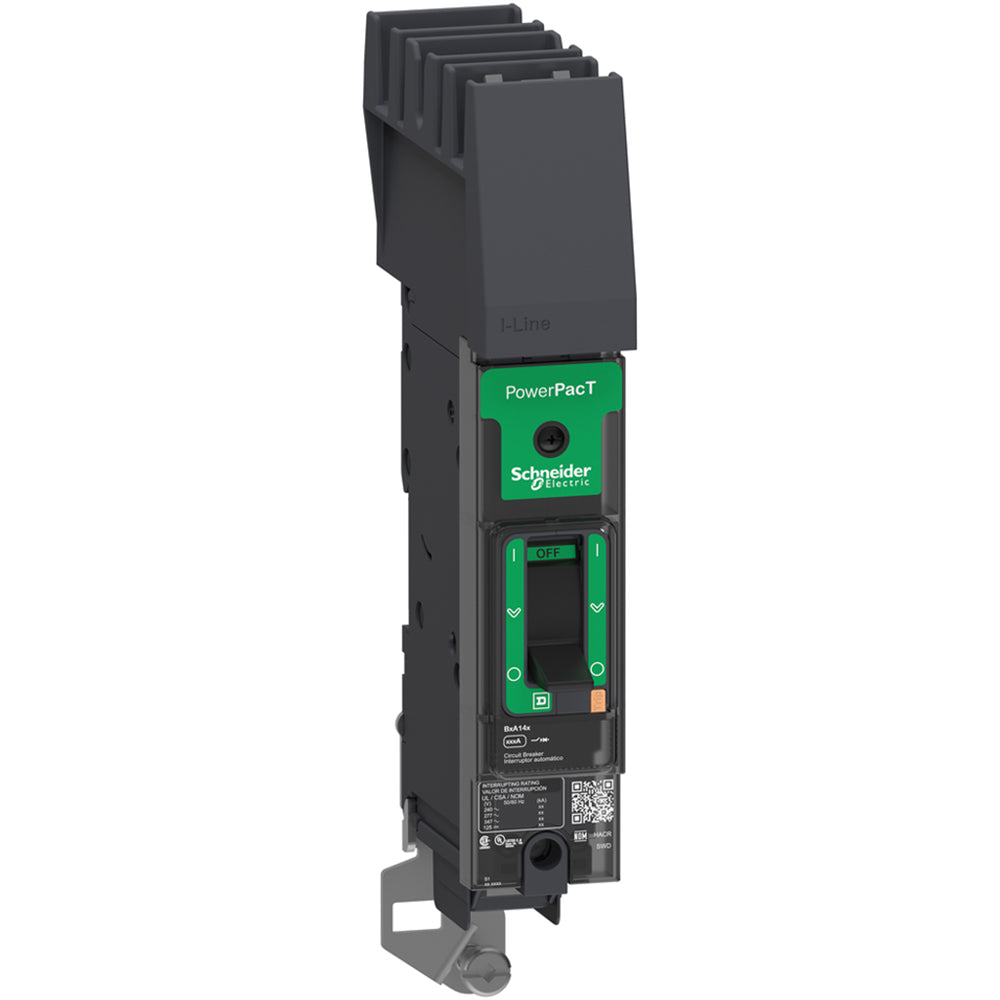

BDA140201 - Schneider Electric PowerPact B Circuit Breaker 20A 1P 240V AC I-Line Thermal Magnetic

BDA140201

BDA140201 is a Schneider Electric PowerPact B series circuit breaker rated for 20 amps, single pole, designed for I-Line mounting.This thermal magnetic molded case circuit breaker provides reliable protection with a 25 kA interrupt rating at 240V AC and 18 kA at 480Y/277V AC. It complies with UL 489 standards and features a toggle actuator for easy operation. The breaker supports multiple voltage ratings and is suitable for various AC and DC applications.

• Amperage: 20 Amps
• Voltage Rating: 240V AC (max), 480Y/277V AC
• Poles: 1 Pole
• Mounting Type: I-Line
• Interrupt Rating: 25 kA at 240V, 18 kA at 480Y/277V
• Frame Type: PowerPact B
• Trip Unit: Thermal Magnetic
• UL Listed: UL 489
• Toggle actuator
• Dual rated AC/DC breaking capacity

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA140201
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 480
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 785901011569
• GTIN : 03606481151490
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.781
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : CSA C22.2 No 5, UL 489, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
