BDA140205 - Square D PowerPacT B Circuit Breaker 20 Amp 1 Pole 480Y/277VAC 18kA I-Line Thermal Magnetic

BDA140205

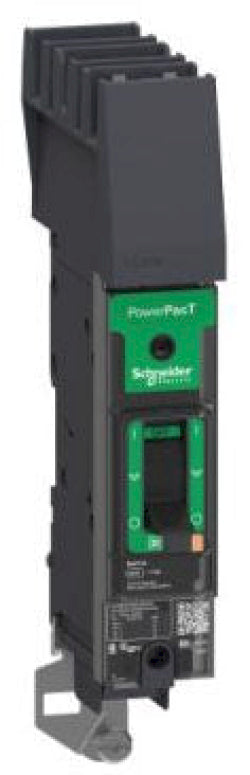

BDA140205 is a Square D PowerPacT B molded case circuit breaker offering reliable thermal magnetic protection for electrical circuits.This 1 pole circuit breaker is rated for 20 amps and designed for use in 480Y/277 VAC systems with an interrupt rating of 18 kA. It features I-Line mounting for easy installation in panelboards and switchboards. The breaker provides thermal magnetic trip protection with an 80% continuous current rating and includes a push-to-trip button for manual testing. It complies with UL, CSA, NOM, IEC standards and is CE marked.

• Amperage: 20 Amps
• Voltage Rating: 480Y/277 VAC
• Poles: 1
• Interrupt Rating: 18 kA at 480Y/277 VAC
• Mounting Type: I-Line
• Trip Unit: Thermal Magnetic
• Series/Frame: PowerPacT B
• Continuous Current Rating: 80%
• Certifications: UL, CSA, NOM, IEC, CE Marked
• Manual Push-to-Trip Button
• Dual Break Rotating Contacts

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA140205
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 480
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : D
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : C

Product Data

• UPC : 060648115153
• GTIN : 03606481151537
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.781
• Standards : NEMA AB1, CSA C22.2 No 5, UL 489, EN/IEC 60947-2, EN/IEC 60947-5-1, NMX J-266, GB 14048.2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
