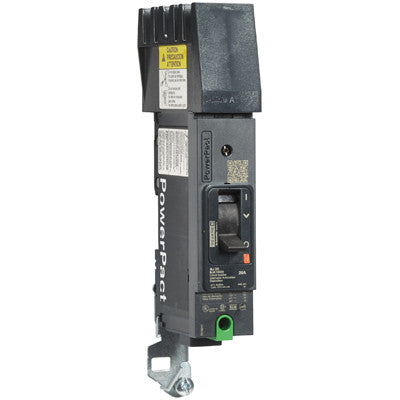

BDA140301 - Square D 30A 1-Pole 480Y/277VAC PowerPact B I-Line Circuit Breaker 18kA Interrupt Rating

BDA140301

BDA140301 is a Square D PowerPact B series circuit breaker rated for 30 amps, 1 pole, designed for I-Line mounting with an 18kA interrupt rating at 480Y/277VAC.This thermal magnetic molded case circuit breaker features a 30 amp frame, 1 pole configuration, and supports a maximum voltage of 480Y/277VAC. It has an interrupt rating of 18kA at 480Y/277VAC, 25kA at 240VAC and 208Y/120VAC, and 14kA at 125VDC. The breaker is UL 489 listed and designed for reliable protection in industrial and commercial electrical distribution systems.

• Amperage: 30 Amps
• Poles: 1
• Voltage Rating: 480Y/277VAC, 240VAC, 208Y/120VAC, 125VDC
• Interrupt Rating: 18kA at 480Y/277VAC, 25kA at 240VAC and 208Y/120VAC, 14kA at 125VDC
• Mounting Type: I-Line
• Frame/Series: PowerPact B
• Trip Unit: Thermal Magnetic
• UL Listing: UL 489
• Continuous Current Rating: 80%
• Manufacturer: Square D (Schneider Electric)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA140301
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 480
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 785901011569
• GTIN : 03606481151551
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.781
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : UL 489, NMX J-266, CSA C22.2 No 5, NEMA AB1, GB 14048.2, EN/IEC 60947-5-1, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
