2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
BABRP1020

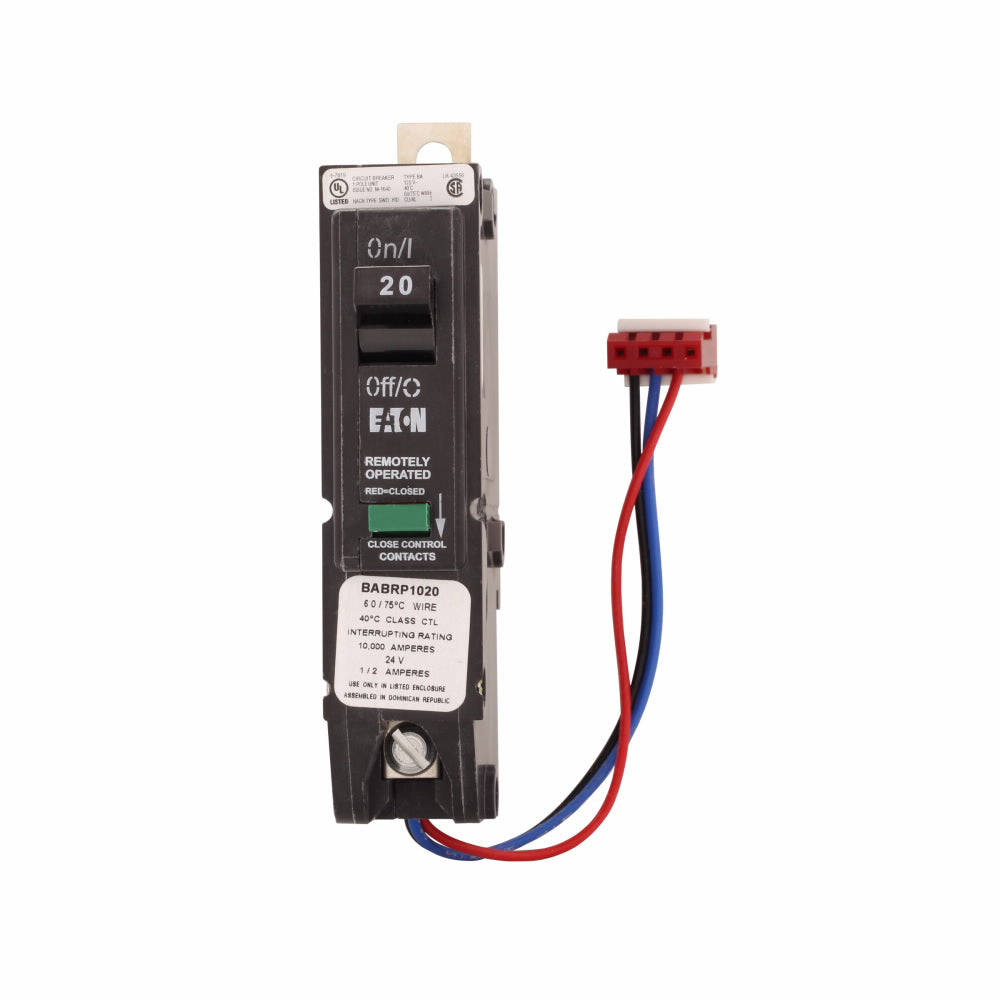

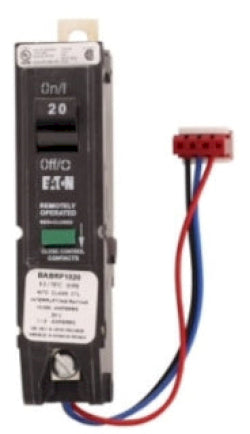

BABRP1020 is a Cutler Hammer remotely operated bolt-on circuit breaker rated for 20 amps and 120 volts, single-pole configuration.This Eaton Cutler Hammer BABRP1020 circuit breaker features a thermal magnetic trip unit, bolt-on mounting, and is UL 489 and CSA certified. It provides reliable protection for panelboards with a 10kA interrupting rating at 120V. The breaker measures 6 inches in length, 3 inches in height, and 1 inch in width, weighing approximately 0.54 pounds.
- Key Specifications
- Amperage: 20 Amps
- Voltage: 120 Volts
- Poles: Single-Pole
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA at 120V
- Trip Unit: Thermal Magnetic
- Series/Frame: BABRP
- Certifications: UL 489, CSA C22.2
- Dimensions: 6" x 3" x 1" (LxHxW)
- Weight: 0.54 lbs
Additional Information
Remotely Operated
Specifications
- Part Number: BABRP1020
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : BABR
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782116062300
- GTIN : 00782116062300
- Country of Origin : Dominican Republic
- Dimensions : 6 in x 3 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.54
- Standards : HACR rated
- Certification : UL Listed,CSA Certified
