Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B345HH

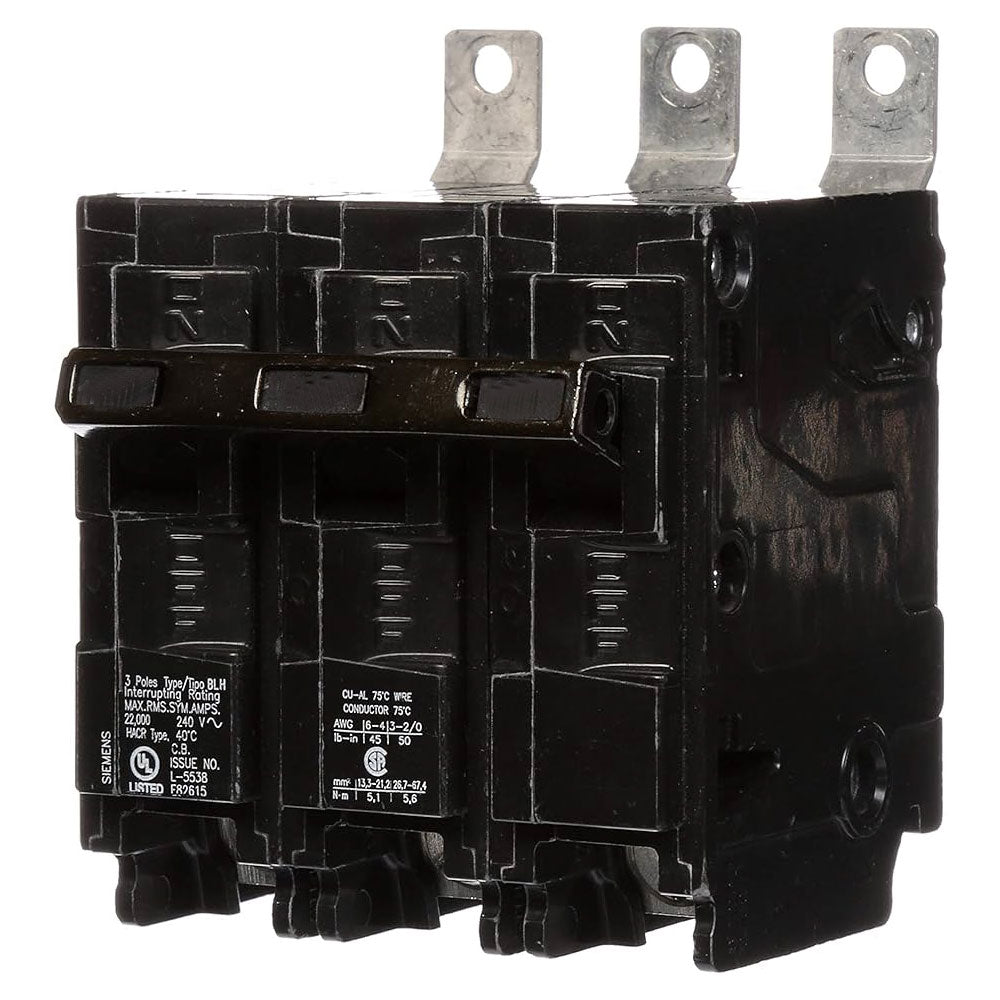

B345HH - Siemens 3-pole bolt-on molded case circuit breaker rated at 45A, 240VAC.The Siemens B345HH is a B frame, bolt-on circuit breaker designed for panelboard mounting with thermal-magnetic trip functionality and very high interrupting capacity.
- Part Number: B345HH
- Manufacturer: Siemens
- Amperage: 45A
- Voltage: 240VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA@240VAC
- Frame/Series: B Frame
- Trip Unit: Thermal-Magnetic
- Standards: UL Listed, CSA, HACR
Specifications
- Part Number: B345HH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : HBL
- Voltage : 240
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : Bolt-on
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/HBL
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643306363
- GTIN : 00783643306363
- Country of Origin : Mexico
- Dimensions : 2.563 x 3.00 x 3.122 inch
- Weight : 0.948
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
