Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B340HH00S01

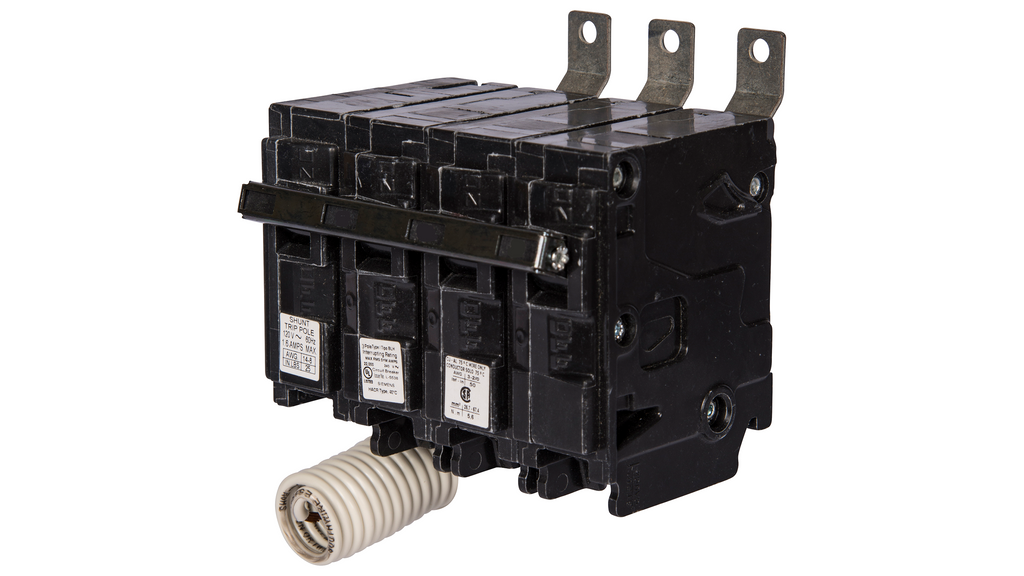

B340HH00S01 is a Siemens 3 pole, 40 amp, 240 volt molded case circuit breaker from the BL Series family designed for reliable circuit protection.This thermal magnetic circuit breaker features a bolt-on mounting type, a 65kA interrupting rating at 240V, and is UL listed for industrial and commercial applications. It includes a 120 VAC shunt trip option and is engineered for durability and safety in power distribution systems.
- Amperage: 40 Amps
- Voltage: 240 Volts
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 65kA at 240V
- Series/Frame: BL Series
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed
- Phase: 3
- Terminal Type: Load Lug
- Dimensions: Approx. 3" W x 3" D x 3-9/16" H
Additional Information
complete with 120V shunt trip
Specifications
- Part Number: B340HH00S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : HBL
- Voltage : 240
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 65kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Breaker Type : Shunt Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643269361
- GTIN : 00783643269361
- Country of Origin : Mexico
- Dimensions : 4.724 x 3.937 x 3.937 inch
- Weight : 1.609
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
