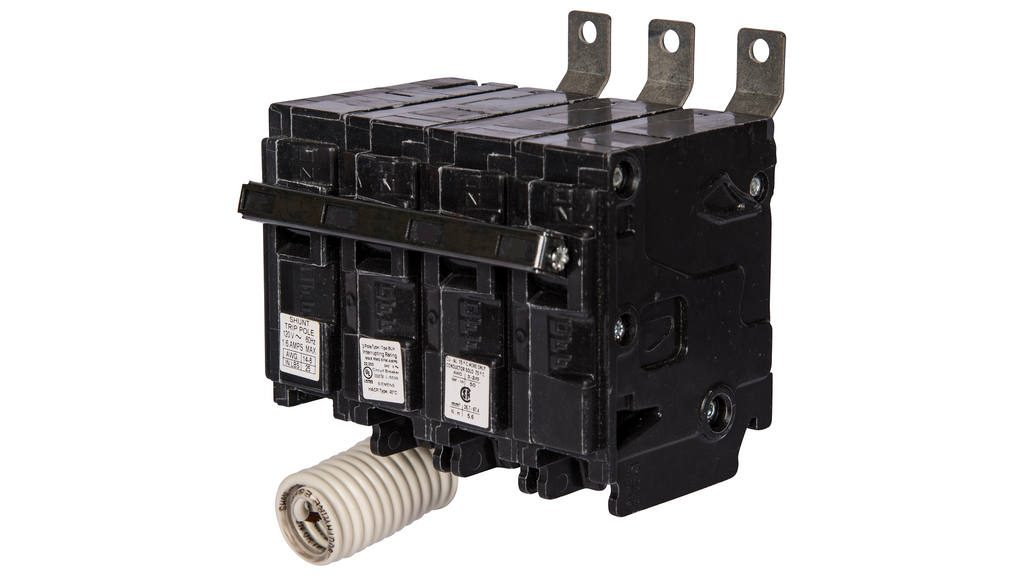

B325HH00S01 - Siemens 25A 3 Pole 240V AC BL Series Miniature Circuit Breaker Shunt Trip

B325HH00S01

B325HH00S01 is a Siemens 25 amp, 3 pole, 240 volt AC miniature circuit breaker from the BL series with shunt trip functionality.

This Siemens molded case circuit breaker features a bolt-on mounting type and is designed for electrical distribution applications. It offers a 65kA interrupt rating at 240V AC, ensuring reliable protection against overloads and short circuits. The breaker complies with UL 489 standards and includes a thermal magnetic trip unit for precise and dependable operation.

• Amperage: 25A
• Voltage: 240V AC
• Poles: 3
• Series/Frame: BL Series
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 240V AC
• Trip Unit: Thermal Magnetic
• Breaker Type: Shunt Trip
• Certification: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B325HH00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643529540
• GTIN : 00783643529540
• Country of Origin : Mexico
• Dimensions : 5.512 x 4.331 x 3.543 inch
• Weight : 1.499
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
