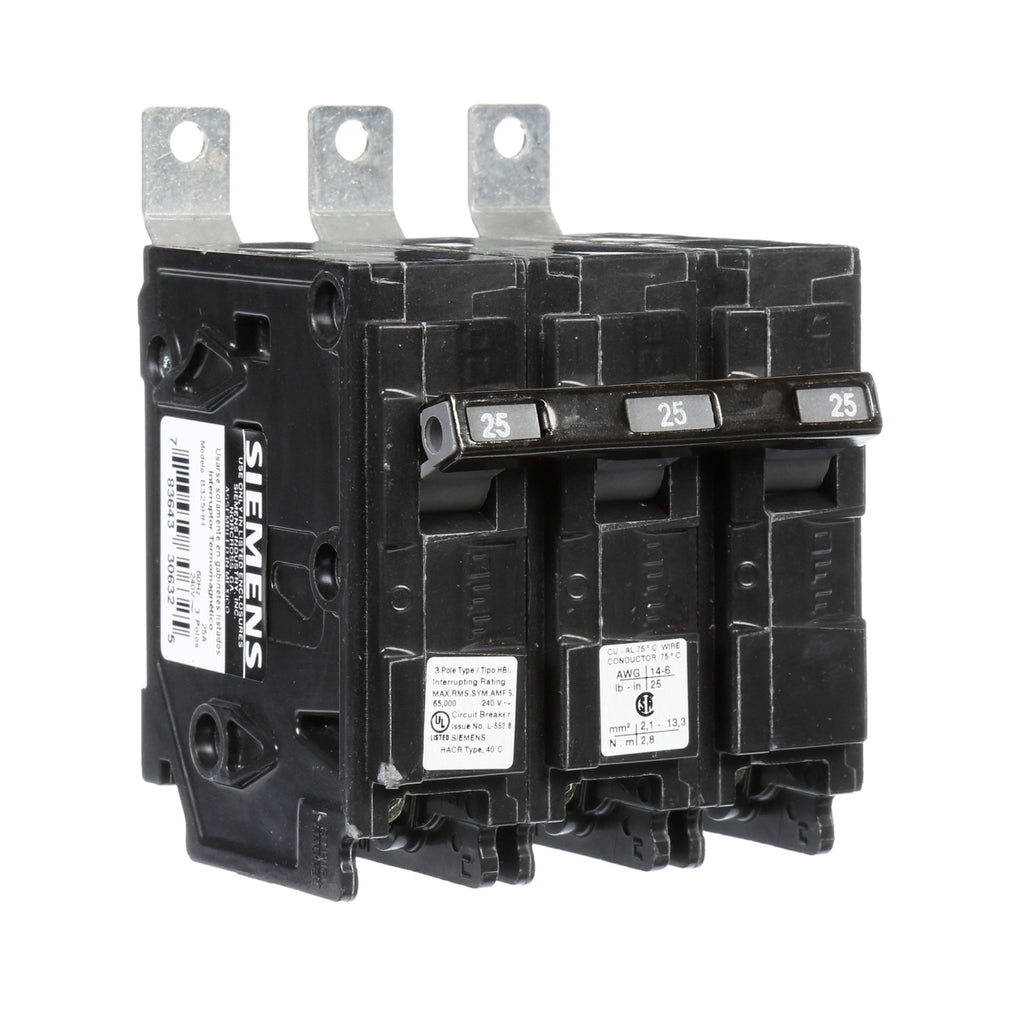

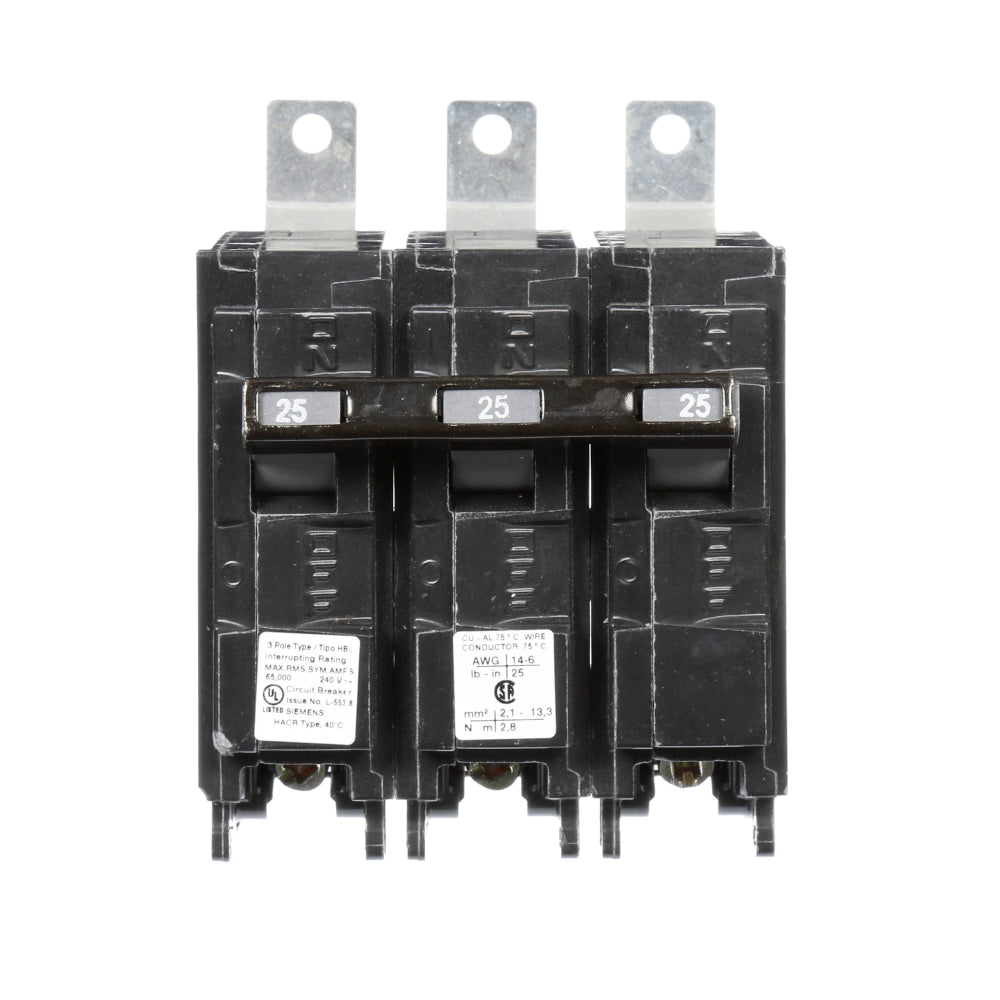

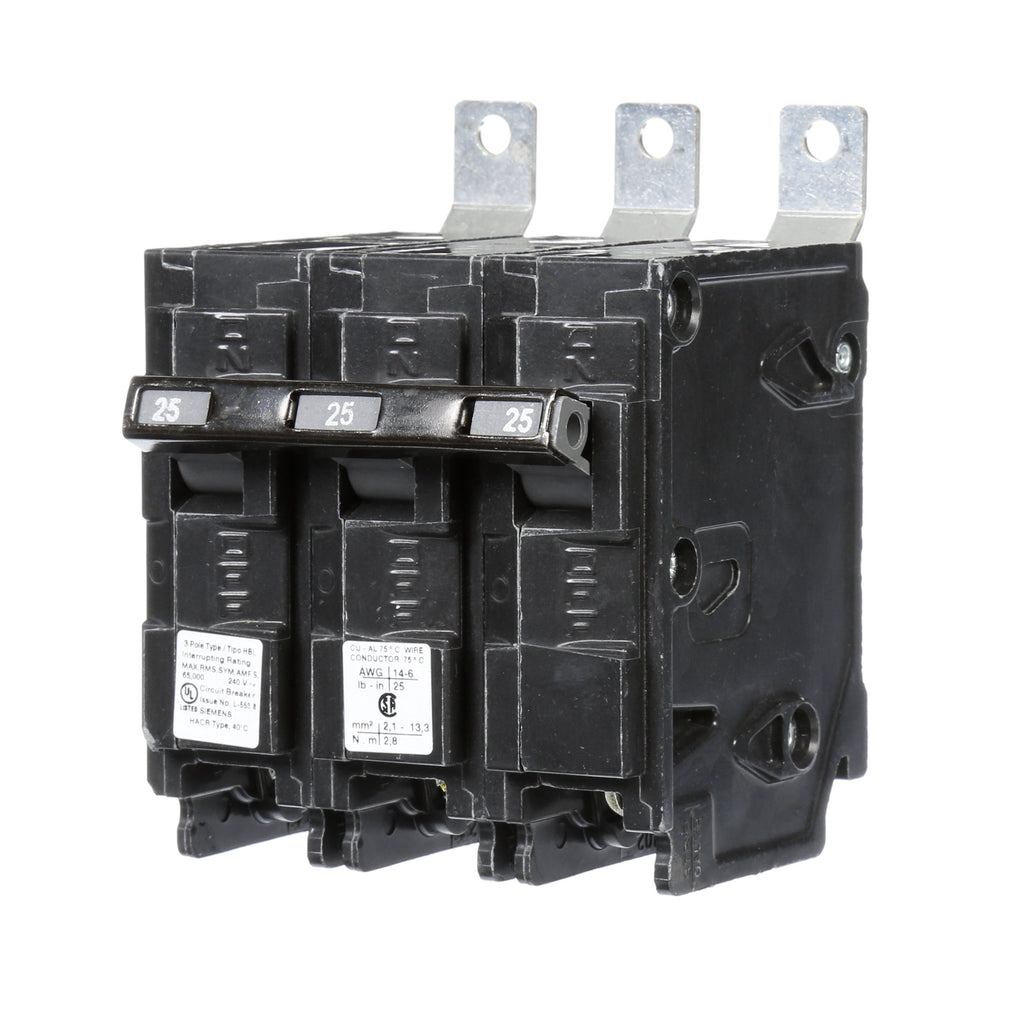

B325HH - Siemens 25 Amp 240V 3 Pole Bolt-On Circuit Breaker, 65kA Interrupt Rating, B Series Frame

B325HH

B325HH is a Siemens 25 Amp, 240 Volt, 3 Pole bolt-on circuit breaker designed for reliable low voltage protection.This Siemens B325HH circuit breaker features a 65,000 A interrupt rating at 240 VAC, thermal magnetic trip unit, and B series frame. It is bolt-on mounted for secure installation in panelboards and is suitable for lighting, distribution, and appliance applications. The breaker is UL 489 certified and designed for use with Siemens P1 panelboards.

• Amperage: 25 Amp
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65 kA at 240 VAC
• Series/Frame: B Series
• Trip Unit: Thermal Magnetic
• Certifications: UL 489
• Application: Lighting, Distribution, Appliance
• Terminal Connection: Lug and Busbar
• Compatible Panelboards: Siemens P1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B325HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643306325
• GTIN : 00783643306325
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
