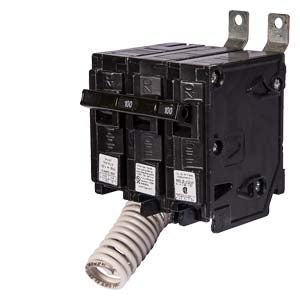

B24500S01 - Siemens 45A 2-Pole 120/240V BL Series Molded Case Circuit Breaker with Shunt Trip

B24500S01

B24500S01 is a Siemens 45 amp, 2-pole molded case circuit breaker designed for 120/240V applications with a BL series frame and shunt trip feature.This Siemens circuit breaker provides reliable overcurrent protection with a 10,000 AIC interrupt rating at 240 volts. It features a BL style design suitable for residential and commercial electrical panels, with a built-in shunt trip for remote tripping capability. The breaker is compact and engineered for easy mounting and integration into Siemens panelboards.

• Amperage: 45 Amps
• Voltage: 120/240 Volts AC
• Poles: 2
• Series/Frame: BL Series
• Interrupt Rating: 10,000 AIC at 240V
• Trip Unit: Shunt Trip
• Mounting Type: Molded Case

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B24500S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 45
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643089327
• GTIN : 00783643089327
• Country of Origin : Mexico
• Dimensions : 3 in x 2 in x 2 in
• Weight : 1.08
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
