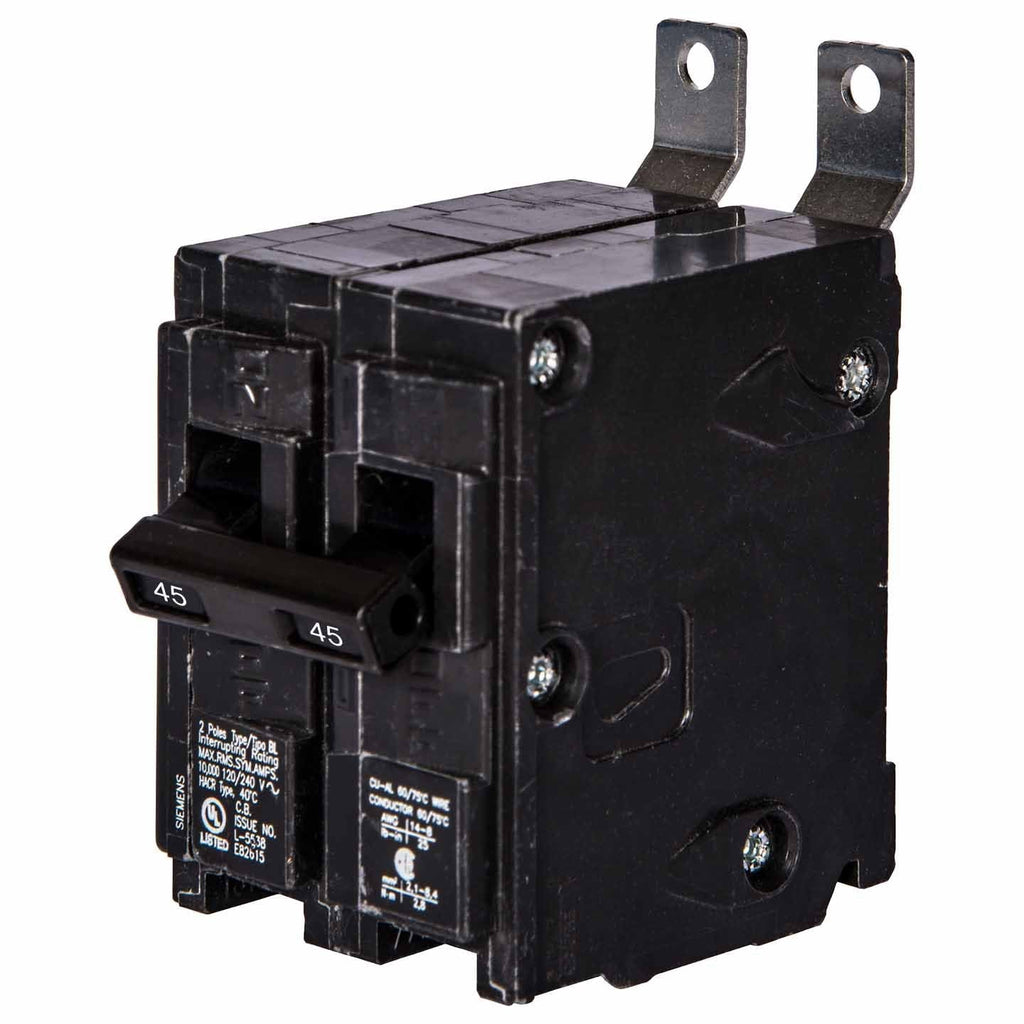

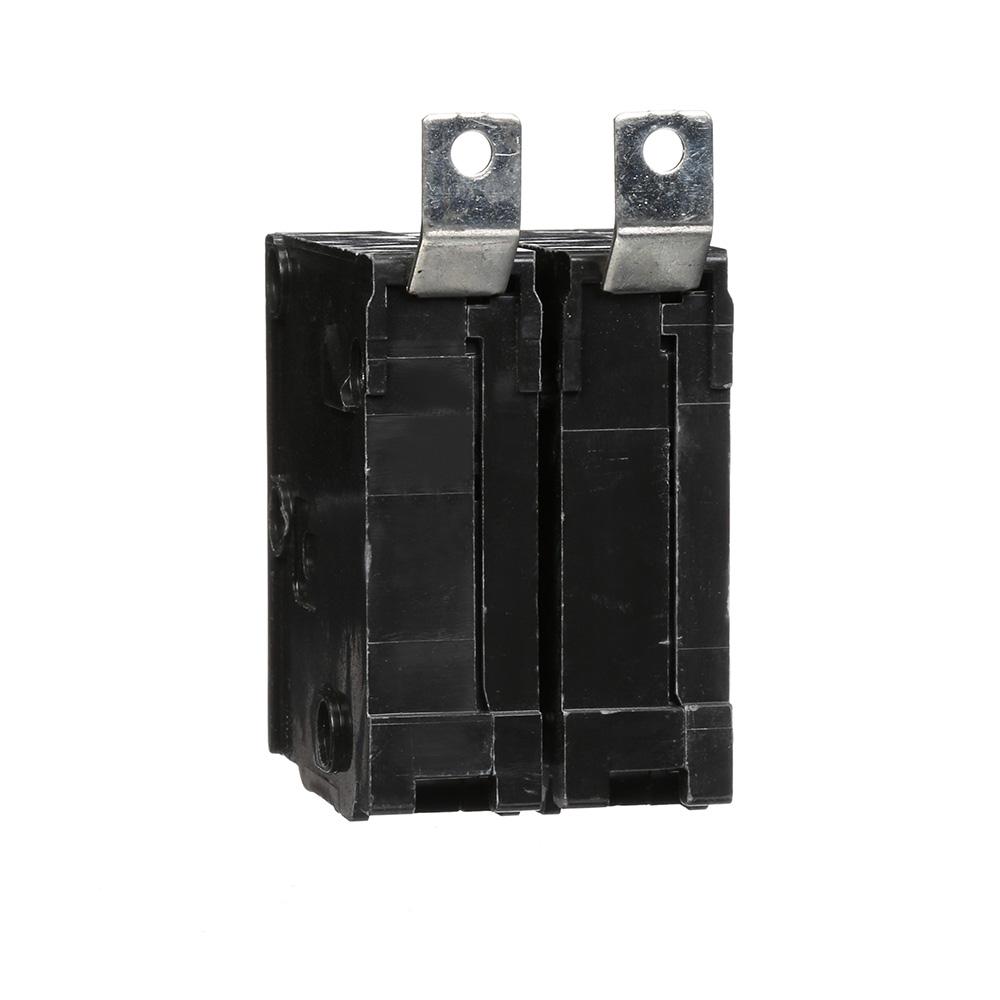

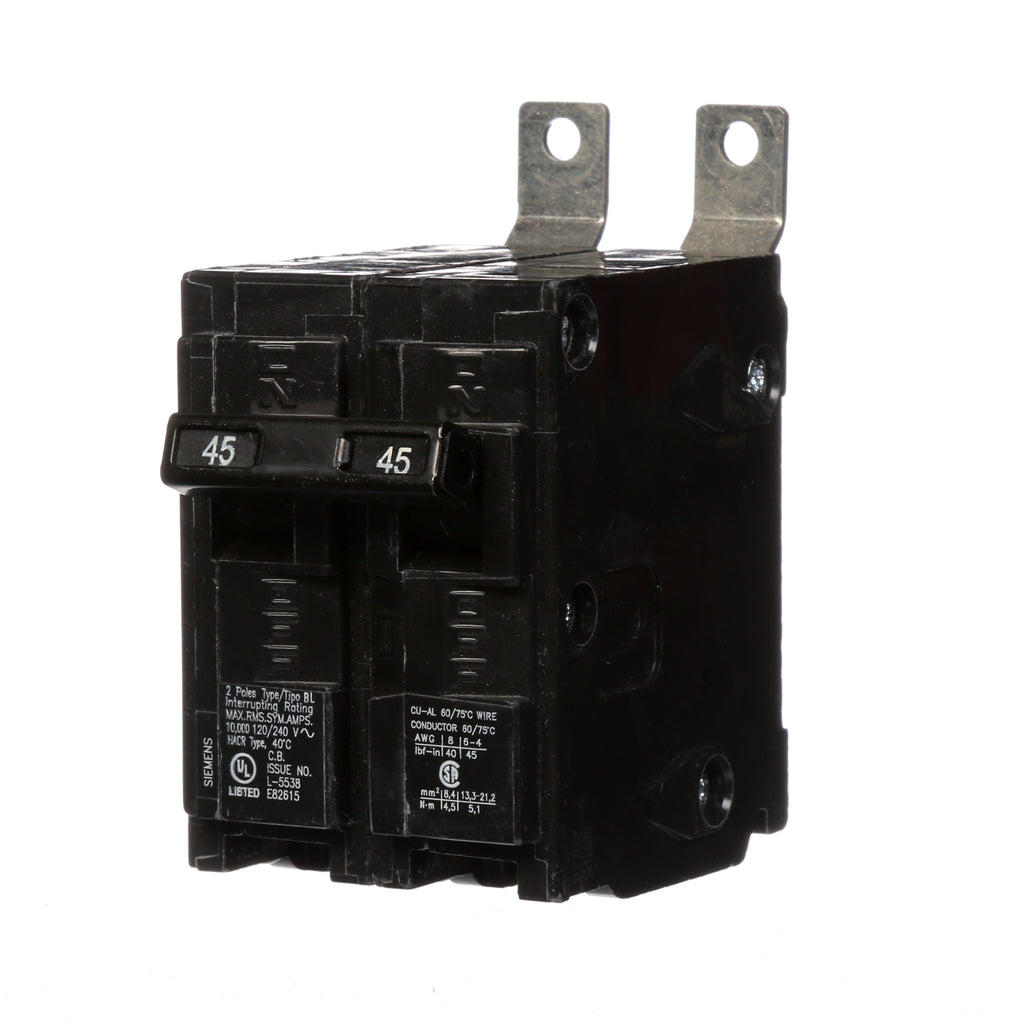

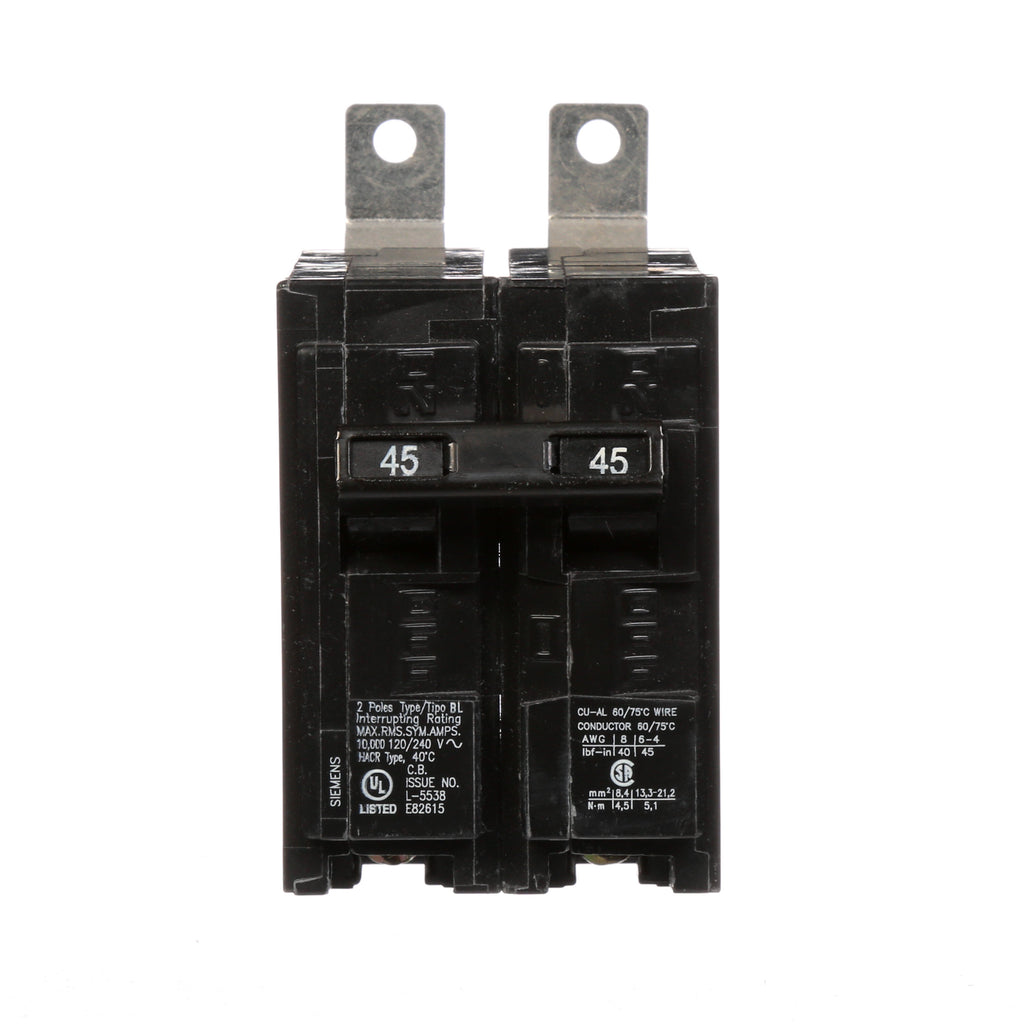

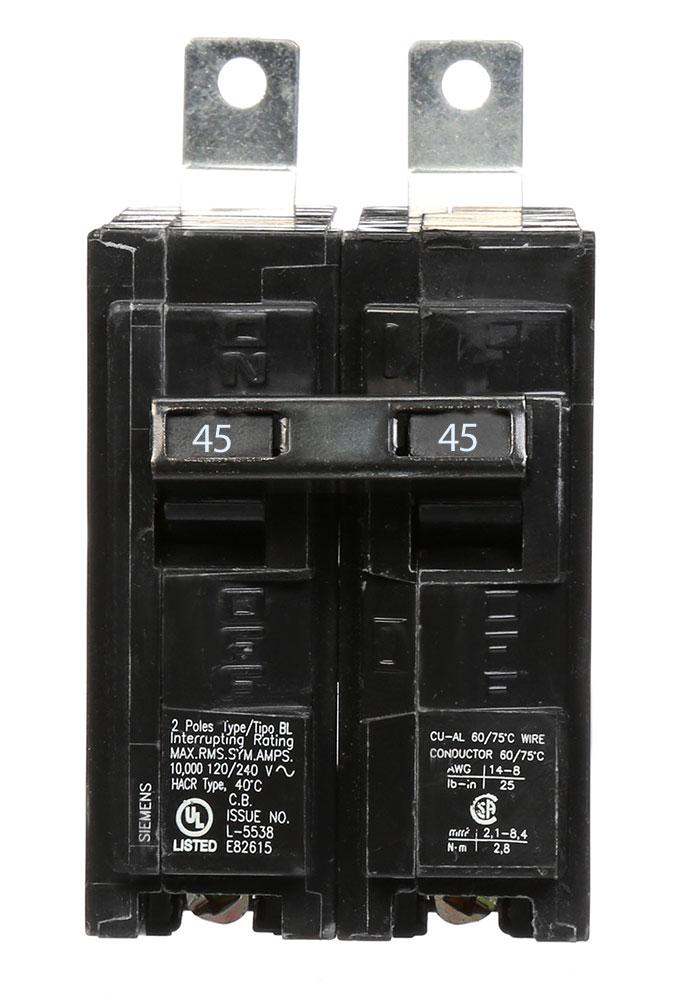

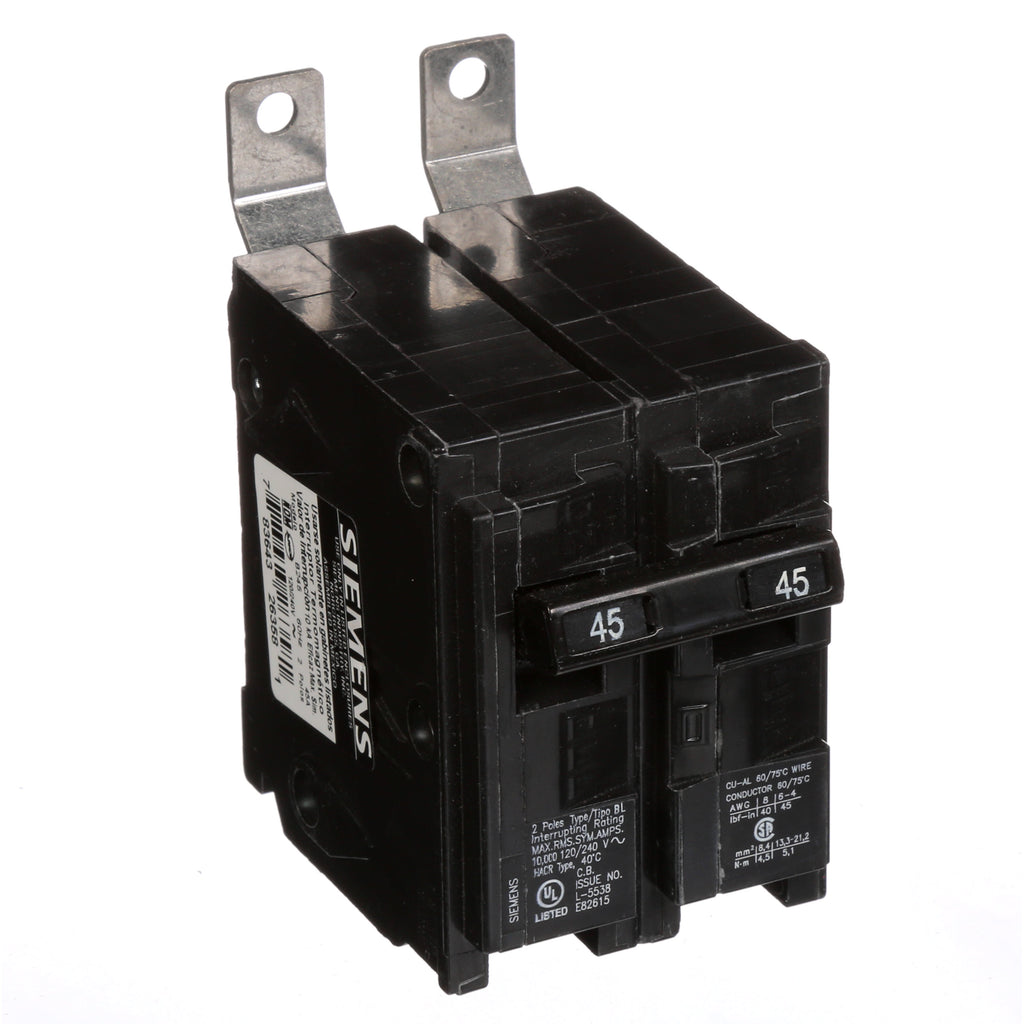

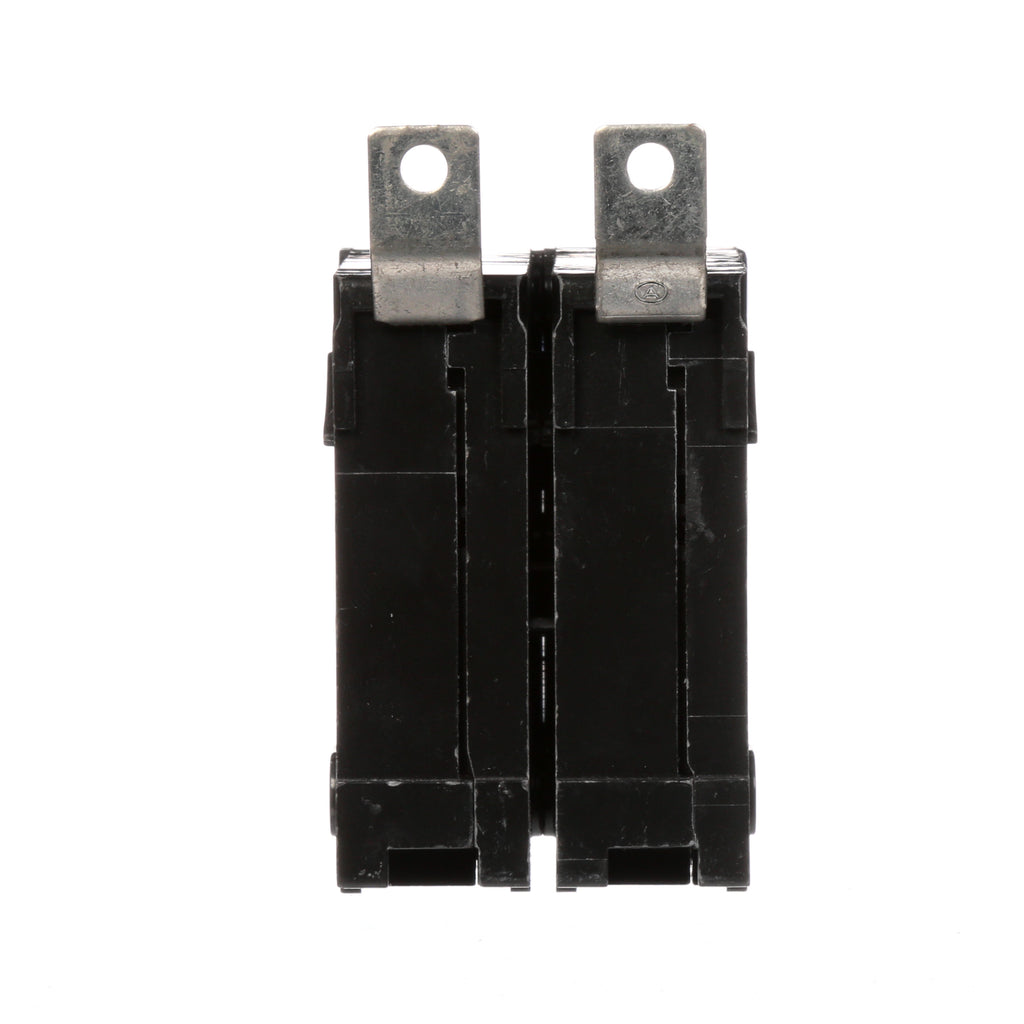

B245 - Siemens 45 Amp 2 Pole 120/240V Molded Case Circuit Breaker Bolt-On

B245

B245 is a Siemens 45 Amp 2 Pole molded case circuit breaker designed for reliable electrical protection.This Siemens B245 breaker features a 45 Amp current rating, 120/240 Volt voltage rating, and a 2 Pole configuration with bolt-on mounting. It has a thermal magnetic trip unit and a 10,000 A interrupt rating, suitable for panel mounting applications. The breaker is UL listed and designed for use in residential and commercial electrical systems.

• Amperage: 45 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 A
• Trip Unit: Thermal Magnetic
• Series/Frame: B-Frame
• Certifications: UL Listed
• Dimensions: Approx. 3 in L x 3 in W x 2 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B245
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 45
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263581
• GTIN : 00783643263581
• Country of Origin : Mexico
• Dimensions : 2.571 x 2.00 x 2.89 inch
• Weight : 0.639
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
