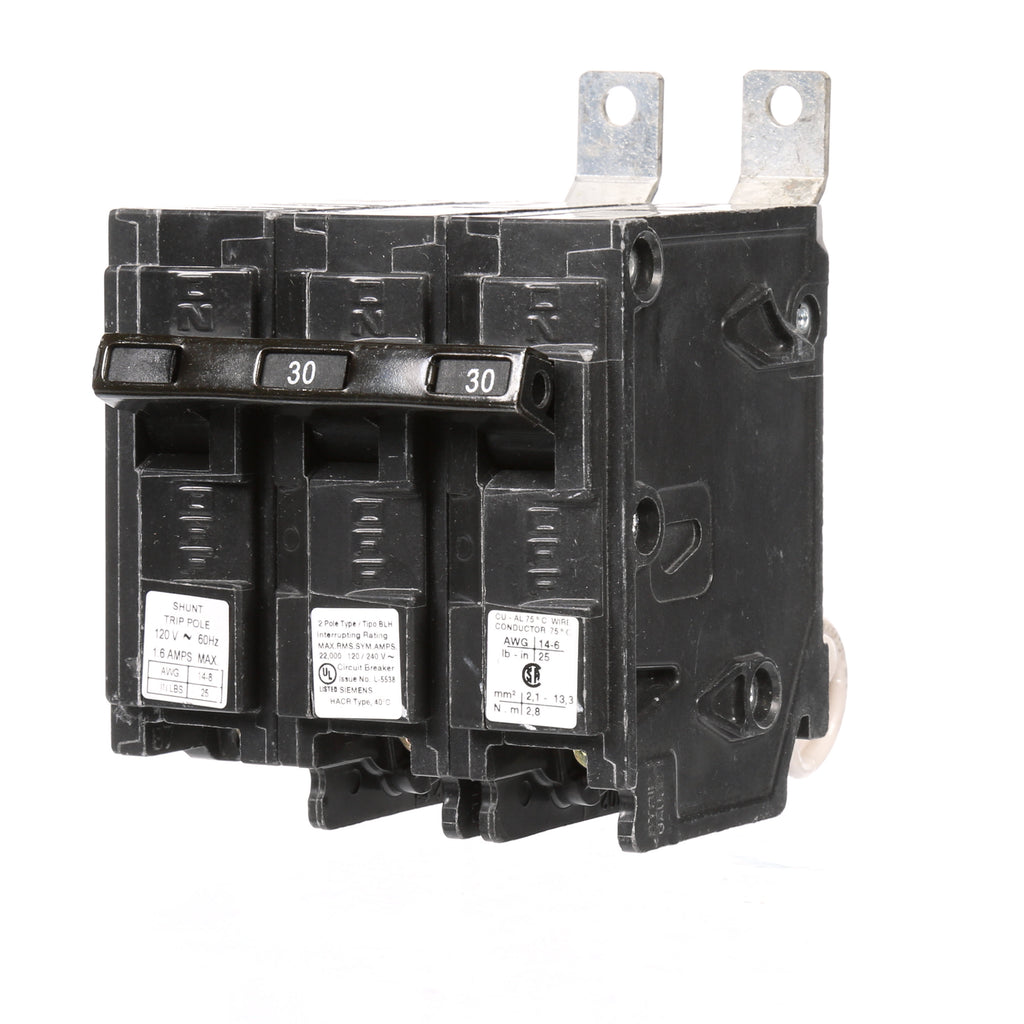

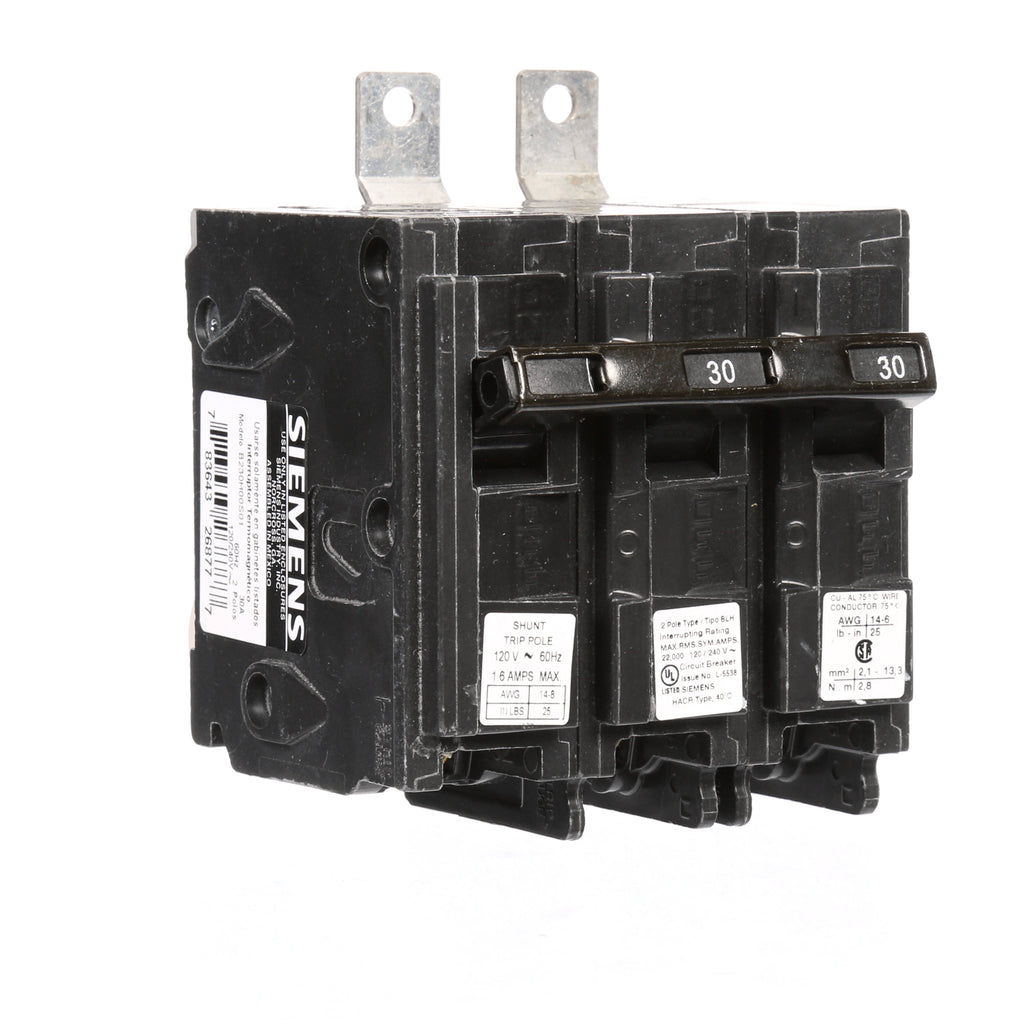

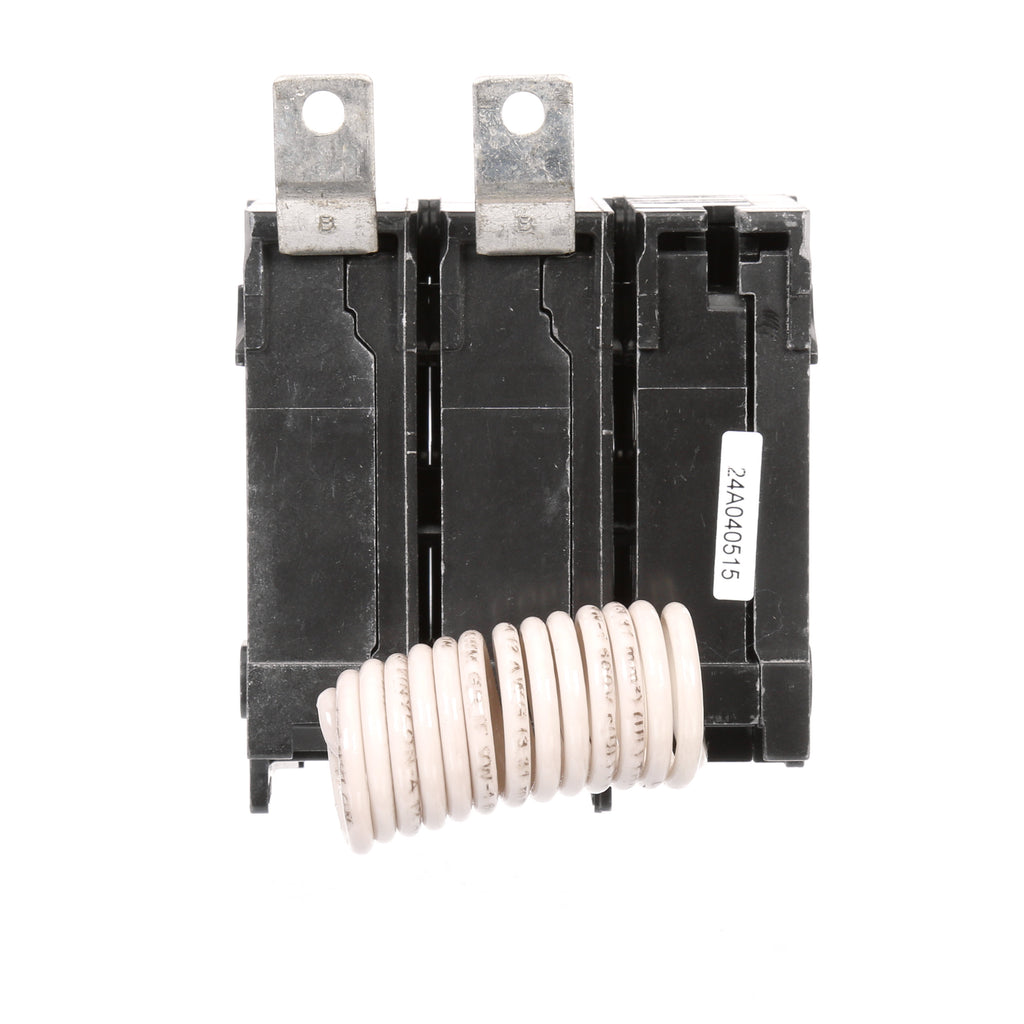

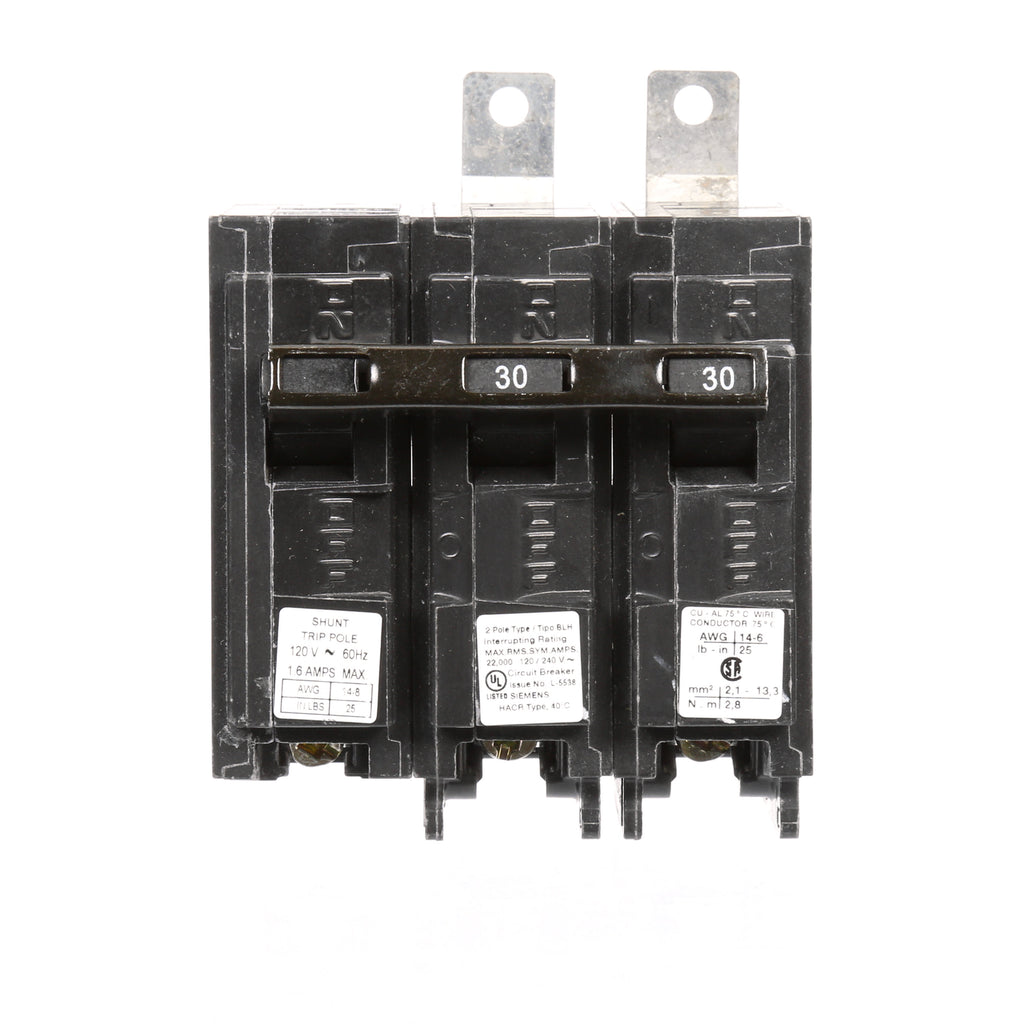

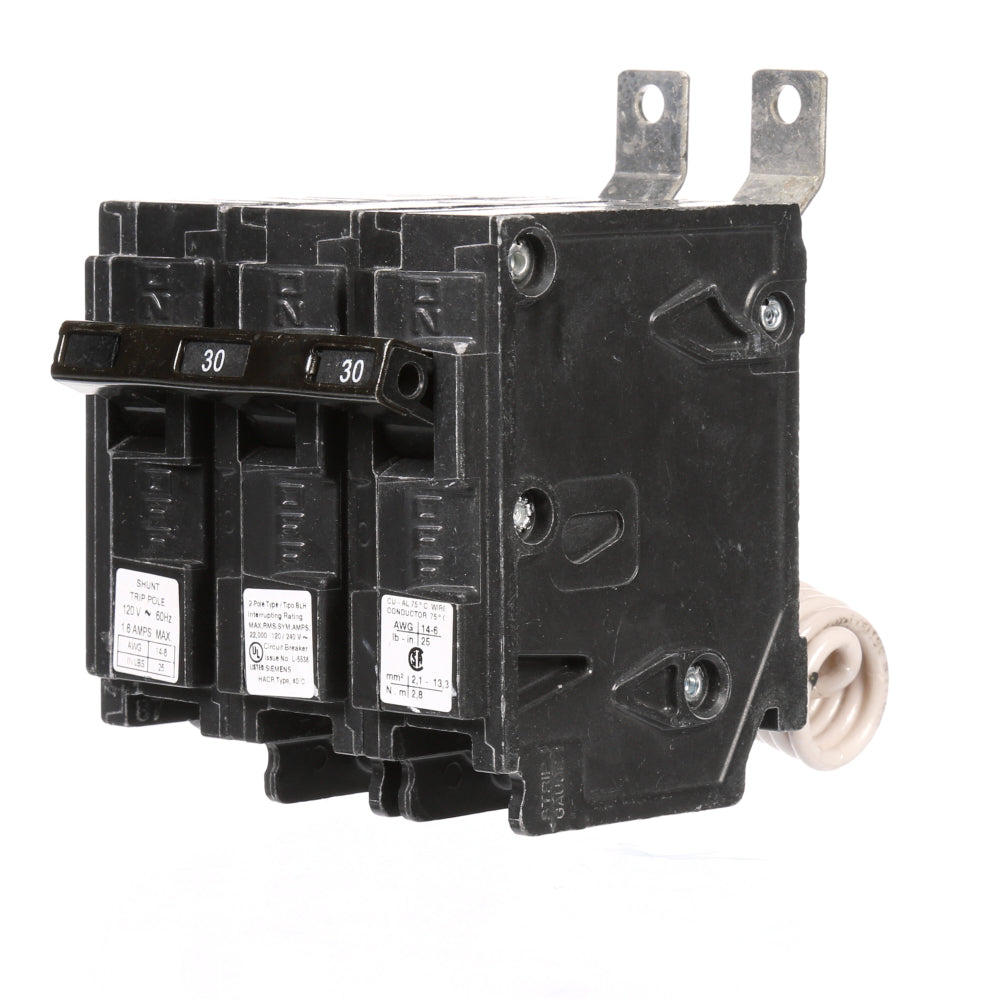

B230H00S01 - Siemens 30 A 2-Pole 120/240 V Shunt-Trip Molded Case Circuit Breaker

B230H00S01

B230H00S01 is a Siemens molded case circuit breaker designed for 120/240V AC systems with thermal-magnetic protection and bolt-on mounting.

This 2-pole breaker delivers reliable overcurrent and short-circuit protection for residential and light commercial applications. The BLH series frame provides a compact design with an interrupting capacity of 22 kA at 240V, making it suitable for standard distribution panels. The 120V shunt trip feature enables remote operation capabilities when integrated with appropriate control systems.

• Amperage Rating: 30 Amps
• Voltage: 120/240V AC
• Poles: 2-Pole
• Interrupting Capacity: 22 kA at 240V
• Trip Unit: Thermal-Magnetic
• Mounting Type: Bolt-On
• Series/Frame: BL Series, BLH Frame (125A)
• Shunt Trip: 120V
• Depth: 3 inches
• Height: 4 inches
• Length: 6 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: B230H00S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268777
• GTIN : 00783643268777
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.926
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Wire Size : 14 AWG (Cu), 12 AWG (Al) Min, 6 AWG Max
