2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B230H

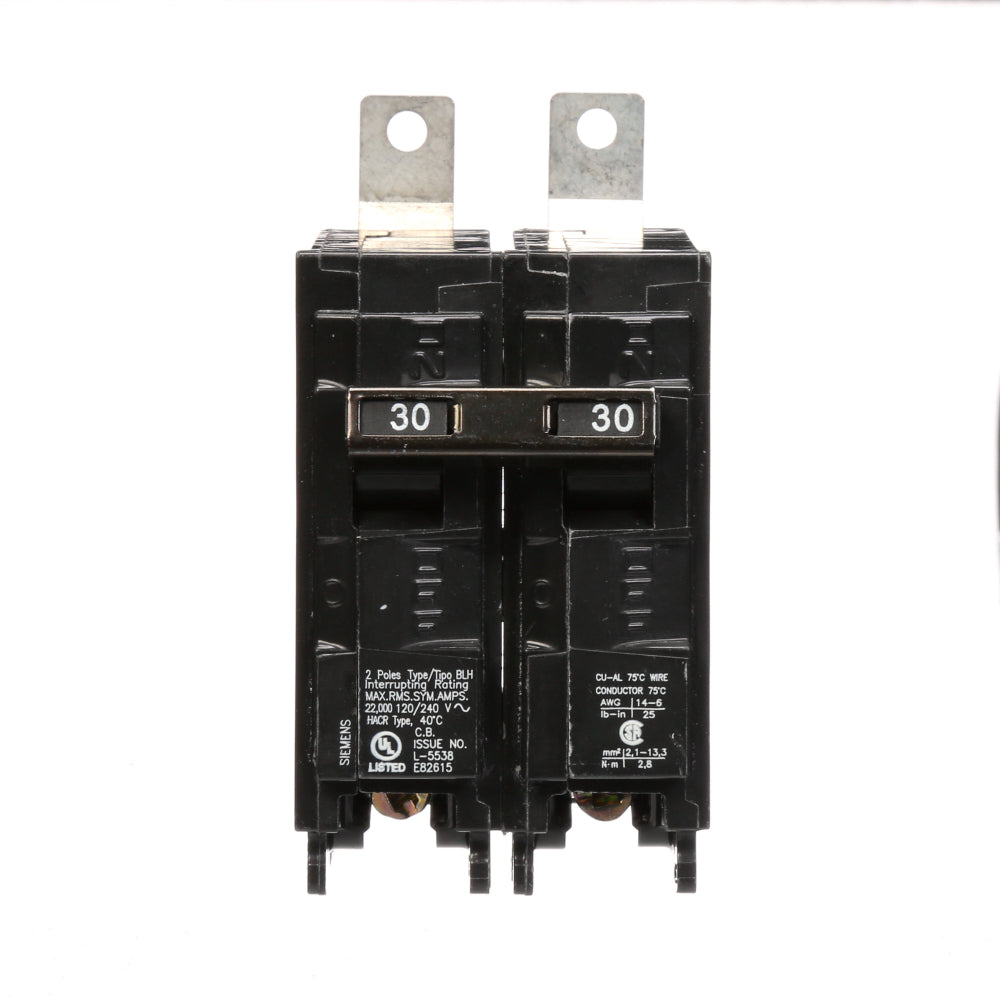

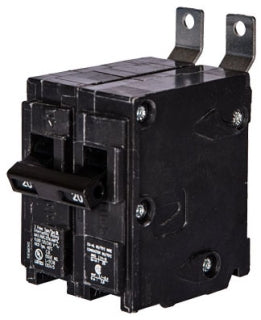

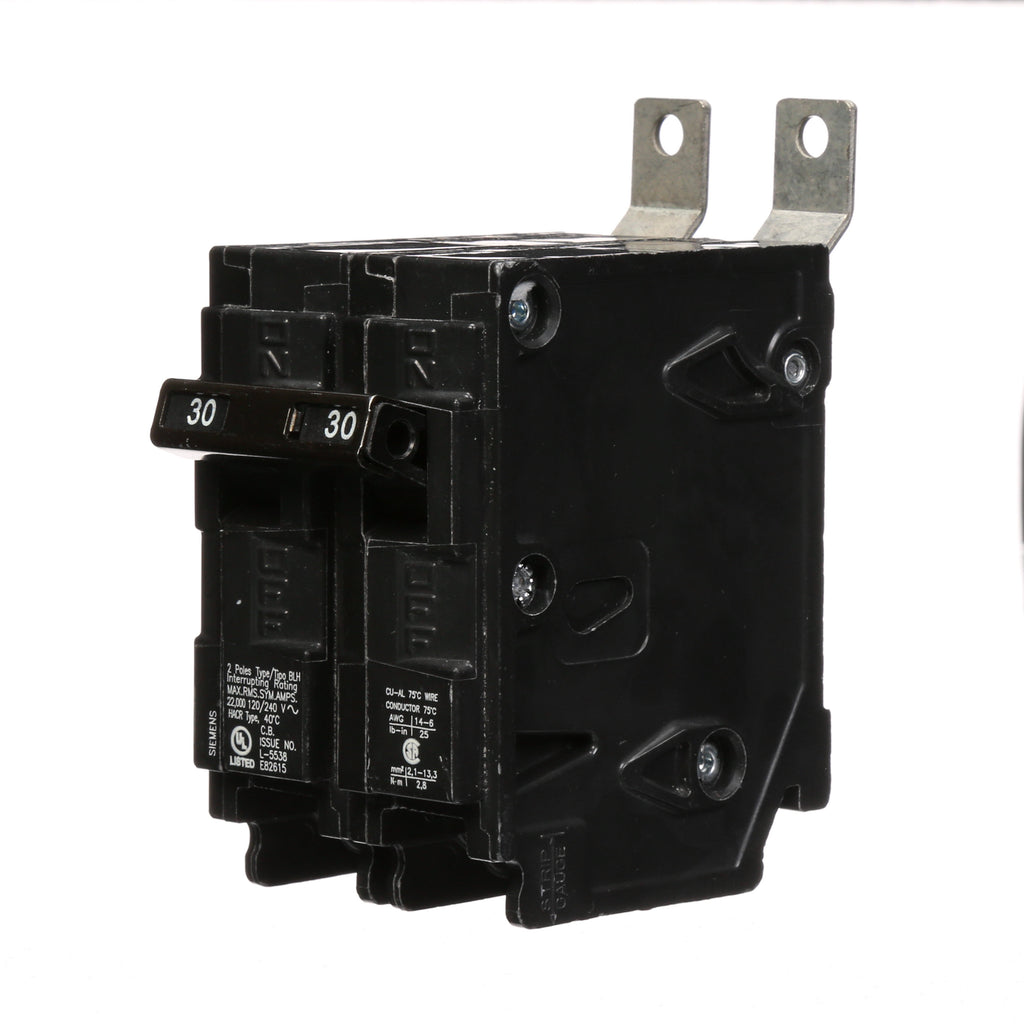

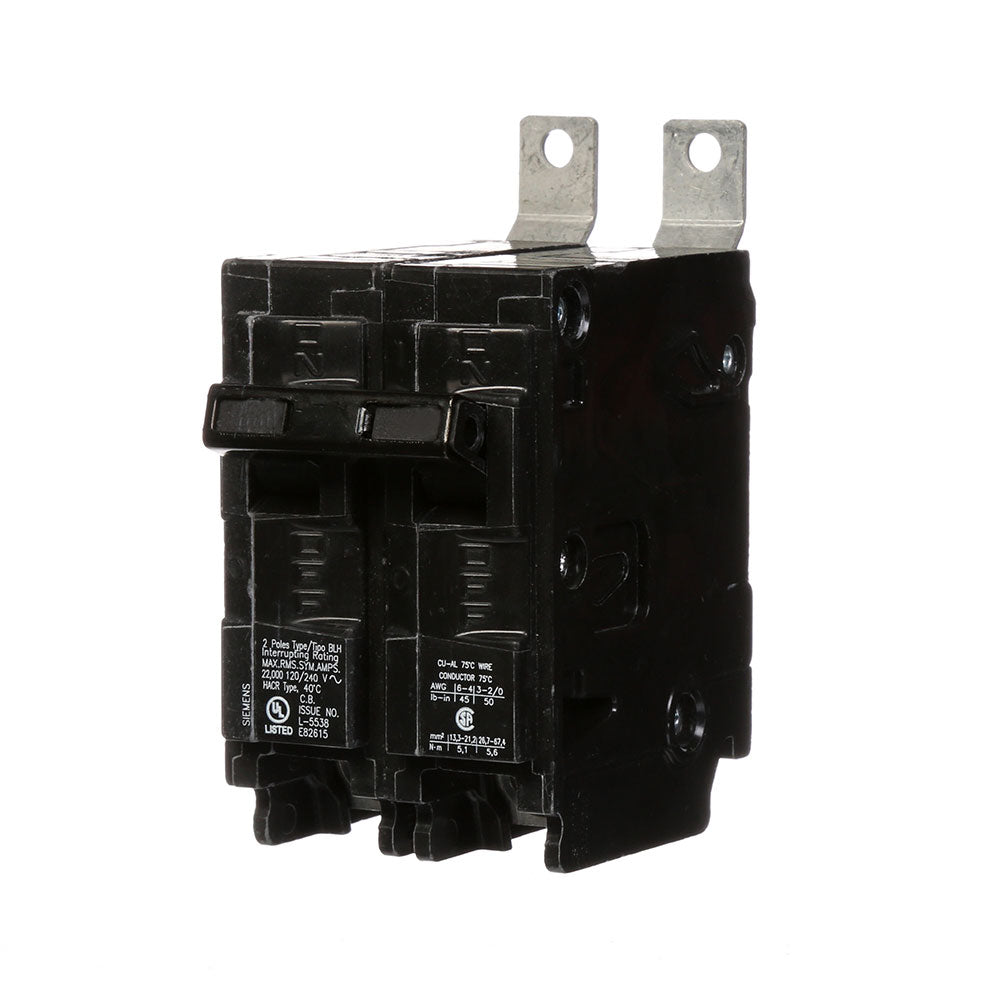

B230H is a Siemens 30 Amp 2-Pole molded case circuit breaker designed for 240VAC applications with a bolt-on mounting type.This circuit breaker features an ED frame, thermal magnetic trip unit, and a 22 kiloampere interrupt rating, making it suitable for reliable electrical distribution and protection. It is UL listed for 120/240 VAC at 60 Hz and includes a toggle actuator for easy operation.
- Manufacturer: Siemens
- Part Number: B230H
- Amperage: 30A
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 22 kA
- Frame Type: ED
- Trip Unit: Thermal Magnetic
- Actuator Type: Toggle
- Certifications: UL Listed
Specifications
- Part Number: B230H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BLH
- Voltage : 120/240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BLH
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643263918
- GTIN : 00783643263918
- Country of Origin : Mexico
- Dimensions : 12.598 x 4.331 x 3.543 inch
- Weight : 0.661
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
